DB106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB106

DB106: Descriptionsingle phase glass passivated bridge rectifier voltage:50 TO 1000v current:1.0A; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DB106 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB106	-	-	View	Buy Now

DB106 Overview

single phase glass passivated bridge rectifier voltage:50 TO 1000v current:1.0A

DB106 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	R-PDIP-T4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	800 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDIP-T4
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

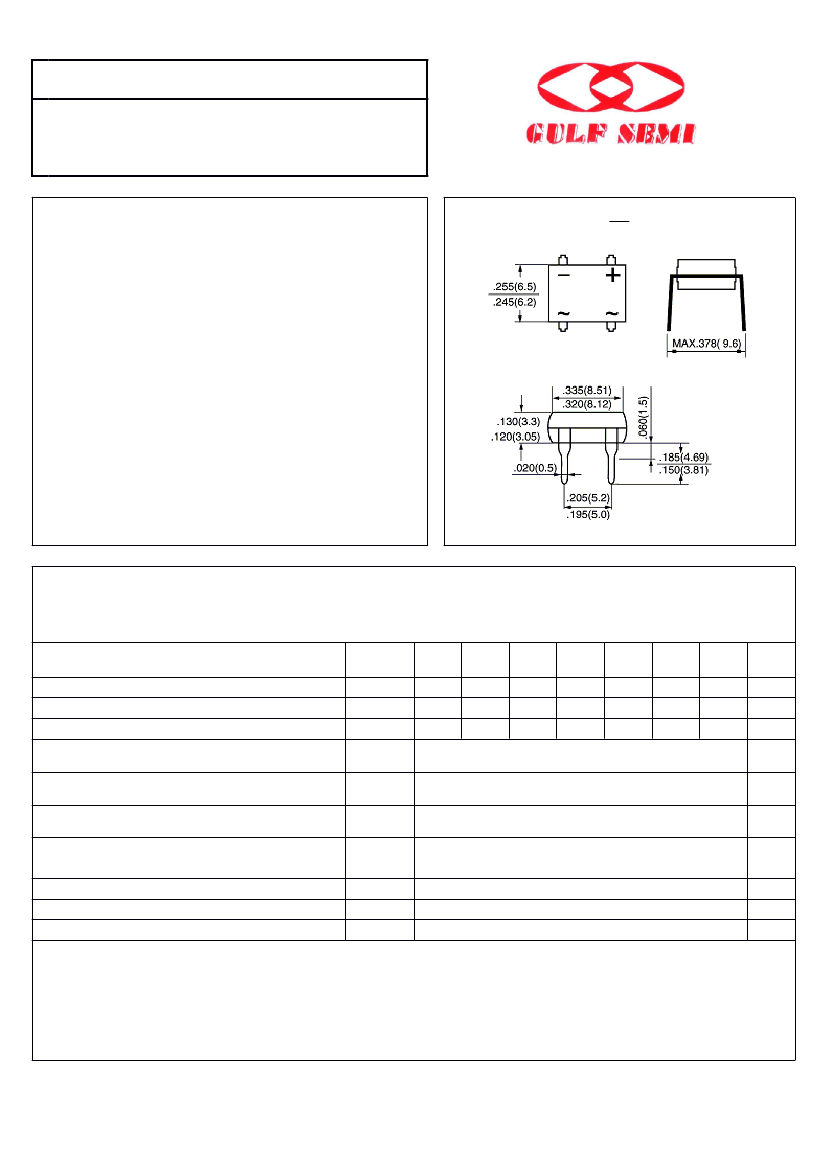

DB101 THRU DB107

SINGLE PHASE GLASS

PASSIVATED BRIDGE RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT:1.0A

FEATURE

Ideal for printed circuit board

Reliable low cost construction utilizing molded plastic

Technique

Surge overload rating:50 A peak

UL recognized file

E-107371

MECHANICAL DATA

Terminal: Plated leads solderable per

MIL-STD 202E, method 208C

Case:UL-94 Class V-0 recognized Flame Retardant Epoxy

Polarity: Polarity symbol marked on body

Mounting position: any

Dimensions in inches and (millimeters)

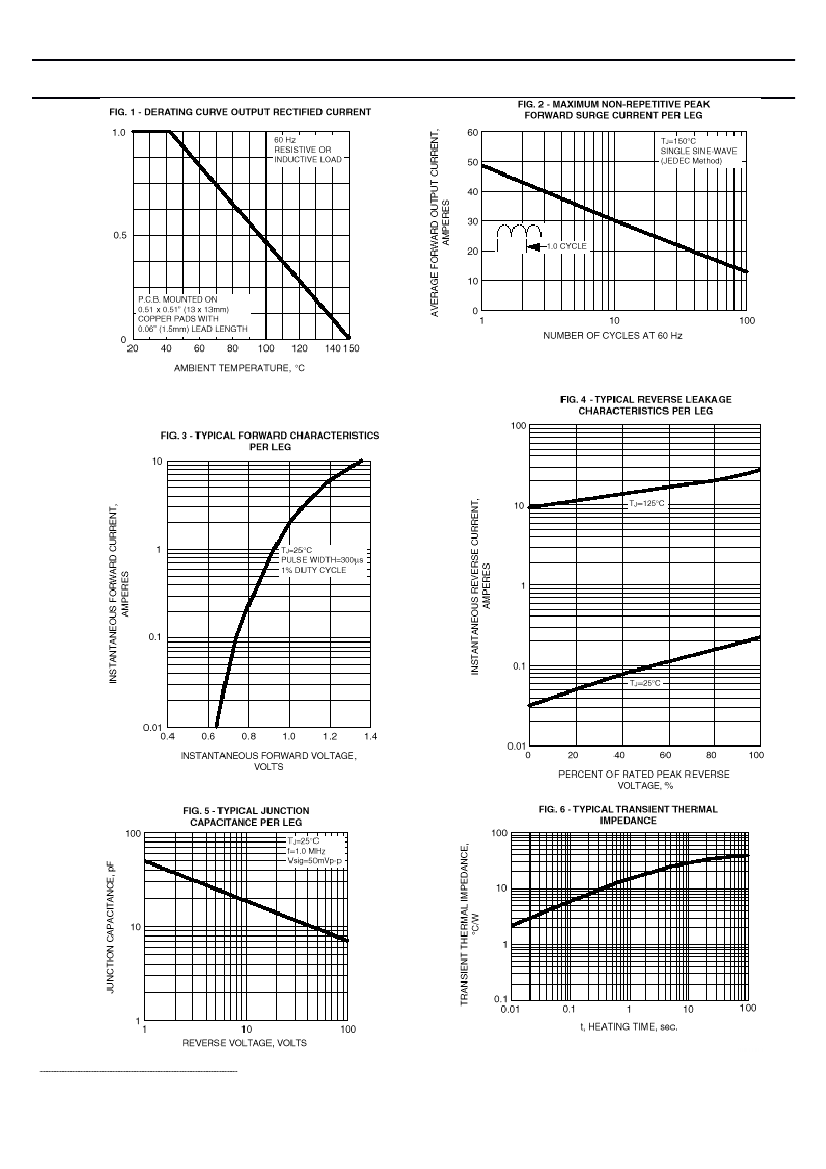

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current at Ta =40°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

forward current 1.0A

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Ta =125°C

Typical Junction Capacitance

Operating Temperature Range

Storage and Operation Junction Temperature

Note:

Vrrm

Vrms

Vdc

If(av)

Ifsm

Tstg

101

102

100

103

200

140

200

104

400

280

400

1.0

50.0

1.1

10.0

500.0

25.0

-55 to +125

-55 to +150

105

600

420

600

106

800

560

800

107

1000

700

1000

units

µA

°C

1. Measured at 1.0 MHz and applied voltage of 4.0 volt

Rev.A5

www.gulfsemi.com

DB106 Related Products

	DB106	DB105	DB107
Description	single phase glass passivated bridge rectifier voltage:50 TO 1000v current:1.0A	single phase glass passivated bridge rectifier voltage:50 TO 1000v current:1.0A	single phase glass passivated bridge rectifier voltage:50 TO 1000v current:1.0A
Is it Rohs certified?	conform to	conform to	conform to
Maker	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor
package instruction	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4
Contacts	4	4	4
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	800 V	600 V	1000 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4
Humidity sensitivity level	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Maximum repetitive peak reverse voltage	800 V	600 V	1000 V
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
