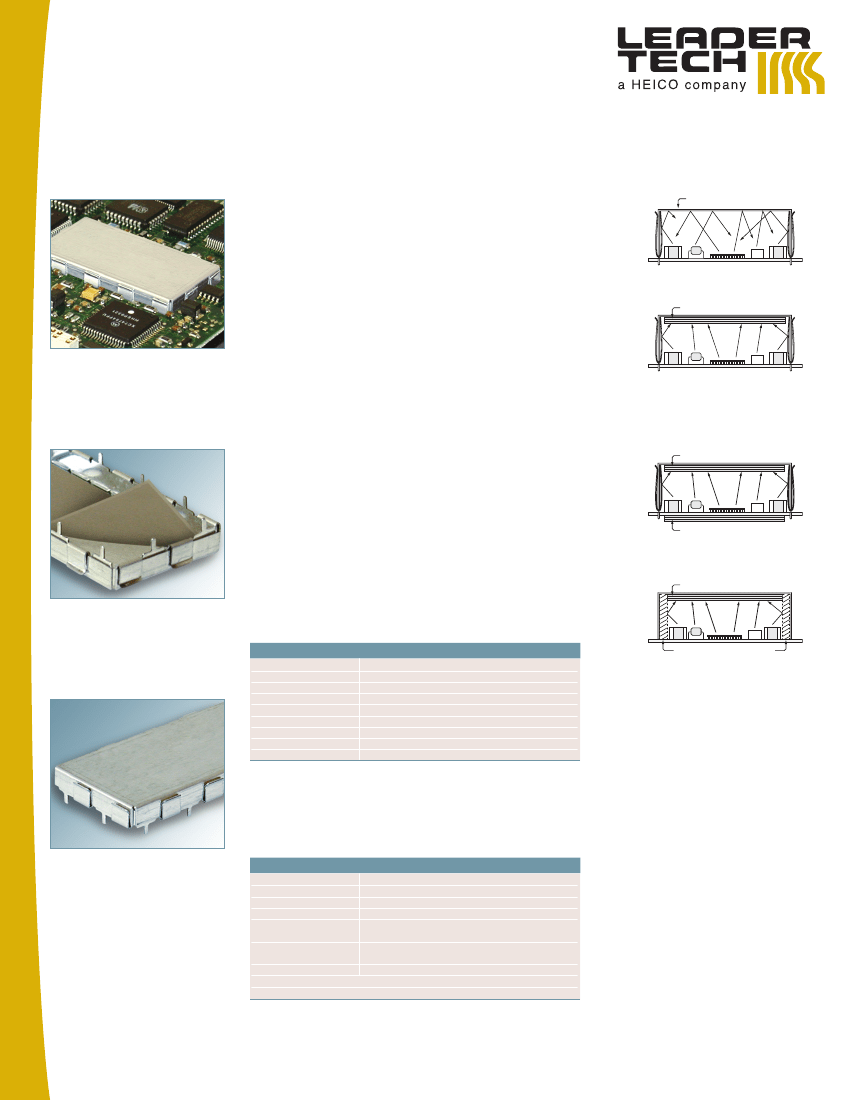

PCB shielded enclosures with RF absorbers
Shielded enclosures for RF radiations from PCB components stop RF
energy right at the source, eliminating re-radiation and interference with
other nearby components as well as reducing the number of other
shielding expenditures such as filters, gaskets and RF hardening of the
equipment exterior structure.
The addition of a frequency-tuned absorber membrane layer adds
unprecedented performance, assimilating radiated energy without relying
on repeated reflections from the interior surfaces of the shield, and
without problems of harmonic resonance. Refer to sketches at right.
Reflective Shield
Reflective Shield
Reflective Shield
Typical shielding approach allows
reflected radiation to affect neighboring
components.
RF Absorber Shield
modular fence and cover design
The versatile shield design includes a solderable fence and tight-fitting
cover assembly of copper alloy 770 (C77000), a tough solder-compatible
material which does not require plating nor has corrosion prone bare
edges. The removable cover provides convenient access to circuitry; and
is very cost-effective due to the use of universal multi-use manufacturing
tooling.
RF Absorber Shield
RF Absorber Shield
RF absorber approach assimilates
radiated frequencies and converts to
imperceptible heat energy. Specific
frequency-tuned absorber material is
bonded to
RF Absorber Shield
range of
the lid interior. A wide
EMC and Microwave absorbers can be
specified from 40 MHz up to 116 GHz.
custom tuning to the exact frequency
Each enclosure shield size can be combined with frequency-specific
absorber material bonded to the cover interior for exacting remediation of
otherwise errant frequency emanations - a selection of five EMC
absorbers effective from 50 MHz to 1 GHz along with an extra wideband
version effective from 40 MHz to 5 GHz; and, ten Microwave versions
effective up to 116 GHz.
RF Absorber Shield
RF Absorber Shield
RF Absorber Shield
RF Absorber Shield
PCB Shield effectiveness can be further
RF Absorber Shield
enhanced by adding RF absorber
material under PCB (see pages 30-34).
RF absorber membrane partially detached
from lid for exhibit purpose only.
absorber membrane specifications
EMC standard series – 50MHz to 1GHz
Five frequency-specific formulations.
Material Characteristic
Frequency range
Peak frequency choices
Temperature range
Flammability rating
Adhesive: temperature
tack
shear
Dimensions: standard
maximum
RF Absorber Shield
RF Absorber Shield
Adhesive Mount Option
Measure
50 MHz - 1 GHz
100, 300, 400, 500 or 800 MHz
-20˚C to 100˚C
UL94-V0
0˚F to 180˚F
-18˚C to 83˚C
ASTM D-3575
8.4 p.s.i. (stainless steel)
ASTM D-3575
300+ hrs. @ 2 p.s.i. @ 22˚C
ASTM D-3575
15.75” W x 15.75 “ L x .011” max.
400,0 x 400,0 x 0,28
3’-0” W x 65’-0” L x .011” max
1,0 x 20,0 M x 0,28
Adhesive Mount Option
Adhesive Mount Option
EMC extra wideband series
40MHz TO 5GHz @ 3.2GHz PEAK.
This all-around universal wideband
formula is available in a standard temperature type and a high
temperature type (up to 200˚C). Excellent performance from 40MHz to
5GHz (PS3200EMC series, opposite page).
pin mount
Material Characteristic
Measure
Frequency range
40 MHz - 5 GHz
Peak frequency
3.2 GHz
Temperature range
-20˚C to 100˚C and -10˚C to 200˚C (high temp)
Flammability rating
UL94-V0
-18˚C to 83˚C
ASTM D-3575
Adhesive: standard temp.
0˚F to 180˚F
50˚F to 312˚F
high temp.
10˚C to 200˚C
ASTM D-3575
tack
8.4 p.s.i.
(stainless steel standard)
ASTM D-3575
8.3 p.s.i.
(stainless steel high temperature)
ASTM D-3575
shear
300+ hrs. @ 2 p.s.i. @ 22˚C
ASTM D-3575
Dimensions: standard
8.25” W x 15.75 “ L x .004” max.
210,0 x 400,0 x 0,10
maximum
3’-0” W x 65’-0” L x .004” max
1,0 x 20,0 M x 0,10
14100 McCormick Drive
Tampa, FL 33626
866.TECH.EMI (866.832.4364)
www.leadertechinc.com
T: 813.855.6921
F: 813.855.3291
The Leading Source for EMI Shielding
Reliable Board, Enclosure and Cable Solutions

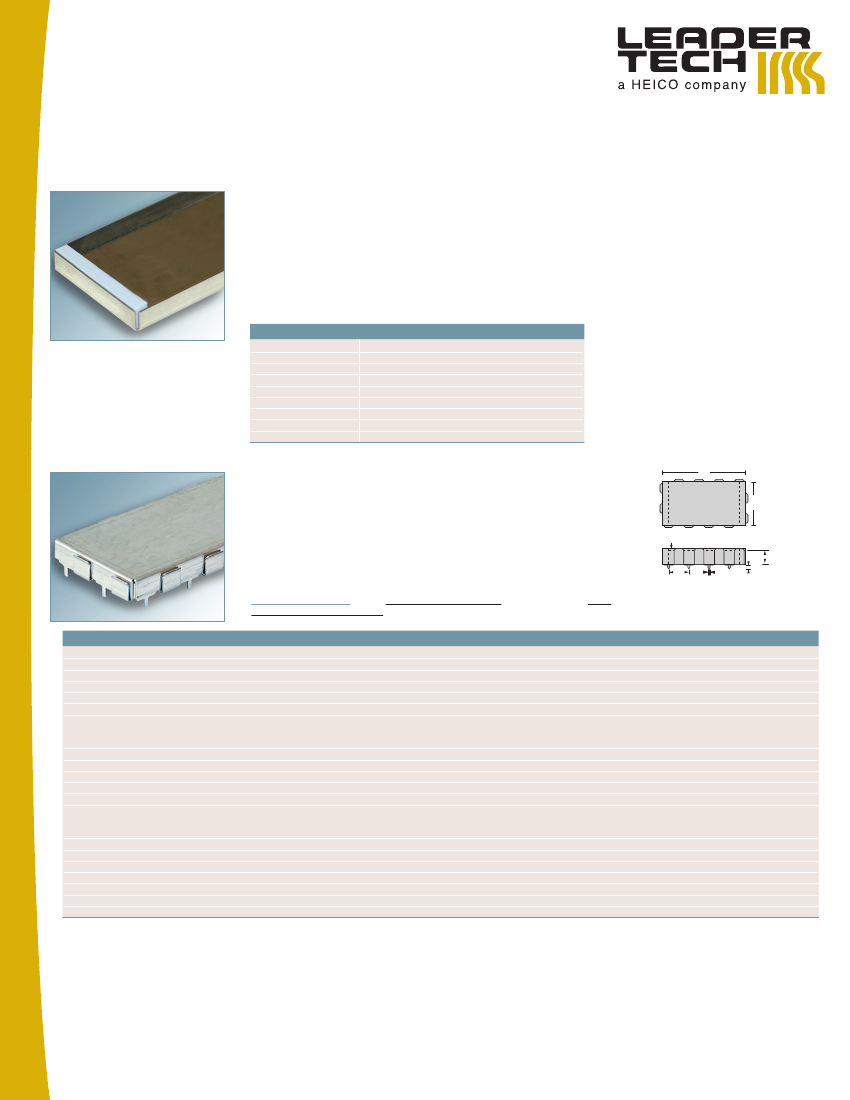

Microwave series: – up to 116 GHz
The MA series is a high frequency microwave noise absorber in a range
of formulations addressing 2.0GHz to 116GHz radiations from electronic
components.
Material Characteristic
adhesive mount
Measure
2.0 MHz - 116.0 GHz
2.4, 5.8, 10, 18, 24, 26, 38, 60, 76, 110 GHz
-20˚C to 110˚C
UL94-V0
0˚F to 180˚F
-18˚C to 83˚C
ASTM D-3575
8.4 p.s.i. (stainless steel)
ASTM D-3575
300+ hrs. @ 2 p.s.i. @ 22˚C
ASTM D-3575
7.875” W x 15.75 “ L x .138” max.200,0
x 400,0 x 3,5
3’-0” W x 65’-0” L x .138” max
1,0 x 20,0 M x 3,5
Frequency range
Peak frequency choices
Temperature range
Flammability rating
Adhesive: temperature
tack
shear
Dimensions: standard
maximum
EMC type PCB shield enclosures
THROUGH-HOLE OR ADHESIVE MOUNT – UP TO 5GHz.
The EMC series is
available in three standard sizes; each can be combined with an absorber
layer bonded to the inside of the lid in seven choices including the “3200”
extra wideband absorber with effective characteristics from 40 MHz
through 5 GHz, which is also available in a high temperature version.
Refer to page 28 for absorber material characteristics, and page 29 for
typical absorption rates by frequency.
For recommended Mounting Hole Patterns, visit our web site at
www.ferrishield.com
under PCB Shield Enclosures and click on link PCB
Mounting Hole Patterns. Adhesive mount option provides quick
installation, easy retrofit.
PART No.
PS100EMC24
PS300EMC24
PS400EMC24
PS500EMC24
PS800EMC24
PS3200EMC24
PS3200EMC24H*
PSEMC24
PS100EMC44
PS300EMC44
PS400EMC44
PS500EMC44
PS800EMC44
PS3200EMC44
PS3200EMC44H*
PSEMC44
PS100EMC59
PS300EMC59
PS400EMC59
PS500EMC59
PS800EMC59
PS3200EMC59
PS3200EMC59H*
PSEMC59
B
A
Internal Absorber Layer
D
pin length
.040"
(1,02mm)
Through-hole mount – recommended hole size .050” (1,27mm)
Surface mount – pins formed w/ 90˚ outward bend,
add “SM” suffix to the part #
Adhesive mount – no holes required
E
C
Board to
Absorber
Adhesive Mount
PS100EMC24A
PS300EMC24A
PS400EMC24A
PS500EMC24A
PS800EMC24A
PS3200EMC24A
PS3200EMC24HA*
PSEMC24A (w/o absorber)
PS100EMC44A
PS300EMC44A
PS400EMC44A
PS500EMC44A
PS800EMC44A
PS3200EMC44A
PS3200EMC44HA*
PSEMC44A (w/o absorber)
PS100EMC59A
PS300EMC59A
PS400EMC59A
PS500EMC59A
PS800EMC59A
PS3200EMC59A
PS3200EMC59HA*
PSEMC59A (w/o absorber)
A
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
25,4
25,4
25,4
25,4
25,4
25,4
25,4
25,4
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
B
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
4.50
4.50
4.50
4.50
4.50
4.50
4.50
4.50
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
114,3
114,3
114,3
114,3
114,3
114,3
114,3
114,3
C
.198
.198
.198
.189
.192
.196
.196
.200
.398
.398
.398
.389
.392
.396
.396
.400
.498
.498
.498
.489
.492
.496
.496
.500
5,0
5,0
5,0
4,8
4,9
5,0
5,0
5,1
10,1
10,1
10,1
9,9
10,0
10,1
10,1
10,2
12,6
12,6
12,6
12,4
12,5
12,6
12,6
12,7
D
.100
.100
.100
.100
.100
.100
.100
.100
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
E
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.250
.250
.250
.250
.250
.250
.250
.250
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
6,4
6,4
6,4
6,4
6,4
6,4
6,4
6,4
Frequency Range
50
50
50
50
50
40
40
50
50
50
50
50
50
40
40
50
50
50
50
50
50
40
40
50
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
to
1
1
1
1
1
5
5
1
1
1
1
1
1
5
5
1
1
1
1
1
1
5
5
1
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
Peak Frequency Attenuation
100 MHz
300 MHz
400 MHz
500 MHz
800 MHz
3.2 GHz
3.2 GHz
100 MHz
100 MHz
300 MHz
400 MHz
500 MHz
800 MHz
3.2 GHz
3.2 GHz
100 MHz
100 MHz
300 MHz
400 MHz
500 MHz
800 MHz
3.2 GHz
3.2 GHz
100 MHz
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
-17.3 dB
-17.6 dB
-17.2 dB
-17.8 dB
-17.9 dB
-31.3 dB
-31.3 dB
-5.3 dB
-17.3 dB
-17.6 dB
-17.2 dB
-17.8 dB
-17.9 dB
-31.3 dB
-31.3 dB
-5.3 dB
-17.3 dB
-17.6 dB
-17.2 dB
-17.8 dB
-17.9 dB
-31.3 dB
-31.3 dB
-5.3 dB
*NOTE: “H” variations of these “PS3200EMC” types are the high temperature version
14100 McCormick Drive
Tampa, FL 33626
866.TECH.EMI (866.832.4364)
www.leadertechinc.com
T: 813.855.6921
F: 813.855.3291
The Leading Source for EMI Shielding
Reliable Board, Enclosure and Cable Solutions

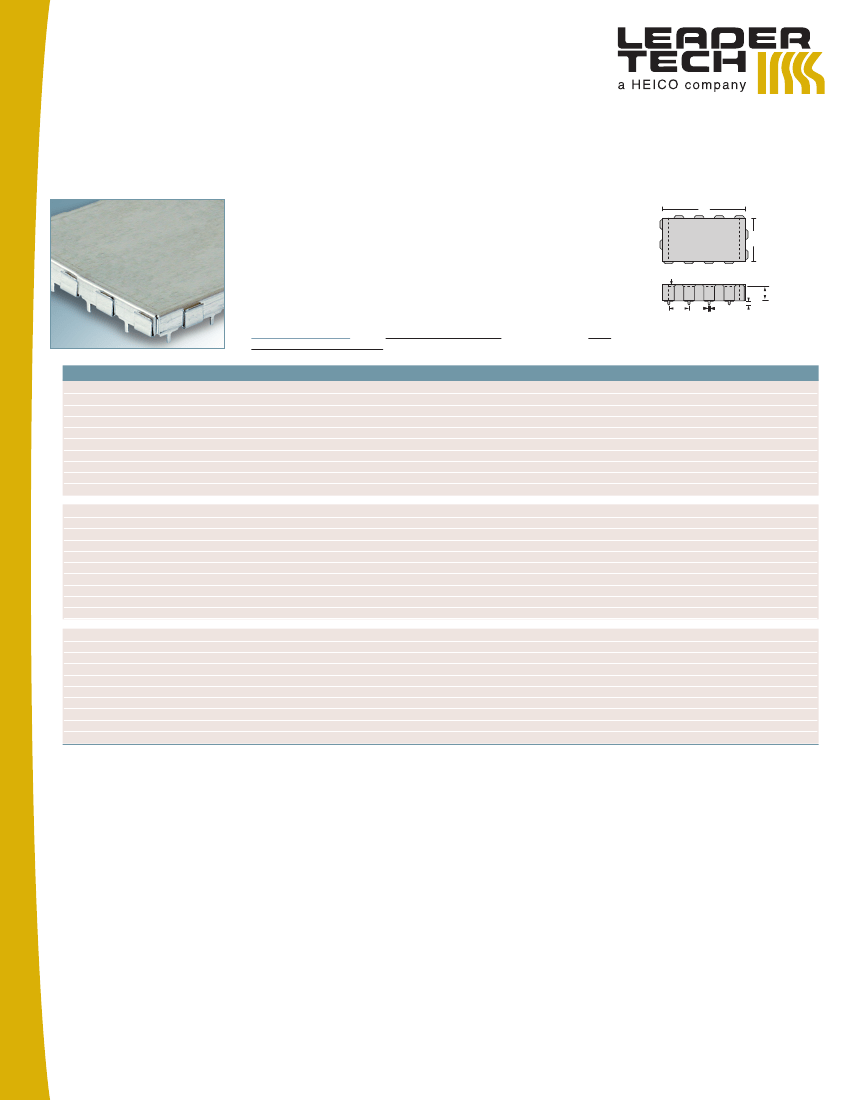

microwave type PCB shield enclosures
THROUGH-HOLE OR ADHESIVE MOUNT – UP TO 116GHz.
The microwave
series is available in three standard sizes; each can be combined with an
absorber membrane bonded to the lid. There are ten types of frequency-
sensitive absorber materials with effectiveness up to 116 GHz. The multi-
layered absorbers of screened matrixes are tuned for discrete impedance
matching to absorb microwaves from a wide range of angles. Refer to
page 30 for absorber material characteristics, and to page 31 for typical
absorption rates by frequency.
For recommended Mounting Hole Patterns, visit our web site at
www.ferrishield.com
under PCB Shield Enclosures and click on link PCB
Mounting Hole Patterns. Adhesive mount option provides quick
installation, easy retrofit.
PART No.
PS24MA24
PS58MA24
PS100MA24
PS180MA24
PS240MA24
PS260MA24
PS380MA24
PS600MA24
PS760MA24
PS1100MA24
PS24MA44
PS58MA44
PS100MA44
PS180MA44
PS240MA44
PS260MA44
PS380MA44
PS600MA44
PS760MA44
PS1100MA44
PS24MA59
PS58MA59
PS100MA59
PS180MA59
PS240MA59
PS260MA59
PS380MA59
PS600MA59
PS760MA59
PS1100MA59
B
A
Internal Absorber Layer
.040"
(1,02mm)
Through-hole mount – recommended hole size .050” (1,27mm)
Surface mount – pins formed w/ 90˚ outward bend,
add “SM” suffix to the part #
Adhesive mount – no holes required
E
C
Board to
Absorber
D
pin length
Adhesive Mount
PS24MA24A
PS58MA24A
PS100MA24A
PS180MA24A
PS240MA24A
PS260MA24A
PS380MA24A
PS600MA24A
PS760MA24A
PS1100MA24A
PS24MA44A
PS58MA44A
PS100MA44A
PS180MA44A
PS240MA44A
PS260MA44A
PS380MA44A
PS600MA44A
PS760MA44A
PS1100MA44A
PS24MA59A
PS58MA59A
PS100MA59A
PS180MA59A
PS240MA59A
PS260MA59A
PS380MA59A
PS600MA59A
PS760MA59A
PS1100MA59A
A
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
25,4
25,4
25,4
25,4
25,4
25,4
25,4
25,4
25,4
25,4
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
B
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
3.00
4.50
4.50
4.50
4.50
4.50
4.50
4.50
4.50
4.50
4.50
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
50,8
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
76,2
114,3
114,3
114,3
114,3
114,3
114,3
114,3
114,3
114,3
114,3
C
.062
1,6
.100
2,5
.145
3,7
.160
4,1
.176
4,5
.173
4,4
.176
4,5
.165
4,2
.184
4,7
.184
4,7
.262
6,7
.300
7,6
.345
8,8
.360
9,1
.376
9,6
.373
9,5
.376
9,6
.365
9,3
.384
9,8
.384
9,8
.362
9,2
.400
10,2
.445
11,3
.460
11,7
.476
12,1
.473
12,0
.47612,1
.465
11,8
.484
12,3
.484
12,3
D
.100
.100
.100
.100
.100
.100
.100
.100
.100
.100
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
.120
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
3,0
E
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.250
.250
.250
.250
.250
.250
.250
.250
.250
.250
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
12,7
6,4
6,4
6,4
6,4
6,4
6,4
6,4
6,4
6,4
6,4
Frequency Range
2.2 - 2.6 GHz
5.5 - 6.2 GHz
9.2 - 10.8 GHz
16.5 - 19.5 GHz
22.5 - 25.5 GHz
25.2 - 27.0 GHz
35.8 - 40.2 GHz
52.0 - 64.2 GHz
72.0 - 80.0 GHz
104.0 - 116.0 GHz
2.2 - 2.6 GHz
5.5 - 6.2 GHz
9.2 - 10.8 GHz
16.5 - 19.5 GHz
22.5 - 25.5 GHz
25.2 - 27.0 GHz
35.8 - 40.2 GHz
52.0 - 64.2 GHz
72.0 - 80.0 GHz
104.0 - 116.0 GHz
2.2 - 2.6 GHz
5.5 - 6.2 GHz
9.2 - 10.8 GHz
16.5 - 19.5 GHz
22.5 - 25.5 GHz
25.2 - 27.0 GHz
35.8 - 40.2 GHz
52.0 - 64.2 GHz
72.0 - 80.0 GHz
104.0 - 116.0 GHz
Peak Frequency Attenuation
2.4
5.8
10.0
18.0
24.0
26.0
38.0
60.0
76.0
110.0
2.4
5.8
10.0
18.0
24.0
26.0
38.0
60.0
76.0
110.0
2.4
5.8
10.0
18.0
24.0
26.0
38.0
60.0
76.0
110.0
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
GHz
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
@
-21.0
-23.5
-23.5
-24.1
-24.3
-21.4
-21.4
-21.6
-20.0
-21.2
-21.0
-23.5
-23.5
-24.1
-24.3
-21.4
-21.4
-21.6
-20.0
-21.2
-21.0
-23.5
-23.5
-24.1
-24.3
-21.4
-21.4
-21.6
-20.0
-21.2
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
14100 McCormick Drive
Tampa, FL 33626
866.TECH.EMI (866.832.4364)
www.leadertechinc.com
T: 813.855.6921
F: 813.855.3291
MCU
京公网安备 11010802033920号
EEWORLD
