MF SERIES
MOLDED FILTER .
Applications :
．TVs
and Audio equipment.
．Telecommunication
devices.
．RF
filters.
．Other
noise filters.

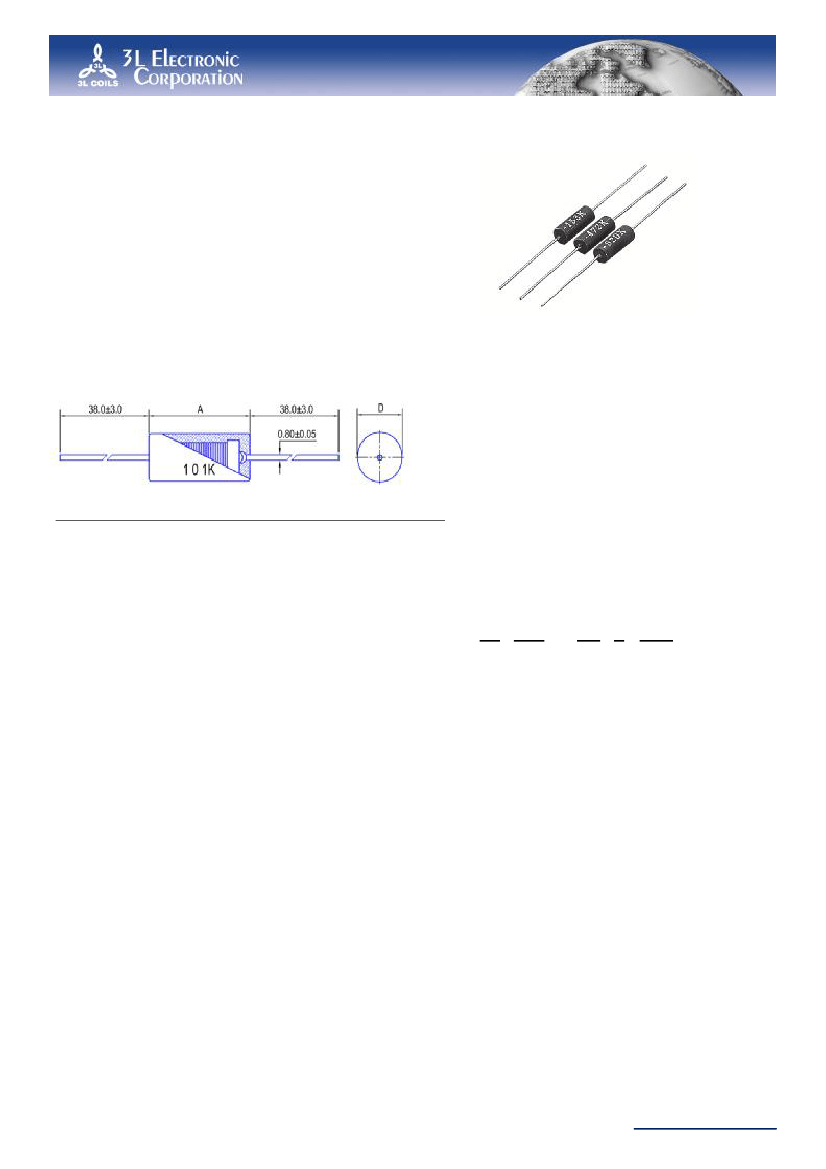

Shape and Dimensions (Dimensions are in mm) :
Item
MF0616
MF6514
A
±0.5
16.4
14.5
D
By Each P/N
By Each P/N
Features :
．Well
defined body dimensions.
．Smooth
surface and sharper corners.
．High
reliability.
．High
saturation current.
．Tape
and reel packaging for auto-insertion.
．RoHS
compliant.
Product Identification :
MF
(1)
0616
(2)
-
101
(3)
K
–
T5X2
(4)
(5)
(1) Series :
Molded Filters.
(2) Style: size dimension.
(3) Inductance:
101
for
100uH.
(4) Inductance tolerance:
J:
±
5%;
K:
±
10%;
M:
±
20%;
(5) Packing: T5X2: Tape; No code: Bulk.
Characteristics :
．Saturation
Current (Isat): The current when the inductance
becomes 20% lower than its initial value.(Ta=20℃).
．Temperature
Rise Current( Irms): The current when
temperature of coil increase up to max.
△T=40℃.(Ta=20℃)
．Operating
temperature : -25℃ to 125
℃.
Test equipment :
．L:
LCR meter. @1kHz 0.25V.
．DCR:
Milli-ohm meter.
．Electrical
specifications at 25
℃.
Lasting. Leaning. Leading
3L Electronic Corp.
28.1
Web : http://www.3lcoil.com
●
MF6514 series
Part No.
MF6514 -1R0K
MF6514 -1R2K
MF6514 -1R5K
MF6514 -1R8K
MF6514 -2R2K
MF6514 -2R7k
MF6514 -3R3K
MF6514 -3R9K
MF6514 -4R7K
MF6514 -5R6K
MF6514 -6R8K
MF6514 -8R2K
MF6514 -100K
MF6514 -120K
MF6514 -150K
MF6514 -180K
MF6514 -220K
MF6514 -270K
MF6514 -330K
MF6514 -390K
MF6514 -470K
MF6514 -560K
MF6514 -680K
MF6514 -820K
MF6514 -101K
MF6514 -121K
MF6514 -151K
MF6514 -181K
MF6514 -221K
MF6514 -271K
MF6514 -331K
MF6514 -391K
MF6514 -471K
MF6514 -561K
MF6514 -681K
MF6514 -821K
MF6514 -102K
MF6514 -122K
MF6514 -152K
MF6514 -182K
MF6514 -222K
MF6514 -272K
MF6514 -332K
MF6514 -392K
MF6514 -472K
MF6514 -562K
MF6514 -682K
MF6514 -822K
MF6514 -103K
L
(uH)
@1kHz
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
DCR
(Ω)
Max.
0.010
0.010
0.010
0.011
0.011
0.013
0.015
0.018
0.020
0.022
0.024
0.027
0.034
0.038
0.050
0.057
0.064
0.074
0.094
0.105
0.150
0.180
0.200
0.240
0.260
0.280
0.330
0.470
0.740
0.830
0.940
1.05
1.20
1.52
1.74
2.0
3.1
3.4
4.6
5.3
8.7
10.0
11.2
12.6
20
22
25
35
38
Saturation
Current
(A)Max.
8.0
7.0
6.0
5.5
5.0
4.5
4.2
3.8
3.5
3.2
3.0
2.7
2.5
2.2
2.0
1.8
1.6
1.5
1.3
1.2
1.1
1.0
0.95
0.90
0.80
0.70
0.62
0.56
0.50
0.46
0.42
0.38
0.35
0.32
0.30
0.26
0.24
0.22
0.20
0.18
0.16
0.15
0.13
0.12
0.11
0.10
0.09
0.08
0.07
Temperature
Rise Current
(A)Max.
2.57
2.57
2.57
2.26
2.26
2.00
2.00
1.57
1.57
1.57
1.57
1.57
1.27
1.27
1.00
1.00
1.00
1.00
0.81
0.81
0.76
0.76
0.76
0.64
0.55
0.55
0.55
0.39
0.25
0.25
0.25
0.25
0.25
0.20
0.20
0.20
0.14
0.14
0.09
0.09
0.06
0.06
0.06
0.06
0.04
0.04
0.04
0.03
0.03
* Due to the limited space, the catalogue shows the typical specifications only. For more specific details ( characteristics graph, reliability, and others),
kindly invite you to access 3L official website www.3lcoil.com for better known.
