purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here. Contact Customer Care at 1-800-743-2675 to order
other color options.
Standards
Approval and Listings
National Electrical Code
®
(NEC
®
) OFNR, CSA FT-4,
ICEA S-83-596
UL-1666 (for riser and gen-
eral building applications)
Flame Resistance
Flame-Retardant
Outer Jacket
Ripcord
Dielectric Strength
Members
Tight-Buffered
Fiber
Dielectric Strength
Members
MIC
®

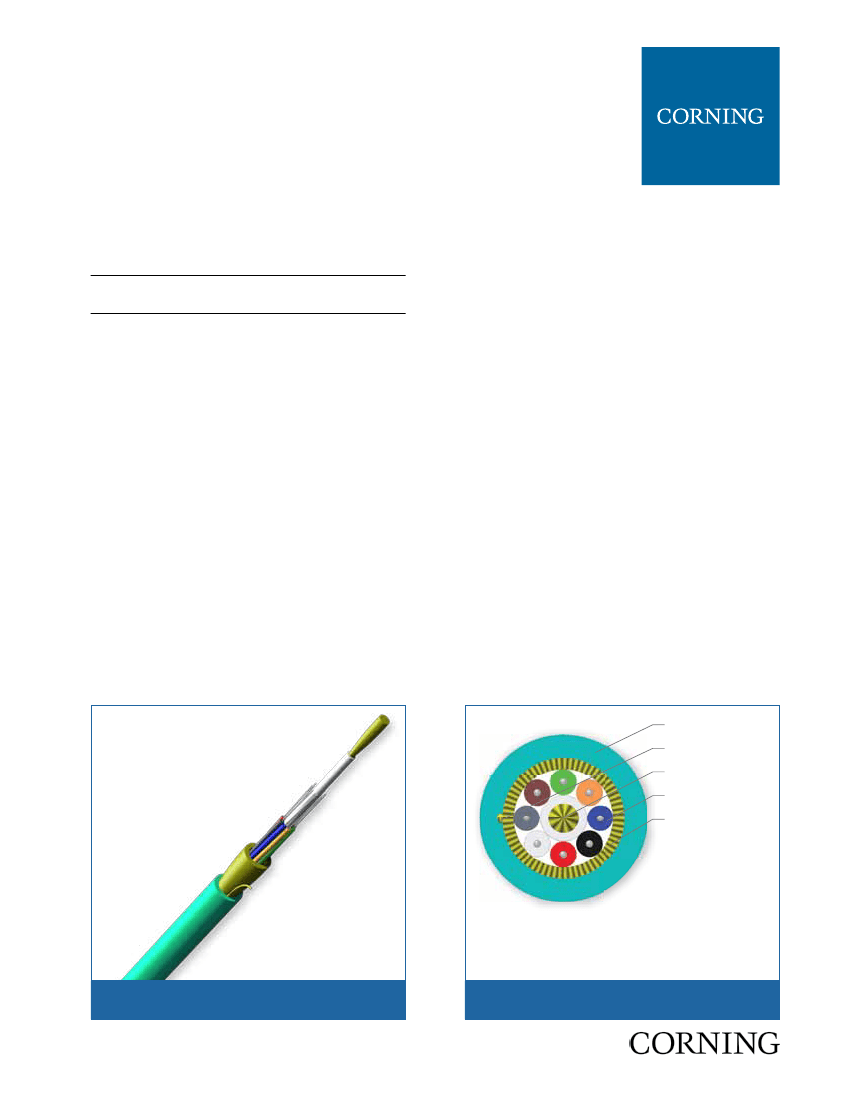

Riser Cables, 8-Fibers
MIC
®
Riser Cables, 8-Fibers
Family Spec Sheet 0051_NAFTA_AEN
Page 1 | Revision date 2012-10-23
MIC
®

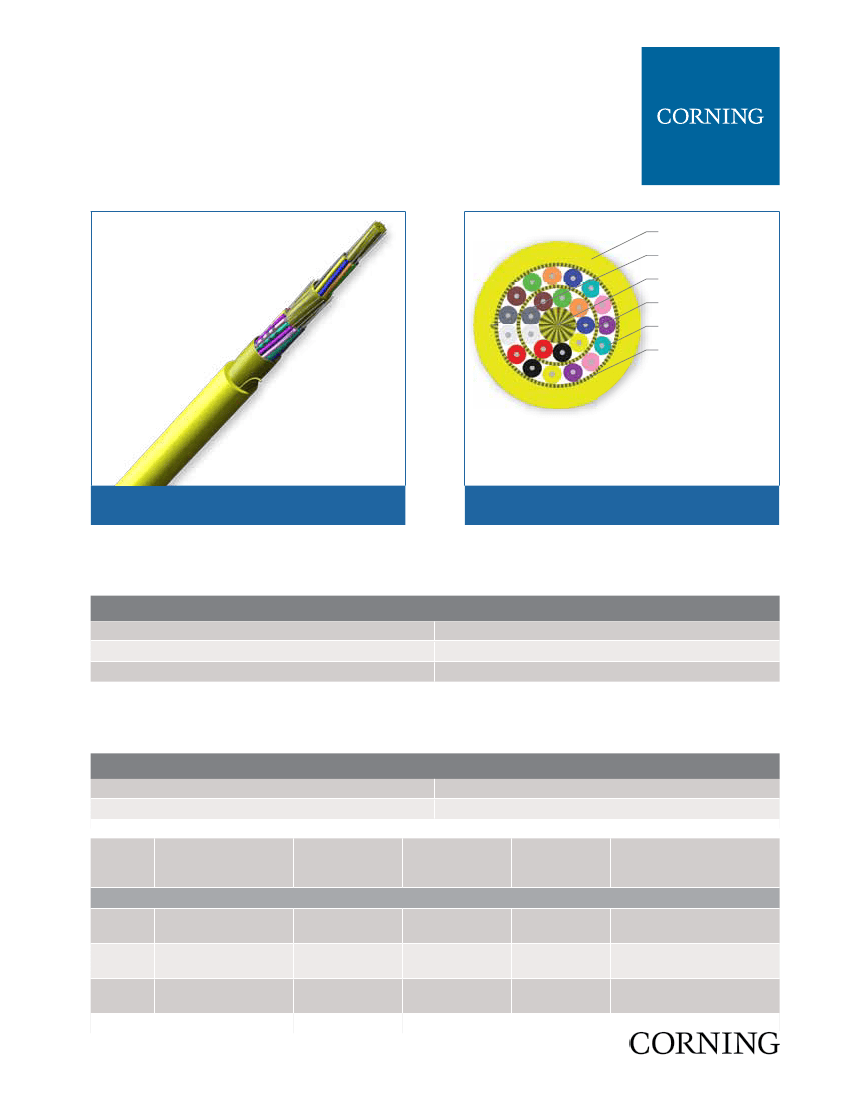

Riser Cables, 2-24 Fibers
Flame-Retardant
Outer Jacket
Ripcord
Dielectric Strength
Members
Dielectric Strength
Members
Tight-Buffered
Fiber
Dielectric Strength
Members
MIC
®
Riser Cables, 24-Fibers
False
MIC
®
Riser Cables, 24-Fibers
Specifications
Temperature Range
Storage
Installation
Operation
-40 °C to 70 °C (-40 °F to 158 °F)
-10 °C to 60 °C (14 °F to 140 °F)
-20 °C to 70 °C (-4 °F to 158 °F)
*
Corning Cable Systems recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation
temperature range specifications for best installation results.
Mechanical Characteristics Cable
Max. Tensile Strengths, Short-Term
Max. Tensile Strengths, Long-Term
Fiber
Count
Product Type
Nominal Outer
Diameter
660 N (150 lbf)
200 N (45 lbf)
Min. Bend Radius
Installation
Min. Bend
Radius
Operation
24 mm
(1 in)
25 mm
(1 in)
28 mm
(1.1 in)
Weight
Single-Layer
2
4
6
Distribution
Distribution
Distribution
4.7 mm
(0.19 in)
5 mm
(0.2 in)
5.5 mm
(0.22 in)
71 mm
(2.8 in)
75 mm
(3 in)
83 mm
(3.3 in)
18 kg/km
(12 lb/1000 ft)
22 kg/km
(15 lb/1000 ft)
26 kg/km
(17 lb/1000 ft)
Family Spec Sheet 0051_NAFTA_AEN
Page 2 | Revision date 2012-10-23
MIC
®
Riser Cables, 2-24 Fibers
Fiber
Count
8
Dual-Layer
12
18
24
Product Type
Nominal Outer
Diameter
6 mm
(0.24 in)
6.3 mm
(0.25 in)
7.4 mm
(0.29 in)
8 mm
(0.31 in)
Min. Bend Radius
Installation
90 mm
(3.6 in)
95 mm
(3.7 in)
111 mm
(4.4 in)
120 mm
(4.7 in)
Min. Bend
Radius
Operation
60 mm
(2.4 in)
32 mm
(1.3 in)
74 mm
(2.9 in)
80 mm
(3.1 in)
Weight
Distribution
32 kg/km
(21 lb/1000 ft)
32 kg/km
(22 lb/1000 ft)
48 kg/km
(32 lb/1000 ft)
56 kg/km
(39 lb/1000 ft)
Distribution
Distribution
Distribution
Transmission Performance
Fiber Type
Fiber Core Diameter (µm)
Fiber Category
Fiber Code
Performance Option Code
Wavelengths (nm)
Maximum Attenuation (dB/km)
Min. Overfilled Launch (OFL)
Bandwidth (MHz*km)
Minimum Effective Modal
Bandwidth (EMB) (MHz*km)
Serial 1 Gigabit Ethernet (m)
Serial 10 Gigabit Ethernet (m)
Induced Attenuation @ 7.5 mm
Radius (dB)
Multimode
62.5
OM1
K
30
850 / 1300
3.4 / 1.0
200 / 500
220 / -
300 / 550
33 / -
Multimode
50
OM2
T
31
850 / 1300
2.8 / 1
700 / 500
950 / -
750 / 600
150 / -
Multimode
50
OM3
T
80
850 / 1300
2.8 / 1
1500 / 500
2000 / -
1000 / 600
300 / -
< 30 up to 80
Multimode
50
OM4
T
90
850 / 1300
2.8 / 1
3500 / 500
4700 / -
1100 / 600
550 / -
Multimode
50
OM4
Extended
Distance
T
91
850 / 1300
2.8 / 1
3500 / 500
5350 / -
1100 / 600
600 / -
5000 / - / -
10000 / - /
40000
Single-mode
8.2
OS2
E
31
1310 / 1383
/ 1550
0.65 / 0.65
/ 0.5
* Assumes 1.0 dB maximum total connector/splice loss.
* Assumes 0.7 dB maximum total connector/splice loss.
* Meets 0.75 ns optical skew when used in all Corning Cable Systems Plug & Play™/Pretium EDGE
®
Systems Solutions.
* ITU-T G.652 D compliant.
Notes:
1)
Improved attenuation and bandwidth options available.
2)
Bend-insensitive single-mode fibers available on request.
3)
Contact a Corning Cable Systems Customer Care Representative for additional information.
4)
50 µm multimode fiber macrobend loss ≤ 0.2 dB at 850 nm for two turns around 7.5 mm radius mandrel.
Family Spec Sheet 0051_NAFTA_AEN
Page 3 | Revision date 2012-10-23
MIC
®
Riser Cables, 2-24 Fibers
Ordering Information |
Contact Customer Care at 1-800-743-2671 for other options.
This cable is available in 12 different jacket colors - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows
for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard
jacket color using the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
