2RS278G30 datasheet, PDF - EEWORLD Datasheet

2RS278G30: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,78 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,; CategoryThe connector The connector; File Size458KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

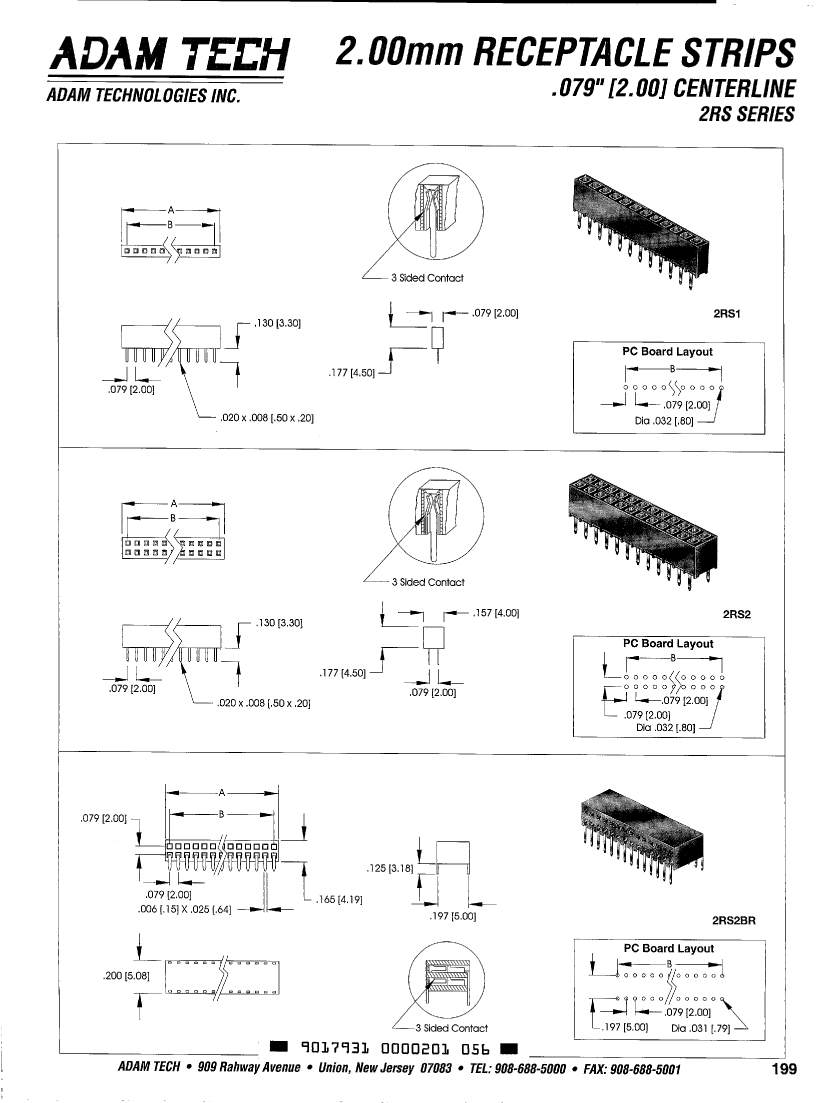

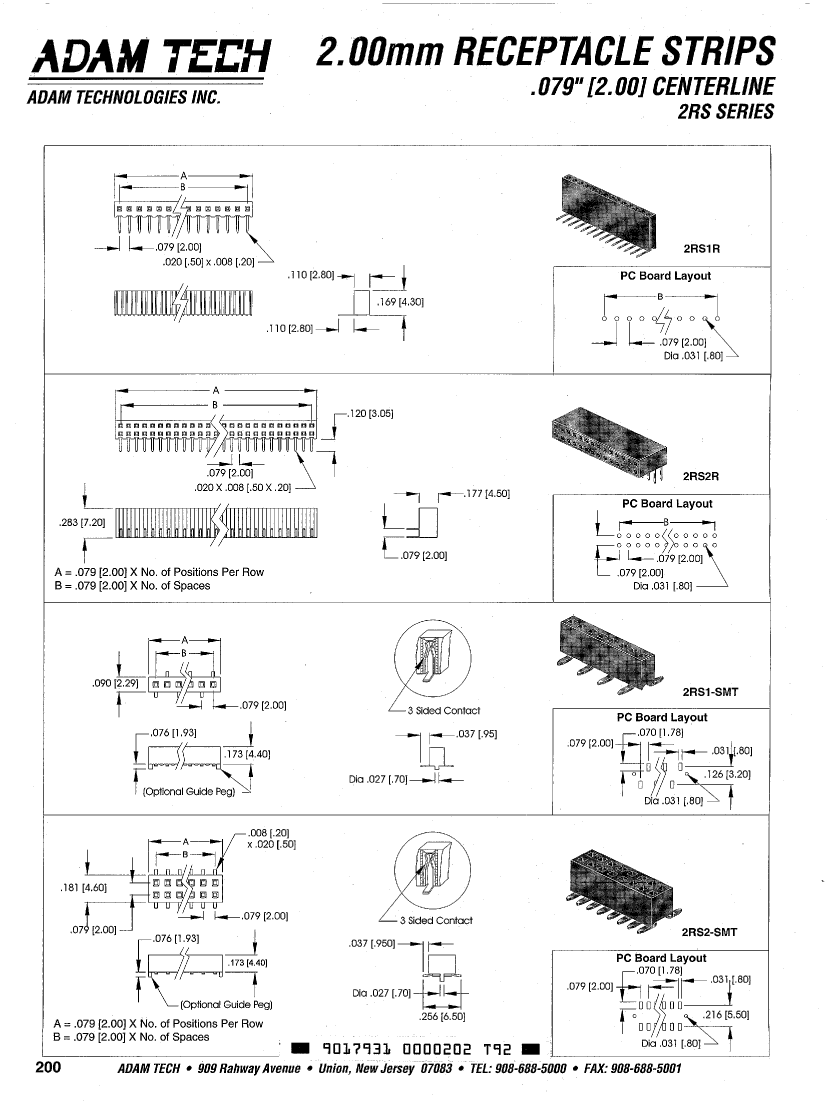

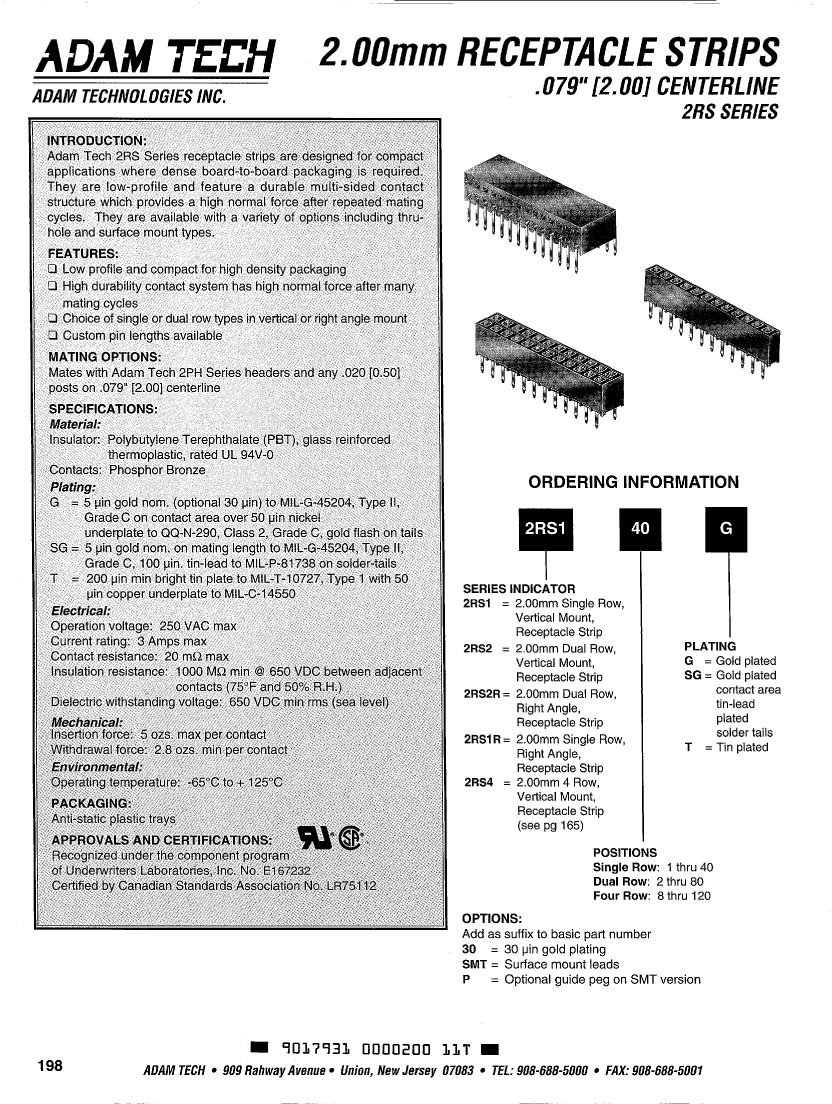

2RS278G30 Overview

HEADER CONNECTOR,PCB MNT,PLUG,78 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,

Parameter Name	Attribute value
Objectid	1153153441
Reach Compliance Code	unknown
YTEOL	0
body width	0.157 inch
subject depth	0.177 inch
body length	3.081 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VDC V
Filter function	NO
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE/POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.13 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	78
UL Flammability Code	94V-0
Evacuation force-minimum value	.7784 N
