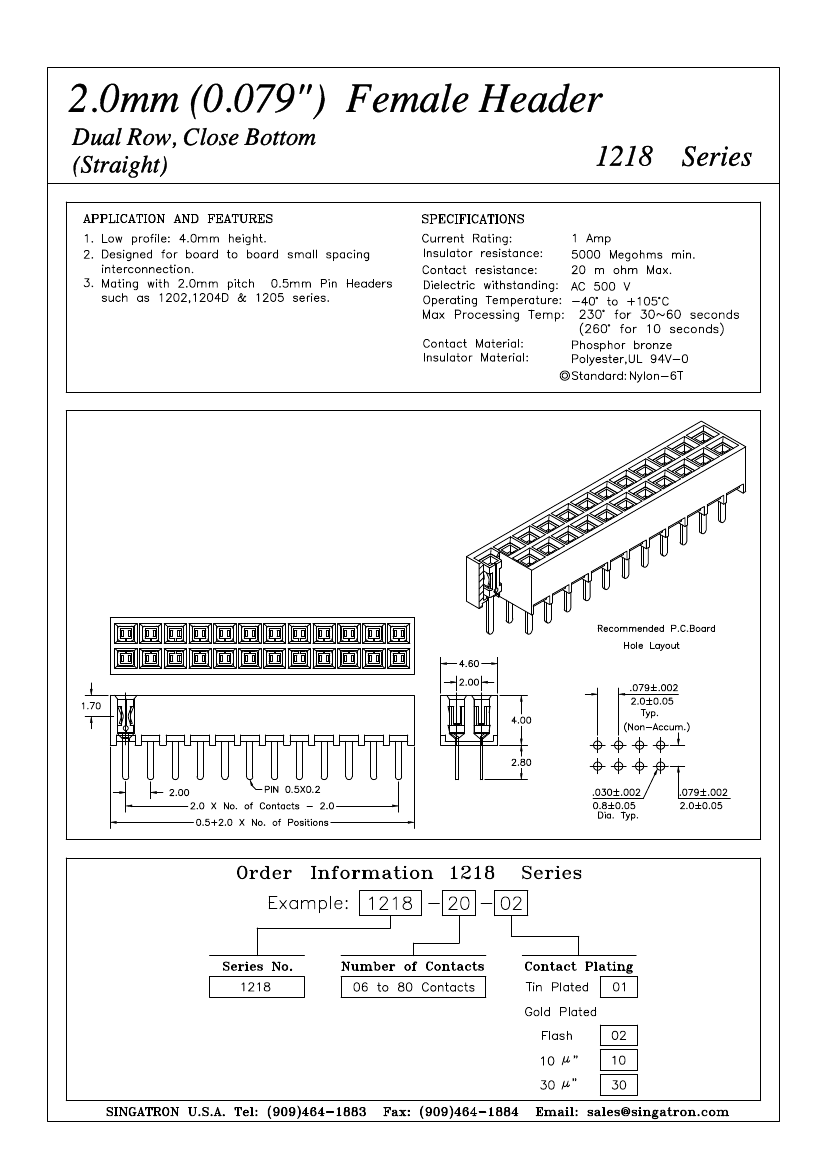

1218-54-30: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

1218-54-30 Overview

Board Connector, 54 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Objectid	1159627266
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE, CLOSE BOTTOM
body width	0.181 inch
subject depth	0.157 inch
body length	2.146 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	54
