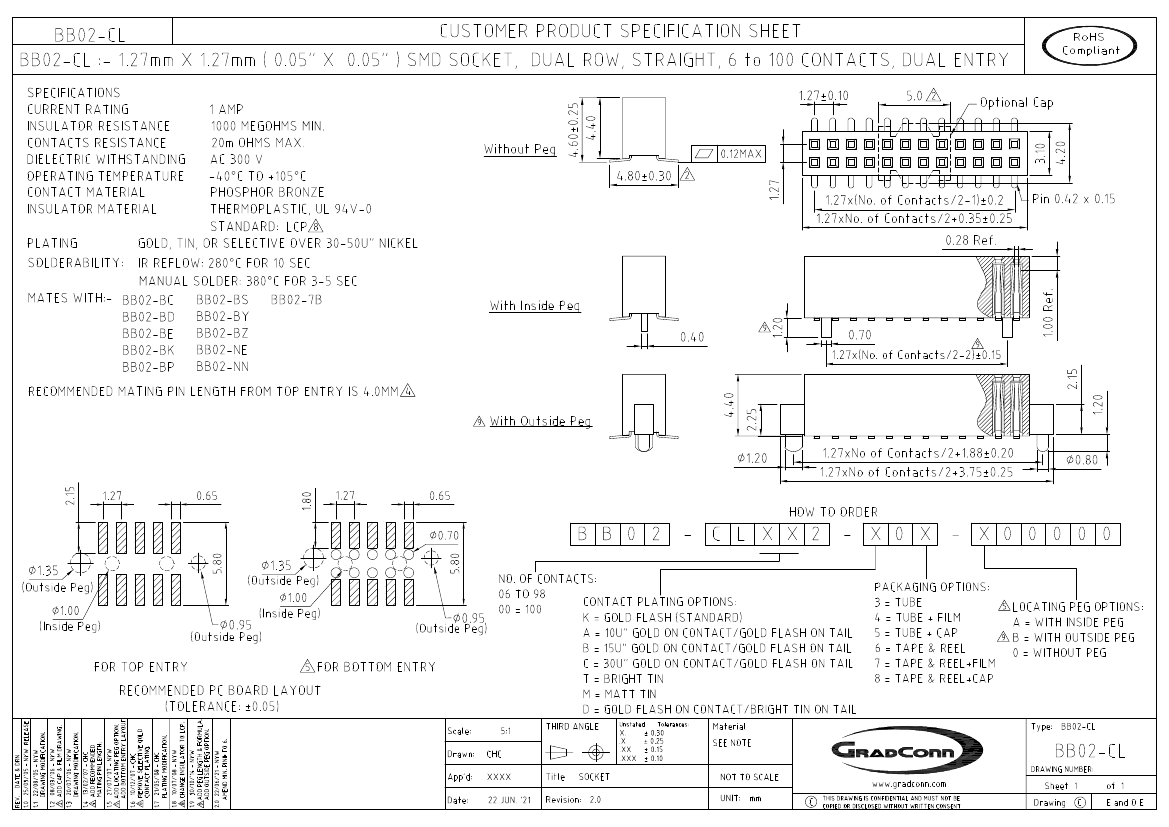

BB02-CL182-K04-000000 datasheet, PDF

BB02-CL182-K04-000000: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric View All

BB02-CL182-K04-000000 Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

Parameter Name	Attribute value
Objectid	304098165
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.122 inch
subject depth	0.181 inch
body length	0.464 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER/POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.65 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
