3462-0201 datasheet, PDF - EEWORLD Datasheet

3462-0201: DescriptionCard Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, Gray Insulator; CategoryThe connector The connector; File Size154KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

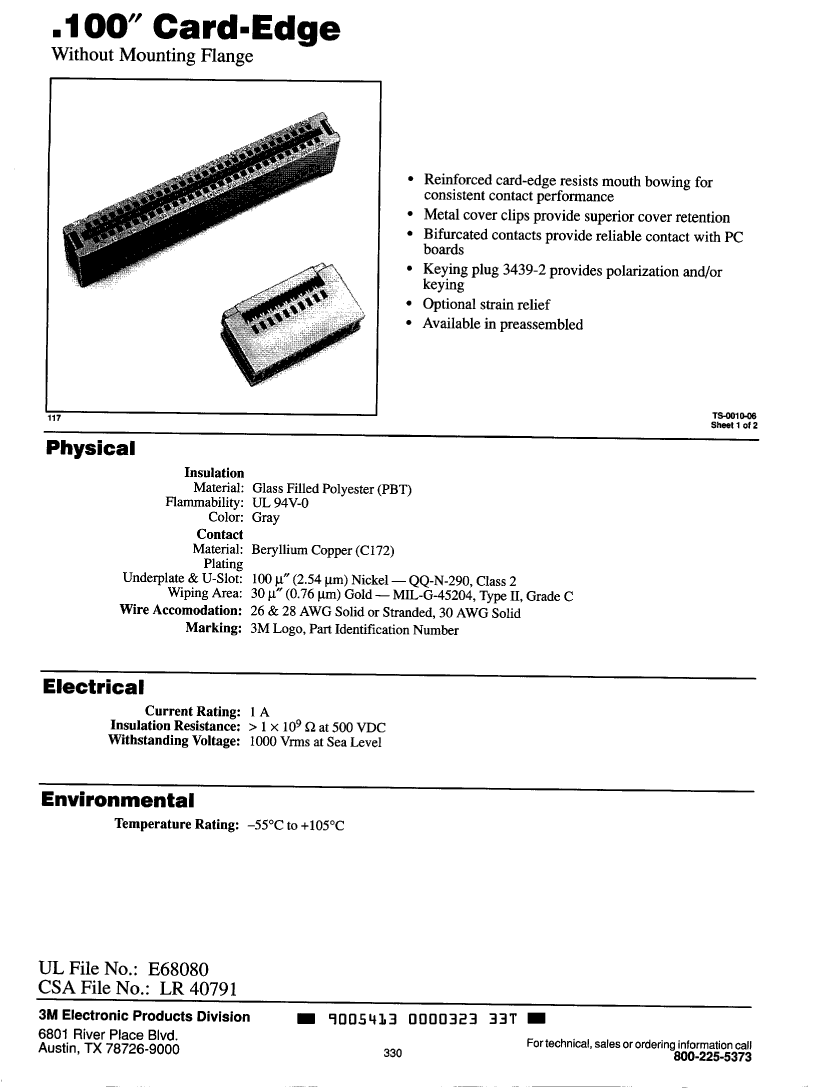

3462-0201 Overview

Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, Gray Insulator

Parameter Name	Attribute value
Objectid	301998213
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	KEYING PLUG, OPT

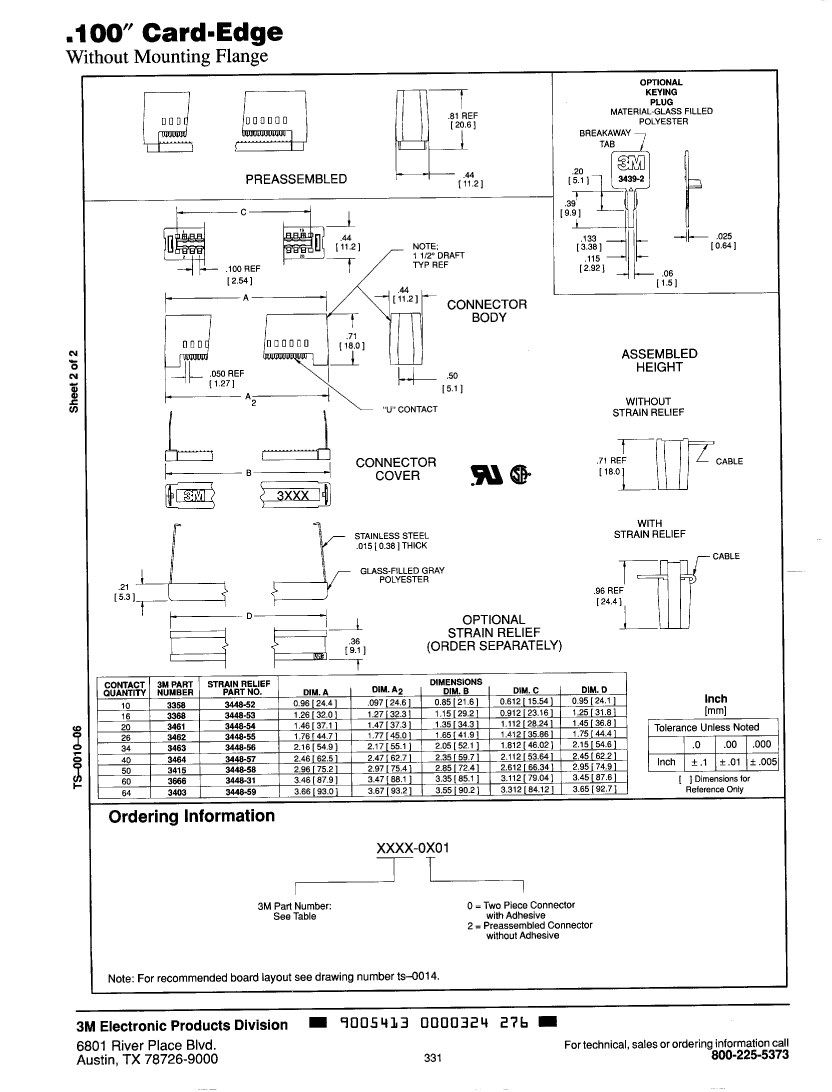

body width	0.44 inch
subject depth	0.71 inch
body length	1.77 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
Total number of contacts	26
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
