Data sheet...
MICROSERIES
MRZ 24VDC ACT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

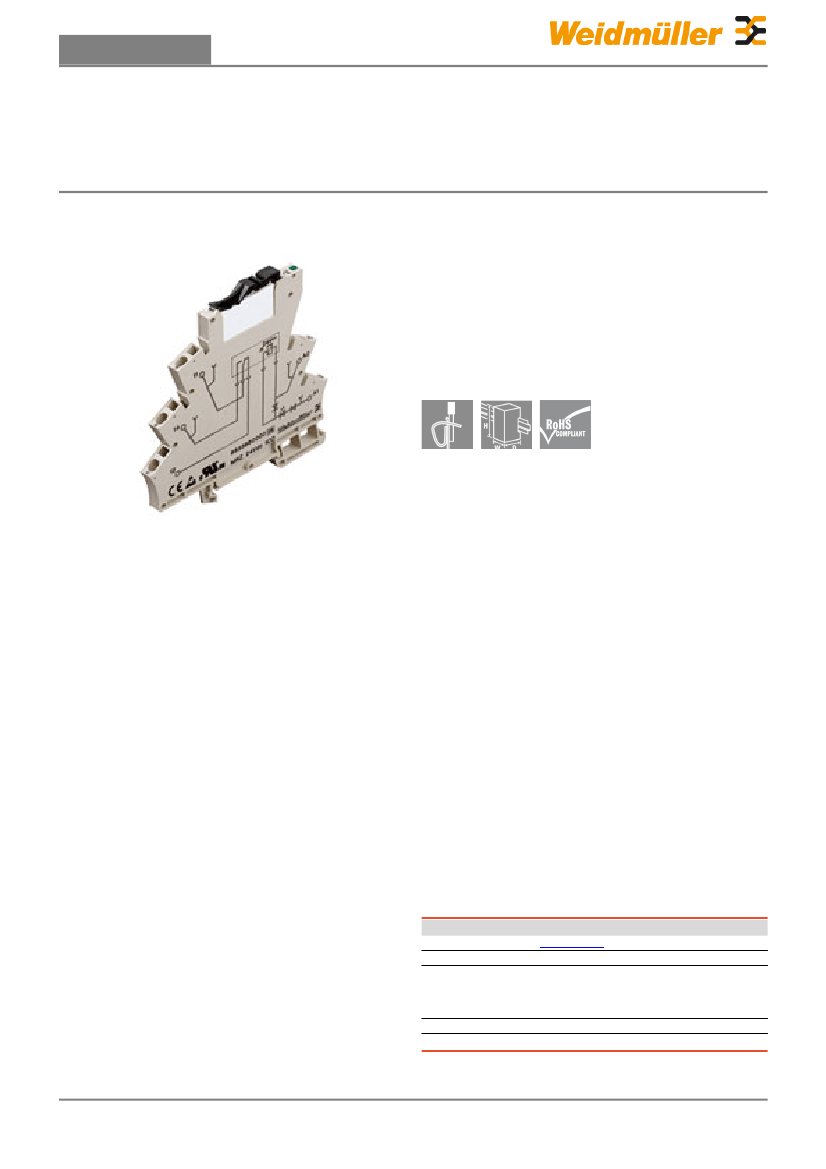

Relays of the MICROSERIES are used for isolating and
coupling digital signals.
They are characterised by the following features:
• modular width 6.1 mm
• Pluggable relay
• Pluggable cross-connection for four voltages in input
and output circuits,
• innovative retention and ejection aid,
• LED operating indicator, reverse polarity protection
diode, free-wheeling diode
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8660910000
MRZ 24VDC ACT
MICROSERIES, Relays, No. of contacts: 1, NO
contact, AgNi, Rated control voltage: 24 V DC
±20 %, Continuous current: 6 A, Tension clamp
connection
4032248326006
10 pc(s).
Creation date March 11, 2013 4:50:27 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
MICROSERIES
MRZ 24VDC ACT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Humidity
Ratings
Conductor connection system
Tension clamp connection
40 °C / 93 % rel. humidity,
no condensation
Dimensions and weights
Width
Depth
6.1 mm
94 mm
Height
Net weight
94 mm
33.1 g
Temperatures
Operating temperature
-25 °C...+55 °C
Storage temperature
-40 °C...+60 °C
Connection data
Clamping range, rated connection
1.5 mm²
Clamping range, rated connection, max. 2.5 mm²
Clamping range, rated connection, min. 0.5 mm²
Input
Rated control voltage
Power rating
Pull-in / drop-out current, DC coil
24 V DC ±20 %
160 mW
4 mA / 1.2 mA
Rated current DC
6.6 mA
Pull-in (sparkover) / drop-out voltage DC
coil
16.9 V / 6.5 V
Status indicator
Green LED
Output
Rated switching voltage
Max. switching voltage, DC
making current
Switch-on delay
Min. switching power
250 V AC
250 V
6A
6.6 ms
100 mA / 5 V, 10 V / 10
mA, 24 V / 1 mA
Max. switching voltage, AC
Continuous current
Max. switching power
Switch-off delay
Max. switching frequency at rated load
250 V
6A
1500 VA
5.8 ms
0.1 Hz
Contact specifications
No. of contacts
Contact material
1
AgNi
Contact design
Mechanical service life
NO contact
20 x 10
6
switching cycles
Insulation coordination
Rated voltage
300 V
Dielectric strength for control side - load
4 kV
eff
1s
side
Impulse withstand voltage
4 kV (1.2/50 µs)
Pollution severity
2
Clearance and creepage distances for
control side - load side
Dielectric strength to mounting rail
Protection degree
Surge voltage category
≥ 5.5 mm
4 kV
eff
/ 1 min.
IP 20
III
Other technical data
Version
Free-wheel diode
Relay coupler
Yes
Status indicator
Reverse polarity protection
Green LED
Available
Further details of approvals / standards
Standards
DIN EN 50178
Creation date March 11, 2013 4:50:27 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
MICROSERIES
MRZ 24VDC ACT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
EC001437
30-21-19-17
27-37-16-01
27-37-16-03
ETIM 3.0
eClass 4.1
eClass 6.0
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.0
EC001437
40-02-06-14
27-37-16-03
Approvals
Approvals
Downloads
Declaration of Conformity
3-D model
K205_09_09.pdf
Creation date March 11, 2013 4:50:27 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
MICROSERIES
MRZ 24VDC ACT
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

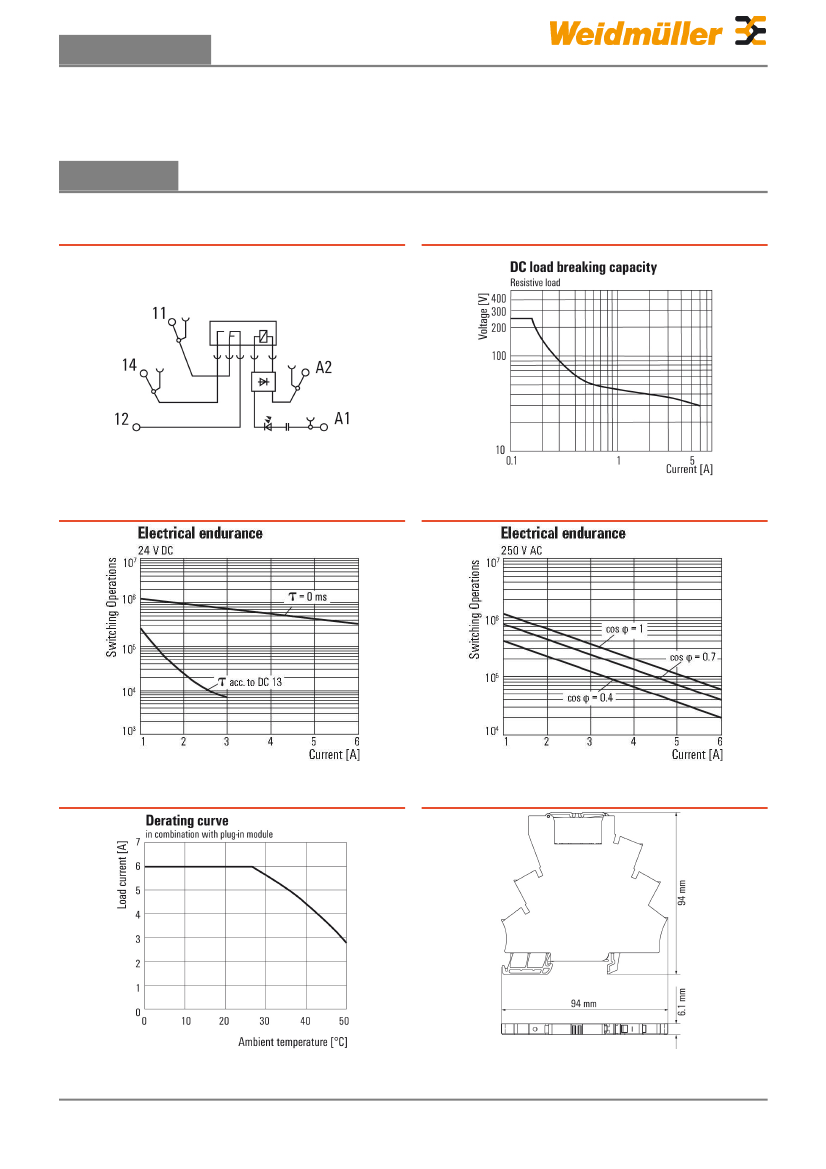

Drawings
Electric symbol
Creation date March 11, 2013 4:50:27 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
4
