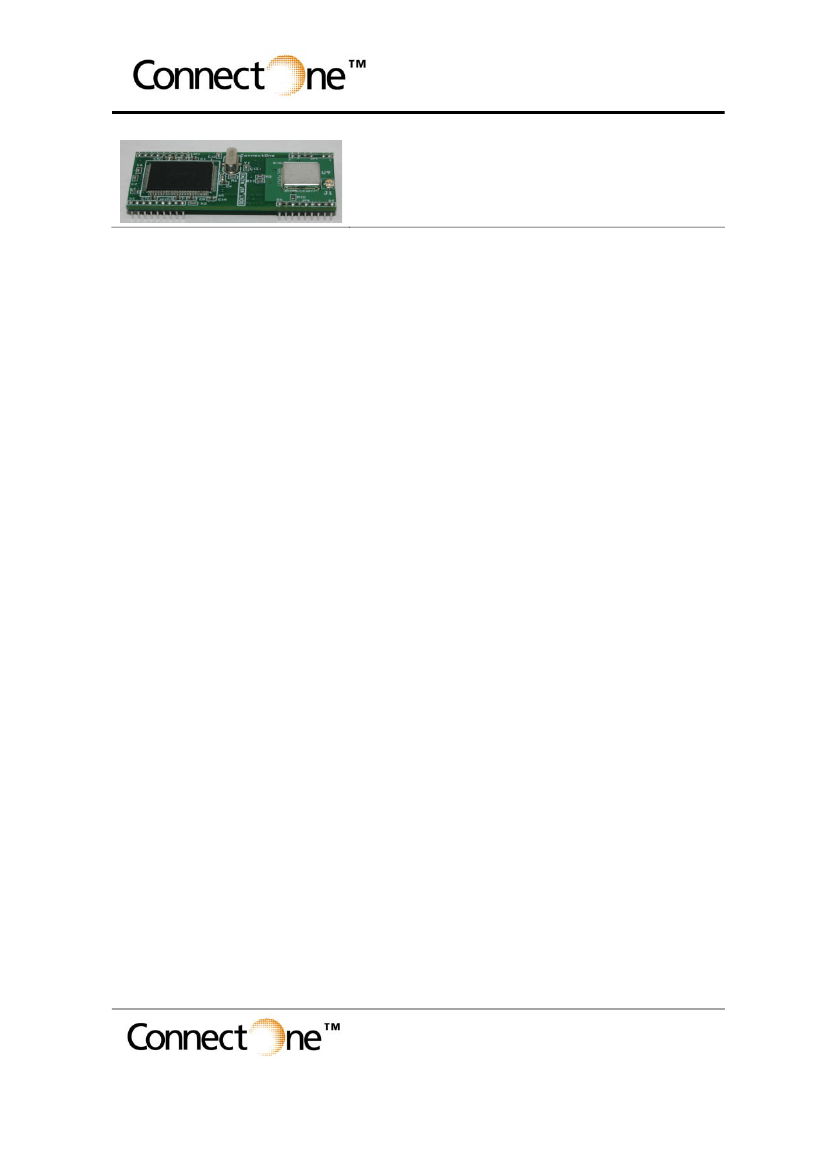

Product Brief
Publication Number 17-2560-37
Secure Socket iWiFi
™
Serial-to-Wireless LAN Device Server
General Description:
Secure Socket iWiFi
™
is a secure
serial-to-wireless LAN device server
module that also acts as a bridge to
connect serial devices to 802.11b/g
wireless LANs. It includes the iChip
™
CO2128 IP Communication Controller
™
chip and Marvell 88W8686 WiFi chipset.
It is packaged in RoHS-compliant compact
form factor and uses a standard industry
pin-out.
Secure Socket iWiFi offers much more
than many other device servers on the
market. It acts as a security gap between
the application and the network; supports
up to 10 simultaneous TCP/UDP sockets;
two listening sockets; a web server with
two websites; SMTP and POP3 clients;
MIME attachments; FTP and Telnet
clients, and SerialNET
™
mode for serial-
to-IP bridging.
Secure Socket iWiFi supports the
SSL3/TLS1 protocol for secure sockets,
HTTPS and FTPS, WEP, WPA and WPA2
WiFi encryption.
Secure Socket iWiFi minimizes the
need to redesign the host device hardware.
It easily inserts into headers on the host
PCB and connects to an external antenna.
Minimal or no software configuration is
needed for Secure Socket iWiFi to access
the wireless LAN.
Connect One’s high-level AT+i
™
API
eliminates the need to add WiFi drivers,
security and networking protocols and
tasks to the host application. The AT+i
SerialNET operating mode offers a true
plug-and-play mode that eliminates any
changes to the host application.
Secure Socket iWiFi firmware – the IP
stack
and
Internet
configuration
parameters – are stored in an on-board
flash memory. The module is power-
efficient: the core operates at 1.2V, while
I/Os operate at 3.3V. Power Save mode
further reduces power consumption.
The II-EVB-361MW evaluation board
provides an easy environment for testing
the Secure Socket iWiFi prior to designing
it into your product.
Hardware Description:
•
Size: 64.5x27.4x6.6mm
(2.54x1.08x0.26")
•
Core CPU: 32-bit RISC ARM7TDMI,
low-leakage, 0.13 micron, running at
48MHz
•
Operating Voltage: +3.3V+/-10%
•
Operating Humidity: 90% maximum
(non-condensing)
•
Operating Temperature Range:
-20° to 75°C (-4° to 167°F)
•
Power Consumption:
−
Transmit – 260mA (typical)
−
Receive – 190mA (typical)
−
Power Save mode – 8mA
•
Connector: U.FL ultra-miniature coax
to antenna
•
Host Interface: TTL serial interface
•
RoHS-compliant; lead-free
•
Host Data Rate: up to 3Mbps in serial
mode
•
Serial Data Format (AT+i mode):
Asynchronous character; binary; 8
data bits; no parity; 1 stop bit
•
Serial Data Format (SerialNET
mode): Asynchronous character;
binary; 7 or 8 data bits; odd, even, or
no parity; 1 stop bit
•
Flow Control: Hardware (RTSH,
CTSH) and software flow control.
Performance Specifications:
International:
Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Phone: +972-9-766-0456
Fax: +972-9-766-0461
Email: sales@connectone.com
http://www.connectone.com
USA:
Connect One Semiconductors, Inc.
560 S. Winchester Blvd.
Suite 500
San Jose, CA 95128
Tel: (408) 572-5675
Fax: (408) 572-5601
Copyright © Connect One Ltd., 2008,2009. All rights reserved.
Product Brief
Publication Number 17-2560-37
Internet Protocols:
•
ARP, ICMP, IP, UDP, TCP, DHCP,
DNS, NTP, SMTP, POP3, MIME,
HTTP, FTP and Telnet
•
Security protocols: SSL3/TLS1,
HTTPS, FTPS, RSA, AES-128/256,
3DES, RC-4, SHA-1, MD-5, WEP,
WPA and WPA2
•
Protocols accelerated in hardware:
AES, 3DES and SHA
Application Program
Interface:
•
Connect One’s AT+i protocol
•
SerialNET mode for transparent serial
data-to-Internet bridging
One year
Warranty:
Certifications:
•
CE, FCC
•
Radio: FCC part 15, subpart C;
EN 301 489 (EMC Directive
89/336/EEC)
•
EMC: FCC part 15, subpart B;
EN 300 328 (R&TTE Directive
1999/5/EC)
•
Safety: EN 60950-1:2004
Wireless Specifications:
•
Standards supported: IEEE 802.11b,
IEEE 802.11g
•
Frequency: Europe – 2.412-2.472GHz
USA – 2.412-2.462GHz
•
Channels: Europe – 13 channels
USA – 11 channels

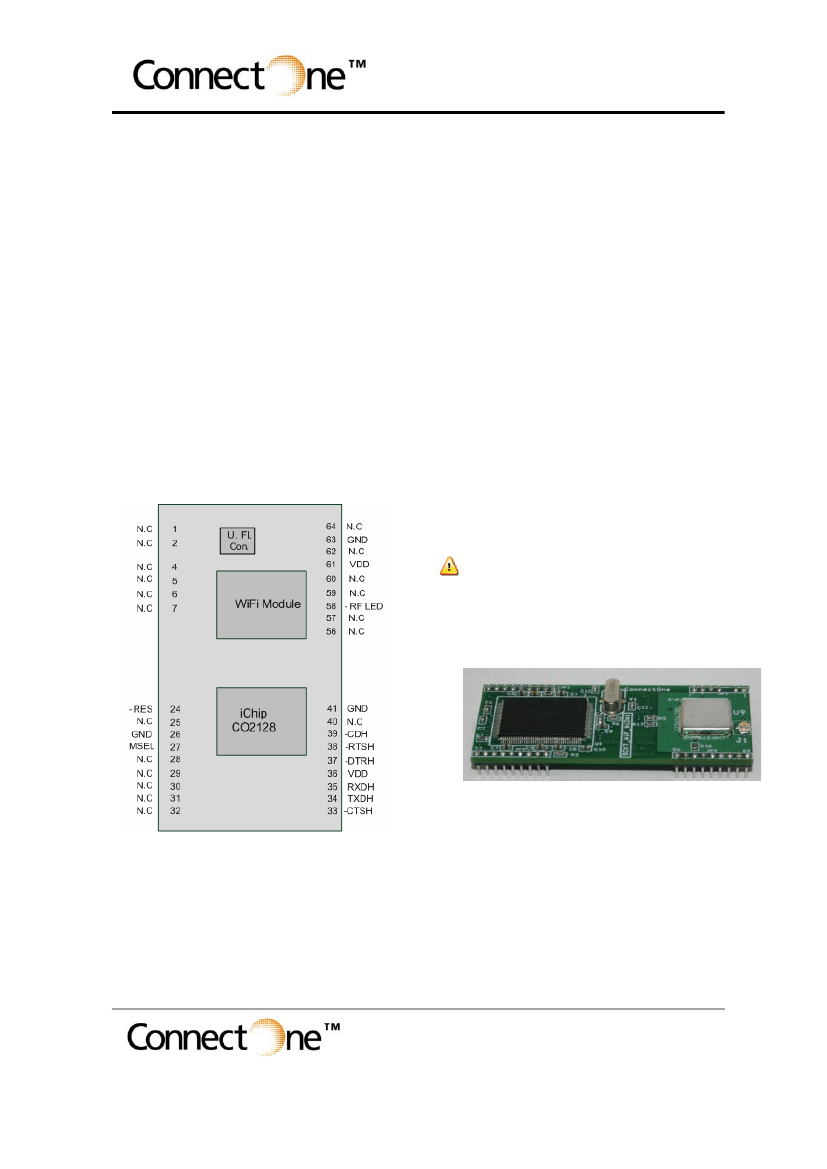

Pin Assignments:
Installation Requirements:
The Secure Socket iWiFi must be
installed within a full-enclosure device
that is safety certified.
Safety Warning:
Power supply output to the Secure
Socket iWiFi must be limited to 2A Max.
International:
Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Phone: +972-9-766-0456
Fax: +972-9-766-0461
Email: sales@connectone.com
http://www.connectone.com
USA:
Connect One Semiconductors, Inc.
560 S. Winchester Blvd.
Suite 500
San Jose, CA 95128
Tel: (408) 572-5675
Fax: (408) 572-5601
Copyright © Connect One Ltd., 2008,2009. All rights reserved.
Product Brief
Publication Number 17-2560-37

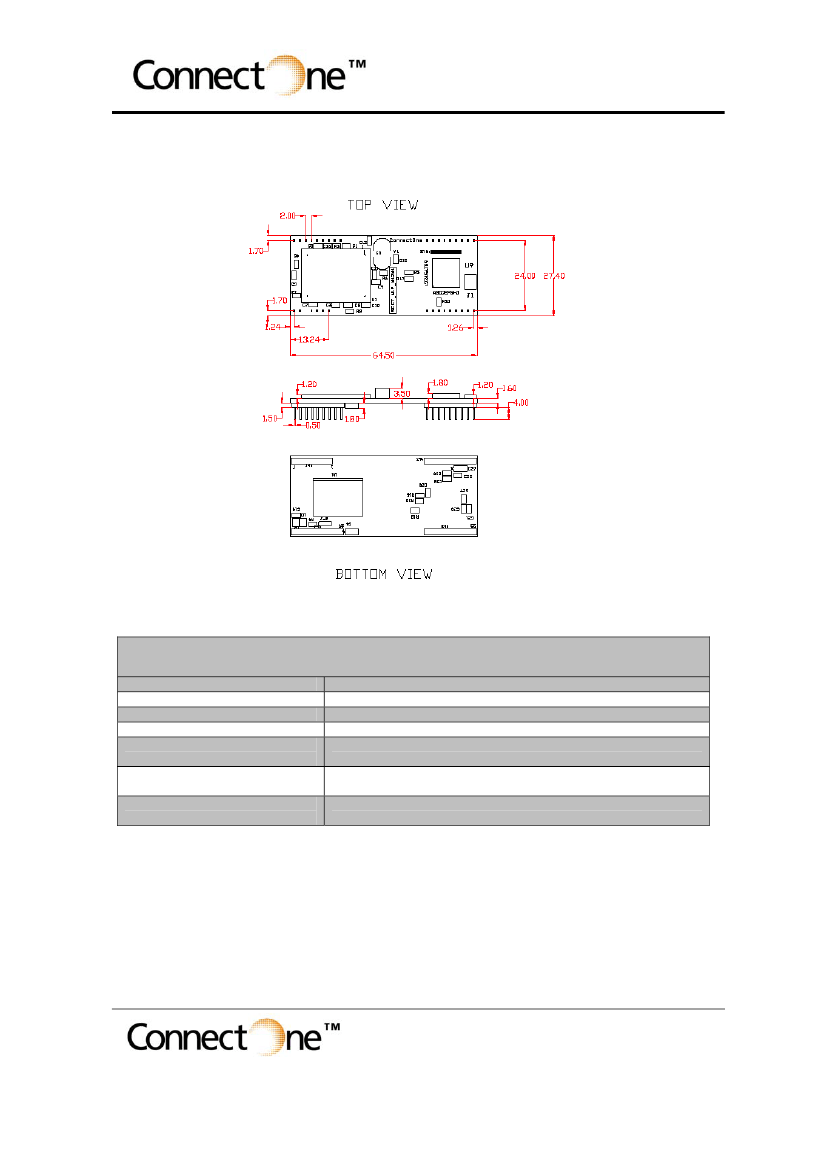

Mechanical View:
Ordering Information
Part Number
iW-SM2128MW-US
iW-SM2128MW-EU
iW-SM2128MW-JP
II-EVB-361MW-US-0
II-EVB-361MW-US-110
II-EVB-361MW-EU-0
II-EVB-361MW-EU-220
II-EVB-361MW-JP-0
II-EVB-361MW-JP-110
Description
Secure Socket iWiFi module, for USA
Secure Socket iWiFi module, for Europe
Secure Socket iWiFi module, for Japan
Evaluation board for Secure Socket iWiFi module,
for USA, without power supply/110V
Evaluation board for Secure Socket iWiFi module,
for Europe, without power supply/220V
Evaluation board for Secure Socket iWiFi module,
for Japan, without power supply/110V
iChip, IP Communication Controller, AT+i, Secure Socket iWiFi, SerialNET and Connect One are trademarks of
Connect One Ltd.
Specifications are subject to change without notice.
