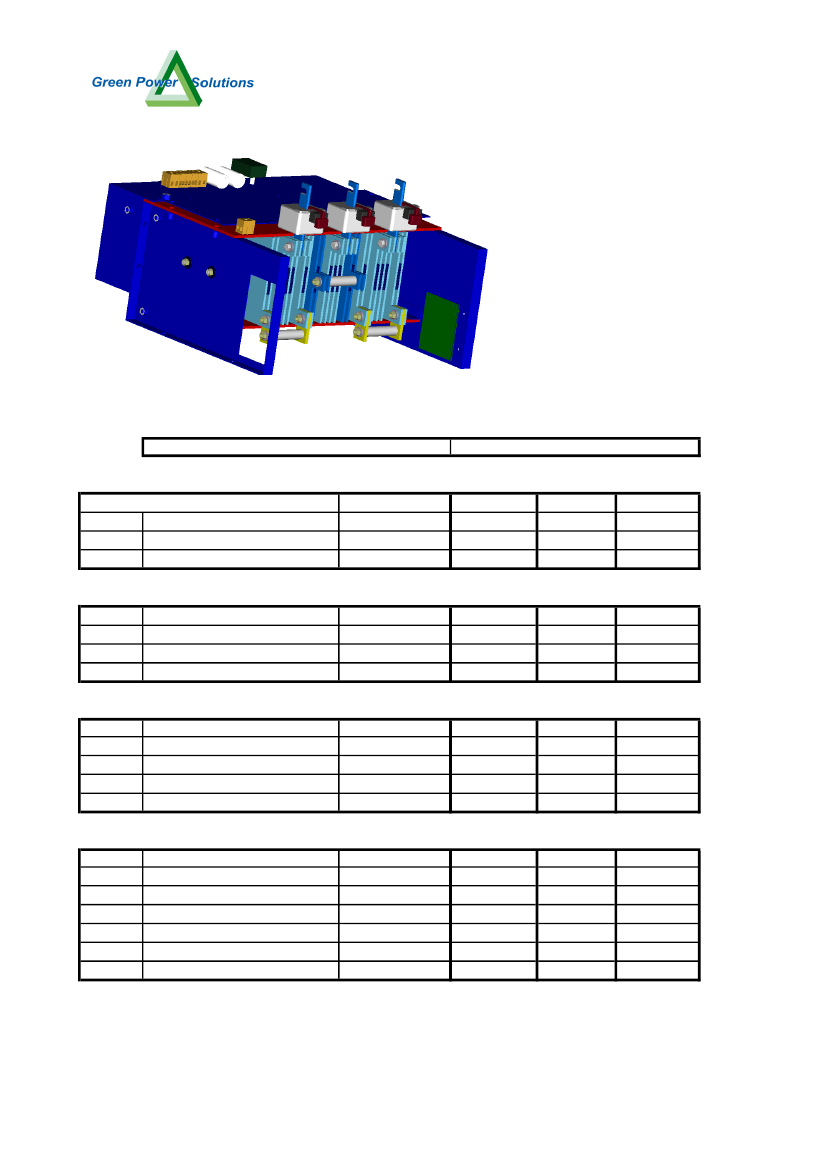

GOA9xx06C
THREE PHASE AC-SWITCH
Fuse protection
Blown fuse indicators with microswitch
Over temperature switches
Fan loss detection circuit
Snubber for SCR's protections
Compact design
LINE VOLTAGE UP TO 500V
RMS OUTPUT CURRENT 600A
GOA94006C GOA95006C
Line to line voltage
400
500
Characteristic
I
RMS
V
INS
(rms)
RMS output current
Insulation voltage
Conditions
Value
600 A
3000 V
Value
600 A
3000 V
THYRISTOR TRIGGERING CHARACTERISTICS
V
GT
I
GT
dV/dt
VRRM
Gate trigger voltage
Gate trigger current
Critical rate of rise off-state voltage
Blocking Voltage
T
j
= 25 °C, V
D
= 5 V
T
j
= 25 °C, V
D
= 5 V
Tj= 125 °C
Tj = 125 °C
3 V
300 mA
1000 V/us
1200 V
3 V
300 mA
1000 V/us
1600 V
FUSE TYPE SIBA 2062432.700
V
NF
I
NF
P
VF
I²t
Rated voltage
Rated current
Power loss
Total I t
2
690 V
700 A
At rated current
At 660V
99 W
410 kA2s
690 V
700 A
99 W
410 kA2s
MECHANICAL AND THERMAL CHARACTERISTICS
Width
Depth
Height
Mass
Ta max
Tstg
Max amb. op. Temp.
Storage temperature
400 mm
340 mm
500 mm
30 Kg
40 °C
-40/ +60 °C
450 mm
340 mm
500 mm
30 Kg
40 °C
-40/ +60 °C
Document GOA9xx06CT002
THREE PHASE AC-SWITCH
GOA9xx06C
The part numbering system is reported at the beginning of the Open Assembly section.
Customisations are available on request. Please contact factory.
I
n the interest of product improvement Green Power Solutions reserves the right to change any specification given in this data sheet
without notice.
Document GOA9xx06CT002
THREE PHASE AC-SWITCH
GOA9xx06C

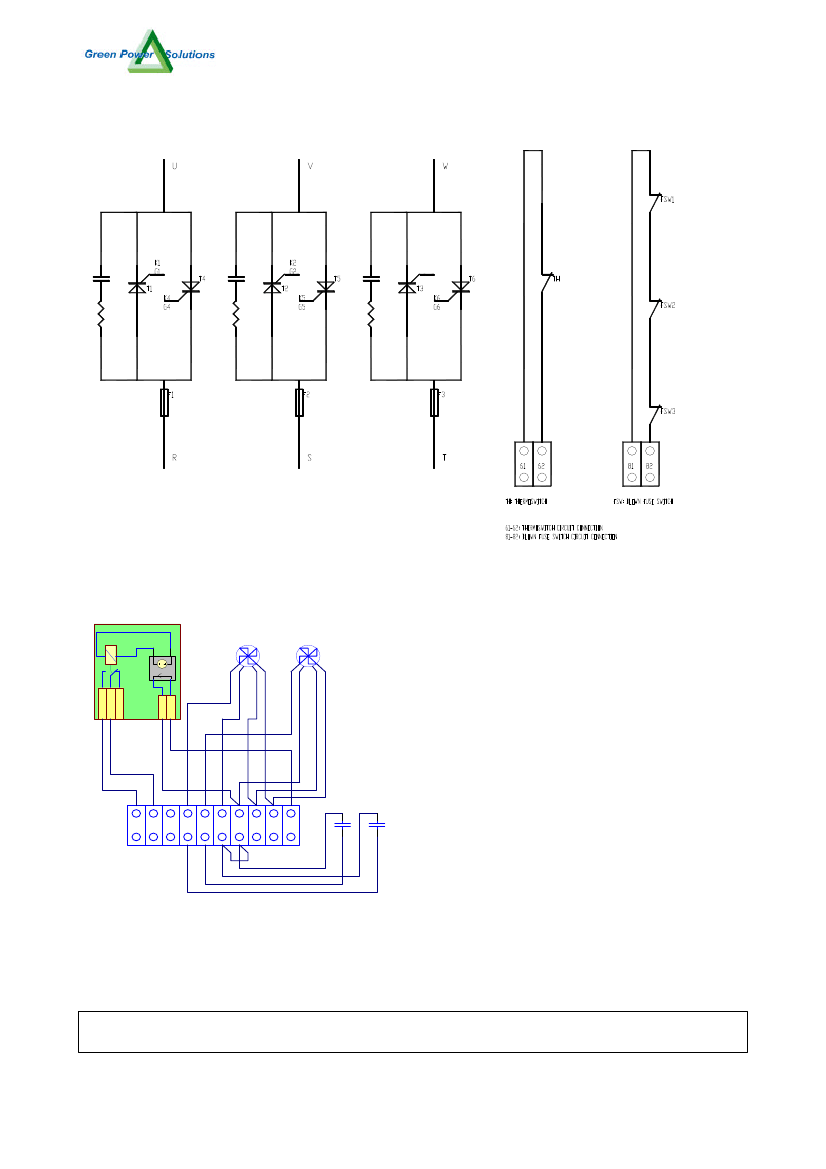

FAN BOARD
FAN 1
FAN 2
BLUE
GREEN/YELLOW
BLUE
GREEN/YELLOW
BROWN
BLACK
NO
COM
NC
AC
AC
BROWN
BLACK
FAN CAPACITOR
31
32
U3
PE
V3
FAN CAPACITOR
Cooling:
Fan type:
Number of fans:
Voltage:
Current:
Frequency:
Noise:
single phase axial
2
230 V
0.4 A
50/60 Hz
62 dBA
1
2
U3-V3: MAIN SUPPLY
PE: GROUND CONNECTION (GND)
31-32: FAN BOARD CONTACT (CLOSED WHEN FAN RUNNING)
I
n the interest of product improvement Green Power Solutions reserves the right to change any specification given in this data sheet
without notice.
Document GOA9xx06CT002
2
1
