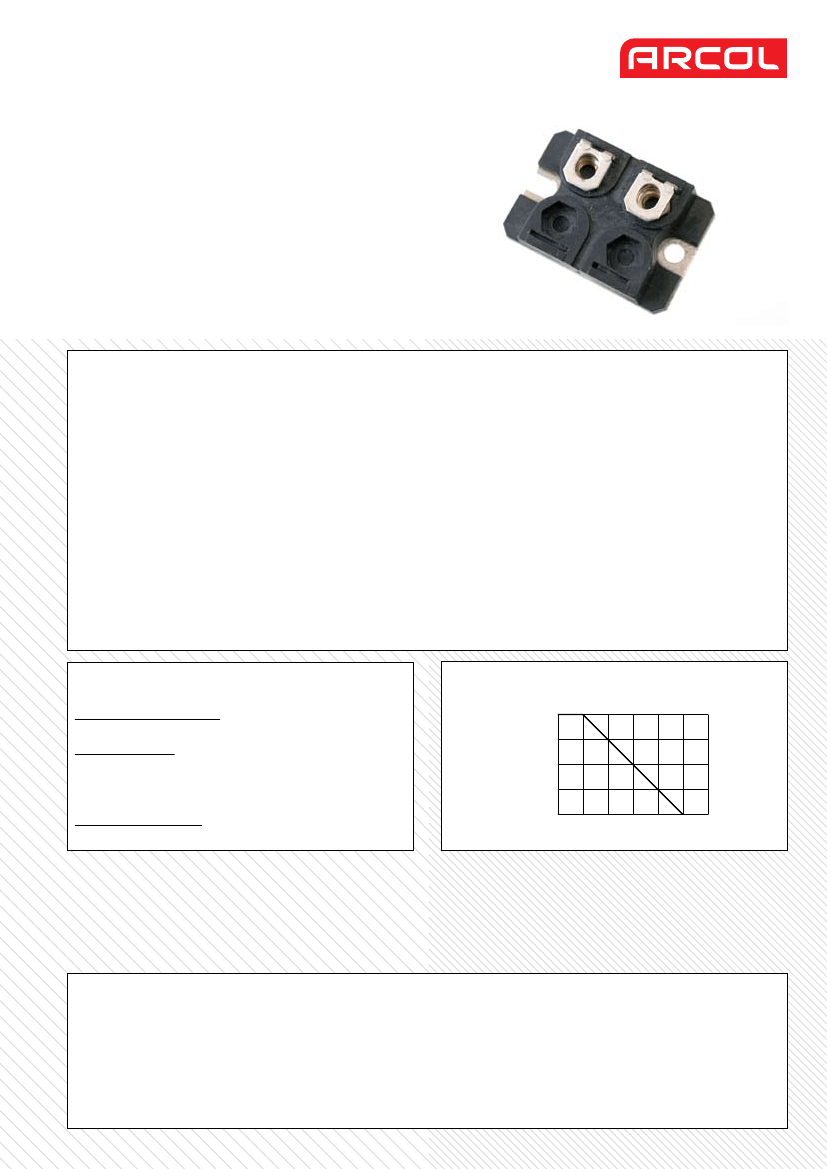

FPA100
Thick Film Power Resistors
Due to a Non-Inductive design these elements are
ideally suited for high frequency and pulse load
applications. The FPA100 is available connected as 2
terminals or 4 terminals, in parallel or series.
•
Isotop/SOT227 Semiconductor Style
•
100 Watts dissipation in a small footprint
•
Very low inductance
•
Direct heatsink mounting
•
RoHS Compliant
Characteristics
Ohmic value range:
Tolerance (Code):
TCR:
Power rating at 25° C:
Max working voltage:
Resistance range:
Voltage proof:
Protection class:
Partial discharge:
Capacitance/mass:
Working temp range:
Max. torque for contacts (static):
E24, contact ARCOL for values outside this series
Standard J (±5%) and K (±10%). Also available F (±1%) on request
Standard 100ppm (at +105°C ref to +25°C). Also available 50ppm and 250ppm on request
100W-200W
1kV rms
2R to 20Meg
Dielectric strength 4kV
IEC950/CSA22.2 950/M-89 and EN 60950.88:2
Up to ≥ 2kV rms / 80 pC
45pF
-55°C to +155°C
1.3Nm
Thermal resistance to cooling plate: R< 0.35°C/W
Max. torque for base plate (static): 1.5Nm
Ordering Procedure
Standard (Version 1) Resistor Specify Series, Watts, Ohmic
Value, Tolerance Code, e.g.: FPA100 2R2 J
Versions 2, 3, 4 or 5 Specify Series, Watts, Ohmic Value or
Values, Tolerance Code and then Version Number,
e.g.: FPA100 2R2 2R2 J version 4.

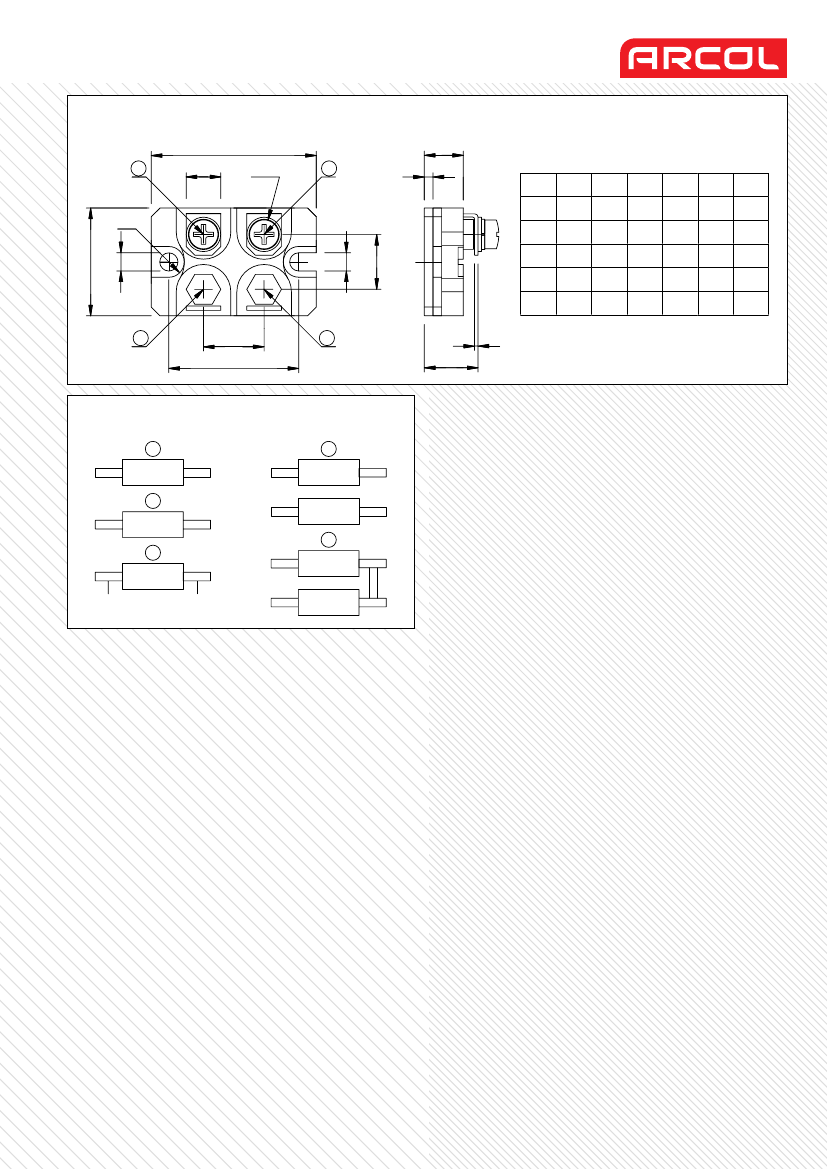

Refer to versions available on page 2.
TCR as standard 100ppm For 50ppm or 250ppm, please specify
at the end of the part number e.g.: FPA100 100R J 50ppm
Derating Curve
100
Rated Power %
75
50
25
0
0
25
50 100 125 155
Temperature ˚C
