PHOTOELECTRIC SENSOR
DIGITAL FIBER SENSOR
FX-300
SERIES
Conforming to
EMC Directive
UL Recognition
Constant advances achieving the highest
level of performance in its class
The FX-300 series of next-generation fiber sensors provides
the highest level of sensing performance in its class
‘Stable sensing’, ‘high sensing performance’, ‘easy operation’, ‘improved ease of
maintenance’ and ‘preservation of the environment’ are the five concepts underlying
the new FX-300 series!
June 2004
FX-301 advances
even further
(Refer to p.34 for details)
High-function type
FX-305
Standard type
FX-301
Ultra high-speed type
FX-301-HS
1
APC circuit
has been added, in
addition to the
four-chemical
emitting element.
Equipped with an
light emitting
amount selection function.
Plus, a
4-digit full ‘9999’ display (FX-305)
and
35
!s
ultra high-speed
response (FX-301-HS) are also
provided.
FX-300
Concept 1
SERIES
Concept 2
High Stability
P.3
Concept 5
Superior Performance
P.4
Concept 3
Eco-friendly
P.8
Easy operation
P.6
Only two switches, the
large MODE key and the
large jog switch, are
required for operation.
Lead-free solder
used is gentle on the environment.
Concept 4
P.7
Easy Maintenance
Sensor
setup
and
control can be carried
out externally using an
upstream communica-
tion unit.
Full range of fibers
P.9
Wide lineup
Guide for each industry
Description of different fibers and performance for each industry
Pharmaceutical
•
Packaging / P.15
LCD
•
Semiconductor / P.9 to P.12
Electronic component
•
Automatic assembly / P.13 to P.14
2
High Stability
Concept 1
High Stability
APC circuit
Double coupling lens
Four-chemical emitting element
Stable sensing over long and short periods
Stability
enhancement
Even greater sensing range
FX-301/B/G/H FX-301-HS FX-305
FX-301 FX-301-HS FX-305

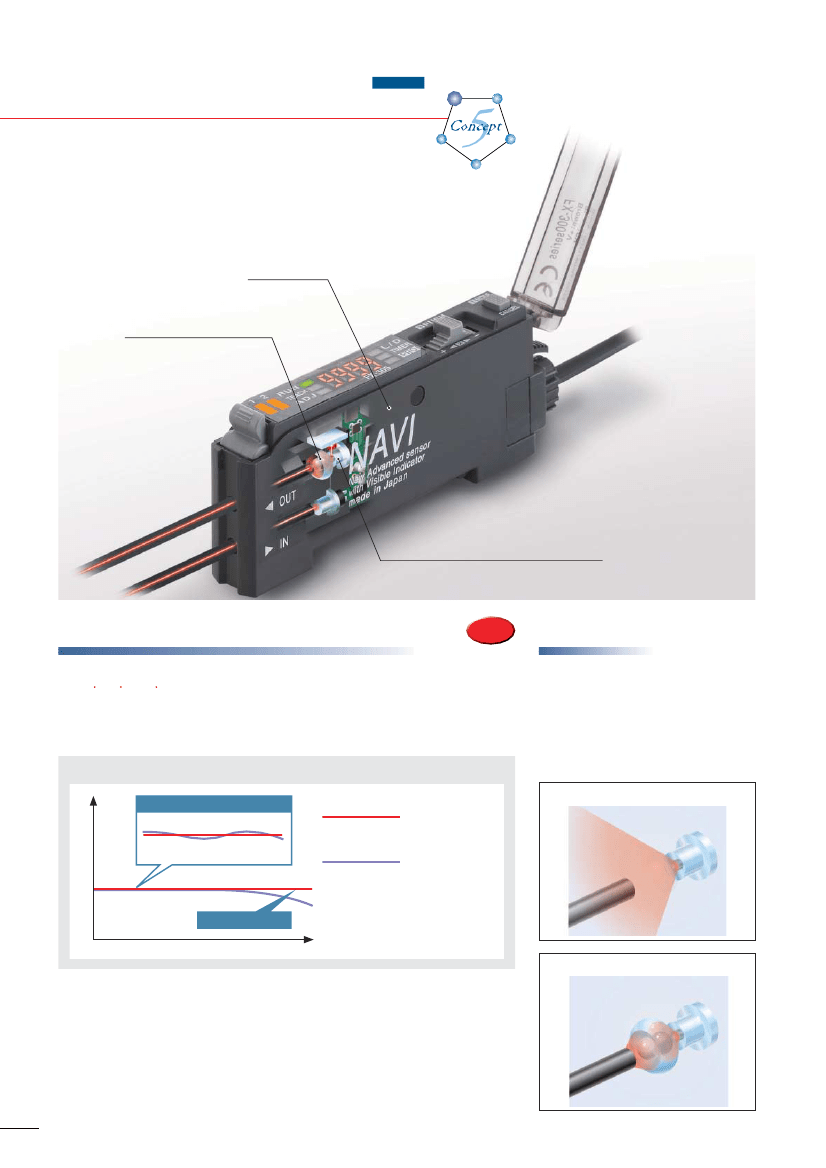

In addition to a ‘four-chemical
emitting element’
which suppresses changes in the light emitting
element over time so that a stable level of light emission can be maintained over long periods, a
‘APC (Auto Power Control) circuit’ has also been adopted afreshly. The light emitting amount
can be controlled in minute degrees so that even changes occurring over very short periods
can be handled, allowing stable sensing performance by suppressing deviations in light emitting
amounts caused by changes in the ambient environment that could not previously be
suppressed.
●
Stable sensing comparison
Light emitting amount
Adoption of a ‘double
coupling lens’
that
increases emission efficiency to its
maximum limits and greatly increases
sensing range. Sensing ranges with small
diameter fibers and ultra-small diameter
fibers, which have become very popular due
to the miniaturization of chip components,
have been increased by 50 % over previous
values achieved with other amplifiers.
Short-term stability
FX-301
FX-301-HS
FX-305
Three-chemical
emitting element,
Without APC
●
Conventional fiber sensors (Without lens)
Deviation
Long-term stability
Time
Disperses the light reduces
emitting efficiency.
●
Double coupling lens
The lens concentrates the light, greatly
increasing emitting efficiency.
3
Superior Performance
Concept 2
Superior Performance
Light-emitting amount selection
FX-301 FX-301-HS FX-305
Ultra high-speed 35
¨s
response
Level 4
4 times
as fast as
before
FX-301-HS
If the light receiving level becomes saturated during close-
range sensing or when sensing transparent or minute
objects, you can adjust the light emitting amount of the
sensor to stabilize sensing
without needing to change the
response time.
Sensing that previously required the response
time or fibers to be changed can now be set much more
easily using this function.
[Light receiving level saturated]
Actual digit difference: C
Ultra high-speed 35
!s
response. Even
small objects moving at high speeds can be
sensed. In addition, at 65
!s
the
FX-301
standard type is also twice as fast as
previous models.
Level 3
Ultra high-speed
response
Level 2
[Stable sensing]
A
4000
B
Upper display limit
Light emitting
amount
changed
Saturated digit
difference: D
Actual digit difference: C’
Level 1
A’
B’
OFF
Large display 9999
2.5 times
previous
models
Light emitting amount
can be changed
without changing
response time
FX-305
Ultra high-speed type FX-301-HS
(H-SP mode)
35¨s
Digit difference comparison
Example
Digit difference between
object A
and
object B
Large display with 4 digits (9999). With a
greater difference in digit value than
previous models, threshold values can be
set in units of 1 digit up to maximum 9999.
Threshold setting can now be done more
easily and accurately.
Standard type FX-301, High-function type FX-305
(H-SP mode)
Previous models
4000
65¨s
Previous model
150¨s
FX-305
9999
(During STDF, LONG and U-LG modes)
Digit difference: Small Digit difference: Large
4
