Part Number

Search

BH6048GLU

Description
LED Driver, 3-Segment, CMOS, PBGA25, FLGA-25
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size2MB,1 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BH6048GLU Overview

LED Driver, 3-Segment, CMOS, PBGA25, FLGA-25

BH6048GLU Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeLGA
package instructionVFBGA, BGA25,5X5,20
Contacts25
Reach Compliance Codecompliant
ECCN codeEAR99
Interface integrated circuit typeLED DISPLAY DRIVER
JESD-30 codeS-PBGA-BU25
JESD-609 codee3/e2
length3.06 mm
Multiplex display functionNO
Number of functions1
Number of segments3
Number of terminals25
Package body materialPLASTIC/EPOXY
encapsulated codeVFBGA
Encapsulate equivalent codeBGA25,5X5,20
Package shapeSQUARE
Package formGRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)260
power supply2.8 V
Certification statusNot Qualified
Maximum seat height0.8 mm
Maximum supply voltage4.5 V
Minimum supply voltage3 V
Nominal supply voltage3.6 V
surface mountYES
technologyCMOS
Terminal surfaceTIN/TIN COPPER
Terminal formBUTT
Terminal pitch0.5 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperature10
width3.06 mm
minfmax1.2 MHz
Base Number Matches1

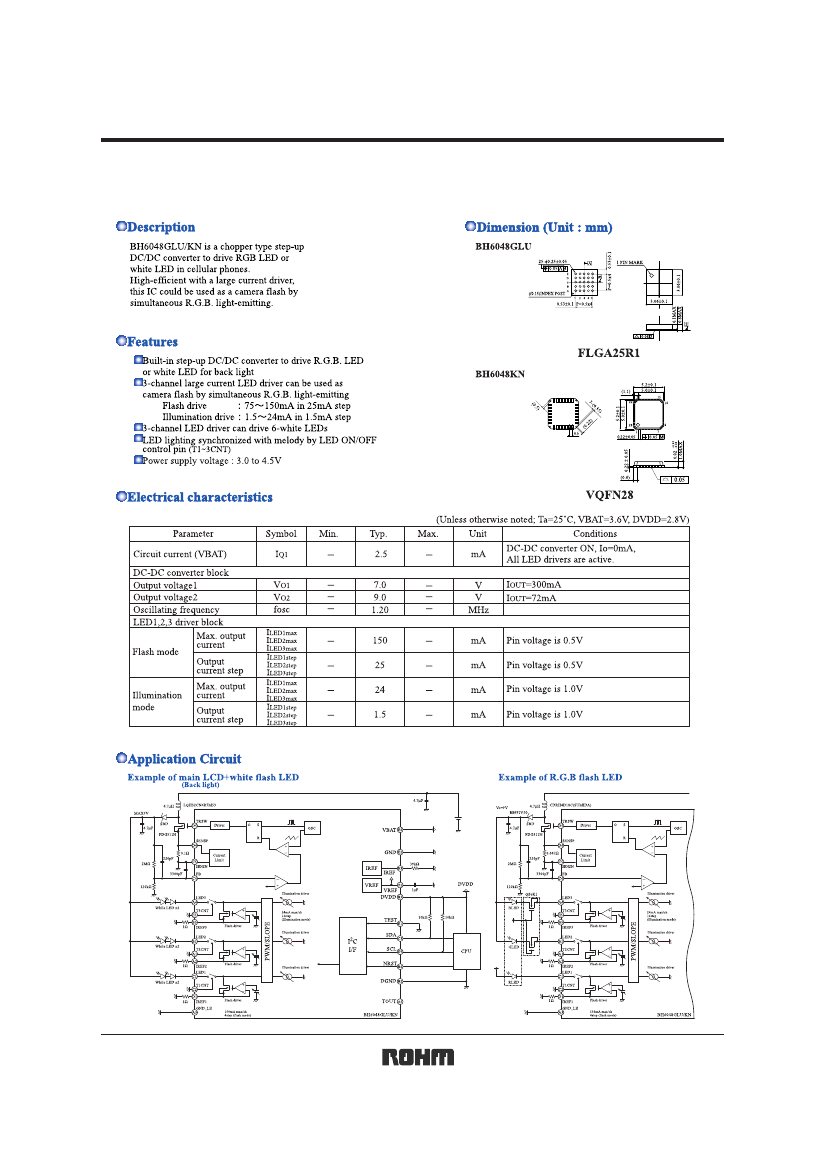

BH6048GLU/KN
Communication ICs
Flash LED Management IC
BH6048GLU/KN
1/1

BH6048GLU Related Products

BH6048GLU BH6048KN
Description LED Driver, 3-Segment, CMOS, PBGA25, FLGA-25 LED Driver, 3-Segment, CMOS, VQFN-28
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Parts packaging code LGA QFN
package instruction VFBGA, BGA25,5X5,20 VQCCN, LCC28,.2SQ,20
Contacts 25 28
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Interface integrated circuit type LED DISPLAY DRIVER LED DISPLAY DRIVER
JESD-30 code S-PBGA-BU25 S-XQCC-N28
JESD-609 code e3/e2 e3/e2
length 3.06 mm 5.2 mm
Multiplex display function NO NO
Number of functions 1 1
Number of segments 3 3
Number of terminals 25 28
Package body material PLASTIC/EPOXY UNSPECIFIED
encapsulated code VFBGA VQCCN
Encapsulate equivalent code BGA25,5X5,20 LCC28,.2SQ,20
Package shape SQUARE SQUARE
Package form GRID ARRAY, VERY THIN PROFILE, FINE PITCH CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Celsius) 260 260
power supply 2.8 V 2.8 V
Certification status Not Qualified Not Qualified
Maximum seat height 0.8 mm 1 mm
Maximum supply voltage 4.5 V 4.5 V
Minimum supply voltage 3 V 3 V
Nominal supply voltage 3.6 V 3.6 V
surface mount YES YES
technology CMOS CMOS
Terminal surface TIN/TIN COPPER TIN/TIN COPPER
Terminal form BUTT NO LEAD
Terminal pitch 0.5 mm 0.5 mm
Terminal location BOTTOM QUAD
Maximum time at peak reflow temperature 10 10
width 3.06 mm 5.2 mm
minfmax 1.2 MHz 1.2 MHz
Base Number Matches 1 1
