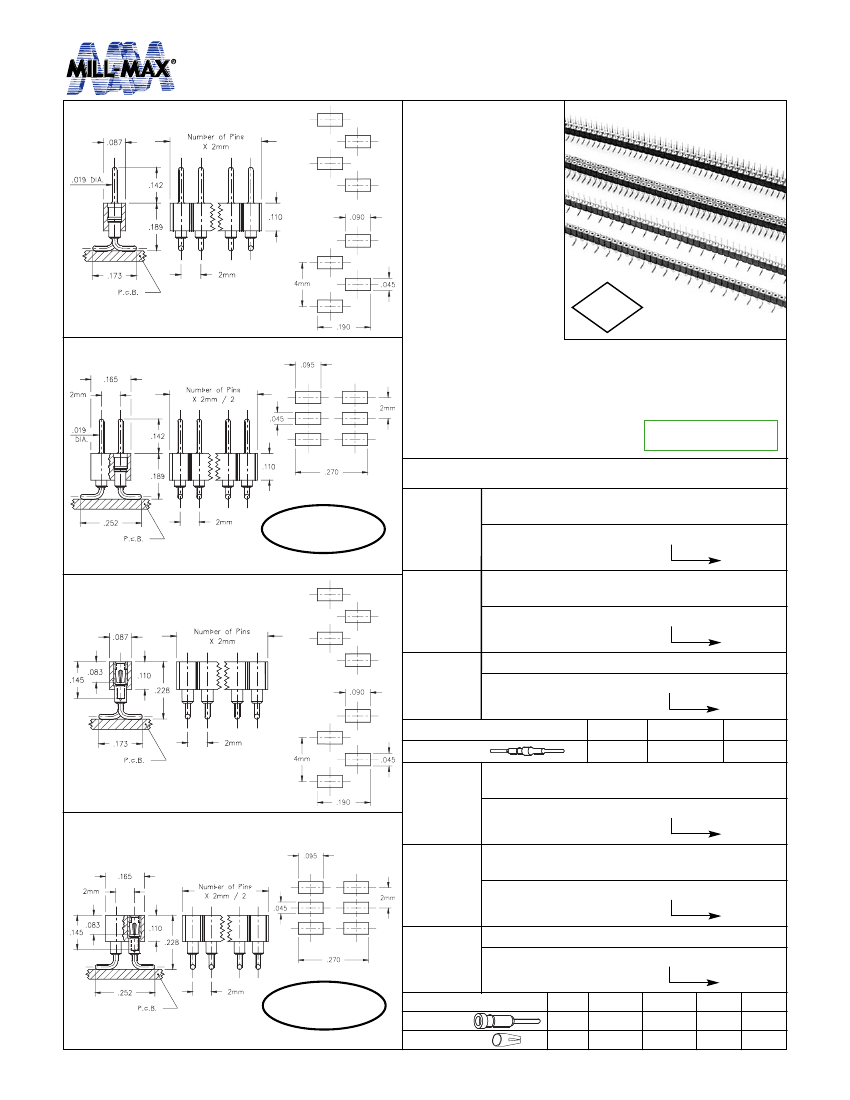

INTERCONNECTS

2mm Grid Surface Mount Headers And Sockets

Single and Double Row

Left Hand

Footprint

Series 830, 831

832, 833

•

Headers (830 &

832) use MM# 6218

pins. See page 175

for details.

•

Sockets (831 & 833)

use MM# 1802

receptacles and

accept pin diameters

from .015-.025. See

page 140 for details.

Right Hand

Footprint

Coplanarity .005”. For Pin Counts

> 12 Consult Tech Support

2002/95/EC

RoHS

Fig. 1

Footprint

•

Coplanarity .005”

(Single Row max 12 pins; Double Row max 24 pins)

for higher pin counts contact technical support.

•

Insulators are high temp. thermoplastic.

For RoHS compliance

select

plating code.

Ordering Information

XX=Plating Code

See Below

Coplanarity .005”. For Pin Counts

> 24 Consult Tech Support

Single Row Header, Left Hand Footprint

Odd or Even # of pins

Fig. 1L

830-XX-0_ _-30-001000

Specify # of pins

01-50

Single Row Header, Right Hand Footprint

Even # of pins

Fig. 2

Left Hand

Footprint

Fig. 1R

830-XX-0_ _-30-002000

Specify even # of pins

02-50

Double Row Header, Even # of pins

Fig. 2

Right Hand

Footprint

832-XX-_ _ _-30-001000

Specify even # of pins

004-100

SPECIFY PLATING CODE XX=

Pin Plating

Coplanarity .005”. For Pin Counts

> 12 Consult Tech Support

10μ” Au 200μ” Sn/Pb 200μ” Sn

Fig. 3

Footprint

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

Fig. 3L

831-XX-0_ _-30-001000

Specify # of pins

01-50

Single Row Socket, Right Hand Footprint

Even # of pins

Fig. 3R

831-XX-0_ _-30-002000

Specify even # of pins

02-50

Double Row Socket, Even # of pins

Fig. 4

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

833-XX-_ _ _-30-001000

Specify even # of pins

004-100

200µ”Sn/Pb

SPECIFY PLATING CODE XX=

30µ” Au

Coplanarity .005”. For Pin Counts

> 24 Consult Tech Support

Sleeve (Pin)

Contact (Clip)

10µ” Au

200µ” Sn/Pb

200µ”Sn/Pb

200µ”Sn

30µ” Au

200µ”Sn

Fig. 4

w w w. m i l l - m a x . c o m

516-922-6000
