SINGLE-PHASE BRIDGE RECTIFIER
DF005 THRU DF10
DB101 THRU DB107
FEATURES
•
•
•
•
VOLTAGE RANGE
CURRENT
50 to
1000
Volts
1.0 Ampere
DFM
.365
(
9.3
)
.320
(
8.12
)
.135
(
3.4
)
.115
(
2.9
)
.020
(
0.5
)
Glass passivated chip junction
High forward surge current capability
Ideal for printed circuit board
High temperature soldering guaranteed:
260℃/10 seconds at terminals
.165
(
4.2
)
.155
(
3.9
)
.060
(
1.5
)
.350
(
8.9
)
.300
(
7.6
)
MECHANICAL DATA
•
•
•
•
•
•
Case: Transfer molded plastic
Epoxy: UL94V-0 rate flame retardant
Terminals solderable per MIL-STD-202E
method 208C
Polarity: Molded on body
Mounting position: Any
Weight: 0.04 ounce, 1.0 gram
.205
(
5.2
)
.195
(
5.0
)
-
~
+
~
.255
(
6.5
)
.245
(
6.2
)
Dimensions in inches and
(
millimeters
)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
•
•
•
Ratings at 25℃ ambient temperature unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load
For capacitive load derate current by 20%
SYMBOLS
DF005
DB101
DF01
DB102
DF02
DB103
DF04
DB104
DF06
DB105
DF08
DB106
DF10
DB107
UNIT
Volts
Volts
Volts
Amps
Amps
A
2
s
Volts
µAmps
mAmps
pF
℃/W
℃
Maximum Reverse Peak Repetitive Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Output
Current, 0.06”(1.5mm) lead length at T
A
=40℃
(Note 2)
Peak Forward Surge Current
8.3ms single half sine wave superimposed on
rated load (JEDEC Method)
Rating for Fusing (t＜8.3ms)
Maximum Instantaneous Forward Voltage drop
Per Bridge element 1.0A
Maximum Reverse Current at rated
DC blocking voltage per element
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
Operating and Storage Temperature Range
T
A
=25℃
T
A
=125℃
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
t
V
F
I
R
C
J
R
ΘJA
T
J
,T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1.0
50
10
1.1
5
0.5
25
40
-55 to +150
600
420
600
800
560
800
1000
700
1000
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts.
2.Unit mounted on P.C.B. with 0.51”×0.51” ( 13×13mm) copper pads.
Web Site: WWW.PS-PFS.COM
SINGLE-PHASE BRIDGE RECTIFIER
DF005 THRU DF10
DB101 THRU DB107

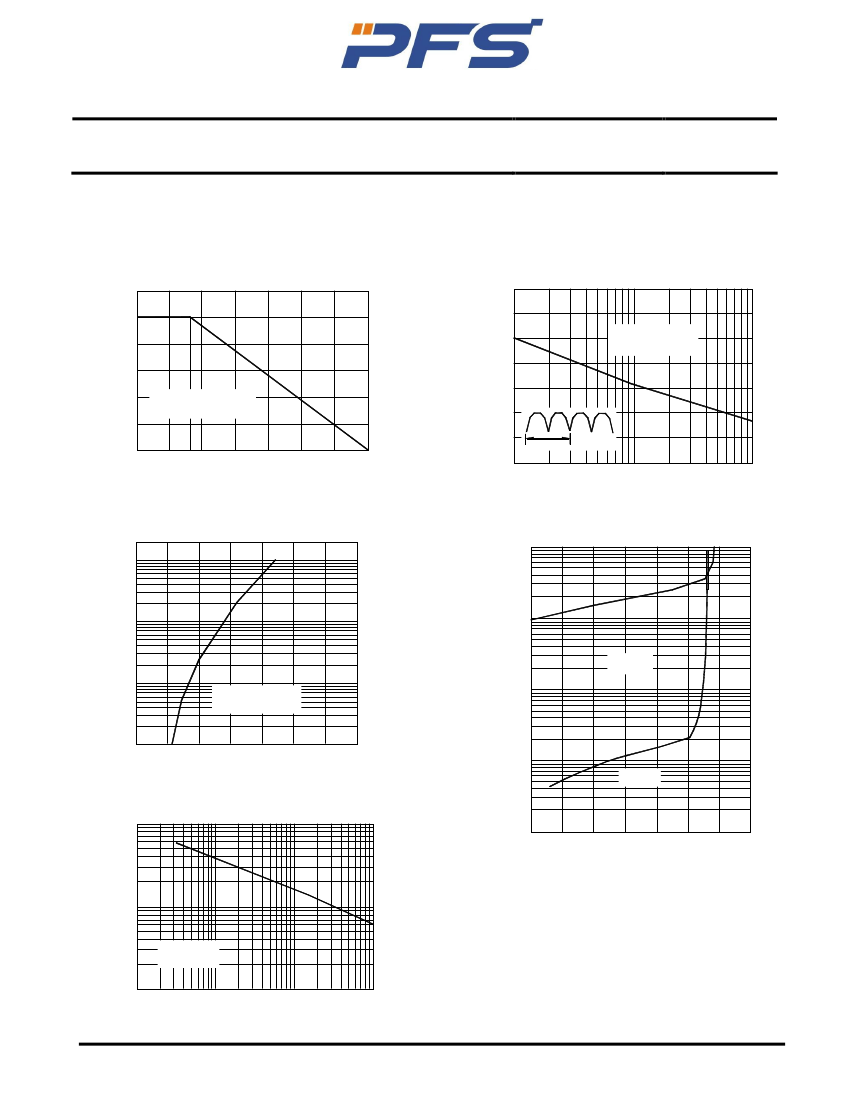

RATINGS AND CHARACTERISTIC CURVES
FIG. 1- DERATING CURVE FOR
OUTPUT RECTIFIED CURRENT
1.2
70
60
50
40
30
20
10
0
VOLTAGE RANGE
CURRENT
50 to
1000
Volts
1.0 Ampere
DF10
DF005
THRU
DB101
DB107
FIG. 2- MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER ELEMENT
AVERAGE FORWARD OUTPUT,
CURRENT,
(
A
)
PEAK FORWARD SURGE,
CURRENT,
(
A
)
1.0
0.8
0.6
0.4
0.2
0
T
j
=T
j
max
Single Half Sine-Wave
(
JEDEC Method
)
Single Phase
Half Wave 60Hz
Resistive or Inductive Load
1 CYCLE
1
2
4
6
8 10
20
40
60 80 100
0
25
40 50
75
100
125
150
175
AMBIENT TEMPERATURE,
℃
FIG. 3- TYPICAL FORWORD CHARACTERISTICS
PER BRIDGE ELEMENT
INSTANTANEOUS FORWARD CURRENT,
(
A
)
20
10
100
NUMBER OF CYCLES AT 60 Hz
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
INSTANTANEOUS REVERSE CURRENT,
(
μA
)
1.0
10
T
j
=125℃
1.0
0.1
T
j
=25℃
PULSE WIDTH=300μs
1% DUTY CYCLE
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE,
(
V
)
FIG. 5- TYPICAL JUNCTION CAPACITANCE
PER BRIDGE ELEMENT
0.1
T
j
=25℃
100
0.01
JUNCTION CAPACITANCE,
(
pF
)
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK
REVERSE VOLTAGE,
(
%
)
10
T
j
=25℃
f=1MHz
Vsig=50mVp-p
1
0.1
1.0
10
100
REVRESE VOLTAGE,
(
V
)
Web Site: WWW.PS-PFS.COM
