FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 10 to 30 circuits
s
For 0.14mm (.006") thick FFC/FPC
s
Actuator rotates to allow for easy cable insertion from top
or side
s
Metal solder tabs provide PCB hold-down and strain relief
for SMT tails
Reference Information
Product Specification: PS-35863-001

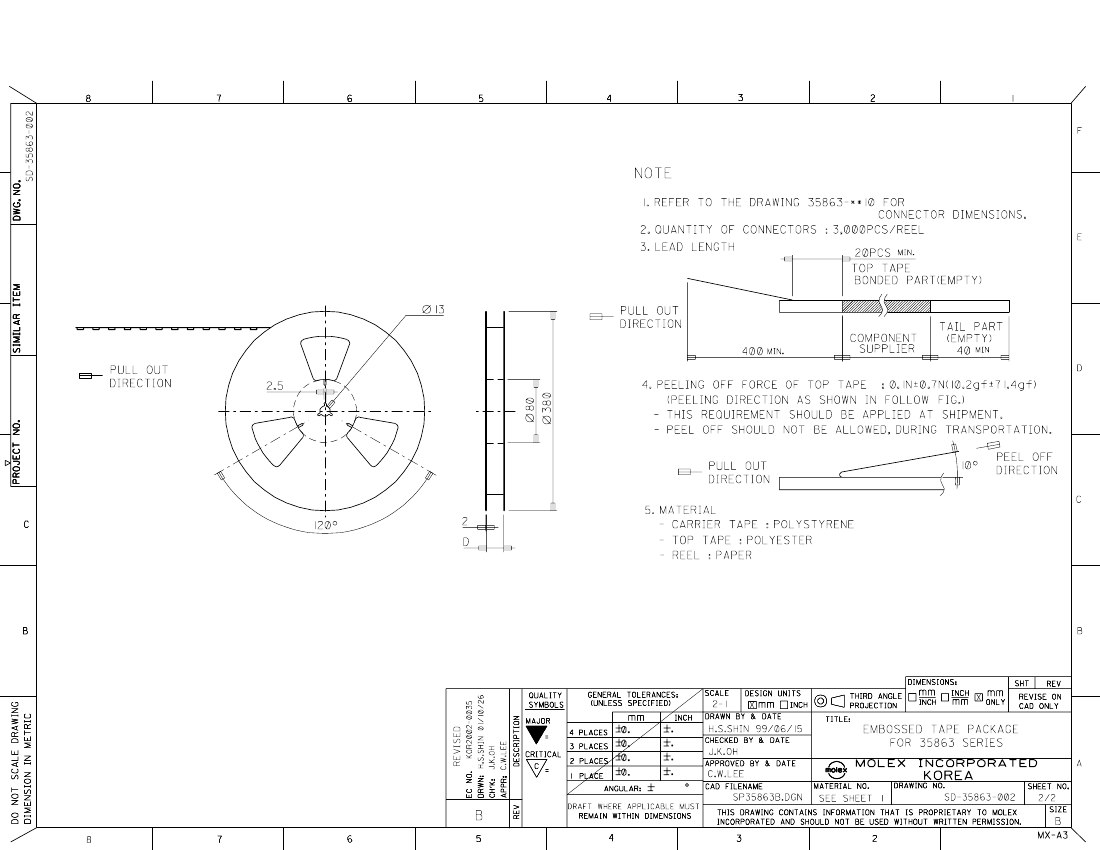

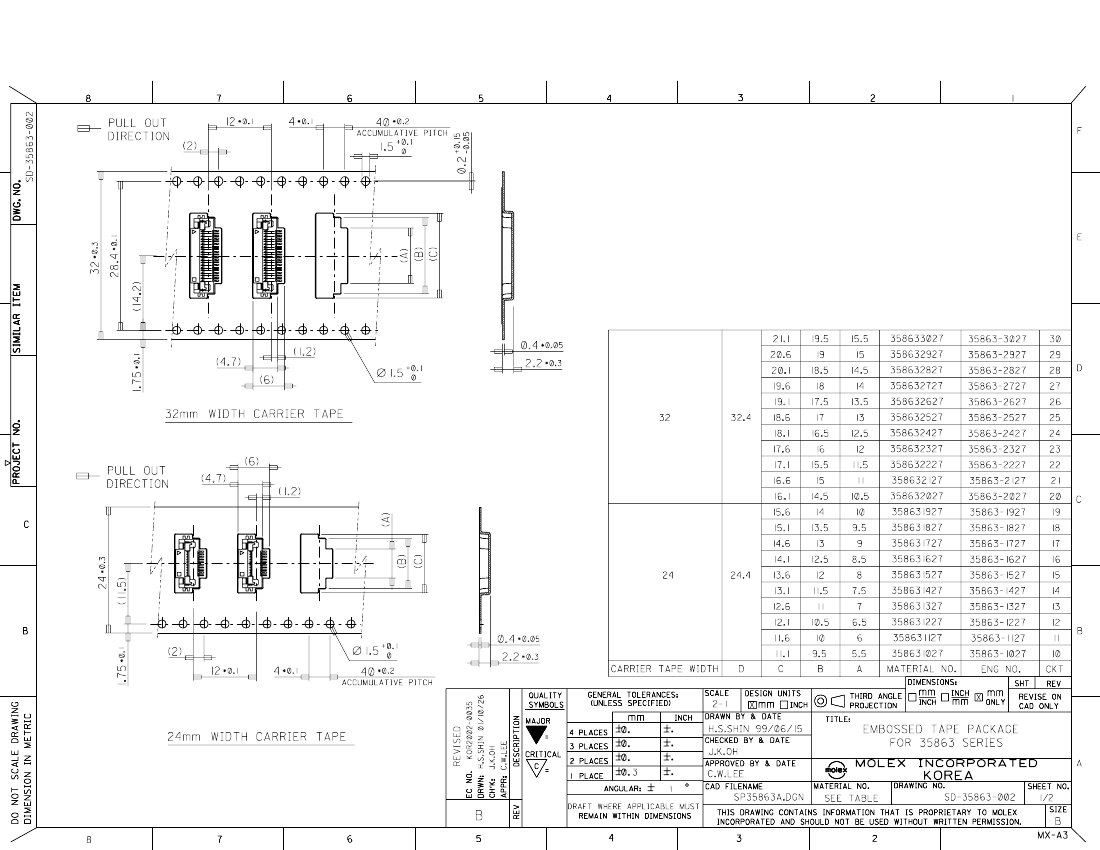

Packaging: Embossed tape
Designed In: Millimeters
Electrical
Voltage: 50V
Current: 0.5A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 250V
Insulation Resistance: 100 M
Ω
min.
Physical
Housing: 4/6 nylon, UL 94V-O
Contact: Phosphor Bronze
Plating: Tin/Lead
Operating Temperature: -20 to +80
˚
C
0.50mm (.020") Pitch
FFC/FPC Connector
35863
Right Angle, SMT, ZIF
Bottom Contact

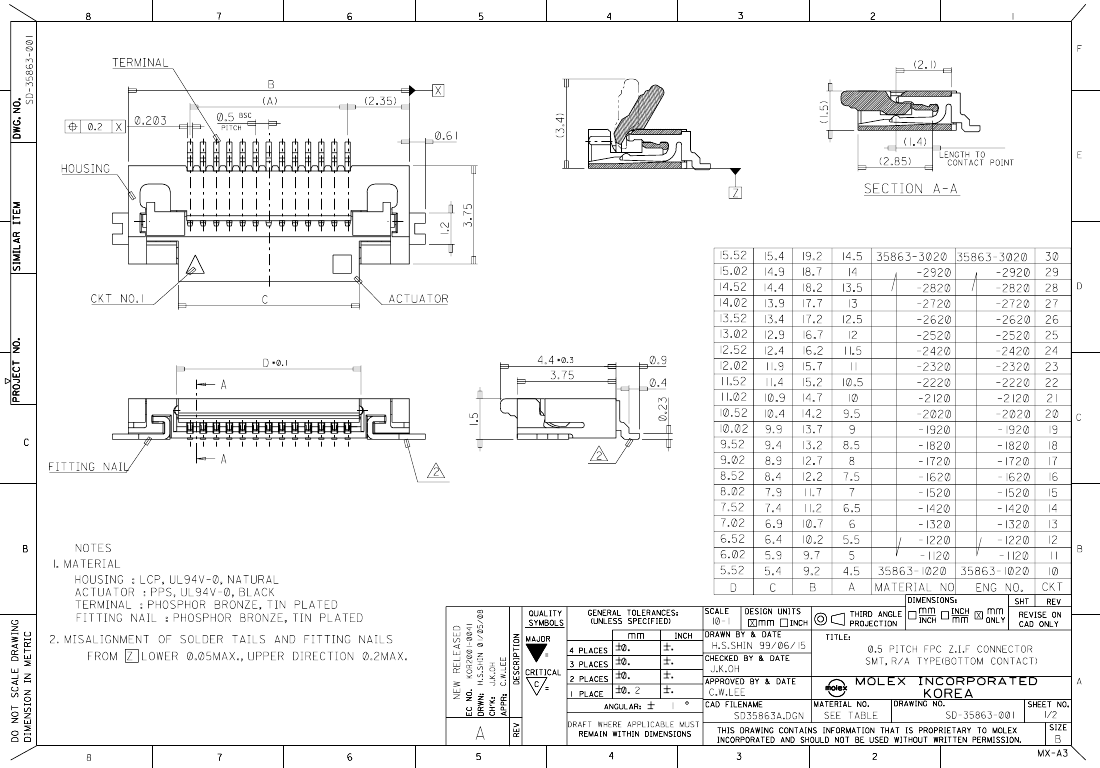

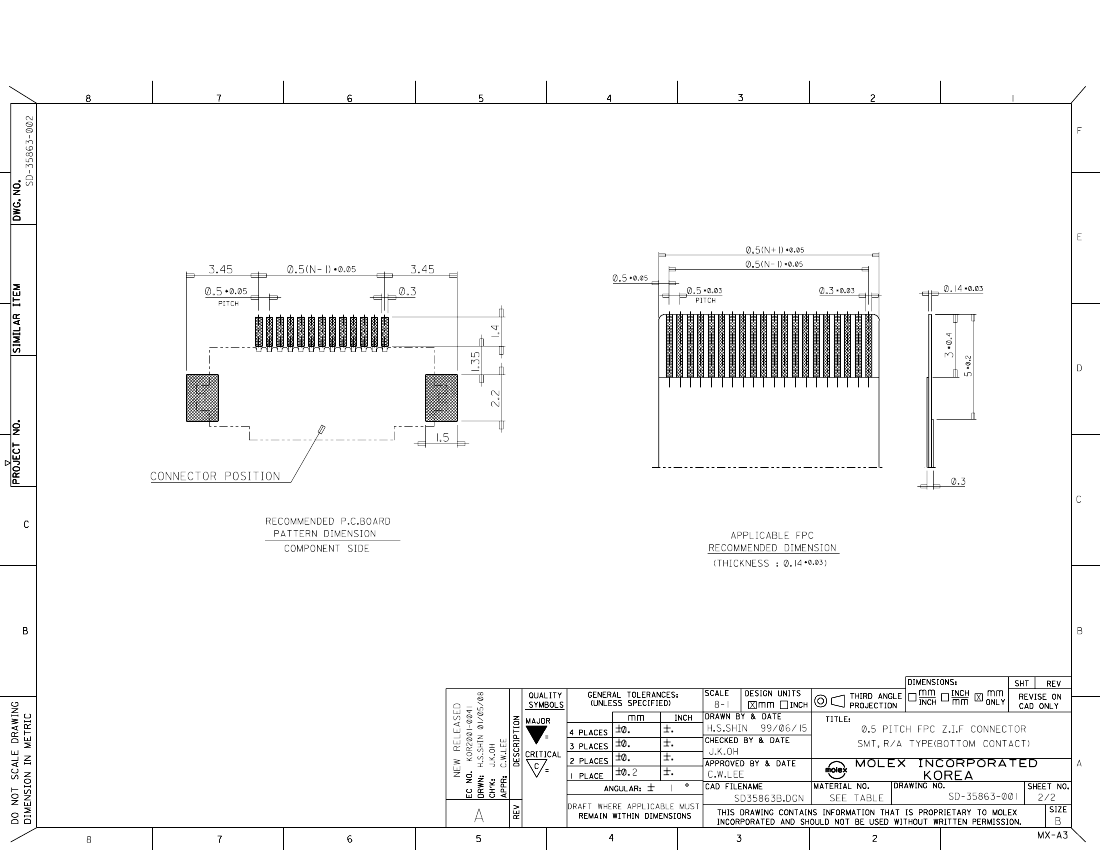

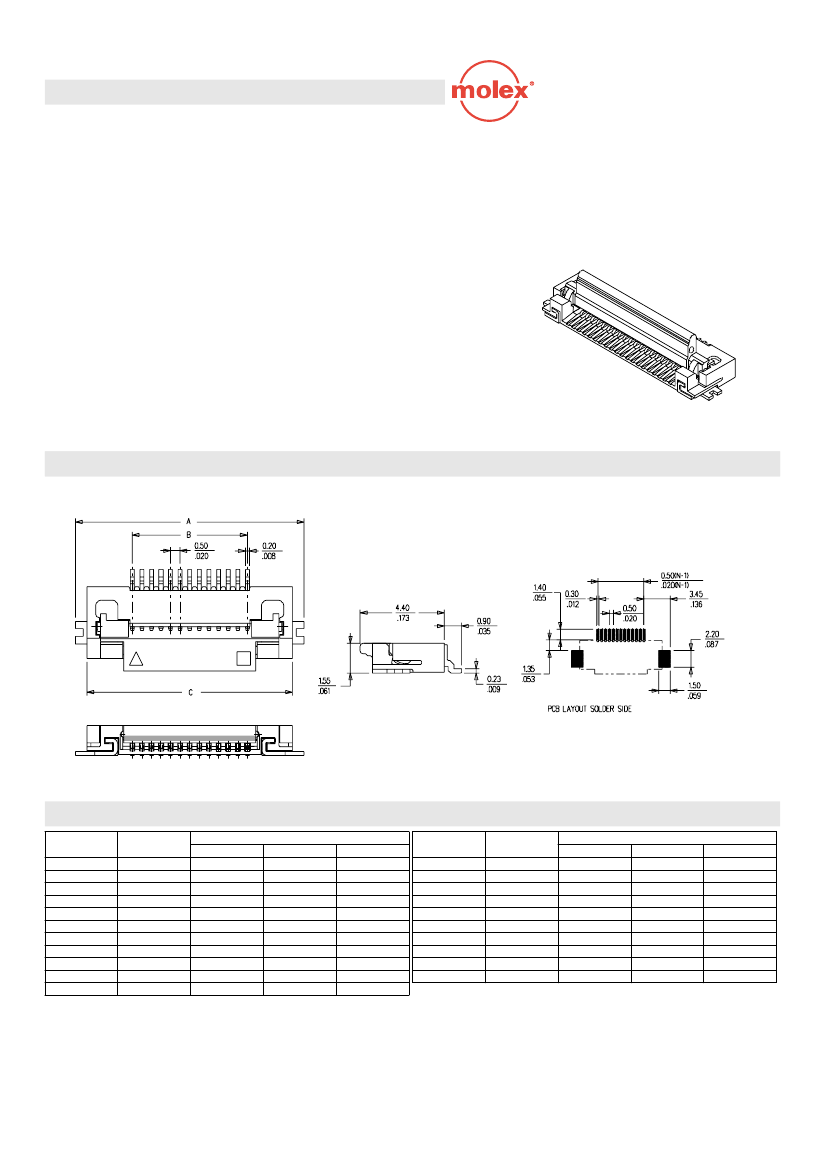

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
10
11
12
13
14
15
16
17
18
19
20
Order No.
35863-1027
35863-1127
35863-1227
35863-1327
35863-1427
35863-1527
35863-1627
35863-1727
35863-1827
35863-1927
35863-2027
A
10.42 (.410)
10.92 (.430)
11.42 (.450)
11.92 (.469)
12.42 (.489)
12.92 (.509)
13.42 (.528)
13.92 (.548)
14.42 (.568)
14.92 (.587)
15.42 (.607)
Dimension
B
4.50 (.177)
5.00 (.197)
5.50 (.217)
6.00 (.236)
6.50 (.256)
7.00 (.276)
7.50 (.295)
8.00 (.315)
8.50 (.335)
9.00 (.354)
9.50 (.374)
C
9.20 (.362)
9.70 (.382)
10.20 (.402)
10.70 (.421)
11.20 (.441)
11.70 (.461)
12.20 (.480)
12.70 (.500)
13.20 (.520)
13.70 (.539)
14.20 (.559)
Circuits
21
22
23
24
25
26
27
28
29
30
Order No.
35863-2127
35863-2227
35863-2327
35863-2427
35863-2527
35863-2627
35863-2727
35863-2827
35863-2927
35863-3027
A
15.92 (.627)
16.42 (.646)
16.92 (.666)
17.42 (.686)
17.92 (.706)
18.42 (.725)
18.92 (.745)
19.42 (.765)
19.92 (.784)
20.42 (.804)
Dimension
B
10.00(.394)
10.50 (.413)
11.00 (.433)
11.50 (.453)
12.00 (.472)
12.50 (.492)
13.00 (.512)
13.50 (.531)
14.00 (.551)
14.50 (.571)
C
14.70 (.579)
15.20 (.598)
15.70 (.618)
16.20 (.638)
16.70 (.657)
17.20 (.677)
17.70 (.697)
18.20 (.717)
18.70 (.736)
19.20 (.756)
Note: For cable specification dimensions, see cable pages at end of section
