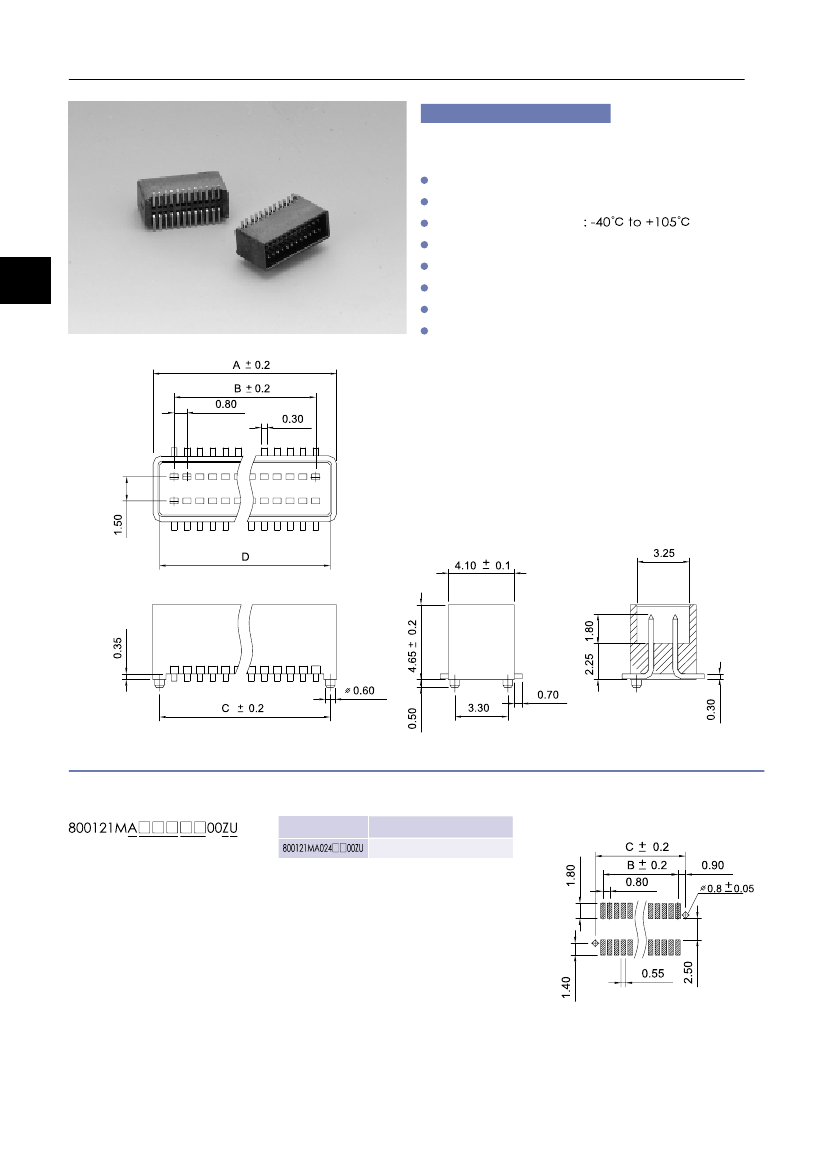

0.8 mm PITCH DUAL ROW PIN HEADER SMD TYPE

800121MA Series

Mates with SUYIN 800123FA Series

Specifications:

06~40Circuits

Insulator Material

Operating Temp. Range

Terminal Material

0.8

: Black High Temp. Plastic

: Phosphor Bronze

: Gold Plated

: 0.5 A

: 100V AC

: 500V (Min. 60 seconds)

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

Order Information

Dimensional Information

SUYIN P/NO.

DIM.A

11.4

DIM.B

10.6

DIM.C

8.8

DIM.D

10.6

Recommended P.C.B. Layout

1. 'A' : Straight SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

Reference Page 11
