3224X-1-104G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3224X-1-104G

3224X-1-104G: DescriptionTrimmer, Cermet, 0.25W, 100000ohm, 10% +/-Tol, -100,100ppm/Cel, 12 Turn(s), 1914, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components The resistor; File Size558KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3224X-1-104G Overview

Trimmer, Cermet, 0.25W, 100000ohm, 10% +/-Tol, -100,100ppm/Cel, 12 Turn(s), 1914, HALOGEN FREE AND ROHS COMPLIANT

3224X-1-104G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1977043982
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	not_compliant
Country Of Origin	Costa Rica
ECCN code	EAR99
YTEOL	7.6
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer Pot
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	12
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	5.1 mm
Package length	4.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.5 mm
method of packing	TR, EMBOSSED, 13 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	4320 deg
size code	1914
surface mount	YES
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	GULL WING
Tolerance	10%

Preview

Download Datasheet

View All

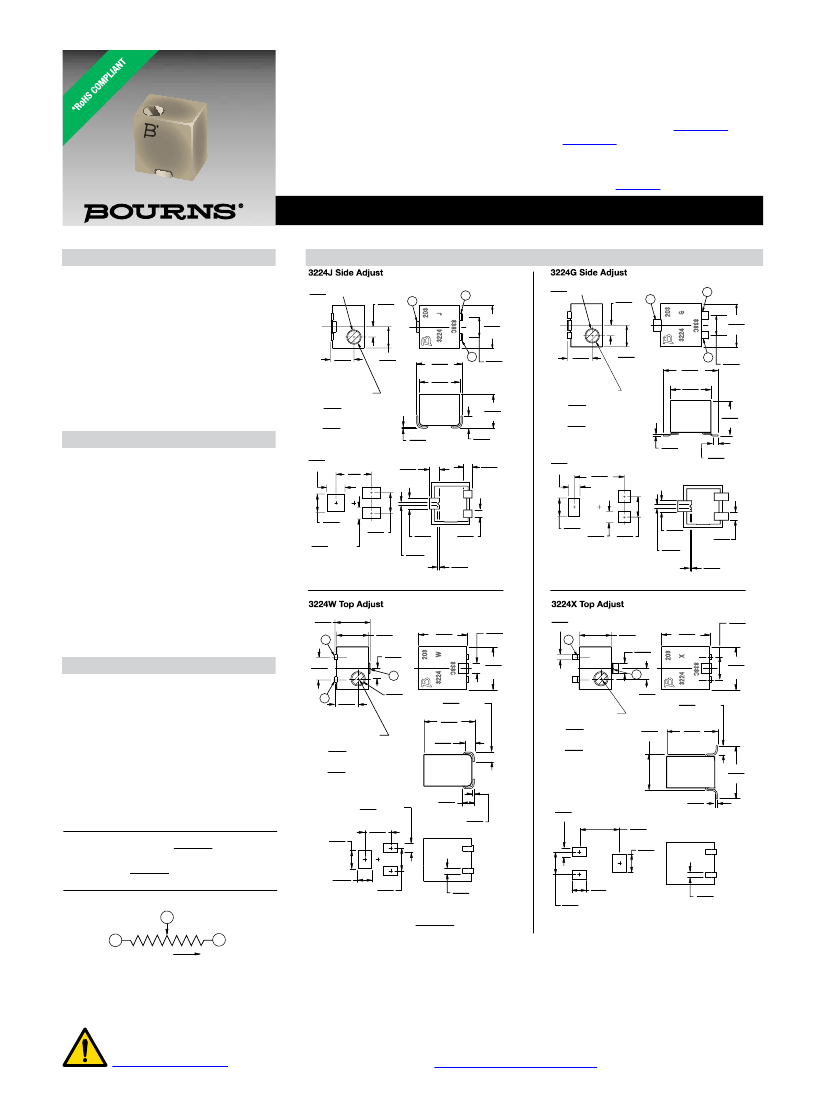

Features

Surface Mount 4 mm Square / Multiturn

100

3224W

811 C

Cermet / Industrial / Sealed

Halogen free** with date code 114

Sealed to withstand board wash

processing

Pick and place centering design, with flush

adjustment

4mm design meets EIA/EIAJ/IPC/VECI

SMD standard trimmer footprint

Low CRV - 1 %

RoHS compliant* - see processing

information on RoHS compliant surface

mount trimmers

For trimmer applications/processing

guidelines, click here

3224 - 4 mm SMD Trimpot

Trimming Potentiometer

Standard Resistance Range

.......................................... 10 to 2 megohm

(see standard resistance table)

Resistance Tolerance ....................±10 % std.

Absolute Min. Resistance .....1 % or 2.0 ohms

(whichever is greater)

Contact Resistance Variation

....................................1 % or 3 ohms max.

Resolution ..........................Essentially Infinite

Insulation Resistance ........................500 vdc.

100 megohms min.

Dielectric Strength

Sea Level ....................... 600 vac (1 minute)

Adjustment Angle ..................... 12 turns nom.

Power Rating (300 volts max.)

85 °C .............................................0.25 watt

150 °C ................................................0 watt

Temperature Range ............-65 °C to +150 °C

Temperature Coefficient ............±100 ppm/°C

Seal Test .......... 85 °C Fluorinert†/60 seconds

Humidity ................MIL-STD 202 Method 106

TRS ±2 %; IR 10 megohms

Vibration .............. 20 G TRS±1 %; VRS ±1 %

Shock ................ 100 G TRS ±1 %; VRS±1 %

Load Life.... @ 85 °C rated power 1,000 hours

TRS .......3 ohms or 3 % (whichever is greater)

Rotational Cycling ......................... 200 cycles

TRS .......3 ohms or 3 % (whichever is greater)

Thermal Shock .................................. 5 cycles

TRS±2 %; VRS±1 %

Moisture Sensitivity Level ......................... N/A

ESD Classification ........................................ 2

Mechanical Stop ...........................Wiper idles

Torque..................................... 180 g-cm max.

Weight ........................Approximately 0.01 oz.

Marking......................... Manufacturer’s code,

resistance code and date code

Solderability ....................... Per MIL-STD-202,

Method 208

Wiper ........................50 % (Actual TR) ±10 %

Flammability .......................................UL94V0

Pushover Strength

J, G ..................................................4.4 lbs.

W, X ......................................................1 lb.

Adjustment Tool...................................... H-91

DIMENSIONS:

(INCHES)

0.25

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

Electrical Characteristics

Product Dimensions

1.5

DIA.

(.060)

1.2

(.047)

4.8

(.190)

1.5

DIA.

(.060)

1.2

(.047)

4.8

(.190)

2.6

(.102)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5

DEEP

(.020)

2.4

(.095)

5.0

(.195)

4.6

(.180)

2.3

(.090)

2.7

(.108)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5 DEEP

(.020)

2.4

(.095)

6.0

(.236)

4.6

(.180)

2.3

(.090)

3.71

(.146)

0.2

(.007)

3.9

(.152)

0.13

(.005)

Environmental Characteristics

0.8

(.032)

1.0

(.039)

2 PLCS.

2.0

3 PLCS

(.079)

4.0

(.157)

1.14

(.045)

1.3

3 PLCS.

(.050)

0.5

TYP.

(.020)

5.2

(.205)

2.0

(.079)

1.3 2 PLCS.

(.050)

2.3

(.090)

1.3

(.050)

0.5

(.020)

0.9

(.034)

2 PLCS.

0.2

(.007)

2.0

(.079)

1.3

2.3

(.050) (.090)

2 PLCS.

1.3

(.050)

0.5

(.020)

0.9

(.034)

2 PLCS.

0.2

(.007)

3.9

(.155)

2.5

(.100)

3.5

(.139)

5.1

(.200)

1.3

(.050)

0.8

2 PLCS

(.032)

3.5

(.139)

Physical Characteristics

1.2

(.047)

2.6

(.103)

1.5

(.060)

DIA.

4.8

(.190)

1.0

3 PLCS.

(.040)

5.3

(.208)

0.7

(.028)

1.3

(.050)

5.1

(.200)

2.5

(.100)

1.2

(.047)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5 DEEP

(.020)

3.9

(.155)

4.8

(.190)

1.0

3 PLCS.

(.040)

5.3

(.208)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5

DEEP

(.020)

5.7

(.225)

0.8

(.032)

0.2

(.007)

1.3

2 PLCS.

(.050)

2.0

(.079)

2.9

(.114)

0.2

(.007)

1.3

2 PLCS.

(.050)

5.1

(.200)

2.0

(.079)

1.6

(.061)

3 PLCS.

2.5

(.100)

0.8

2 PLCS.

(.032)

CCW

WIPER

CLOCKWISE

DIMENSIONS:

(INCHES)

2.5

(.100)

1.9

TYP.

(.075)

0.8

2 PLCS.

(.032)

WARNING Cancer and

Reproductive Harm

www.P65Warnings.ca.gov

* RoHS Directive 2015/863, Mar. 31, 2015 and Annex

** Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen

free” if (a) the Bromine (Br ) content is 900 ppm or less; (b) the Chlorine ( Cl ) content is 900 ppm or less; and

“Trimpot” is a trademark of Bourns, Inc. †“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice. Users should verify actual device performance in their specific

applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the

last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
