Features
*R
oH
VE S CO
AV R M
AI SIO PL
LA N IA
BL S NT
E
■
Stable, infinite resolution cermet element
■
Vertical and horizontal adjust styles
■
Optional packaging on embossed tape
■
Compatible with surface mount
Model 3269-2 configurations are
available but not recommended
for new designs. 3269-1
configurations are preferred.
manufacturing processes
■
RoHS compliant* - see
processing
information
on RoHS compliant surface
mount trimmers

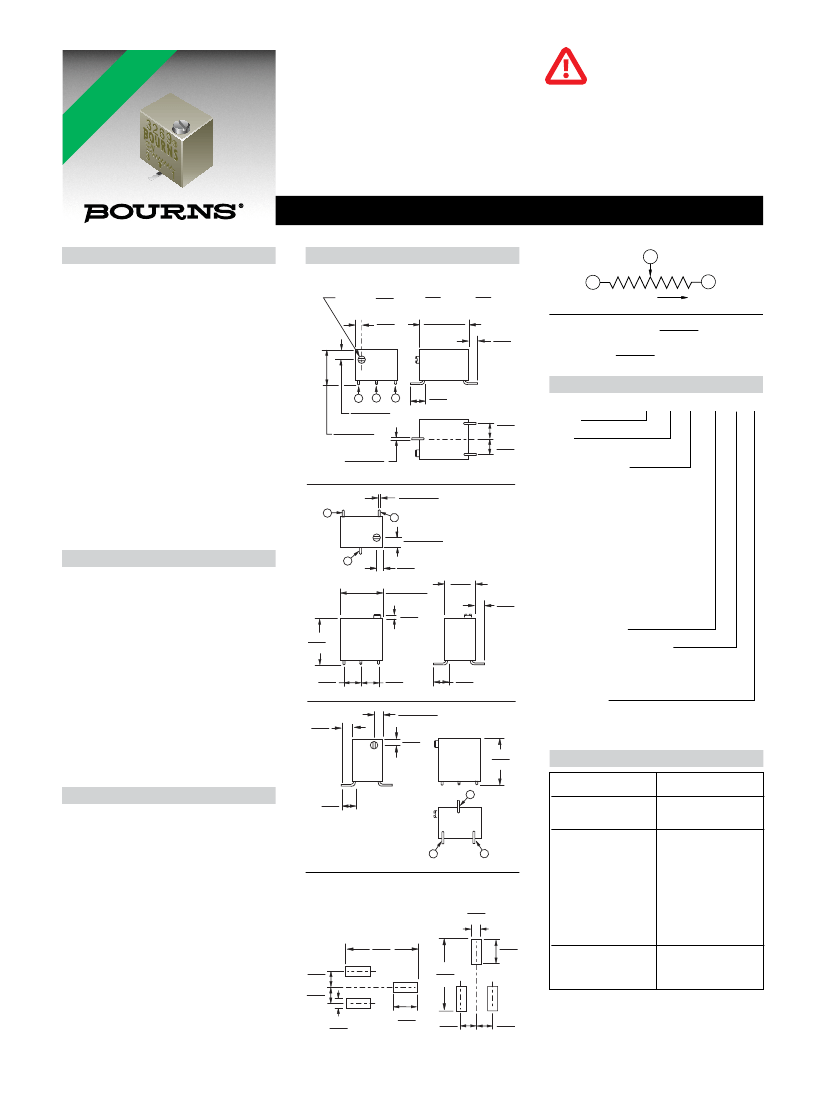

3269 - 1/4 ” Square SMD Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
........................10 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(closer tolerance available)
Absolute Minimum Resistance
........................... 1 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
........................ 3.0 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.02 %
Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 600 vac
80,000 Feet ............................ 250 vac
Effective Travel .................12 turns nom.
Environmental Characteristics
Power Rating (300 volts max.)
85 °C .................................... 0.25 watt
150 °C ....................................... 0 watt
Temperature Range ... -65 °C to +150 °C
Temperature Coefficient ... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 106
(2 %
ΔTR;
IR 100 Megohms)
Vibration ....... 30 G (1 %
ΔTR;
1 %
ΔVR)
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life .. 1,000 hours 0.25 watt @ 85 °C
(3 %
ΔTR;
3 % or 3 ohms
whichever is greater, CRV)
Rotational Life .......................200 cycles
(2 %
ΔTR;
3 % or 3 ohms,
whichever is greater, CRV)
Physical Characteristics
Torque............................. 3.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .......................Solderable pins
Weight ..................................... 0.015 oz.
Marking........................... Manufacturer’s
trademark, resistance code,
wiring diagram, date code,
manufacturer’s model
number and style
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
Wiper ............... 50 % (Actual TR) ±10 %
Product Dimensions
3269P
Common Dimensions
ADJ. SLOT 1.78 DIA. X .51 WIDE X .51 DEEP
(.020)
(.020)
(.070)
1.02
(.040)
6.35
±
.51
(.250
±
.020)
2
CCW
WIPER
1
CLOCKWISE
3
MM
(INCHES)
CW
1.02
(.040)
TYP
3 PLCS.
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
EXCEPT WHERE NOTED
How To Order
3
2
1
1.52
±
.38
(.060
±
.015)
5.21 ± 0.63
(.205 ± .025)
.46
±
.03
(.018
±
.001)
DIA. TYP.
3269W
3
1
.43
±
.05
(.017
±
.002)
DIA. TYP.
1.52
±
.38
(.060
±
.015)
2
1.02
(.040)
6.35
±
.51
SQ.
(.250
±
.020)
1.02
(.040)
7.44
(.293)
2.54
(.100) TYP. 3 PLCS.
2.54
(.100)
2.54
(.100)
3269 X - 1 - 103 G LF
Model
Style
Standard or Modified
Product Indicator
For P pin style:
-1 = Terminals #1 & #3 away from
sprocket holes
-2 = Terminals #1 & #3 toward
sprocket holes
For W & X pin styles:
-1 = Terminals #1 & #3 toward
sprocket holes
-2 = Terminals #1 & #3 away from
sprocket holes
1.02
(.040)
TYP
4.32
(.170)
For P, W & X pin styles:
-11 = ±5 % TR
Resistance Code

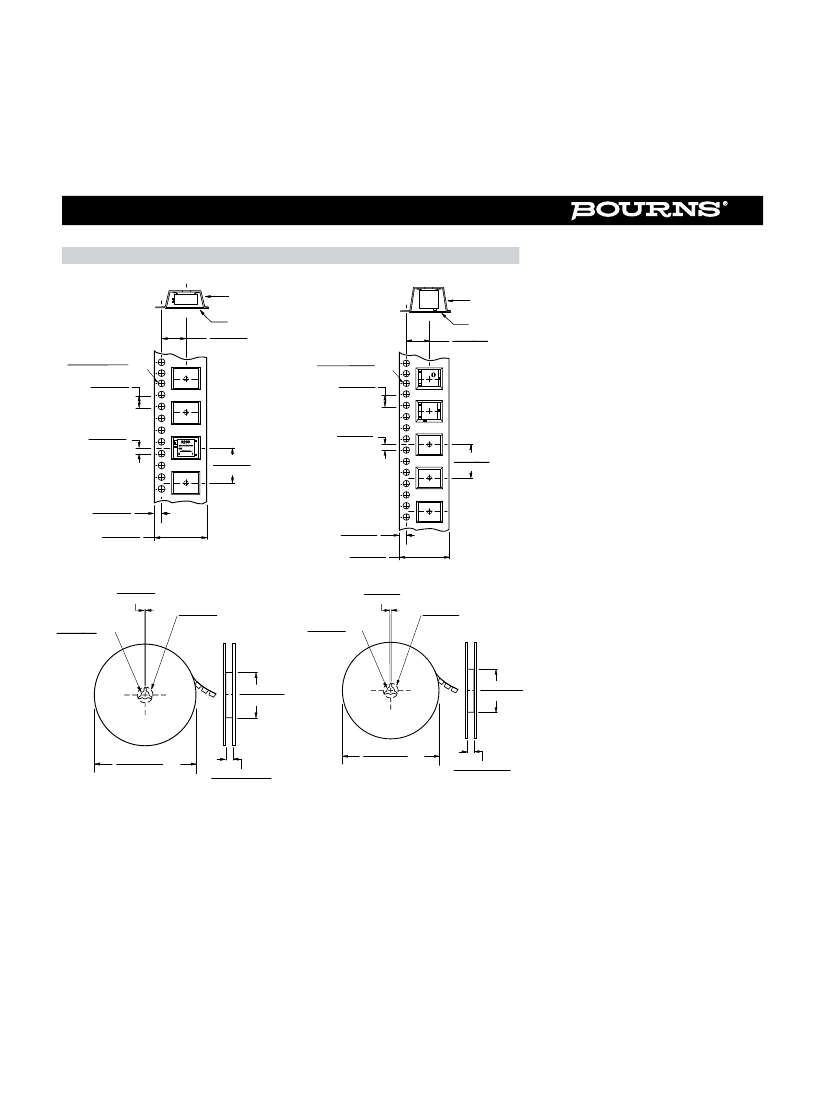

Embossed Tape Designator
G = Embossed Tape
“P” Style - 750 pcs./13 ˝ reel
“W, X” Style - 500 pcs./13 ˝ reel
Terminations
LF =
100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
2.54
(.100)
3269X
1.02
(.040)
2.54
(.100)
1.52
±
.38
(.060
±
.015)
1.02
(.040)
2.29 TYP.
(.09) 3 PLCS.
7.44
(.293)
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
2.29
(.090)
TYP.
3 PLCS.
3
2
1
RECOMMENDED PCB
LAYOUT - "P"
RECOMMENDED PCB
LAYOUT - "W" & "X"
1.19
TYP.
(.047)
9.70
(.382)
2.54
(.100)
2.54
(.100)
1.19
TYP.
(.047)
3.30
(.130)
TYP.
7.62
(.300)
2.79
(.110)
TYP.
Popular distribution values listed in boldface.
Special resistances available.
2.54
(.100)
2.54
(.100)
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
