Frontier Electronics Corp.
685 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web: frontierusa.com
Common Mode Line Filters—
CFS2001 series
A. Specifications:
Part
Number
CFS2001-01
CFS2001-02
CFS2001-03
CFS2001-04
CFS2001-05
CFS2001-06
CFS2001-07
CFS2001-08
CFS2001-09
CFS2001-10
CFS2001-11
Inductance
(mH)
1.0
1.5
2.0
2.5
4.0
6.8
10
12
18
22
33
DCR
(OHMS) Max.
0.10
0.17
0.20
0.30
0.50
0.90
1.10
1.50
1.70
2.00
3.20
Rated Current
(A) RMS.
2.0
1.7
1.5
1.3
1.0
0.8
0.7
0.6
0.5
0.4
0.3
B.

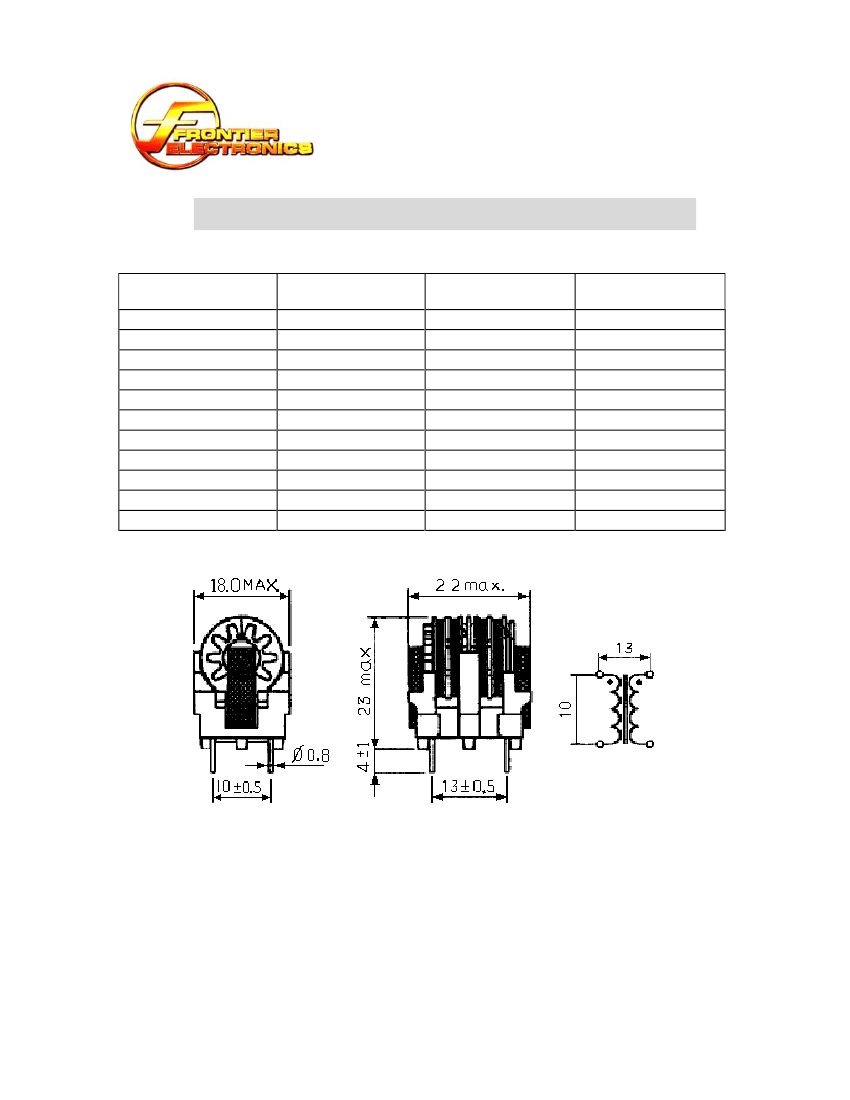

Mechanical Dimensions (Unit: mm) :
C. General information:
1.
2.
3.
4.
5.
6.
7.
Test Condition: 1.0KHz / 1V.
Electrical specifications at 25°C.
Temperature Rise: 45°C.
Operating temperature: -20°C TO +105°C.
Insulation Resistance: 100M OHMS at 500VDC.
Rated Voltage: 100V to 270V / 50-60 Hz.
Hi-Pot Voltage: 1500VAC for one minute between line.
Custom specifications are available.
Common Mode Line Filter P/N: CFS2001 Series
Nov. 20, 2003 Page 1 of 1
