Type 842p
Wrap-and-Fill Metalized polyphenylene
SulFide FilM CapaCitorS
eleCtriCal SpeCiFiCationS
CapaCitanCe Range:
0.01 μF to 15.0 μF
Voltage Rating:
• 50 VDC to 200 VDC
• 32 VRMS to 126 VRMS
CapaCitanCe toleRanCe:
±10%, ±5%, ±2%, ±1%
opeRating tempeRatuRe:
-55°C to +125°C without derating for DC operation
aC opeRation:
Limited to +105°C
Dissipation FaCtoR:
0.15% maximum when measured at 1kHz @ 25°C
FeatureS
• Superior performance
• High efficiency
• High stability
• High reliability
• Rugged construction
• Small size
• Meets the requirements of MIL-PRF-55514 / 13
majoR appliCations:
Filtering, timing, storage, integrating, and other applications requiring the high
stability and low retrace of polyphenylene sulfide.
DC Voltage test:
200% of rated voltage for 2 minutes
insulation ResistanCe:
Measure at rated VDC after a 2 minute charge.
• At + 25°C, 50,000 Megaohm-Microfarads, need not exceed 100,000 Megaohms
• At + 85°C, 2,000 Megaohm-Microfarads, need not exceed 4,000 Megaohms
• At + 125°C, 250 Megaohm-Microfarads, need not exceed 500 Megaohms
MaXiMuM pulSe riSe tiMe
Capacitor
length
(inch)
0.400
0.530
0.750
1.030
1.250
1.500
Rise time dv / dt (V / μs)
50 V
25
13
7
6
4
-
100 V
35
20
14
9
7
-
200 V
57
38
20
14
11
9

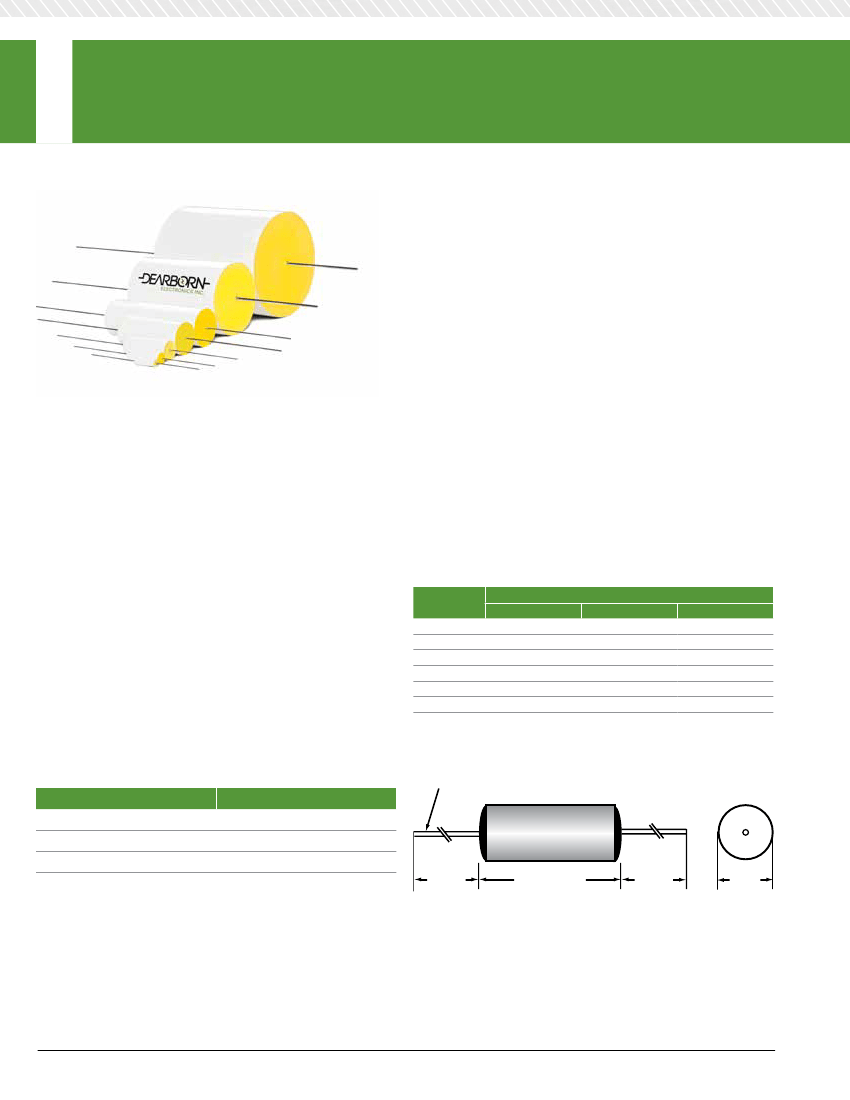

phySiCal CharaCteriStiCS
ConstRuCtion:
Non-inductive wound metalized polyphenylene sulfide.
Case:
Flame retardant tape wrap and epoxy endfill.
leaD mateRial:
Solder coated solid wire.
leaD WiRe sizes:
Case Dia.
< 0.230
< 0.440
≥ 0.440
lead aWg
0.020 (No. 24)
0.025 (No. 22)
0.032 (No. 20)
diMenSionS
(in inches)
Solid tinned wire*
leaD stRength:
Capable of withstanding a five pound pull force on lead axis.
maRking:
Dearborn trademark, type or catalog number, capacitance, tolerance and voltage.
1.625
Min.
L Max.
1.625
Min.
D
Max.
* Leads to be within ±0.062” of center line at egress, but not less than 0.031” from edge.
140
WRAP-AND-FILL METALIZED POLYPHENYLENE
SULFIDE FILM CAPACITORS
STANDARD RATINGS
Capacitance
μF
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.00
2.70
3.00
3.90
5.00
5.60
6.80
10.00
15.00
Code
103
153
223
333
473
683
104
154
224
334
474
684
105
155
205
275
305
395
505
565
685
106
156
D
0.17
0.17
0.17
0.17
0.17
0.17
0.23
0.23
0.26
0.26
0.31
0.35
0.31
0.35
0.40
0.35
0.40
0.44
0.49
0.49
0.49
0.61
0.61
Voltage Code 050
50 VDC / 32 VAC*
L
0.40
0.40
0.40
0.40
0.40
0.40
0.40
0.40
0.40
0.53
0.53
0.53
0.75
0.75
0.75
1.03
1.03
1.03
1.03
1.03
1.25
1.25
1.50
D
0.17
0.17
0.17
0.19
0.23
0.26
0.23
0.26
0.31
0.35
0.31
0.35
0.40
0.40
0.44
0.51
0.49
0.56
0.61
0.56
0.61
-
-
Voltage Code 100
100 VDC / 63 VAC*
L
0.40
0.40
0.40
0.40
0.40
0.40
0.53
0.53
0.53
0.53
0.75
0.75
0.75
1.03
1.03
1.03
1.25
1.25
1.25
1.50
1.50
-
-
D
0.17
0.19
0.23
0.26
0.23
0.26
0.31
0.31
0.35
0.40
0.40
0.44
0.49
0.56
0.56
0.67
0.67
0.76
0.87
-
-
-
-
Voltage Code 200
200 VDC / 126 VAC*
L
0.40
0.40
0.40
0.40
0.53
0.53
0.53
0.75
0.75
0.75
1.03
1.03
1.25
1.25
1.50
1.50
1.50
1.50
2.06
-
-
-
-
Additional capacitance values, voltages, and tolerances are available upon request.
* AC voltage rating is at 400Hz 1.4 x VRMS + VDC should not exceed the rated VDC.
* Graphs of AC voltage vs. frequency follow.
TYPE 842P
141
TYPE 842P
WRAP-AND-FILL METALIZED POLYPHENYLENE
SULFIDE FILM CAPACITORS

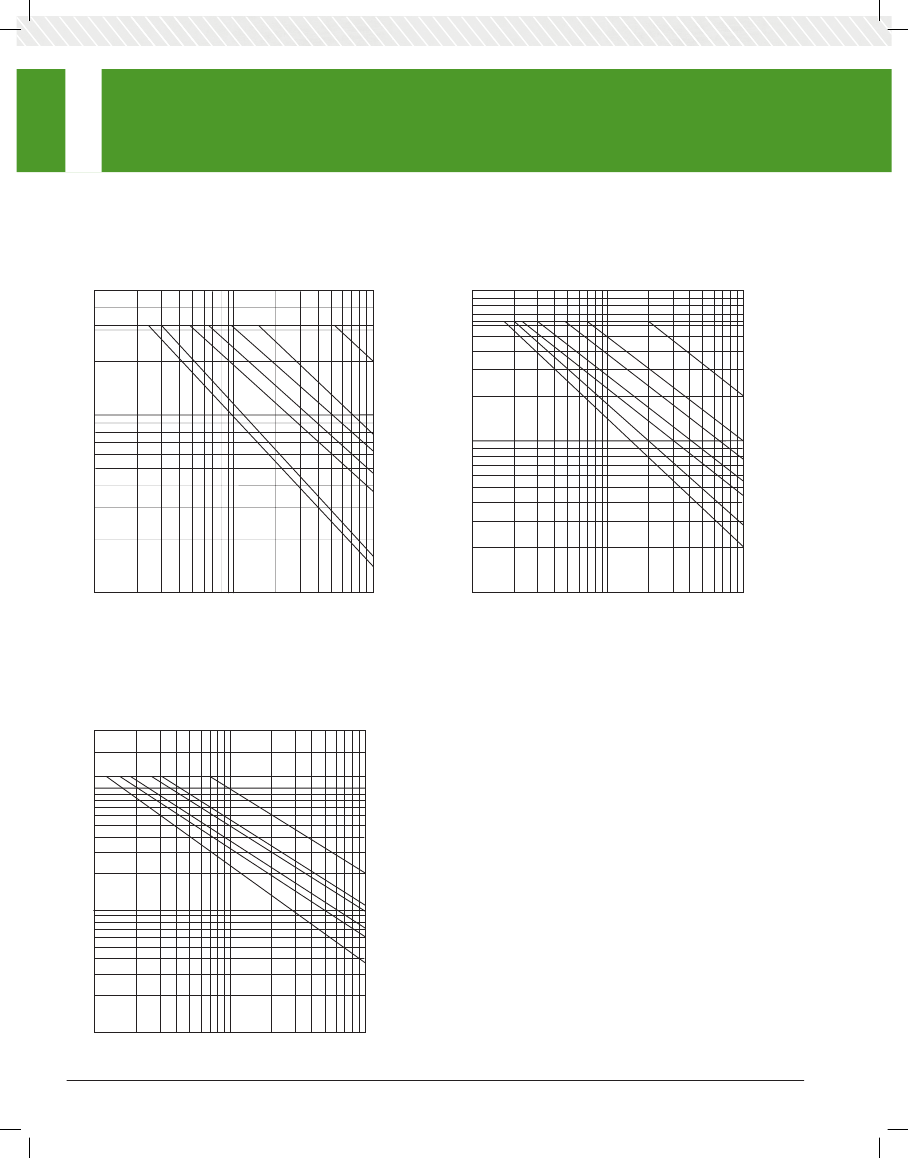

1
1,000
10,000
Frequen
REQUENCY TYPE 842P
VS. FREQUENCY TYPE 842P
VOLTAGE
VOLTAGE vs FREQUENCY TYPE 842P
50VDC\32VAC
50 VDC / 32 VAC
50VDC\32VAC
VRMS
50
VOLTAGE VS. FREQUENCY TYPE 842P
VOLTAGE vs FREQUENCY TYPE 842P
100 VDC / 63 VAC
VRMS
100
300
VOLTAGE vs
VRMS
100VDC\63VAC
32 VRMS
0.068 µF
6.8 µF
1.0 µF
0.47 µF
10
32 VRMS
0.01 µF
15 µF
6.8 µF
0.15 µF
0.068 µF
1.0 µF
0.47 µF
0.01 µF
6.8 µF
63 VRMS
3.0 µF
1.0 µF
0.47 µF0.15 µF
0.068 µF
100
F
3.0 µF
0.01 µF
1
0.15 µF
10
10
10,000
1
1,000
100,000
Frequency (Hz)
10,000
100,000
1
1,000
10,000
100,000
1
1,000
Frequency (Hz)
Frequency (Hz)
VOLTAGE VS. FREQUENCY TYPE 842P
VOLTAGE vs FREQUENCY TYPE 842P
EQUENCY TYPE 842P
/ 126 VAC
200VDC\126VAC VOLTAGE vs FREQUENCY TYPE 842P
200 VDC
200VDC\126VAC
00VDC\63VAC
VRMS
300
300
VRMS
63 VRMS
100
126 VRMS
100
126 VRMS
3.0 µF
1.0 µF
0.47µF
3.0 µF
.0 µF
0.47 µF0.15 µF
1.0 µF
0.068 µF 0.01 µF 0.47µF
0.15µF
0.068 µF
0.15µF
0.068 µF
0.01µF
0.01µF
10
10
000
10,000
1
1,000
100,000
10,000
1
1,000
100,000
Frequency (Hz)
Frequency (Hz)
10,000
100,000
Frequency (Hz)
142
