A2546H-N-2X11P datasheet, PDF - EEWORLD Datasheet

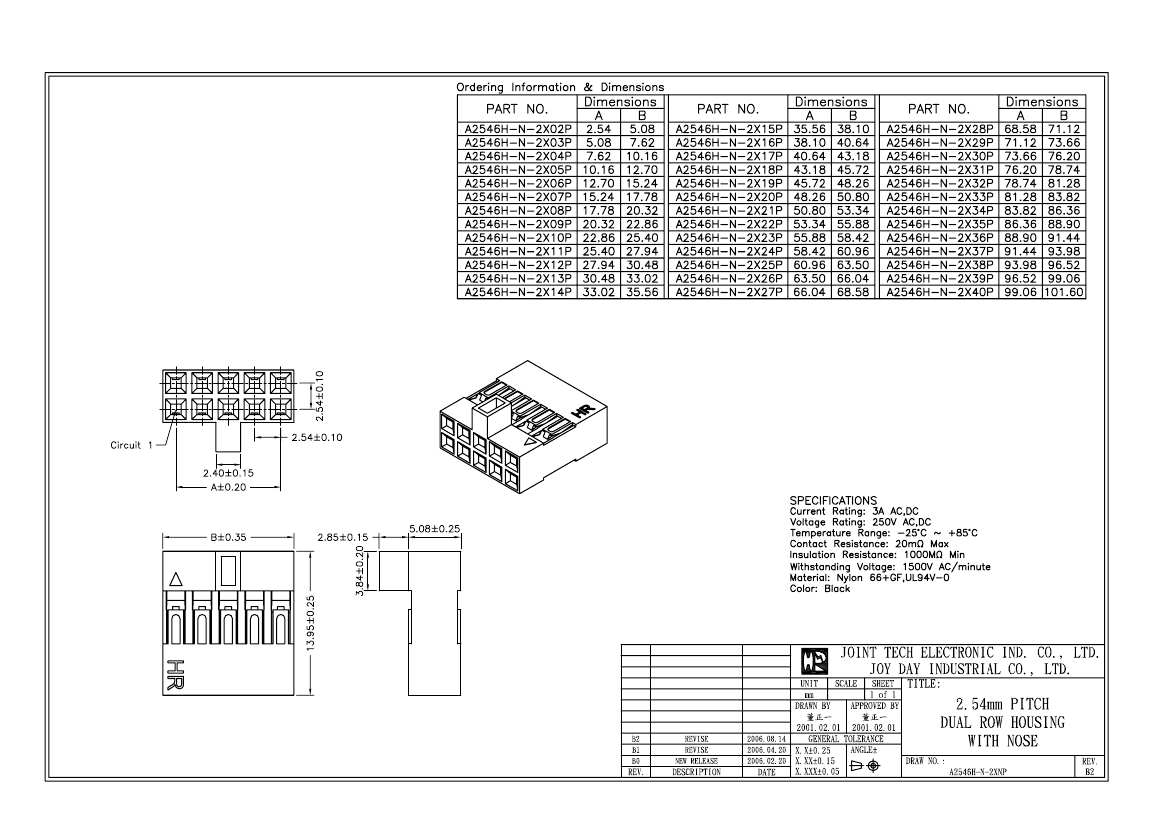

A2546H-N-2X11P: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric View All

A2546H-N-2X11P Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Objectid	304426628
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.2 inch
subject depth	0.549 inch
body length	1.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	22
