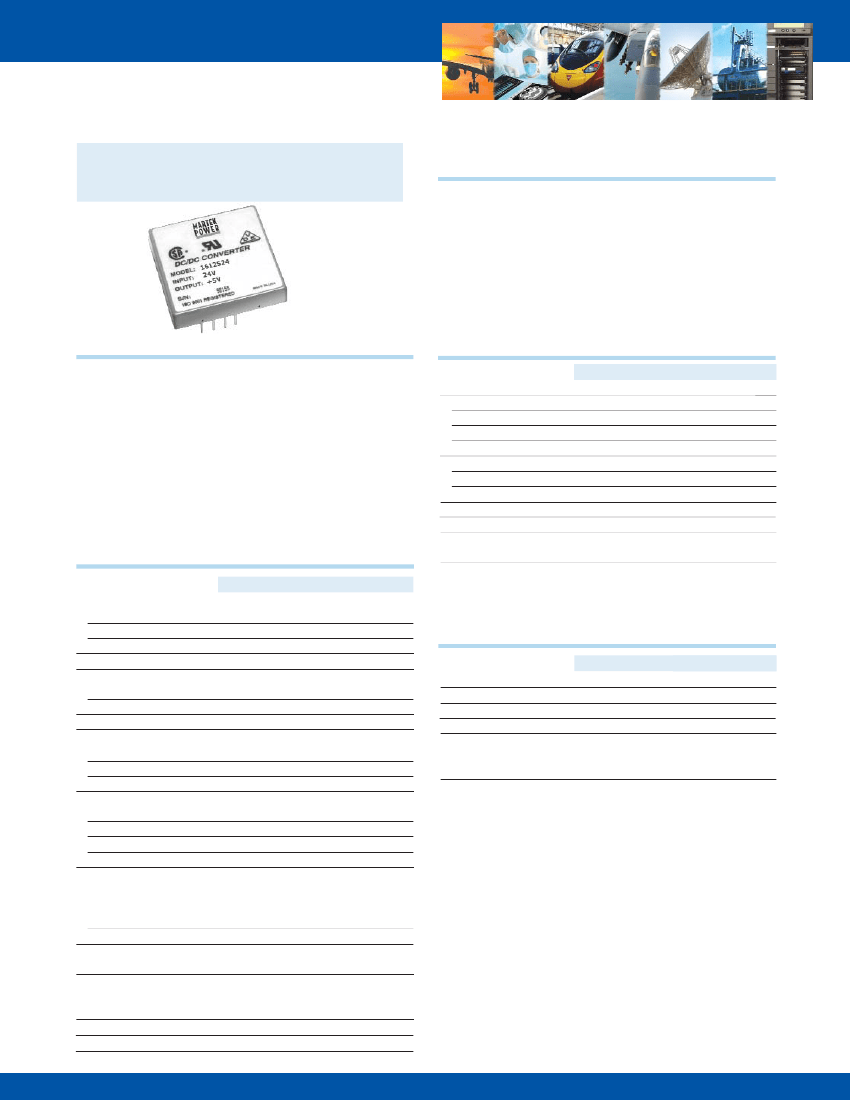

www.martekpower.com
1600 series
Single, Dual, Triple Output
DC/DC Converter
F
EATURES
•
•
•
•
•
•
•
•
6 sided Continuous Shielding
Synchronization
10W/In
3
Power Density
Wide 2:1 Input Voltage Range
Efficiency to 82%
UL 1950 Approved
CSA 22.2-950 Approved
VDE / EN 60950 Approved
D
ESCRIPTIONS
The 1600 series 16 watts high performance DC/DC
converters are cost effective solution to the high reliability
and performance requirements of power distribution
systems in applications ranging from high speed data
communications equipment to industrial robotic systems.
The 1600 series operates from wide (2:1) input voltage ranges
of 9 to 18, 18 to 36 or 36 to 72VDC; providing single, dual and
triple output combinations of 3.3, 5, 12, 15, ±5, ±12, ±15, 5/±12
and 5/±15 VDC. All models are packaged in compact, low
profile 2” X 2” X 0.4” metal cases.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Input Voltage Range
12 VDC Input Models
9
12
24 VDC Input Models
18 24
48 VDC Input Models
36 48
Remote On / OFF Control
Supply ON
3.5
Supply OFF
0
Logic Referenced to Negative Input
Reverse Polarity Input Current
Input Filter
Input Fuse Rating
18
36
72
VDC
VDC
VDC
VDC or Open Circuit
VDC
0.8
12
Amp
Pi Filter
See Model Selection
Guide

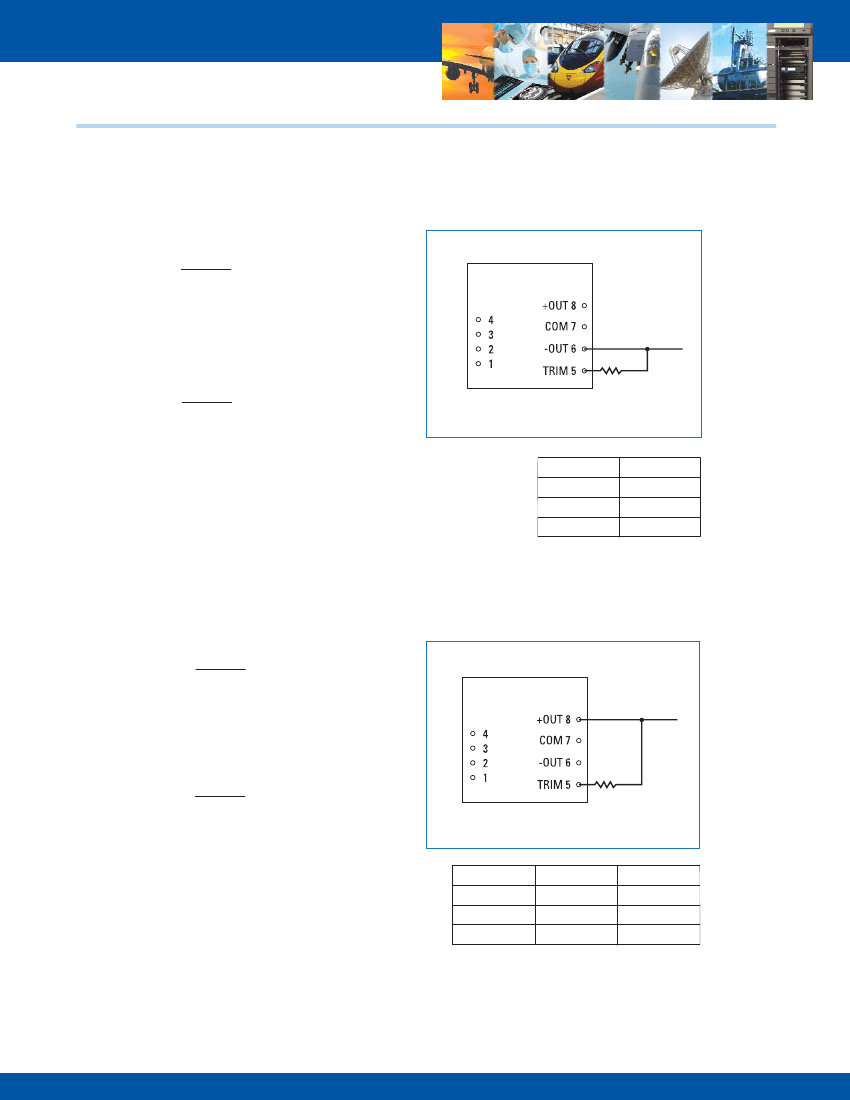

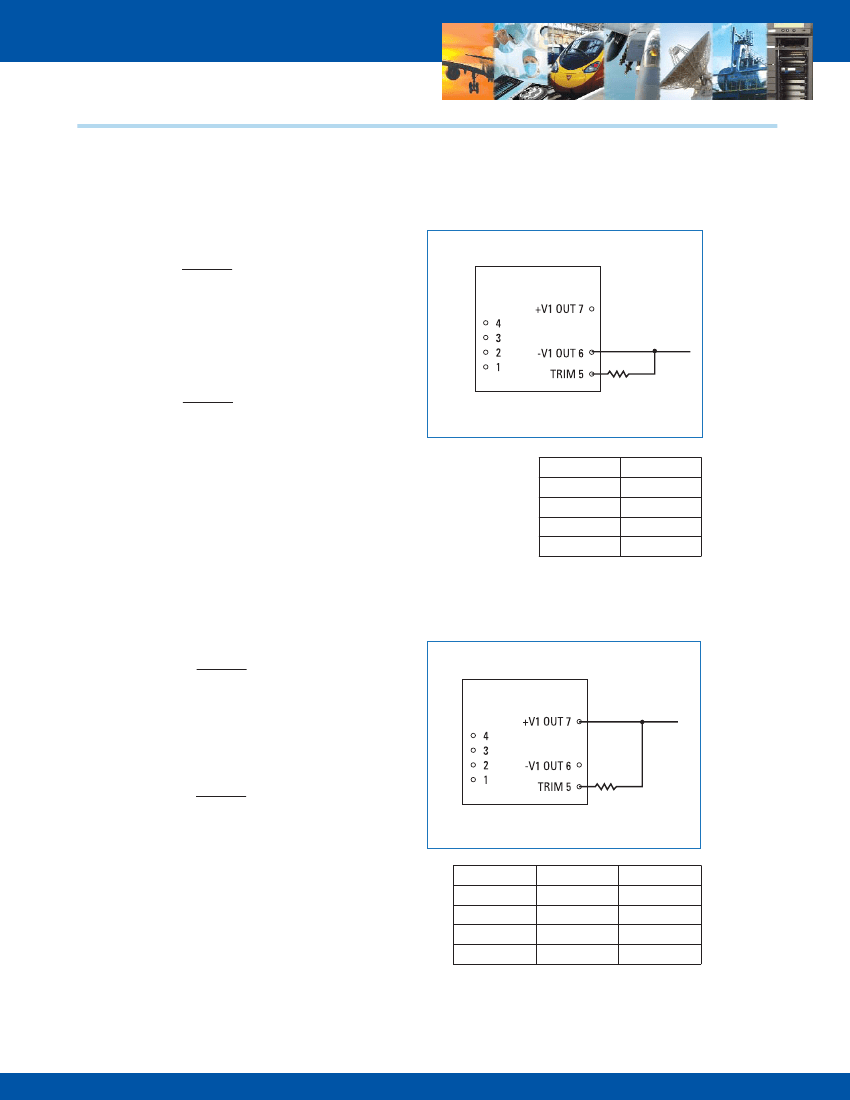

O
UTPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Output Voltage Accuracy
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Output Voltage Trim
Voltage Balance:
Dual Outputs
Triple Outputs (Auxiliaries)
Minimum Load
Line Regulation
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Load Regulation
Single Outputs
Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Ripple/Noise
5V Outputs
12V and 15V Outputs
Short Circuit Protection
Transient Recovery Time
Temperature Coefficient
Over Voltage Protection
±1.0
±1.0
±7.0
±10
%
1
%
1
%
1
%
G
ENERAL
C
HARACTERISTICS
Switching Frequency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
MTBF (MIL-HBK-217F)
Min Typ Max Unit/Comments
kHz
100
VDC, 1 minute
1000
Mohm, 500VDC
1000
pF, 100kHz, 1Volt
100
Thousand Hours,
705
+25
o
C, Ground
Benign
±1.0 %; Equal Output Loads
±1.0 %; Equal Output Loads
10% Full Load
±0.5 %
2
±0.5 %
2
±5.0 %
2
±0.5
±1.0
±0.5
±5.0
%
3
%
3
; Equal Loads
%
3
%
3
; Equal Loads
75 mV p-p, Nom.Line FL,
20Mhz B.W .using
1
μf
bypass capacitor
1 % of Vout
Continuous, Auto-
matic Recovery
200
μS
to within1% error
band for 50% step
load change
±0.01 % per
o
C
See Model Selection Guide
1
2
3
= Output voltage at nominal line & FL
= % Output voltage measured from min. input line to maximum
= Output voltage measured from FL to 10% Load
Martek Power reserves the right to change specifications without notice.
>> B-144
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
E
NVIRONMENTAL
S
PECIFICATIONS
Operating Temp. Range
(Industrial)
Extended Temp. Range
Storage Temp. Range
Relative Humidity
Cooling
Min
-25
-55
-55
Typ Max Unit/Comments
+71
o
C; Ambient
+85
o
C; Ambient
+125
o
C; Ambient
95 % Humidity; non-
condensing
Free-Air Convection
P
HYSICAL
C
HARACTERISTICS
Case Size
Case Material
Shield Connection
12V and 24V Input Models
48V Input Models
Flammability
Weight
Unit/Comments
2.0 X 2.0 X 0.4 inches
(51.0 X 51.0 X 10.2 mm)
Coated Metal with Non-
Conductive Base
Negative Input, Pin 3
Positive Input, Pin 4
UL94V-0
79 Grams

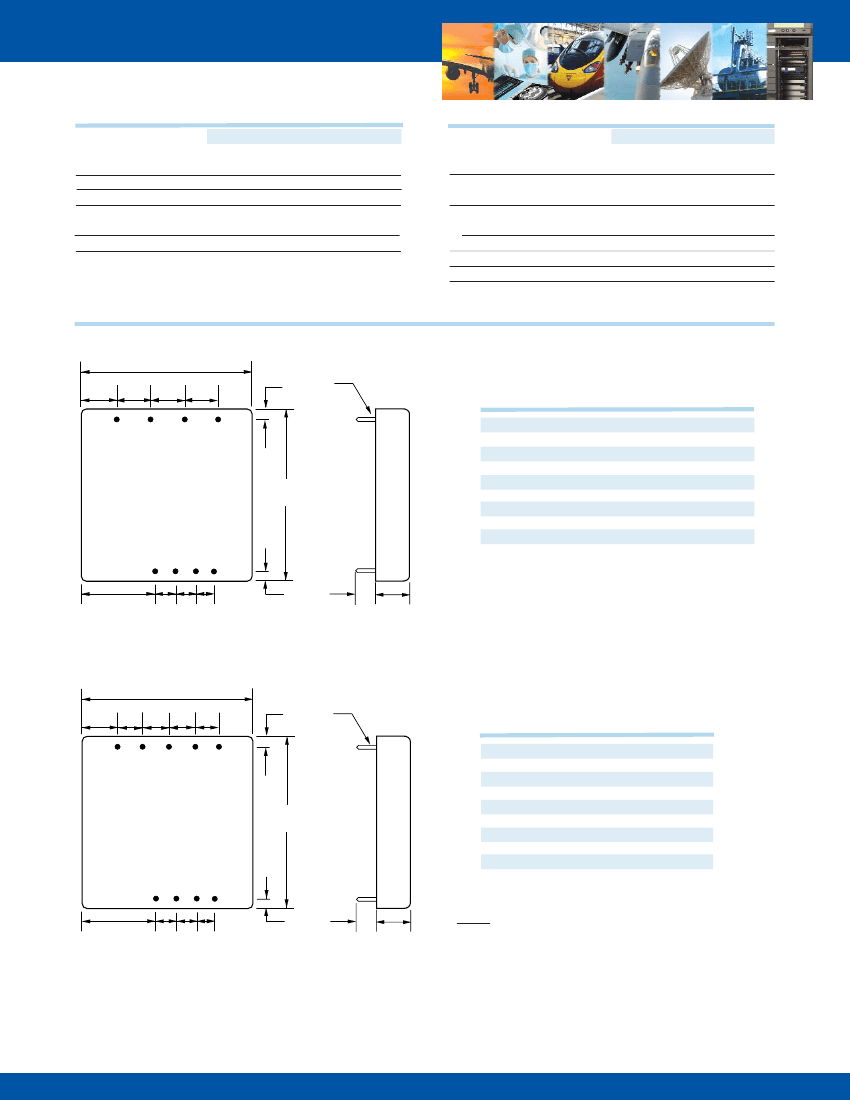

O
UTLINE
D
RAWING
C
ASE
A
2.00 (50.8)
0.40
(10.2)
0.40
(10.2)
0.40 0.40
(10.2) (10.2)
0.10
(2.5)
0.040±.005
(1.01)
DIA.
P
IN
O
UT
C
HART
; C
ASE
A
Pin
1
2
3
4
5
6
7
8
Single
Dual
Triple
Remote On/Off Remote On/Off Remote On/Off
Sync
Sync
Sync
- Vin
- Vin
- Vin
+ Vin
+ Vin
+ Vin
Trim
Trim
- Vout (Aux)
- Vout
- Vout
Common
+ Vout
Common
+5V Vout
No Pin
+ Vout
+Vout (Aux)
8
7
6
5
BOTTOM
2.00
(50.8)
SIDE
4
3
2
1
0.10
(2.5)
0.15MIN.
(3.8)
0.90
(22.9)
.20 .20 .20
(5.1) (5.1) (5.1)
0.40
(10.2)
C
ASE
A2
2.00 (50.8)
0.40
(10.2)
0.30 0.30 0.30 0.30
(7.6) (7.6) (7.6) (7.6)
9
8
7
6
5
0.10
(2.5)
0.040±.005
(1.01)
DIA.
P
IN
O
UT
C
HART
; C
ASE
A2
Pins
1
2
3
4
5
6
7
8
9
3.3V
Triple
Remote On/Off Remote On/Off
Sync
Sync
- Vin
- Vin
+ Vin
+ Vin
Trim
- Output (Aux)
- Vout
Common (Aux)
- Vout
- 5Vout
+ Vout
+5V Vout
+ Vout
+Vout (Aux)
BOTTOM
2.00
(50.8)
SIDE
4
3
2
1
0.10 0.15MIN.
(3.8)
(2.5)
0.90
(22.9)
0.20 0.20 0.20
(5.1) (5.1) (5.1)
0.40
(10.2)
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
X.XXX= ±0.010
X.XX = ±0.25
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
External, low ESR, 10 microfarad (minimum) capacitor across output is recommended for operation.
>> B-145
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
H
OW
T
O
O
RDER
H
OW TO
O
RDER
16 XX D XX- A2X - YE
Wattage
Output Voltage
Output
Configuration
(S=Single, D=Dual)
Nom.Input Voltage
-Y = RoHS Compliant
-YE= RoHS 5 Compliant
OPTIONS
-A2= Optional PinConfig.
-X= ExtendedT Range
emp.
1615/12 T XX- A2X - YE
Wattage
Output Voltage
Aux.Output Voltage
Output Configuration
(Triple)
Nom.Input Voltage
-Y = RoHS Compliant
-YE= RoHS 5 Compliant
OPTIONS
-A2= Optional PinConfig.
-X= ExtendedT Range
emp.
M
ODEL
S
ELECTION
C
HART
Model
Nominal
Input
Voltage
(VDC)
12
12
12
12
12
12
12
24
24
24
24
24
24
24
48
48
48
48
48
48
48
12
12
24
24
48
48
Output
Voltage
(VDC)
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
5, ±12
5, ±15
5, ±12
5, ±15
5, ±12
5, ±15
Full Load
Output
Current
(mA)
4850
3200
1300
1060
±1600
±665
±535
4850
3200
1300
1060
±1600
±665
±535
4850
3200
1300
1060
±1600
±665
±535
2000, ±250
2000, ±200
2000, ±250
2000, ±200
2000, ±250
2000, ±200
No Load
Input
Current
(mA)
45
45
45
45
45
45
45
45
35
35
35
35
35
35
45
35
35
35
35
35
35
50
50
45
45
35
35
Full Load
Input
Current
(mA)
1827
1667
1640
1650
1667
1640
1650
890
833
810
815
833
810
815
438
411
405
408
411
405
408
1667
1667
832
832
406
401
Output
Over
Voltage
(VDC)
4.7
6.8
15
18
±6.8
±15.0
±18.0
4.7
6.8
15.0
18.0
±6.8
±15.0
±18.0
4.7
6.8
15.0
18.0
±6.8
±15.0
±18.0
6.8, ±15.0
6.8, ±18.0
6.8, ±15.0
6.8, ±18.0
6.8, ±15.0
6.8, ±18.0
Fuse
(A)
Efficiency
(%)
1603S12-A2
1605S12
1612S12
1615S12
1605D12
1612D12
1615D12
1603S24-A2
1605S24
1612S24
1615S24
1605D24
1612D24
1615D24
1603S48-A2
1605S48
1612S48
1615S48
1605D48
1612D48
1615D48
1605/12T12
1605/15T12
1605/12T24
1605/15T24
1605/12T48
1605/15T48
4.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0
2.0
2.0
1.0
1.0
78
80
81
81
80
81
81
78
80
82
82
80
82
82
78
81
82
82
81
82
82
75
79
81
75
79
81
>> B-146
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
O
UTPUT
V
OLTAGE
A
DJUSTMENT
(1600 SINGLE)
The converter’s output voltage may be trimmed by up to
±10%
of the nominal output voltage.
TRIM UP (Case A)
Trim output voltage up by connecting an external resistor between Pins 5 and 6. Use the following equation,
reference Table 1 for variable A.
Radj-up =
A
Δ
%
- 24 (kΩ)
Example:
Trim 5% up for 12V Output units,
where A = 1.98,
Δ
% = 0.05
Radj-up =
1.98
0.05
- 24 (kΩ)
=
15.6 kΩ
R
ADJ
-
UP
Table 1.
Output Voltage
A
3.3V
5V
12V
15V
0.78
1.24
1.98
2.07
TRIM DOWN (Case A)
Trim output voltage down by connecting an external resistor between Pins 7 and 5. Use the following
equation, reference Table 2 for variables C and D.
Radj-down =
C
Δ
%
- D (kΩ)
Example:
Trim 4% down for 5V Output units,
where C = 1.24, D = 26.5,
Δ
% = 0.04
Radj-down =
1.24
0.04
- 26.5 kΩ
=
4.5 kΩ
R
ADJ
-
DOWN
Table 2.
Output Voltage
C
D
3.3V
5V
12V
15V
1.22
1.24
7.57
10.3
26
26.5
33.5
36.4
>> B-147
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
O
UTPUT
V
OLTAGE
A
DJUSTMENT
(1600 DUAL)
The converter’s output voltage may be trimmed by up to
±10%
of the nominal output voltage.
TRIM UP (Case A)
Trim output voltage up by connecting an external resistor between Pins 5 and 6. Use the following equation,
reference Table 1 for variable A.
Radj-up =
A
Δ
%
- 24 (kΩ)
Example:
Trim 5% up for 12V Output units,
where A = 2.23,
Δ
% = 0.05
Radj-up =
2.23
0.05
- 24 (kΩ)
=
20.6 kΩ
R
ADJ
-
UP
Both outputs are trimmed up by 5%.
Table 1.
Output Voltage
A
5V
12V
15V
1.87
2.23
2.28
TRIM DOWN (Case A)
Trim output voltage down by connecting an external resistor between Pins 5 and 8. Use the following
equation, reference Table 2 for variables C and D.
Radj-down =
Example:
C
Δ
%
- D (kΩ)
Trim 5% down for 5V Output units,
where C = 5.63, D = 31.5,
Δ
% = 0.05
Radj-down =
5.63
0.05
- 31.5 kΩ
=
81.1 kΩ
R
ADJ
-
DOWN
Both outputs are trimmed down by 5%
Table 2.
Output Voltage
C
D
5V
12V
15V
5.63
19.3
25.1
31.5
45.5
51.4
>> B-148
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
