1600XA series
Single, Dual, Triple Output
DC/DC Converter
F
EATURES
•
•
•
•
•
•
•
6 sided Continuous Shielding
Synchronization
10W/In
3
Power Density
Wide 2:1 Input Voltage Range
Efficiency to 82%
-55
o
C to +85
o
C Operation
Meets MIL-STD-810 & MIL-STD-202
D
ESCRIPTIONS
The 1600XA series 16 watts high performance DC/DC
converters are cost effective solution to the high reliability
and performance requirements of power distribution
systems in applications ranging from high speed data
communications equipment to industrial robotic systems.
The 1600XA series operates from wide (2:1) input voltage
ranges of 9 to 18, 18 to 36 or 36 to 72VDC; providing single,
dual and triple output combinations of 5, 12, 15, ±5, ±12, ±15,
5/±12 and 5/±15 VDC. All models are packaged in compact,
low profile 2” X 2” X 0.4” metal cases.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Input Voltage Range
12 VDC Input Models
9
12
24 VDC Input Models
18 24
48 VDC Input Models
36 48
Remote On / OFF Control
Supply ON
3.5
Supply OFF
0
Logic Referenced to Negative Input
Input Filter
18
36
72
VDC
VDC
VDC
VDC or Open Circuit
VDC
0.8
Pi Filter
O
UTPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Output Voltage Accuracy
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Output Voltage Trim
Voltage Balance:
Dual Outputs
Triple Outputs (Auxiliaries)
Minimum Load
Line Regulation
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Load Regulation
Single Outputs
Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Ripple/Noise
Short Circuit Protection
Transient Recovery Time
Temperature Coefficient
Over Voltage Protection
1
2
3
G
ENERAL
C
HARACTERISTICS
Efficiency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Acceleration
Shock
Vibration
Altitude
Switching Frequency
Unit/Comments
See Model Selection Guide
1400 VDC Min., 1 minute
Meets requirements of MIL-STD-202F, method
301
>10
9
Ohms; Meets requirements of MIL-STD-202F,
method 302, test condition B
140 pF
Per MIL-STD-810E, method 513.4, procedure II.
Operational test (centrifuge) 12g’s (manned aero-
space vehicles)
Per MIL-STD-801E, method 516.4, procedure I.
Functional shock 40g’s.
Per MIL-STD-810E, method 514.4, procedure I,
category 6 (equipment installed in helicopters).
Per MIL-STD-810E, method 500.3, procedure III
Rapid decompression, 40K ft.
100 kHz, Min.
±1.0
±1.0
±6.0
±5
%
%
1
%
1
%
1
±1.0 %; Equal Output Loads
±1.0 %; Equal Output Loads
10% Full Load
±0.5 %
2
±0.2 %
2
±6.0 %
2
%
3
%
3
; Equal Loads
%
3
%
3
; Equal Loads
% of Vout
Continuous, Auto-
matic Recovery
200
μS
to within1% error
band for 50% step
load change
±0.01 % per
o
C
See Model Selection Guide
±0.2
±1.0
±0.5
±6.0
2
= Output voltage at nominal line & FL
= % Output voltage measured from min. input line to maximum
= Output voltage measured from FL to 10% Load
Martek Power reserves the right to change specifications without notice.
>> 1
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
E
NVIRONMENTAL
S
PECIFICATIONS
Operating Temp. Range
(Industrial)
Max. Case Temp.
Storage Temp. Range
Relative Humidity
Cooling
EMI/RFI
Min
-55
Typ Max Unit/Comments
+85
o
C; Ambient
P
HYSICAL
C
HARACTERISTICS
Case Size
Unit/Comments
2.0 X 2.0 X 0.4 inches
(51.0 X 51.0 X 10.2 mm)
Coated Copper
2.8 oz (79 grams)
6-sided, Continuous
+100
o
C; Ambient
-55
+125
o
C; Ambient
Per MIL-STD-801E, method 507.3, procedure I.
Natural non-hazardous items, cycle 1,240 Hrs
Free-Air Convection
Six-sided Metal
Case
Case Material
Weight
Shielding
Shielding Connection
Negative Input, Pin 3
12V and 24V Input Models
Positive Input, Pin 4
48V Input Models
Reliability Specs: MTBF, Ground >705,000 Hrs
Benign, @+25
o
C
O

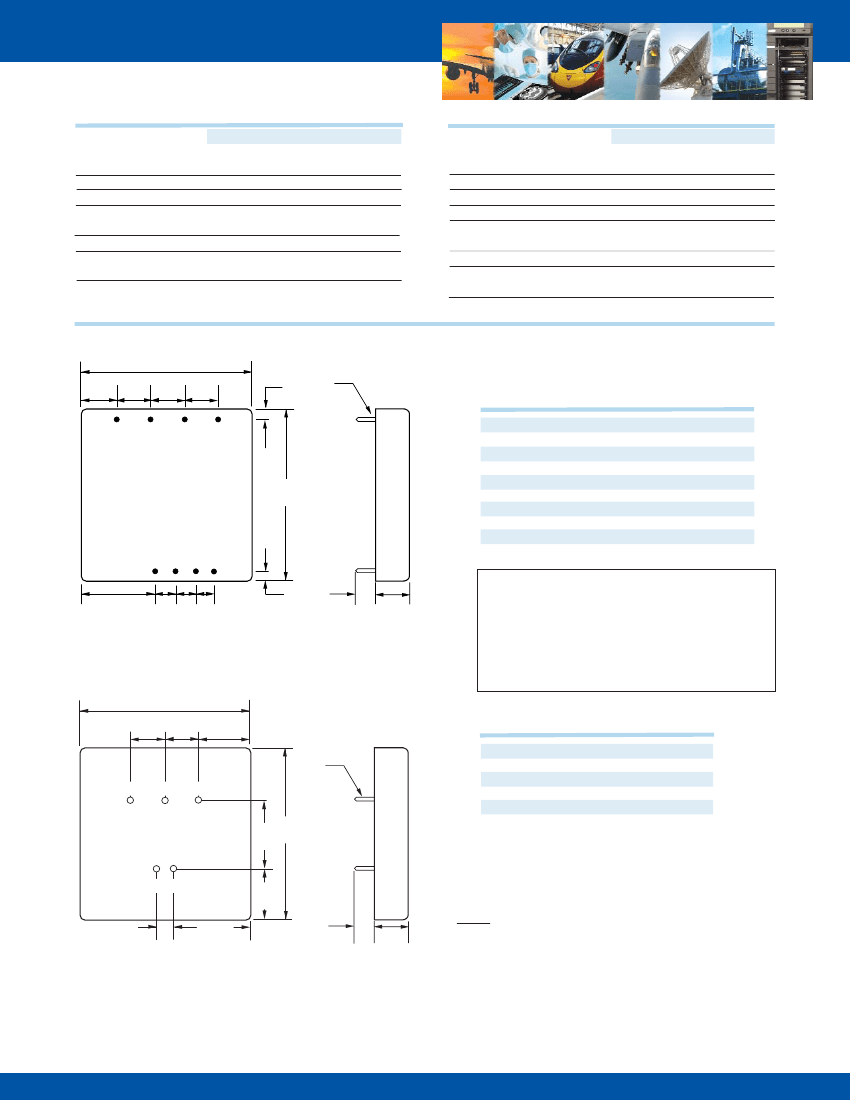

UTLINE
D
RAWING
C
ASE
A
2.00 (50.8)
0.40
(10.2)
0.40
(10.2)
0.40 0.40
(10.2) (10.2)
0.10
(2.5)
0.040±.005
(1.01)
DIA.
P
IN
O
UT
C
HART
; C
ASE
A
Pin
1
2
3
4
5
6
7
8
Single
Dual
Triple
Remote On/Off Remote On/Off Remote On/Off
Sync
Sync
Sync
- Vin
- Vin
- Vin
+ Vin
+ Vin
+ Vin
Trim
Trim
- Vout (Aux)
- Vout
- Vout
Common
+ Vout
Common
-5V Vout
No Pin
+ Vout
+Vout (Aux)
8
7
6
5
BOTTOM
2.00
(50.8)
SIDE
4
3
2
1
0.10
(2.5)
0.15MIN.
(3.8)
0.90
(22.9)
.20 .20 .20
(5.1) (5.1) (5.1)
0.40
(10.2)
C
ASE
A1
2.00 (50.8)
0.40
(10.2)
0.40
(10.2)
0.60
(15.2)
0.040±.005
(1.01)
DIA.
2.00
0.80
(50.8)
(20.3)
Ordering Information:
1. Case “A” pinning is standard. Models with Case “A”
packaging do not require a suffix on the part number.
2. Case “A1” is an alternate. Models with Case “A1”
packaging must be designated with an “A1” suffix;
e.g. 1615D48XA-A1.
P
IN
O
UT
C
HART
; C
ASE
A1
Pins
1
2
3
4
5
SIDE
Single
+ Vin
- Vin
+ Vout
Trim -
- Vout
Dual
+ Vin
- Vin
+ Vout
+/- Common
- Vout
3
4
5
BOTTOM
1
2
0.60
(15.2)
0.90
(22.9)
0.15MIN.
(3.8)
0.20
(5.1)
0.40
(10.2)
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
X.XXX= ±0.010
X.XX = ±0.25
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
External, low ESR, 10 microfarad (minimum) capacitor across output is recommended for operation.
