Printview: Female connector; with locking levers; 18-pole; with integrated push-buttons; Pin spacing 3.5
mm / 0.138 in; 100% protected against mismating; codable - Item No.: 2734-118/037-000
.
Female connector; with locking levers; 18-pole; with integrated
push-buttons; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating; codable
Item No.: 2734-118/037-000
.
Female connector; with locking levers; 18-pole; with integrated push-buttons; Pin spacing 3.5 mm / 0.138 in; 100%
protected against mismating; codable
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2734-118/037-000
4055143293969
1
25
Item description:Universal connection for all conductor typesEasy-to-use design does not require special toolsAbility
to wire while matedSimple, push-in termination of solid and ferruled stranded conductorsIntegrated test ports for
testing parallel to conductor entry100% protected against mismatingCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
18
3.5 mm (0.138 in %)
18
18
light gray
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with locking levers; 18-pole; with integrated push-buttons; Pin spacing 3.5
mm / 0.138 in; 100% protected against mismating; codable - Item No.: 2734-118/037-000
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
160 [V]
2.5 [kV]
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
10 [A]
1
1
Push-in CAGE CLAMP®
1
Betätigungsdrücker
0.2 … 1.5 mm² / 28 … 16 AWG
0.2 … 1.5 mm² / 28 … 16 AWG
0.25 … 0.75 mm² / …
0.25 … 1.5 mm² / …
7 … 8 mm / 0.28 … 0.31 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
0.308 [MJ]
15.808 [g]
74 mm / 2.913 in
13.5 mm / 0.531 in
20.4 mm / 0.803 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with locking levers; 18-pole; with integrated push-buttons; Pin spacing 3.5
mm / 0.138 in; 100% protected against mismating; codable - Item No.: 2734-118/037-000

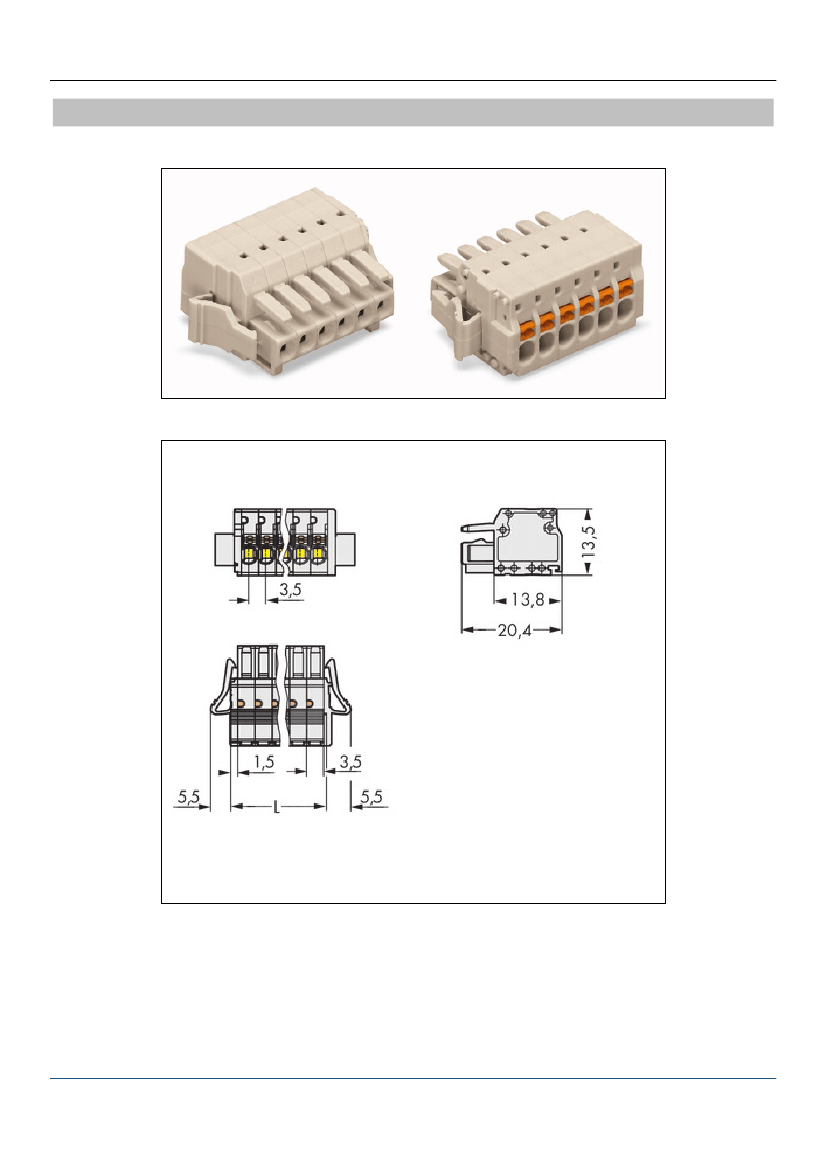

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with locking levers; 18-pole; with integrated push-buttons; Pin spacing 3.5
mm / 0.138 in; 100% protected against mismating; codable - Item No.: 2734-118/037-000
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
