AMZ8133CM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> AMZ8133CM

AMZ8133CM: DescriptionBus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20; Categorylogic logic; File Size128KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AMZ8133CM Overview

Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20

AMZ8133CM Parametric

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
series	81
JESD-30 code	R-CDIP-T20
length	24.1935 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	5.588 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

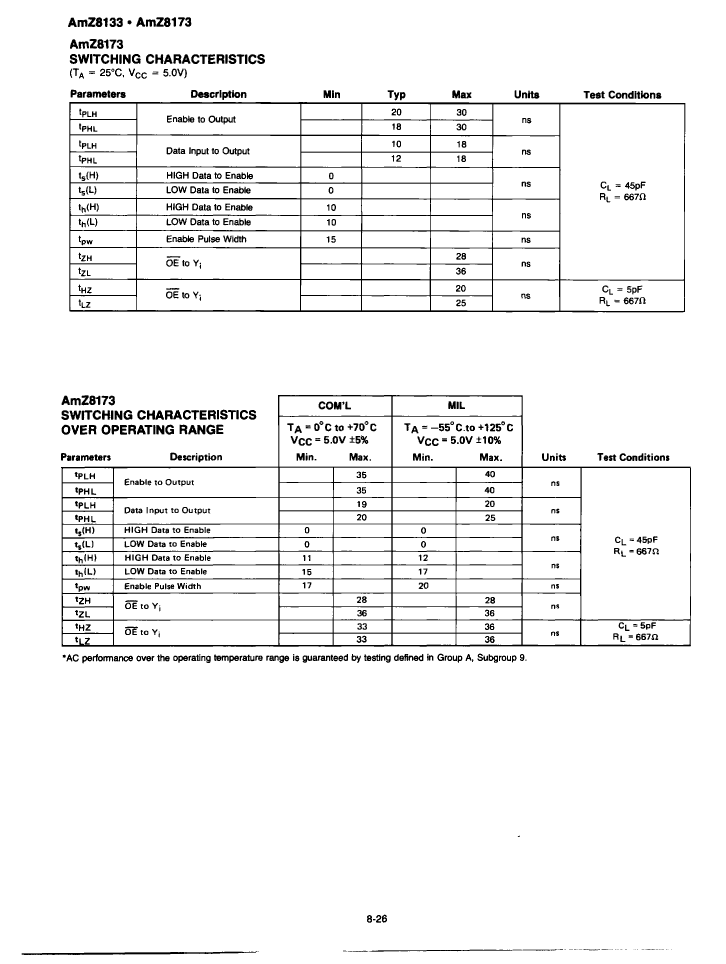

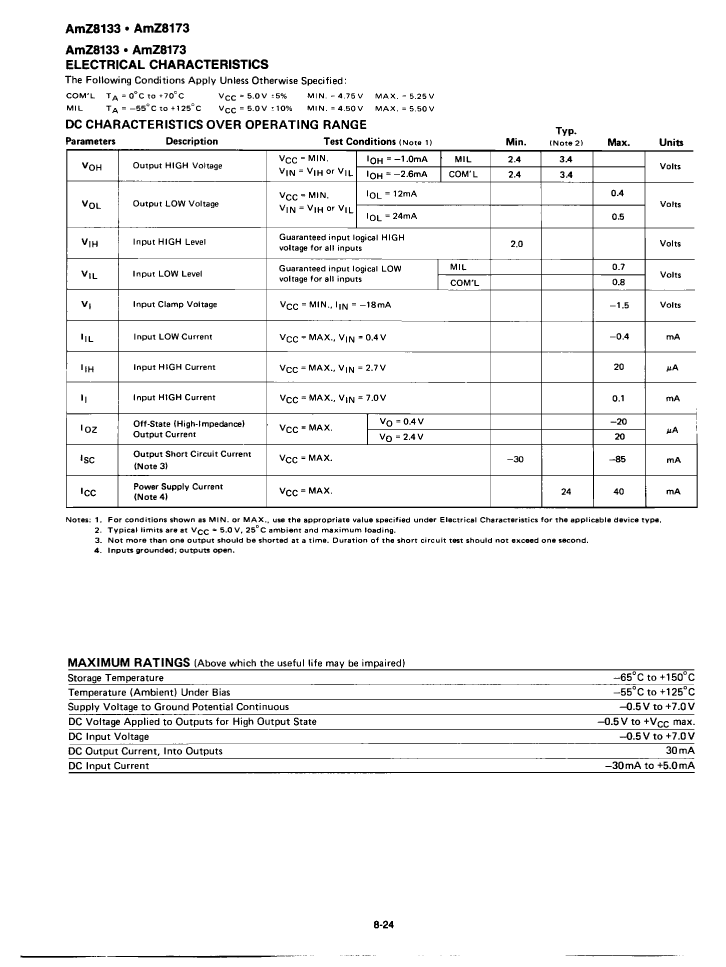

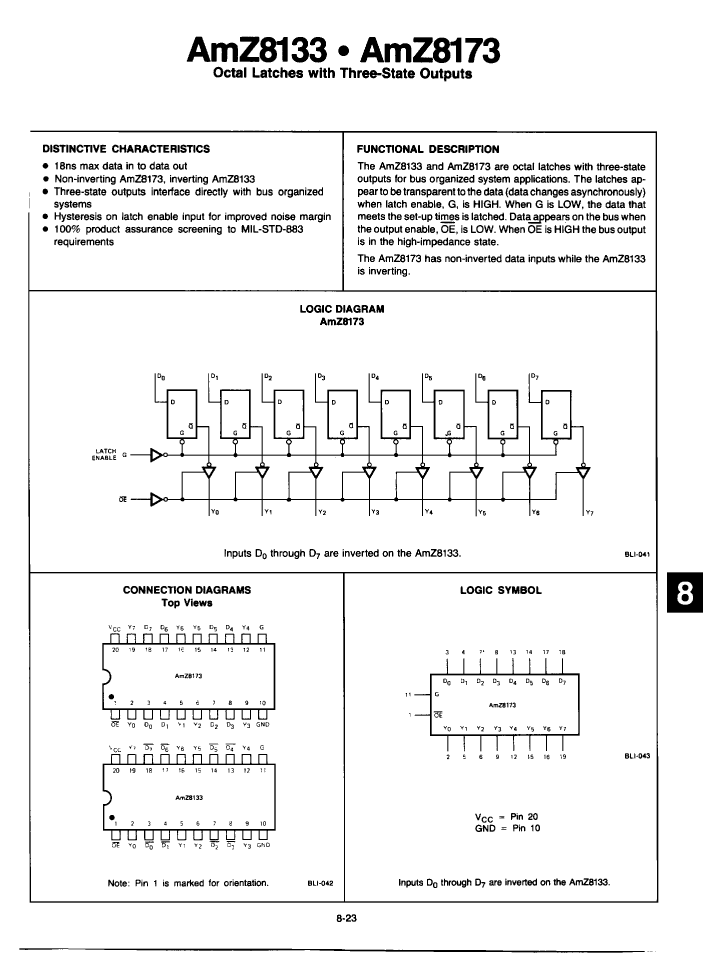

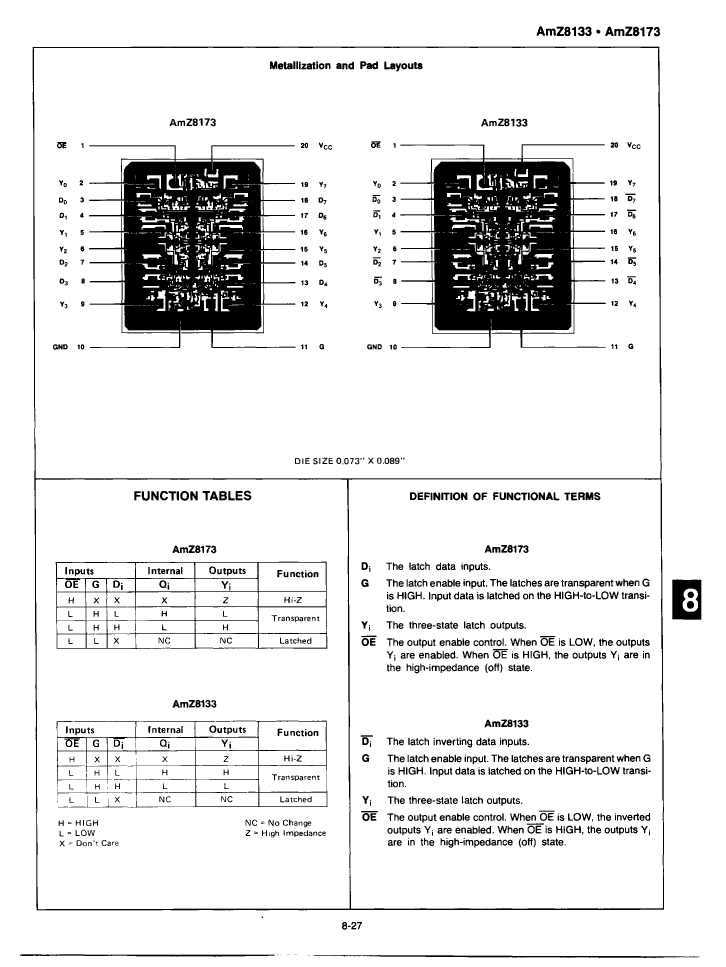

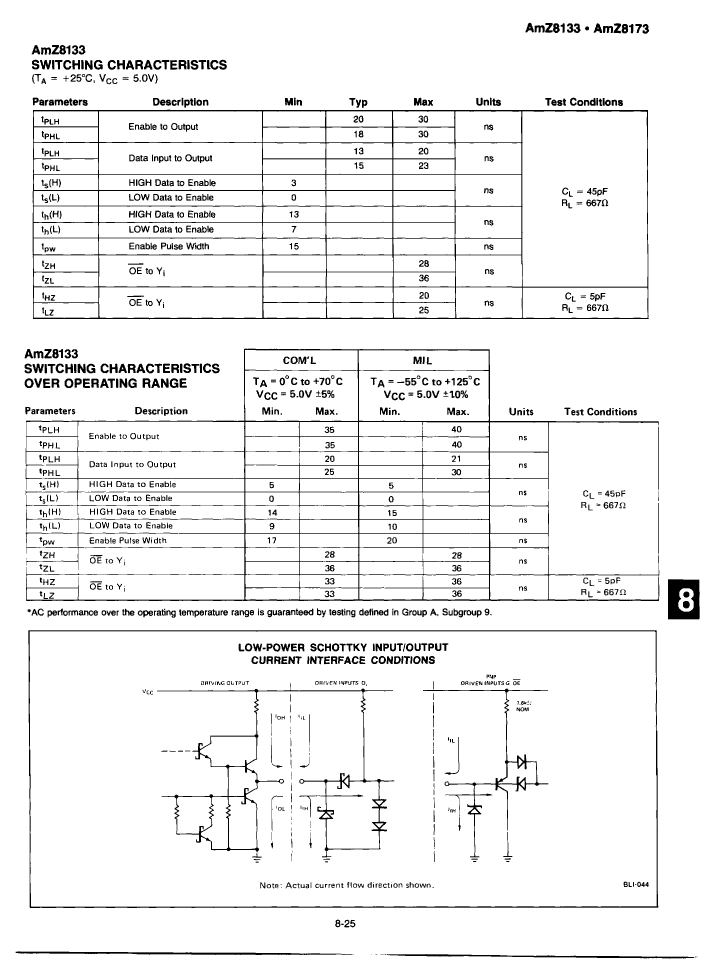

Preview

Download Datasheet

View All

AMZ8133CM Related Products

	AMZ8133CM	AMZ8133DC	AMZ8133PC	AMZ8133CC	AMZ8133DM	AMZ8173DM	AMZ8173DC	AMZ8173PC	AMZ8173CM	AMZ8173CC
Description	Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, SIDE BRAZED, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, SIDE BRAZED, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, HERMETIC SEALED, SIDE BRAZED, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, HERMETIC SEALED, SIDE BRAZED, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Bus Driver, 81 Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP, DIP20,.3	DIP, DIP20,.3	DIP,	DIP,	DIP,	DIP, DIP20,.3	DIP, DIP20,.3	DIP,	DIP,
Contacts	20	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	81	81	81	81	81	81	81	81	81	81
JESD-30 code	R-CDIP-T20	R-CDIP-T20	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20	R-CDIP-T20	R-CDIP-T20	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20
length	24.1935 mm	24.892 mm	26.162 mm	24.1935 mm	24.892 mm	24.892 mm	24.892 mm	26.162 mm	24.1935 mm	24.1935 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	40 ns	35 ns	35 ns	35 ns	40 ns	40 ns	35 ns	35 ns	40 ns	35 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.588 mm	5.08 mm	5.08 mm	5.588 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.588 mm	5.588 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	AMD	AMD	AMD	AMD	-	-	AMD	AMD	AMD	AMD
Base Number Matches	1	1	1	1	1	1	-	-	-	-
