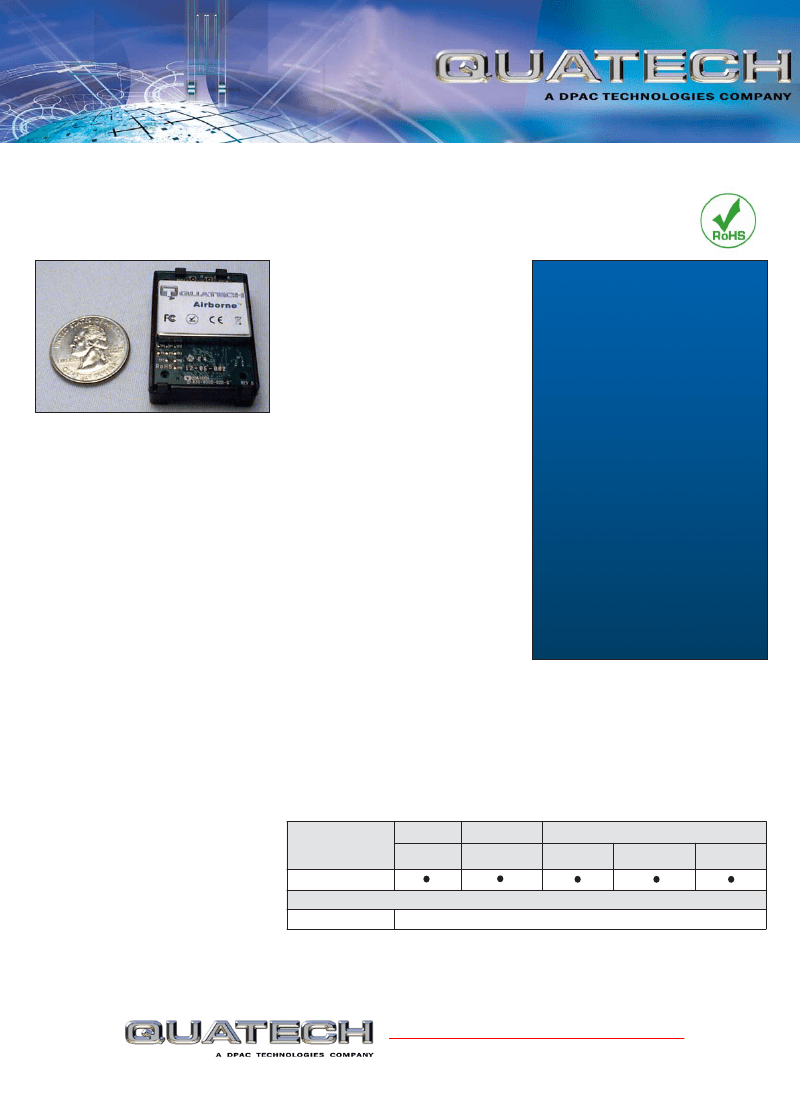

Airborne™ Embedded Wireless Ethernet Bridge Module
Ethernet to 802.11b/g Wireless LAN
WLNG-ET-DP100 Enterprise Series
using one of the available, easy to use
management interfaces. The Airborne
unit allows you to customize their settings
to meet your application demands.
KEY FEATURES
Extended operating temperature
range (-30°C to +85°C) and
environmental specifications, including
shock and vibration tolerance
Advanced security: WEP
(64 & 128 bit), WPA and 802.1x
(LEAP) authentication
Highly integrated transparent
802.11b/g Wireless Ethernet Bridge
Quick time to market and reduced
development costs
Integrated 10 base-T Ethernet PHY
Software-configurable 802.11b/g
interface
Integrated RTOS, TCP/IP Stack
and CLI
Reduces need for RF and
communications expertise
FCC Part 15 Class B Sub C
Modular Approval
5 year warranty
Applications
The Airborne modules have been
designed and tested to provide Wireless
LAN (WLAN) and Internet connectivity
across the harshest of machine to
machine environments including:
transportation
medical
warehouse and logistics
point-of-sale (POS)
industrial automation
military
scientific research
Any system with an existing Ethernet port
can be wirelessly enabled by connecting
the Airborne Ethernet Bridge module
directly to the output of its Ethernet PHY,
maintaining current firmware and
software while enhancing system
functionality.
The Evaluation & Design Kit provides
software and utilities that allow a
developer to quickly and easily operate
and evaluate the Bridge module.
High performance device
networking solutions
Airborne™ is a line of highly integrated
802.11 modules. The wireless ethernet
bridge module includes a radio (which may
be purchased separately), a base-band
processor, an application processor and
software for a “drop-in” web-enabled Wi-Fi
solution. Since there’s no need to develop
the software, or to develop the RF and
communications expertise inhouse, OEMs
can realize reduced product development
costs and a quick time-to-market. This
Airborne Wireless Ethernet Module
provides instant LAN and Internet
connectivity, and connects through a
standard ethernet interface (other Airborne
modules offer standard serial interfaces) to
a wide variety of applications.
Simple configuration, advanced
security
The extremely small footprint design
makes Airborne easy to embed in both
existing and new designs. Supporting
advanced security modes, including WEP,
WPA and LEAP, the module is
interoperable with industry standard 802.11
Access Points and stations. Providing
access to existing infrastructure that
enables access to corporate WLANs,
WANs and even the internet. The built-in
TCP/IP stack and application software
provide embedded devices with this level of
connectivity, without requiring any software
development - only simple configuration
Model Selection Guide
Interface
Model No.
WiFi
802.11b/g
WEP
(64 & 128 bit)
Security
WPA
LEAP
10 Base-T
Ethernet
WLNG-ET-DP101
To evaluate all available features and receive evaluation tools, order below.
ABEG-ET-DP104
Evaluation & Design Kit
All Quatech 802.11b/g products are RoHS-compliant.
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
+1330.655.9000
www.quatech.com

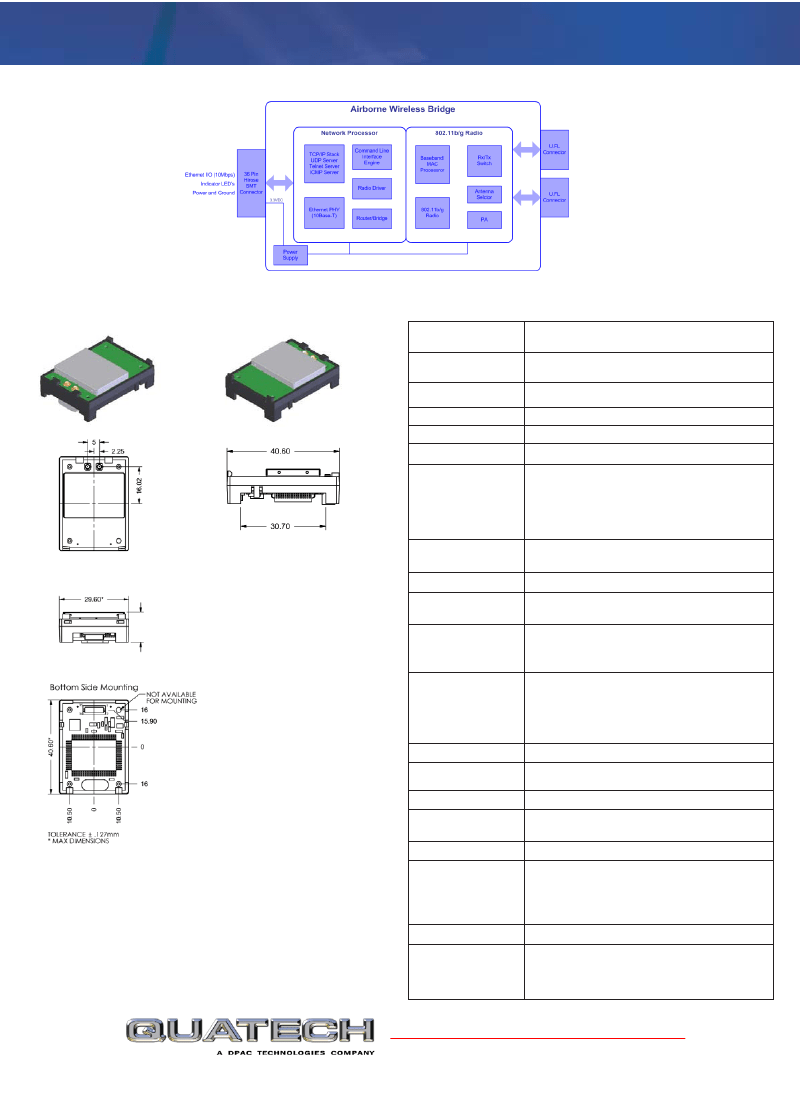

Block Diagram
Mechanical Outline
Specifications
Technology
Ethernet Interface
Data Throughput
Frequency
Modulation Technology
Modulation Type
Network Access Modes
Channels
IEEE 802.11b/g, WiFi compliant
(802.11i, 802.11e, 802.11d capable)
10 Base-T (4Mbps data throughput max)
2.400 ~ 2.4835 GHz (US/Can/Europe)
2.400 ~ 2.497 GHz (Japan)
DSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Ad-hoc, Infrastructure
USA/Canada: 11 channels (1 - 11)
Europe:
13 channels (1 - 13)
Japan:
14 channels (1 - 13 for g rates)
(1 - 14 for b rates)
France:
4 channels (10 - 13)
802.11b mode: 11, 5.5, 2, 1 Mbps
802.11g mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
CSMA/CA with ACK, RTS, CTS
TCP/IP, ARP, ICMP, DHCP, DNS, UDAP Discovery
TCP/IP, TFTP, UDP
+19.3 dBm (typical) Approx. 85 mW peak for B rates
+15 dBm (typical) Approx. 32 mW average for B rates
+21.5 dBm (typical) Approx. 143 mW peak for G rates
+12 dBm (typical) Approx. 16 mW average for G rates
-71dBm for 54Mbps
-77dBm for 36Mbps
-83dBm for 18 Mbps
-85dBm for 11Mbps
-87dBm for 1Mbps
WEP 64 and 128bit (RC4), WPA (TKIP), 802.1x (LEAP)
Two U.FL coaxial connectors, 50 ohms, supports receive
diversity
3.3 Vdc +/-5%
575mA - transmit mode (typical @ 54mb/s)
375mA - receive mode (typical @ 54mb/s)
Wireless Data Rate
MAC
Protocols
Data Transfer
RF Power
0.466
Sensitivity
Security
Antenna
Supply
Current Consumption
Power Up Inrush-Current 3000 mA (MAX) 20ms
Operating Environment
Temperature
Temperature: -30°C - +85°C
Relative humidity: 5% - 95% (non-condensing)
Vibration: 20G peak-to-peak, 20Hz - 2KHz
Shock: 1500G peak-to-peak, 0.5mS
36 Pin (Hirose DF12-36DS-0.5 V) 4-mm height
FCC Part 15 Class B Sub C Intentional
CE ETSI EN300 328, EN301 489, ETSI 60950-1
IC RSS210
RoHS and WEEE compliant
Connector
Agency Approvals
5675 Hudson Industrial Parkway Hudson, OH 44236
© 2007 Quatech, Inc.
1.800.553.1170
+1330.655.9000
www.quatech.com
Rev. F 9/2007
