NISSEI-ARCOTRONICS
Straight leads
Kinked leads
APH
KP Series
POLYPROPYLENE FILM CAPACITOR
EXTENDED FOIL CONSTRUCTION
(NON-INDUCTIVE WINDING)
MULTIPURPOSE APPLICATIONS
SERIES CODES:
APH
All dimensions are in mm.
PART NUMBERING SYSTEM
1
2
3
4
5
6
7
8
SPECIFICATIONS
AP H
1.
2.
3.
4.
5.
6.
[ ]
Series code
Capacitance value in pico farads. First 2
digits are significant and 3
rd
digit indicates
number of zeros.
Capacitance tolerance
G = 2%
J = 5%
D.C. voltage
Packaging code
B = bulk
A = ammo
Lead spacing (mm) -- (Applies to standard
lead spacing only. For non-standard lead
spacing, contact NAA for assistance.)
C = 5.0
G = 12.5
D = 7.5
I = 15.0
F = 10.0
M = 20.0
Temp range:
-25 to +85°C
Voltage:
100Vdc, 200Vdc, 400Vdc, 630Vdc
Capacitance:
100V
3300ρF to 0.47µF
200V
4700ρF to 0.22µF
400V
2700ρF to 0.22µF
630V
1000ρF to 0.10µF
Cap. tolerance:
±2%
(G);
±5%
(J)
Tangent of loss angle:
≤
0.001 (at 1kHz)
Insulation resistance:
≥
50,000
MΩ for C≤0.33
µF
≥
30,000
MΩ for C>0.33
µF
Endurance:
85°C WV x 140% 1000hrs
tgδ
≤
0.011
∆C/C ±2%
IR
≥
15,000
MΩ
Damp heat:
40°C 90 to 95%RH WV 500hrs
tgδ
≤
0.012
∆C/C ±3%
IR
≥
15,000
MΩ
7.
8.
Lead Forming (omit for straight leads):
K = kink
Internal code
NISSEI-ARCOTRONICS
POLYPROPYLENE FILM CAPACITOR
MULTIPURPOSE APPLICATIONS
SERIES CODES:
APH
Straight leads
Kinked leads
APH
KP Series
Rated
100Vdc
Part Number
Cap.
W
H
T
P
F
Ød
5.0
0.5
APH331-100---
330ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH391-100---
390ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH471-100---
470ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH561-100---
560ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH681-100---
680ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH821-100---
820ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH102-100---
1000ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH122-100---
1200ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH152-100---
1500ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH182-100---
1800ρF 9.5 8.5 5.5 6.0
9.5 8.5 5.5 6.0
5.0
0.5
APH222-100---
2200ρF
5.0
0.5
APH272-100---
2700ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH332-100---
3300ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH392-100---
3900ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH472-100---
4700ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH562-100---
5600ρF 9.5 8.5 5.5 6.0
5.0
0.5
APH682-100---
6800ρF 9.5 9.0 5.5 6.0
5.0
0.5
APH822-100---
8200ρF 11.0 9.0 5.5 7.5
5.0
0.5
APH103-100---
0.010µF 11.0 9.0 5.5 7.5
5.0
0.5
APH123-100---
0.012µF 11.0 9.5 6.0 7.5
11.0 10.0 6.0 7.5
5.0
0.5
APH153-100---
0.015µF
5.0
0.5
APH183-100---
0.018µF 11.0 11.0 6.0 7.5
5.0
0.5
APH223-100---
0.022µF 11.0 11.5 6.5 7.5
5.0/7.5
0.5
APH273-100---
0.027µF 14.0 11.0 6.0 10.0
5.0/7.5
0.5
APH333-100---
0.033µF 14.0 11.5 6.0 10.0
5.0/7.5
0.5
APH393-100---
0.039µF 14.0 12.0 6.5 10.0
5.0/7.5
0.5
APH473-100---
0.047µF 14.0 12.5 7.0 10.0
5.0/7.5
0.6
APH563-100---
0.056µF 16.0 12.5 6.5 12.5
APH683-100---
0.068µF 16.0 13.5 7.5 12.5 5.0/7.5/10.0 0.6
APH823-100---
0.082µF 16.0 14.5 8.0 12.5 5.0/7.5/10.0 0.6
18.0 15.0 7.5 15.0 5.0/7.5/10.0 0.6
APH104-100---
0.10µF
APH124-100---
0.12µF 18.0 15.5 8.0 15.0 5.0/7.5/10.0 0.6
APH154-100---
0.15µF 18.5 16.5 8.5 15.0 5.0/7.5/15.0 0.6
APH184-100---
0.18µF 19.0 17.0 9.5 15.0 5.0/7.5/15.0 0.6
APH224-100---
0.22µF 19.0 18.0 11.5 15.0 5.0/7.5/15.0 0.6
15.0
0.8
APH274-100---
0.27µF 24.0 18.0 9.0 20.0
20.0
0.8
APH334-100---
0.33µF 24.0 18.5 10.0 20.0
20.0
0.8
APH394-100---
0.39µF 24.5 19.5 11.0 20.0
20.0
0.8
APH474-100---
0.47µF 24.5 20.5 12.0 20.0
Tolerance: G (± 2%); J (±5%)
Packaging code: B (bulk); A (ammo)
Lead spacing: C (5.0); D (7.5); F (10.0); G (12.5); I (15.0)
Lead forming: K (kink)
Rated
200Vdc
Part Number
Cap.
W
H
T
P
F
Ød
APH472-200---
4700ρF 12.0 11.0 6.0 7.5 5.0/7.5/10.0 0.6
APH562-200---
5600ρF 12.0 11.0 6.5 7.5 5.0/7.5/10.0 0.6
APH682-200---
6800ρF 12.0 12.0 7.0 7.5 5.0/7.5/10.0 0.6
APH822-200---
8200ρF 12.0 12.5 7.0 7.5 5.0/7.5/10.0 0.6
APH103-200---
0.010µF 14.0 11.5 6.5 10.0 5.0/7.5/10.0 0.6
APH123-200---
0.012µF 14.0 11.5 7.0 10.0 5.0/7.5/10.0 0.6
APH153-200---
0.015µF 14.0 12.0 7.0 10.0 5.0/7.5/10.0 0.6
APH183-200---
0.018µF 14.0 12.5 7.5 10.0 5.0/7.5/10.0 0.6
APH223-200---
0.022µF 14.0 13.0 8.0 10.0 5.0/7.5/10.0 0.6
APH273-200---
0.027µF 14.0 13.5 8.5 10.0 5.0/7.5/10.0 0.6
18.5 13.5 7.5 15.0 5.0/7.5/10.0 0.6
APH333-200---
0.033µF
APH393-200---
0.039µF 18.5 14.0 7.5 15.0 5.0/7.5/10.0 0.6
APH473-200---
0.047µF 18.5 14.5 8.0 15.0 5.0/7.5/10.0 0.6
APH563-200---
0.056µF 18.5 15.0 8.5 15.0 5.0/7.5/15.0 0.6
APH683-200---
0.068µF 18.5 16.0 9.0 15.0 5.0/7.5/15.0 0.6
APH823-200---
0.082µF 19.0 17.0 9.5 15.0 5.0/7.5/15.0 0.6
APH104-200---
0.10µF 19.0 18.0 10.5 15.0 5.0/7.5/15.0 0.6
15.0
0.8
APH124-200---
0.12µF 24.0 18.0 9.5 20.0
20.0
0.8
APH154-200---
0.15µF 24.0 19.0 10.0 20.0
20.0
0.8
APH184-200---
0.18µF 25.0 20.0 11.0 20.0
25.0 21.5 12.0 20.0
20.0
0.8
APH224-200---
0.22µF
Tolerance: G (± 2%); J (±5%)
Packaging code: B (bulk); A (ammo)
Lead spacing: C (5.0); D (7.5); F (10.0); G (12.5); I (15.0)
Lead forming: K (kink)
All dimensions are in mm.
NISSEI-ARCOTRONICS
POLYPROPYLENE FILM CAPACITOR
MULTIPURPOSE APPLICATIONS
SERIES CODES:
APH
Straight leads
Kinked leads
APH
KP Series
Rated
400Vdc
Part Number
Cap.
W
H
T
P
F
Ød
APH272-400---
2700ρF 12.0 10.5 6.0 7.5 5.0/7.5/10.0 0.6
APH332-400---
3300ρF 12.0 11.0 6.5 7.5 5.0/7.5/10.0 0.6
APH392-400---
3900ρF 12.0 12.0 6.5 7.5 5.0/7.5/10.0 0.6
APH472-400---
4700ρF 12.0 12.5 7.0 7.5 5.0/7.5/10.0 0.6
APH562-400---
5600ρF 12.0 13.0 7.5 7.5 5.0/7.5/10.0 0.6
APH682-400---
6800ρF 14.5 12.0 6.5 10.0 5.0/7.5/10.0 0.6
APH822-400---
8200ρF 14.5 12.5 7.0 10.0 5.0/7.5/10.0 0.6
APH103-400---
0.010µF 15.0 13.0 7.5 10.0 5.0/7.5/10.0 0.6
APH123-400---
0.012µF 15.0 13.5 8.0 10.0 5.0/7.5/10.0 0.6
APH153-400---
0.015µF 16.0 14.0 8.5 10.0 5.0/7.5/10.0 0.6
19.0 14.0 7.5 15.0 5.0/7.5/10.0 0.6
APH183-400---
0.018µF
APH223-400---
0.022µF 19.0 14.5 8.0 15.0 5.0/7.5/10.0 0.6
APH273-400---
0.027µF 19.0 15.0 8.5 15.0 5.0/7.5/10.0 0.6
APH333-400---
0.033µF 19.5 15.5 8.5 15.0 5.0/7.5/15.0 0.6
APH393-400---
0.039µF 19.5 16.0 9.0 15.0 5.0/7.5/15.0 0.6
7.5/15.0
0.6
APH473-400---
0.047µF 19.5 17.0 9.5 15.0
15.0
0.8
APH563-400---
0.056µF 24.0 17.0 8.5 20.0
15.0
0.8
APH683-400---
0.068µF 24.0 18.0 9.0 20.0
15.0
0.8
APH823-400---
0.082µF 24.0 19.0 9.5 20.0
20.0
0.8
APH104-400---
0.10µF 25.0 20.0 10.5 20.0
25.0 21.0 11.5 20.0
20.0
0.8
APH124-400---
0.12µF
20.0
0.8
APH154-400---
0.15µF 25.0 22.0 12.5 20.0
20.0
0.8
APH184-400---
0.18µF 29.0 22.5 12.0 25.0
20.0
0.8
APH224-400---
0.22µF 29.0 24.0 13.0 25.0
Tolerance: G (± 2%); J (±5%)
Packaging code: B (bulk); A (ammo)
Lead spacing: C (5.0); D (7.5); F (10.0); G (12.5); I (15.0)
Lead forming: K (kink)
Rated
630Vdc
Part Number
Cap.
W
H
T
P
F
Ød
APH102-630---
1000ρF 12.0 10.0 6.5 7.5 5.0/7.5/10.0 0.6
APH122-630---
1200ρF 12.0 10.5 6.5 7.5 5.0/7.5/10.0 0.6
APH152-630---
1500ρF 12.0 11.0 6.5 7.5 5.0/7.5/10.0 0.6
APH182-630---
1800ρF 12.0 11.5 7.0 7.5 5.0/7.5/10.0 0.6
APH222-630---
2200ρF 12.0 12.0 7.0 7.5 5.0/7.5/10.0 0.6
APH272-630---
2700ρF 14.0 11.0 7.0 10.0 5.0/7.5/10.0 0.6
APH332-630---
3300ρF 14.0 11.5 7.5 10.0 5.0/7.5/10.0 0.6
APH392-630---
3900ρF 14.0 12.5 7.5 10.0 5.0/7.5/10.0 0.6
APH472-630---
4700ρF 15.0 13.0 8.0 10.0 5.0/7.5/10.0 0.6
APH562-630---
5600ρF 15.0 13.5 8.5 10.0 5.0/7.5/10.0 0.6
15.0 14.0 9.0 10.0 5.0/7.5/10.0 0.6
APH682-630---
6800ρF
APH822-630---
8200ρF 15.5 14.5 9.5 10.0 5.0/7.5/10.0 0.6
APH103-630---
0.010µF 18.5 14.5 8.0 15.0 5.0/7.5/10.0 0.6
APH123-630---
0.012µF 18.5 15.5 8.0 15.0 5.0/7.5/10.0 0.6
APH153-630---
0.015µF 18.5 16.0 8.5 15.0 5.0/7.5/15.0 0.6
APH183-630---
0.018µF 19.0 16.5 9.0 15.0 5.0/7.5/15.0 0.6
APH223-630---
0.022µF 19.0 17.5 10.0 15.0 5.0/7.5/15.0 0.6
15.0
0.8
APH273-630---
0.027µF 24.0 17.0 8.5 20.0
15.0
0.8
APH333-630---
0.033µF 24.0 18.0 9.5 20.0
15.0
0.8
APH393-630---
0.039µF 24.0 19.0 10.5 20.0
24.0 20.0 11.5 20.0
15.0
0.8
APH473-630---
0.047µF
20.0
0.8
APH563-630---
0.056µF 25.0 21.5 12.5 20.0
20.0
0.8
APH683-630---
0.068µF 25.0 22.5 13.5 20.0
20.0
0.8
APH823-630---
0.082µF 29.0 23.0 12.5 25.0
20.0
0.8
APH104-630---
0.10µF 29.0 24.0 13.0 25.0
Tolerance: G (± 2%); J (±5%)
Packaging code: B (bulk); A (ammo)
Lead spacing: C (5.0); D (7.5); F (10.0); G (12.5); I (15.0)
Lead forming: K (kink)
All dimensions are in mm.
NISSEI-ARCOTRONICS
POLYPROPYLENE FILM CAPACITOR
MULTIPURPOSE APPLICATIONS
SERIES CODES:
APH
APH
KP Series

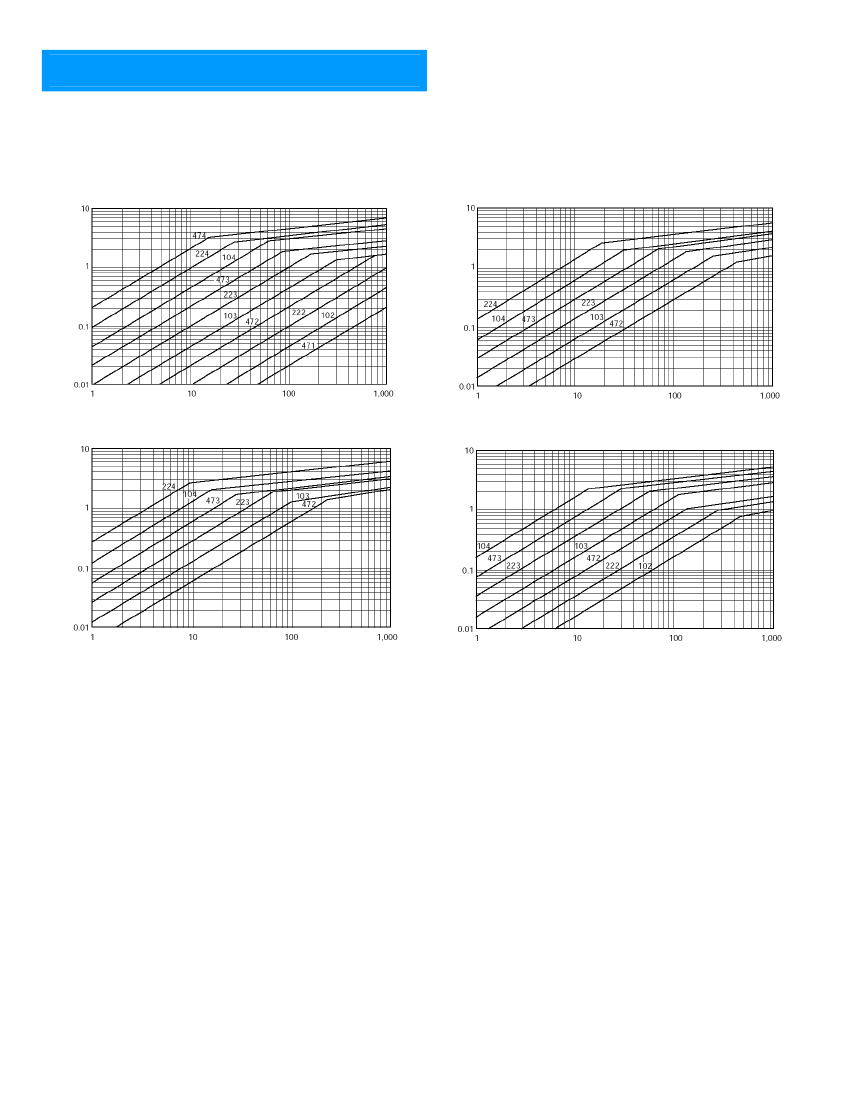

Permissible Current Versus Frequency
100Vdc
Permissible Current (Arms)
Permissible Current (Arms)
200Vdc
Frequency (kHz)
Frequency (kHz)
400Vdc
Permissible Current (Arms)
Permissible Current (Arms)
630Vdc
Frequency (kHz)
Frequency (kHz)
