part number:
description:
CA-2213
Cable, 1830 mm, 5.5x2.1x12 mm, 90°
50-00381 plug to 5.5x2.1 mm, 50-00025
jack, 18 AWG, 30-00007 wire
date:
February 14, 2014
rev:
A3
page:
1 of 2
Specifications:
connector description (1)
overmold (2,5)
connector description (6)
wire description (3)
cable outer diameter
cable color
cable length
twist tie (4)
dc plug, 5.5x2.1xL25 mm, molding style, spring contacts, P/N 50-00381
30P, PVC, black
dc jack, 5.5x2.1xL17.4 mm, molding style, P/N 50-00025
2C, 18 AWG, UL2468, 300V, 80C, 4.4 mm, VW-1, PVC, 48P, P/N 30-00007
Ø4.4 mm
black
1830 +76/-25 mm
black
Notes:
Function test: no open, no reversed polarity, no short circuit, no INT
RoHS compliant
Hi-Pot test: 600 Vac, 0.5 mA, 1 second

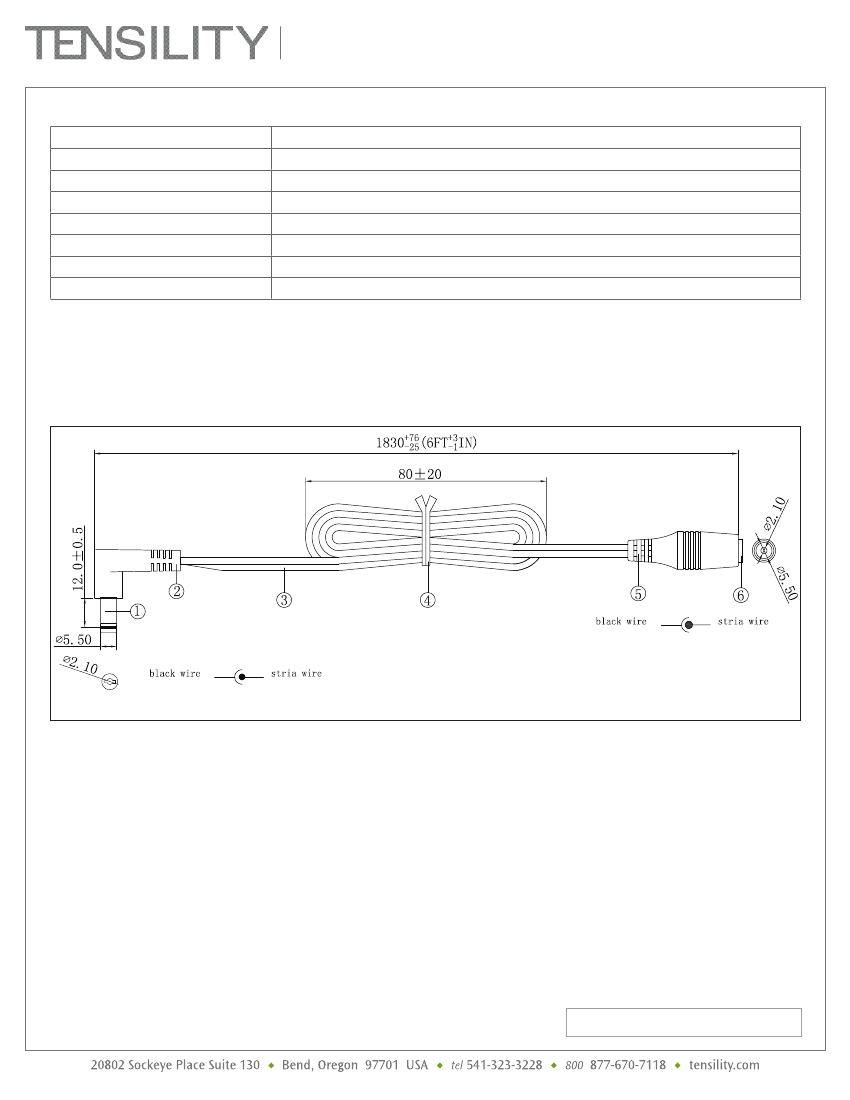

Mechanical drawing:
Units: mm
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Tensility
International Corporation reserves the right to substitute
parts which are functionally equivalent to the ones specified.
Initial
Date
part number:
description:
CA-2213
Cable, 1830 mm, 5.5x2.1x12 mm, 90°
50-00381 plug to 5.5x2.1 mm, 50-00025
jack, 18 AWG, 30-00007 wire
date:
February 14, 2014
rev:
A3
page:
2 of 2
Revision notes:
Rev
Date
Description
A
A1
A2
A3
January 19, 2009
August 31, 2011
September 10, 2013
February 14, 2014
Re-issued; original specification issued by CUI, re-issued by Tensility without any
material or mechanical changes.
updated description, connector, and wire information
updated connector
updated connector
Prepared:
EK
2014.02.14 08:16:51 -08'00'
Verified:
JM
2014.02.14 08:28:11 -08'00'
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your
requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have
been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior
approval from Tensility.
