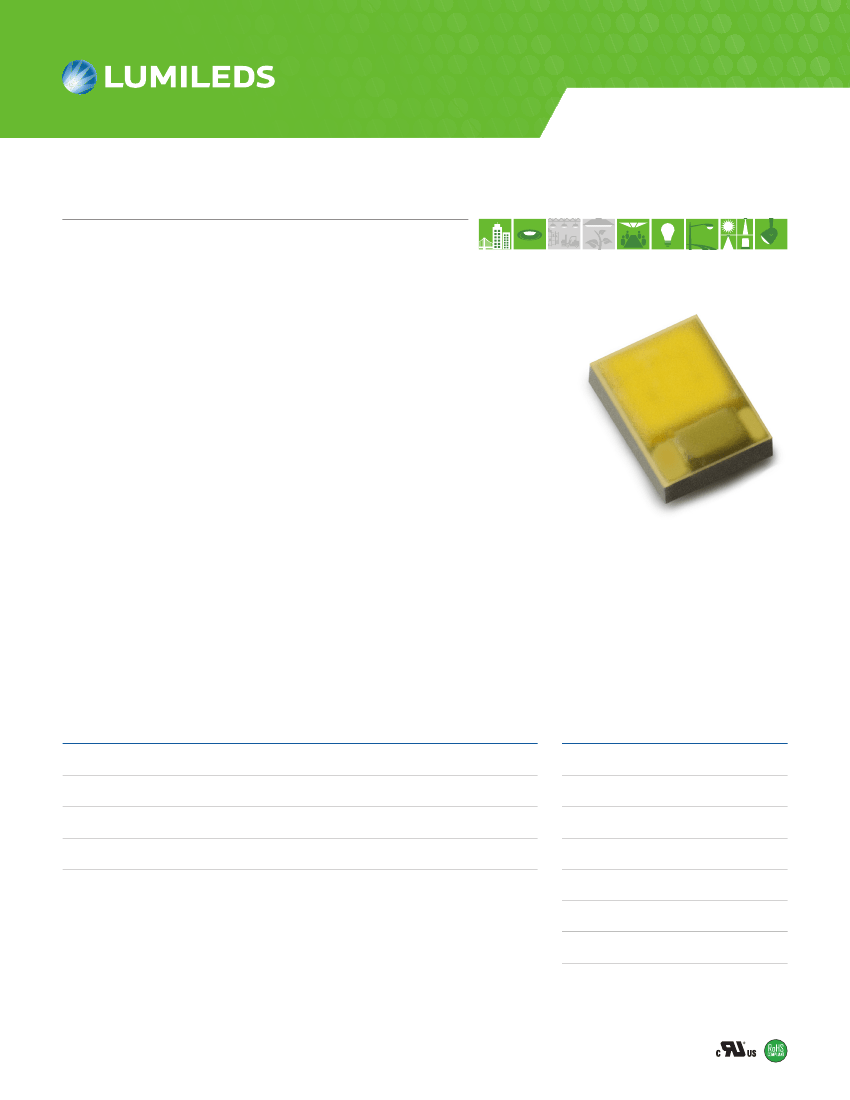

ILLUMINATION
LUXEON Z
Industry’s smallest high power emitter
for use in close-packed applications
requiring an undomed solution
LUXEON Z is a high power 1.3mm x 1.7mm LED that enables never before
seen color consistency, luminance, flux density and design flexibility for
lighting solutions. LUXEON Z is undomed, a feature that provides un-
matched optical flexibility for precise beam angle control. Tested and
binned at application conditions 85°C and available in 3- and 5-step
MacAdam ellipse color bins. LUXEON Z emitters are an ideal choice for
indoor and outdoor light sources requiring superior beam angles, higher
efficacy and lower costs.
FEATURES AND BENEFITS
1.3mm x 1.7mm micro footprint enables a high degree of design flexibility
Undomed design allows precise optical control
1A max drive current allows for more flux per LED
3- and 5-step MacAdam ellipse color binning for superior Quality of Light
PRIMARY APPLICATIONS
Architectural
Downlights
Indoor Area Lighting
Lamps
Outdoor
Specialty Lighting
Spotlights
DS120 LUXEON Z Product Datasheet ©2017 Lumileds Holding B.V. All rights reserved.
No. E352519
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical and Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Spectral Power Distribution Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Light Output Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Forward Current Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Radiation Pattern Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Bin and Labeling Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Decoding Product Bin Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Color Bin Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Reflow Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pocket Tape Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DS120 LUXEON Z Product Datasheet 20170327 ©2017 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON Z LEDs are tested and binned with a DC drive current of 500mA at a junction temperature, T
j
, of 85ºC.
Part Number Nomenclature
Part numbers for LUXEON Z follow the convention below:
L X Z 1 –
A A B B
–
C
Where:
A A
–
designates nominal ANSI CCT (27=2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K,
57=5700K, 65=6500K RB=Royal Blue)
B B
–
C
–
designates minimum CRI (65=65CRI, 70=70CRI, 80=80CRI)
designates SDCM (3=3 SDCM, 5=5 SDCM).
Therefore, the following part number is used for a LUXEON Z 3000K, 80 CRI, 5 SDCM :
L X Z 1 –
3 0 8 0
–
5
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON Z is
compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS120 LUXEON Z Product Datasheet 20170327 ©2017 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1 . Product performance of LUXEON Z at 500mA and 700mA, T
j
=85ºC .
NOMINAL
CCT
6500K
4000K
5000K
5700K
2700K
3000K
3500K
4000K
MINIMUM
CRI
[1, 2]
65
70
70
70
80
80
80
80
LUMINOUS FLUX
[1]
(lm)
MINIMUM
140
120
130
140
100
110
110
120
TYPICAL
500mA
154
134
148
152
115
124
124
130
110
96
106
109
82
89
89
93
197
172
189
195
147
159
159
166
TYPICAL
LUMINOUS
EFFICACY (lm/W)
TYPICAL
LUMINOUS
FLUX (lm)
TYPICAL
LUMINOUS
EFFICACY (lm/W)
700mA
99
86
95
98
74
80
80
83
LXZ1-6565
LXZ1-4070
LXZ1-5070
LXZ1-5770
LXZ1-2780-y
LXZ1-3080-y
LXZ1-3580-y
LXZ1-4080-y
PART NUMBER
Notes for Table 1:
1. Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
2. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is not guaranteed.
Optical Characteristics
Table 2 . Optical characteristics for LUXEON Z at 500mA, T
j
=85°C .
PART NUMBER
LXZ1-xxxx-y
LXZ1-xxxx
TYPICAL TOTAL INCLUDED ANGLE
[1]
160°
160°
TYPICAL VIEWING ANGLE
[2]
120°
120°
Notes for Table 2:
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off axis angle from the LED centerline where the luminous intensity is ½ of the peak value.
Electrical and Thermal Characteristics
Table 3 . Electrical and thermal characteristics for LUXEON Z at 500mA, T
j
=85°C .
PART NUMBER
LXZ1-xxxx-y
LXZ1-xxxx
FORWARD VOLTAGE
[1]
(V
f
)
MINIMUM
2.5
2.5
TYPICAL
2.8
2.8
MAXIMUM
3.25
3.25
TYPICAL TEMPERATURE
COEFFICIENT OF FORWARD
VOLTAGE (mV/°C)
[2]
-1.6
-1.6
TYPICAL THERMAL
RESISTANCE — JUNCTION
TO SOLDER PAD (°C/W)
6
6
Notes for Table 3:
1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
2. Measured between 25°C and 85°C.
DS120 LUXEON Z Product Datasheet 20170327 ©2017 Lumileds Holding B.V. All rights reserved.
3
Absolute Maximum Ratings
Table 4 . Absolute maximum ratings for LUXEON Z .
PARAMETER
DC Forward Current
[1, 2]
Peak Pulsed Forward Current
[1, 3]
LED Junction Temperature
[1]
(DC & Pulse)
ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012)
Operating Case Temperature
[1]
LED Storage Temperature
Soldering Temperature
Allowable Reflow Cycles
Reverse Voltage (V
reverse
)
MAXIMUM PERFORMANCE
1000mA
1200mA
135°C
Class 3B
-40°C to 135°C
-40°C to 135°C
JEDEC 020c 260°C
3
LUXEON LEDs are not designed to be driven in reverse bias
Notes for Table 4:
1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature.
2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met:
– The frequency of the ripple current is 100Hz or higher
– The average current for each cycle does not exceed the maximum allowable DC forward current
– The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current
3. At 10% duty cycle with pulse of 10ms.
Characteristic Curves
Spectral Power Distribution Characteristics
Figure 1a: Typical normalized power vs. wavelength for LXZ1-xx65 at 500mA, T
j
=85ºC .
DS120 LUXEON Z Product Datasheet 20170327 ©2017 Lumileds Holding B.V. All rights reserved.
4
