3405.0920.25: DescriptionElectric Fuse, Fast Blow, 1.6A, 50A (IR),; CategoryCircuit protection Circuit protection; File Size100KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric Compare View All

3405.0920.25 Overview

Electric Fuse, Fast Blow, 1.6A, 50A (IR),

3405.0920.25 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Fusing characteristics	FAST
body width	3.5 mm
body height	2.6 mm
Body length or diameter	5.4 mm
Circuit protection type	ELECTRIC FUSE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	5.4mm x 3.5mm x 2.6mm
Pre-discharge rating	0.6 A2/s
Rated breaking capacity	50 A
Rated current	1.6 A
Rated voltage	63 V
Guideline	CSA; UL
Base Number Matches	1

Preview

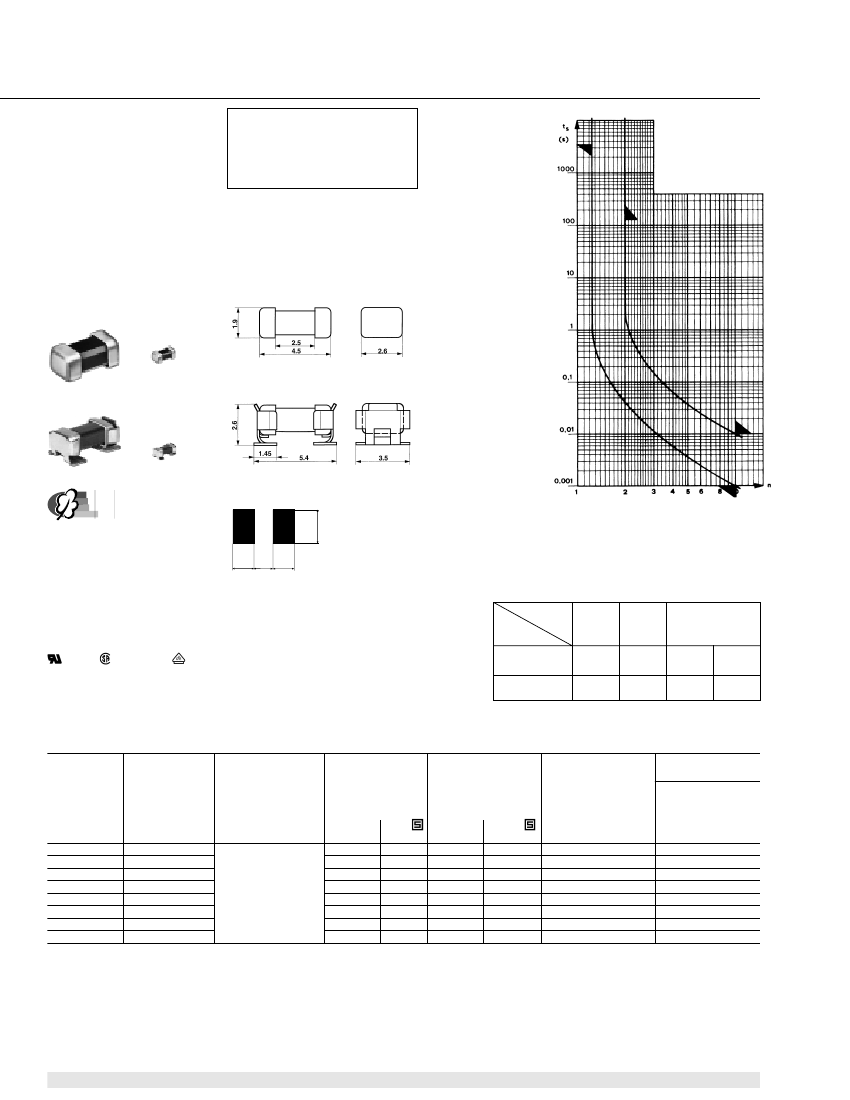

Download Datasheet

View All

FUSES

Non resettable fuses

Surface Mount

Fuses

Type SFC

quick-acting F

directly solderable on printed

circuit boards

with or without clips

SFC

Not recommended for new

designs. Refer to types

172876, MKF, OMF 63

and

OMF 125.

1:1

Pre-arcing time in seconds t

s

SUPRAFUSE with clips

fuse-link removable

1:1

Solder pads for wave- and reflow soldering

Multiple of rated current I

n

3,5

50

75

100

2,2

1,9

2,2

Standards

IEC 60127-4/2, EN 60127-4/2

UL 248-14

CSA C22.2 No. 248.14

Approvals, Patents

UL

CSA

Pre-arcing time/current

characteristic (at T

a

23 °C)

}

with modifications based on IEC…/EN…

Rated

current I

n

n · I

n

1,25 · I

n

min.

2 · I

n

max.

120 s

10 · I

n

min.

1 ms

max.

10 ms

VDE only for version without clip

0,8 – 4 A

Patents in U.S and in further countries pending

1h

Order No.

.

Rated current I

n

Rated voltage U

n

Breaking capacity

Voltage drop

Sustained

power dissipation

at 1,25 · I

n

max.

IEC 60127

mW

500

1000

1200

1500

Pre-arcing

l

2

t

at 10 · I

n

Approvals

wave and reflow

soldering

CSA

•

VDE

•

UL

•

at I

n

max.

IEC 60127

mV

3405.0917.XX 0,8

A / 63 V

400

3405.0918.XX 1

A / 63 V

300

3405.0919.XX 1,25

A / 63 V 50 A /

300

3405 0920.XX 1,6

A / 63 V 63 V AC/DC

300

3405.0921.XX 2

A / 63 V p.f. / cos 1

300

3405.0922.XX 2,5

A / 63 V

300

3405.0923.XX 3,15

A / 63 V

300

3405.0924.XX 4

A / 63 V

300

3405.0924.XX

Index for packaging and SFC without or with clip

Additional technical data and packaging see page 50

typ.

mV

150

140

130

120

110

100

90

80

typ.

mW

240

280

330

400

480

500

600

typ.

A

2

s

1,6 · 10

–1

2,0 · 10

–1

4,0 · 10

–1

6 · 10

–1

8 · 10

–1

1,9

2,7

2,1

48

www.schurterinc.com
