RN4906(T5L,F,T) Overview

trans npn + pnp 50v 100ma us6

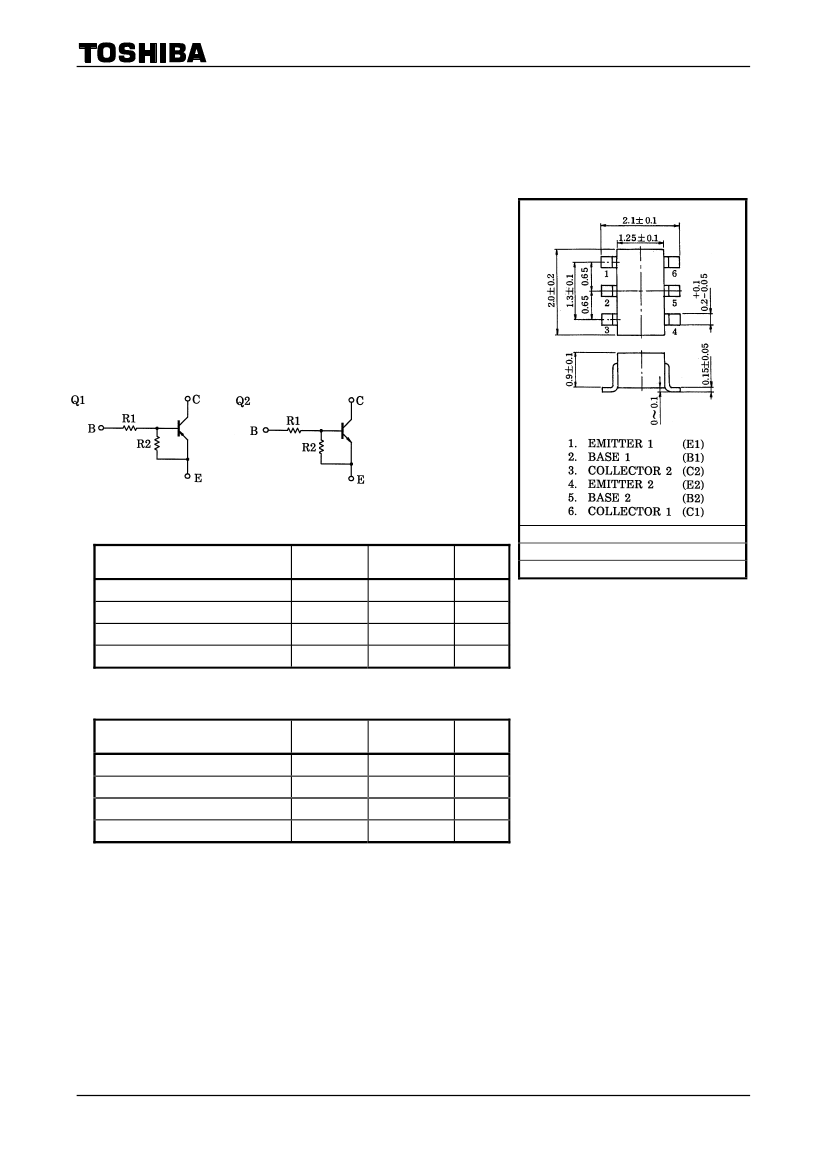

RN4906
TOSHIBA Transistor
Silicon PNP/NPN Epitaxial Type (PCT Process) (Transistor with Built-in Bias Resistor)
RN4906
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Including two devices in US6 (ultra super mini type with 6 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Unit: mm
Equivalent Circuit and Bias Resister Values
R1: 4.7kΩ
R2: 47kΩ
(Q1, Q2 Common)
Q1 Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Symbol
V
CBO
V
CEO
V
EBO
I
C
Rating
−50
−50
−5
−100
Unit
V
V
V
mA
JEDEC
JEITA
TOSHIBA
2-2J1A
Weight: 6.8mg (typ.)
Q2 Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Symbol
V
CBO
V
CEO
V
EBO
I
C
Rating
50
50
5
100
Unit
V
V
V
mA
Start of commercial production
1990-10
1
2014-03-01
