450MPK684KH7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 450MPK684KH7

450MPK684KH7: DescriptionFilm Capacitor, Polypropylene, 450V, 10% +Tol, 10% -Tol, 0.68uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size560KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

450MPK684KH7 Overview

Film Capacitor, Polypropylene, 450V, 10% +Tol, 10% -Tol, 0.68uF, Through Hole Mount, RADIAL LEADED

450MPK684KH7 Parametric

Parameter Name	Attribute value
Objectid	1235377378
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7
capacitance	0.68 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	450 V
surface mount	NO
Terminal shape	WIRE

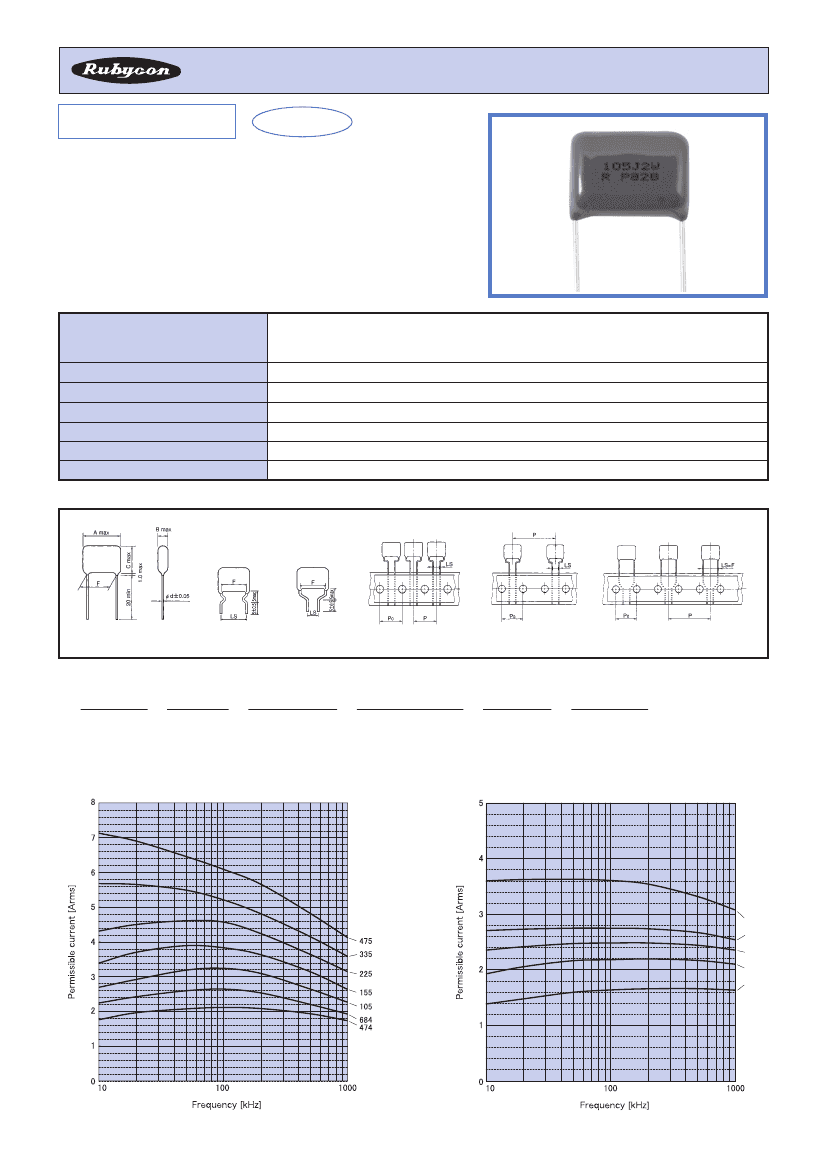

450MPK684KH7 Preview

金属熔射型聚丙烯塑胶薄膜电容器

METALLIZED POLYPROPYLENE FILM CAPACITORS

MPK

系列

SERIES

UPGRADE

◆特长／

FEATURES

•

超小型PFC用电容器。

•

控制了安装高度的薄型品。

•

减少了电容器产生的蜂鸣音。

•

关于对应IEC60384-1耐焰性目½B，请咨询我们。

•

Ultra small and light.For PFC use

•

Low height.

•

Low buzz.

•

Please inquire for flammability category B of IEC60384-1.

◆规格／

SPECIFICATIONS

－40℃½＋105℃

工½温度/

Category Temperature

额定电压/

Rated Voltage (U

)

静电容量允许差/

Capacitance Tolerance

损失角正切值/

tan

耐电压/

Voltage Proof

绝缘电阻/

Insulation Resistance

标准规格/

Reference Standard

(在超过85℃时，请进行½用注意事项所记½½的电压降½内容。)

(

Derate the voltage as shown CAUTION FOR PROPER USE OF FILM CAPACITORS when using the capacitor beyond 85℃)

450VDC、630VDC

±5%(J), ±10%(K)

0.001max at 1kHz

×150%

60s

7500ΩFmin

JIS C 5101-16, JIS C 5101-1

(mm)

◆½状图／

OUTLINE

Blank

H7,Y7,17

S7,W7

TX,TH

TL,TJ,TN

TS(F＝10)

◆产品型号½系／

PART NUMBER

□□□

额定电压

Rated Voltage

MPK

系列名称

Series

□□□

额定静电容量

Rated Capacitance

□

静电容量允许差

Capacitance Tolerance

□□□

副记号

Option

□□

引线加工记号

Lead Forming

◆相对于频率的允许电流／

PERMISSIBLE CURRENT FOR FREQUENCY

450MPK

630MPK

225

105

474

224

104

金属熔射型聚丙烯塑胶薄膜电容器

METALLIZED POLYPROPYLENE FILM CAPACITORS

MPK

** :

端子加工记号／

Suffix

◆标准品一览表/

STANDARD SIZE

额定电压

Rated

Voltage

额定静电

容量

Cap(µF)

尺

寸

Dimensions (mm)

F±1.0 LS±0.5

静电容量允许差记号／

Tolerance

标准包装数／

Typical Packaging Quantity (pcs)

长引线品

Long Lead type

Bag

Carton

编带

(层叠包装)

品-其他½状

Taping Ammo pack type - style

TX, TH TL, TJ

编

号

Part No.

450

VDC

630

VDC

0.47

0.56

0.68

0.82

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.2

1.5

1.8

2.2

18.0

13.0

18.0

25.0

25.5

6.5

7.0

8.0

8.5

9.5

10.0

11.0

12.5

13.0

14.5

16.0

17.0

19.0

8.0

8.5

9.0

9.5

10.5

7.5

8.0

8.5

9.5

10.5

9.0

10.0

10.5

11.0

12.0

13.0

11.0

11.5

12.5

13.0

14.0

15.0

16.0

17.0

19.0

21.0

22.5

23.5

25.5

13.0

13.5

14.5

15.0

15.5

13.0

13.5

14.5

15.5

17.0

18.5

16.5

17.0

19.0

20.0

21.0

23.0

15.0

10.0

15.0

22.5

7.5/10.0/15.0

5.0/7.5/10.0

7.5/10.0/15.0

22.5

0.6

0.8

1.0

0.6

0.8

100

200

100

200

100

2,000

1,000

800

500

2,000

1,000

800

500

－

500

400

－

400

300

400

300

400

300

－

400

300

－

400

300

450MPK474□**

450MPK564□**

450MPK684□**

450MPK824□**

450MPK105□**

450MPK125□**

450MPK155□**

450MPK185□**

450MPK225□**

450MPK275□**

450MPK335□**

450MPK395□**

450MPK475□**

630MPK104□**

630MPK124□**

630MPK154□**

630MPK184□**

630MPK224□**

630MPK274□**

630MPK334□**

630MPK394□**

630MPK474□**

630MPK564□**

630MPK684□**

630MPK824□**

630MPK105□**

630MPK125□**

630MPK155□**

630MPK185□**

630MPK225□**

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
