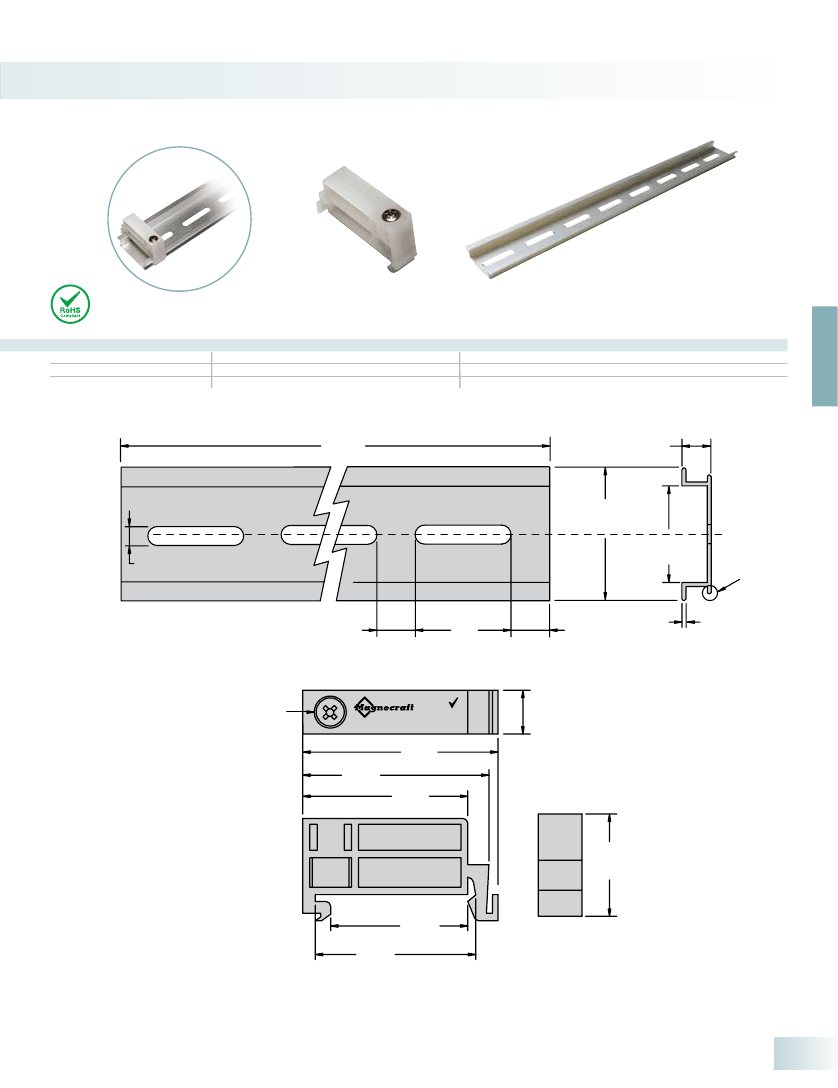

DIN Rail and Locking End Clip

www.magnecraft.com

847-441-2540

Characteristics

Description

Function

Weight

Plastic End Clip with Locking Screw

Holds Sockets Firmly in Place on DIN Rail

4.5 grams

16-DCLIP-1

Extruded Aluminum DIN Rail, 39.37” (1000mm)

Provides for Quick Installation and Removal of Sockets

125 grams

16-700DIN

39.3

(1000)

0.3

(7.5 +0.0/-0.4)

1.377 +0.011/-0.007

(35 ± 0.3)

0.19

(5)

1.0

(25.5)

SEE

NOTE 1

0.39

(10)

0.99

(25)

0.39

(10)

0.039

(1 ± 0.04)

NOTES:

1. THE LIPS AT BASE OF DIN RAIL MAY

OR MAY NOT BE PRESENT ON DIN

RAIL EXTRUSIONS.

SCREW/CLEAR

ZINC CHROMATE

16-DCLIP-1

1.65

(42.0)

1.39

(35.5)

RoHS

0.37

(9.4)

1.55

(39.5)

0.86

(22.0)

1.37

(34.7)

1.17

(29.7)

* The 16-700DIN is produced from high strength extruded aluminum and is

designed to be a direct replacement for standard 35mm wide DIN rails.

Mag necraf t S ol u t io n Gu ide 1 0 5 A

3/19
