161-4035: DescriptionTelephone connector 3.5 mono W/switch; CategoryThe connector; File Size82KB，1 Pages; ManufacturerKobiconn

Download Datasheet Compare View All

161-4035 Overview

Telephone connector 3.5 mono W/switch

Preview

Download Datasheet

View All

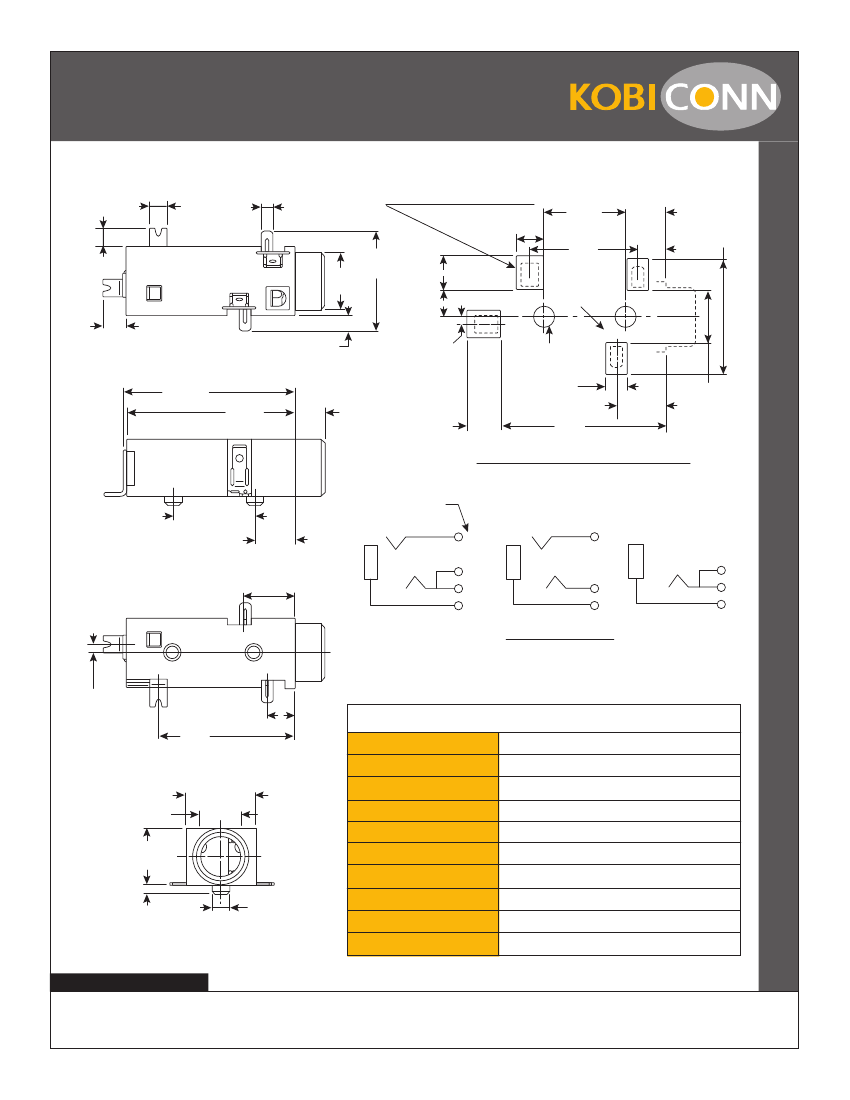

3.5mm Phone Jacks

161-4033, 161-4034, 161-4035

3.5 Phone Jacks

1.6 ± 0.2

(.063 ± .008)

2 - 1.5

(2 -.059)

2-1

(2 - .039)

SOLDER MOUNT LOCATION

2 - 2.3

(2 - .091)

8.7

(.343)

ø5

(ø.197)

2.9

(.114)

2.3

(.091)

0.65

(.026)

(.276)

9.3

(.366)

3.5

(.138)

2.4

(.094)

(.394)

2 TERMINAL NO. 1

2 ± 0.3

(.079 ± .012)

15 MAX.

(.591)

2 - 1.35

(2 - .053)

2 - ø1.8+0.1

(2 - ø.071 + .004)

2 - 1.8

(2 - .071)

4.3

(.169)

4.5

(.177)

14.5

(.571)

2.5

(.098)

2.9

(.114)

14.2

(.559)

PCB HOLE & SURFACE MOUNT LAYOUT

7 ± 0.15

(.276 ± .006)

TERMINAL NO.

3.5

(.138)

161-4034

CIRCUIT DIAGRAMS

161-4033

161-4035

4.3 ± 0.2

(.169 ± .008)

0.65 ± 0.15

(.026 ± .006)

2.4 ± 0.2

(.094 ± .008)

11.7

(.461)

6 ± 0.1

(.236 ± .004)

Dimensions: mm (In.)

161-4033, 161-4034, 161-4035

SPECIFICATIONS

Rating:

Insulation resistance:

Contact resistance:

Withstand voltage:

Temperature range:

12VDC 1A

not less than 100mΩ

not more than 30mΩ

500VAC (50~60Hz) for one min

70°C ~ -20°C

3,000 times min.

0.4 ~ 3.0 kg

PA66/13% GF/black

350°C ± 10°C @ 3 sec. ± 1 sec.

ø3.6 ± 0.04

(.142 ± .002)

(.197)

0.8

(.031)

Life test:

Insertion force:

2 -ø1.5

(2 - ø.059)

Extraction force:

Case:

Resolderiing parameters:

Date Last Revised: 4-15-05

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-

300512

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

161-4035 Related Products

	161-4035	161-4033	161-4034
Description	Telephone connector 3.5 mono W/switch	phone connector 3.5 stereo open ckt	Telephone connector 3.5 stereo single SW
Maker	-	Kobiconn	Kobiconn
RoHS	-	no	no
standard	-	1/8 i	1/8 i
Type	-	Female	Female
Number of locations/contacts	-	3 (TRS, Stereo)	3 (TRS, Stereo)
Termination type	-	Solde	Solde
direction	-	Horizontal	Horizontal
color	-	Black	Black
Voltage rating	-	12 Volts	12 Volts
Contact rating	-	1 Am	1 Am
Installation style	-	PCB	PCB
