BAV70W
DUAL SURFACE MOUNT SWITCHING DIODE
Features
·
·
·
·
Fast Switching Speed
Ultra-Small Surface Mount Package
For General Purpose Switching Applications
High Conductance
SOT-323
A
NEW PRODUCT
Dim
A
B
B
C
Min
0.30
1.15
2.00
0.30
1.20
1.80
0.0
0.90
0.25
0.10
Max
0.40
1.35
2.20
0.40
1.40
2.20
0.10
1.00
0.40
0.25
C
D
E
G
H
J
K
L
Mechanical Data
·
·
·
·
·
·
Case: SOT-323, Molded Plastic
Case Material - UL Flammability Rating
Classification 94V-0
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: See Diagram
Marking: KJA
Weight: 0.006 grams (approx.)
E
D
G
H
K
J
M
0.65 Nominal
L
M
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current @ t = 1.0ms
@ t = 1.0s
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Range
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
P
d
R
qJA
T
j
, T
STG
BAV70W
100
75
53
300
150
2.0
1.0
200
625
-65 to +150
Unit
V
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 1)
@ T
A
= 25°C unless otherwise specified
Symbol
V
BR(R)
V
FM
Min
75
¾
Max
¾
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
Test Condition
I
R
= 100mA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= 150°C
V
R
= 25V, T
j
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Forward Voltage (Note 1)
V
mA
mA
mA
nA
pF
ns
Peak Reverse Current (Note 1)
Junction Capacitance
Reverse Recovery Time
Note:
I
RM
C
j
t
rr
¾
¾
¾
1. Short duration test pulse used to minimize self-heating effect.
DS30063 Rev. 2 - 1
1 of 3
BAV70W
NEW PRODUCT
Ordering Information
Device
BAV70W-7
Notes:
(Note 2)
Packaging
SOT-323
Shipping
3000/Tape & Reel
2. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KJA
KJA = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
1998
J
Jan
1
Feb
2
1999
K
March
3
2000
L
Apr
4
May
5
2001
M
Jun
6
Jul
7
2002
N
Aug
8
Sep
9
2003
O
Oct
O
Nov
N
2004
P
Dec
D
YM
10.0
100
I
F
, FORWARD CURRENT (mA)
I
R
, REVERSE CURRENT (
µ
A)
10
Ta = 25
°
C
1.0
Ta = 100
°
C
Ta = 75
°
C
Ta = 50
°
C
0.10
Ta = 50
°
C
Ta = 25
°
C
Ta = 0
°
C
Ta = -30
°
C
Ta = 85
°
C
1
Ta = 0
°
C
Ta = -30
°
C
0.01
0.1
0
200
400
600
800
1000
0.001
0
20
40
60
80
V
F
, FORWARD VOLTAGE (mV)

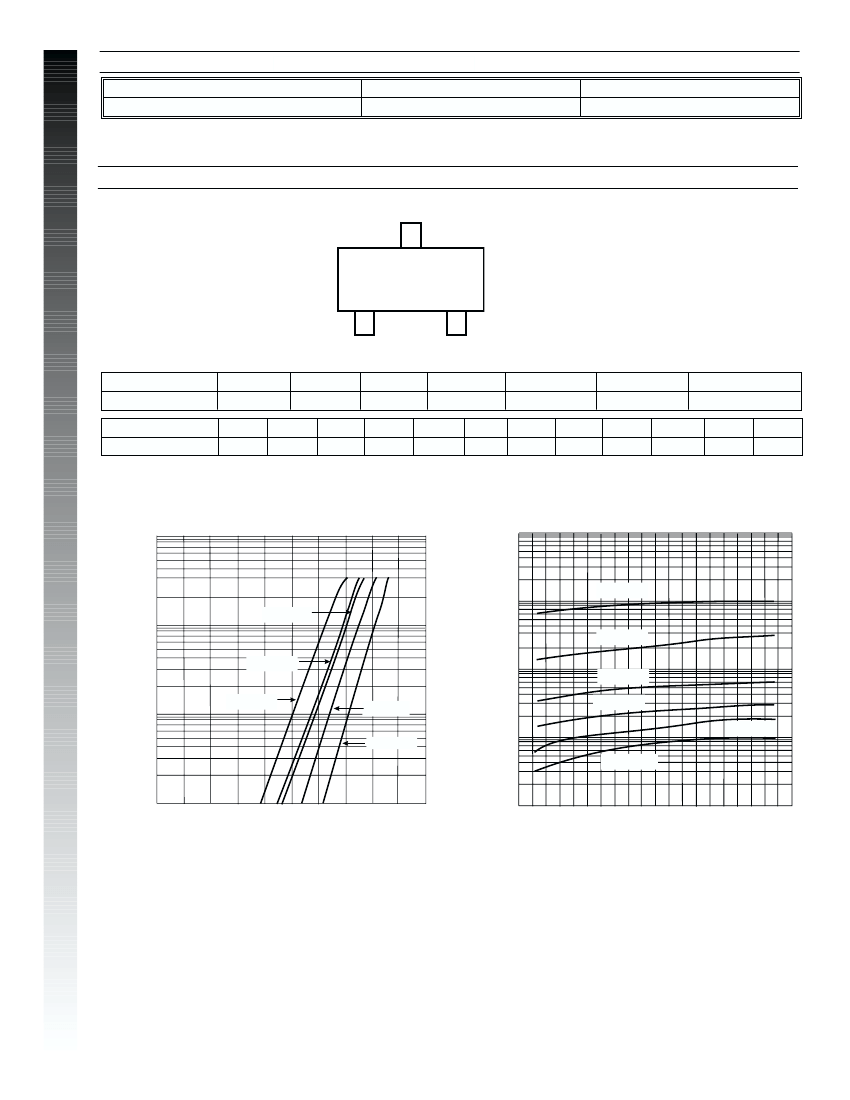

Fig. 1 Forward Current vs. Forward Voltage
V
R
, REVERSE VOLTAGE (V)
Fig. 2 Reverse Current vs Reverse Voltage
DS30063 Rev. 2 - 1
2 of 3
BAV70W
2.5
4
NEW PRODUCT
T
rr
, REVERSE RECOVERY TIME (nS)
2.0
C
J
, JUNCTION CAPACITANCE (pF)
3
1.5
2
1.0
0.5
1
0
0
2
4
6
8
10
I
F
, FORWARD CURRENT (mA)
Fig. 3. Reverse Recovery Time vs.
Forward Current
0
0
1
2
3
4
5
6
V
R
, REVERSE VOLTAGE (V)
Fig. 4. Typical Junction Capacitance vs.
Reverse Voltage
DS30063 Rev. 2 - 1
3 of 3
BAV70W
