450MPW684K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 450MPW684K

450MPW684K: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 450V, 0.68uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size25KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

450MPW684K Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 450V, 0.68uF, THROUGH HOLE MOUNT, RADIAL LEADED

450MPW684K Parametric

Parameter Name	Attribute value
Objectid	1967415697
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
capacitance	0.68 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Manufacturer's serial number	MPW-HP
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	450 V
surface mount	NO
Terminal shape	WIRE

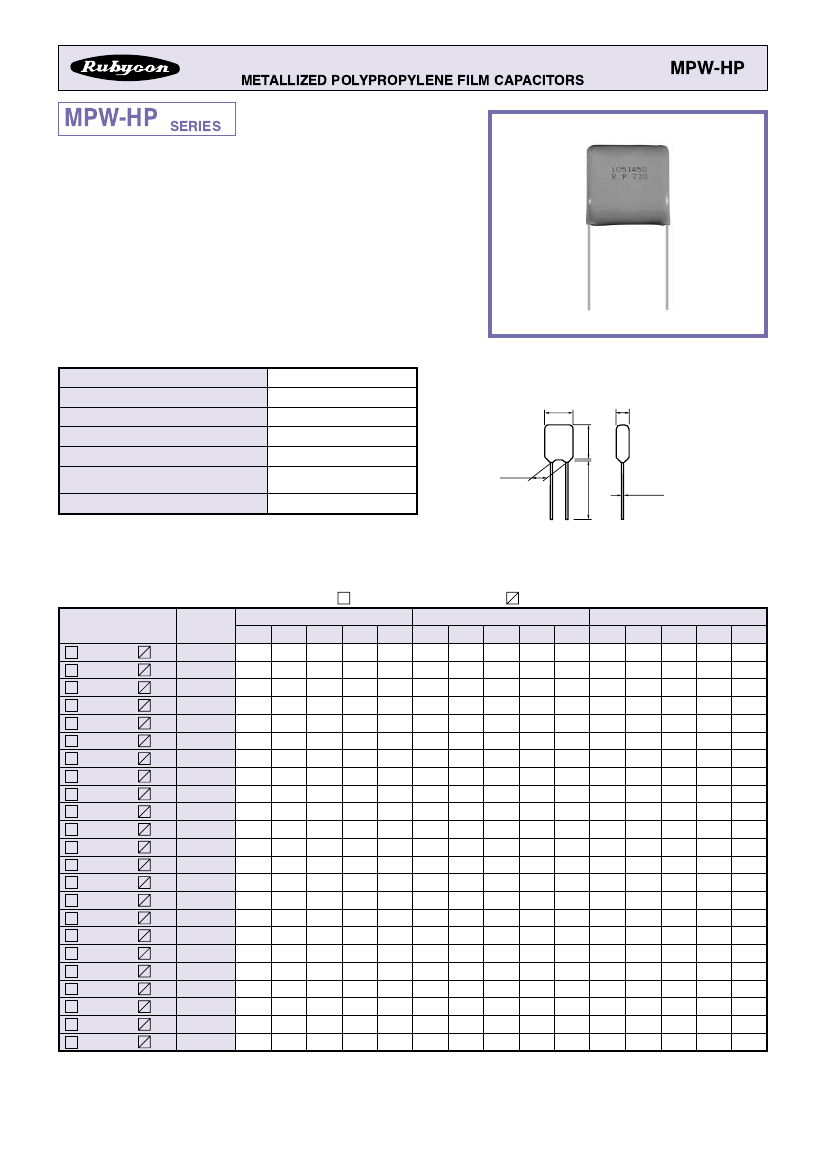

450MPW684K Preview

メタライズドポリプロピレンフィルムコンデンサ

METALLIZED POLYPROPYLENE FILM CAPACITORS

MPW-HP

シリーズ

SERIES

◆特長／FEATURES

•

ＭＰＷシリーズの電流値アップ品です。

•

テレビＳ字補正回路、インバータなどの高周波・大電流

回路に最適です。

•

High current application.

•

For applications where high frequency, high current are required.

◆規格／SPECIFICATIONS

カテゴリ温度/

Category temperture

定格電圧/

Rated voltage (U

)

静電容量許容差/

Capacitance tolerance

誘電正接/

tanδ

耐電圧/

Voltage proof

絶縁抵抗/

Insulation resistance

準拠規格/

Reference standard

※−40℃∼＋105℃

DC250V, 450V, 630V

±5%(J), ±10%(K)

0.001 max at 1kHz

×150% 60s

0.33μF = :9000MΩmin

0.33μF < :3000ΩFmin

JIS C 5101-16 JIS C 5101-1

◆寸法図／DIMENSIONS (mm)

B max

A max

C max

F±1.5

20 min

1.0 max

φd±0.05

※定格温度（＋85℃）を超えて½用の場合P182、図-3に示す電圧½減を

行って下さい。

Derate the voltage as shown in the figure 3(182page) when using the

capacitor beyond 85℃.

◆標準品／STANDARD PRODUCTS

品番

Part No.

MPW 683

MPW 823

MPW 104

MPW 124

MPW 154

MPW 184

MPW 224

MPW 274

MPW 334

MPW 394

MPW 474

MPW 564

MPW 684

MPW 824

MPW 105

MPW 125

MPW 155

MPW 185

MPW 225

MPW 275

MPW 335

MPW 395

MPW 475

静電容量

cap(μF)

0.068

0.082

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

13.5

19.0

26.5

: 定格電圧/Rated voltage

: 静電容量許容差/Capacitance tolerance

DC630V

DC450V

DC250V

5.5 12.0 10.0 0.8 14.0 8.5 18.5 10.0 0.8 14.0 12.5 23.0 10.0 0.8

6.0 12.0 10.0 0.8 14.0 9.5 19.0 10.0 0.8 14.0 13.5 24.0 10.0 0.8

6.0 14.0 10.0 0.8 14.0 8.5 18.5 10.0 0.8 14.0 12.5 23.0 10.0 0.8

6.5 14.5 10.0 0.8 14.0 9.5 19.0 10.0 0.8 14.0 13.5 24.0 10.0 0.8

7.0 16.5 10.0 0.8 14.0 10.5 21.0 10.0 0.8 14.0 15.5 25.5 10.0 0.8

6.0 16.0 10.0 0.8 14.0 11.5 22.0 10.0 0.8 14.0 17.0 26.5 10.0 0.8

7.0 16.5 10.0 0.8 14.0 13.0 23.0 10.0 0.8 19.0 13.5 24.0 15.0 1.0

7.5 17.5 10.0 0.8 14.0 14.0 24.5 10.0 0.8 19.0 15.0 25.5 15.0 1.0

8.0 19.5 10.0 0.8 19.0 12.0 22.0 15.0 1.0 19.0 16.5 27.0 15.0 1.0

9.0 20.0 10.0 0.8 19.0 13.0 23.0 15.0 1.0 19.0 18.0 28.5 15.0 1.0

10.0 21.0 10.0 0.8 19.0 14.0 24.5 15.0 1.0 19.0 20.0 30.5 15.0 1.0

8.0 19.5 15.0 1.0 19.0 15.5 25.5 15.0 1.0 26.5 16.5 27.0 22.5 1.0

9.0 20.0 15.0 1.0 19.0 17.0 27.5 15.0 1.0 26.5 19.0 28.5 22.5 1.0

10.0 21.0 15.0 1.0 19.0 18.5 29.0 15.0 1.0 26.5 21.5 30.5 22.5 1.0

11.0 22.5 15.0 1.0 26.5 16.5 26.0 22.5 1.0 26.5 24.0 33.0 22.5 1.0

12.0 23.5 15.0 1.0 26.5 17.5 27.5 22.5 1.0

14.0 25.0 15.0 1.0 26.5 20.0 30.5 22.5 1.0

12.0 23.0 22.5 1.0 26.5 23.0 32.5 22.5 1.0

13.0 24.5 22.5 1.0 26.5 26.0 35.0 22.5 1.0

15.0 26.0 22.5 1.0

17.0 27.5 22.5 1.0

18.5 29.5 22.5 1.0

20.5 31.5 22.5 1.0

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
