3x2.4mm SMD CHIP LED LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: AP23QBC/D/F-F01
Blue
Features
3mmx2.4mm SMT LED, 1.05mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.

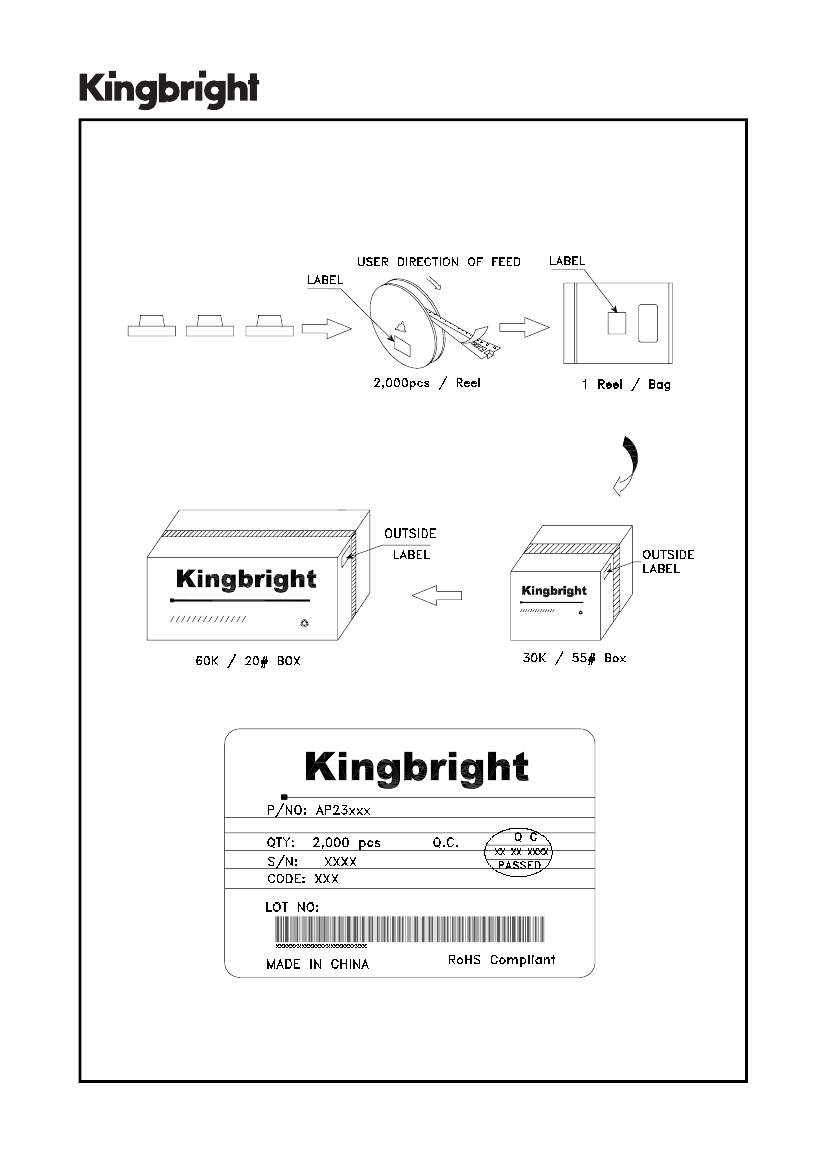

PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Description
The Blue source color devices are made with AlInGaN on
Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

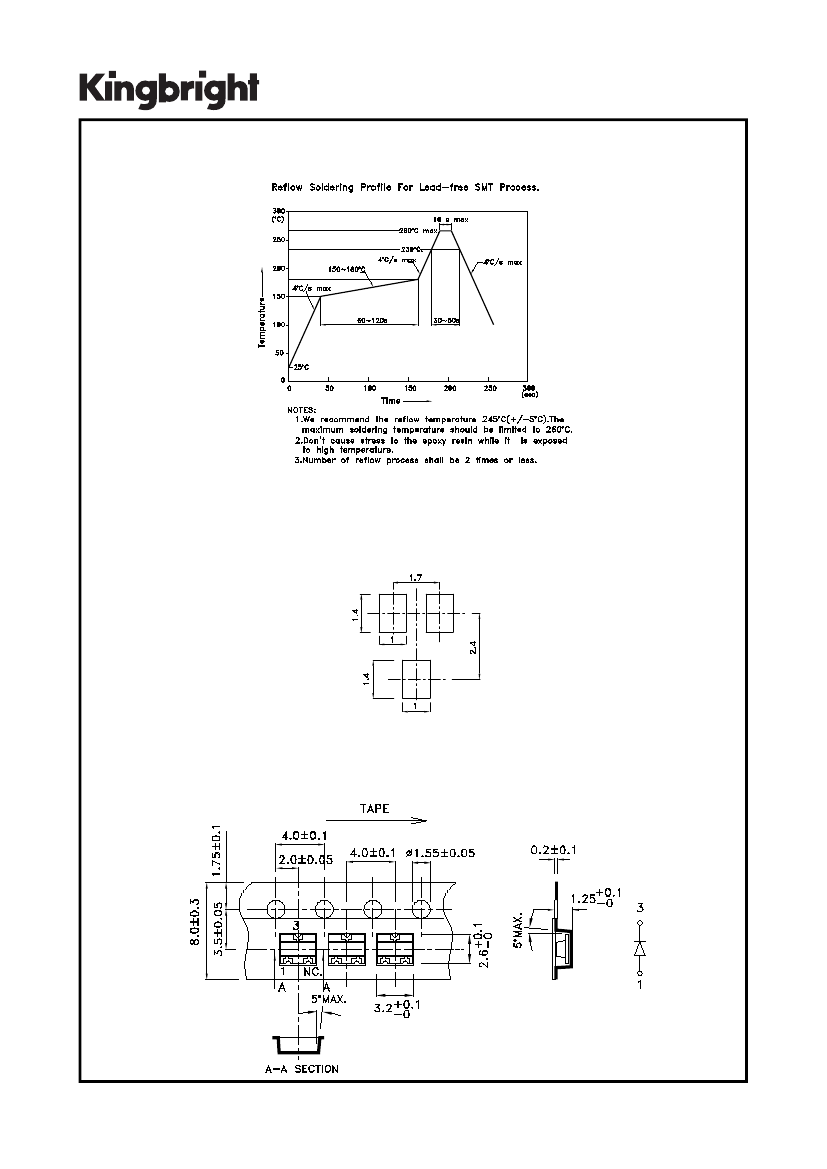

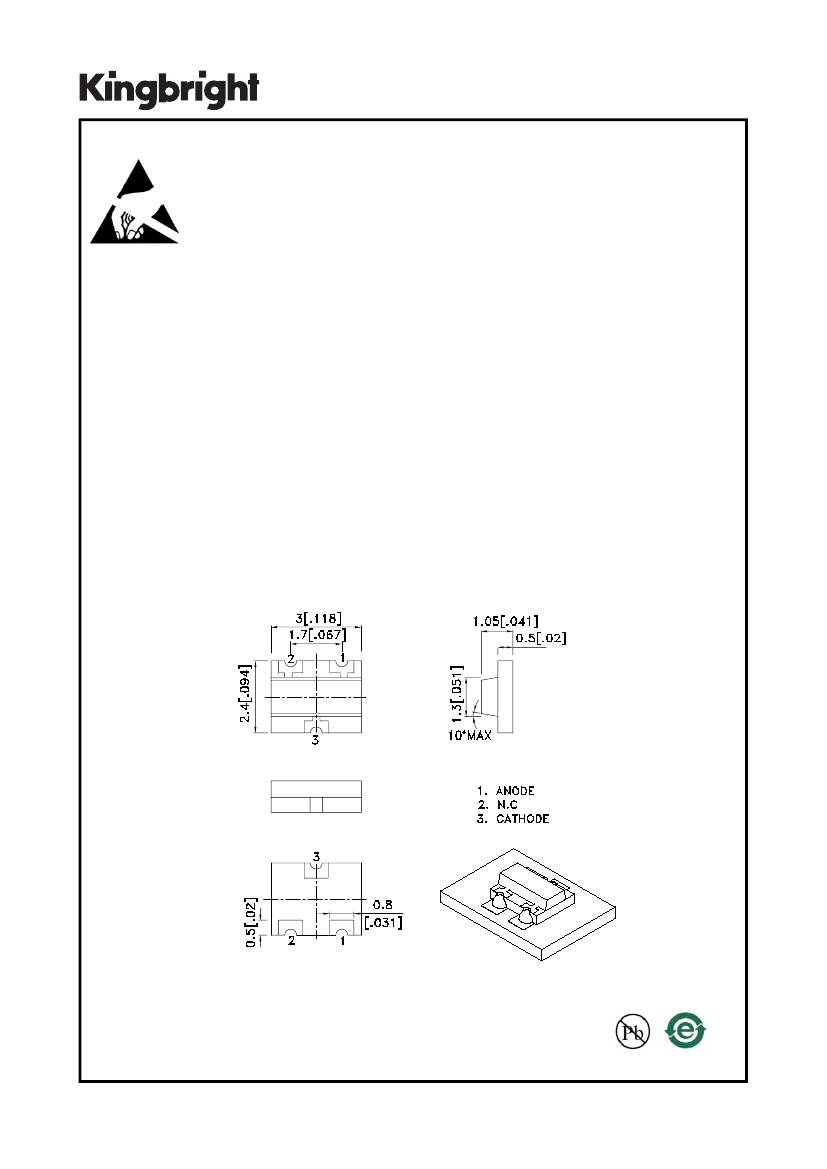

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. Specifications are subject to change without notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAH3723
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/26/2007
DRAWN: Y.L.LI
PAGE: 1 OF 5
ERP: 1203000232
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
AP23QBC/D/F-F01
Blue (AlInGaN)
WATER CLEAR
50
Typ.
100
Viewing
Angle [1]
2θ1/2
120
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.

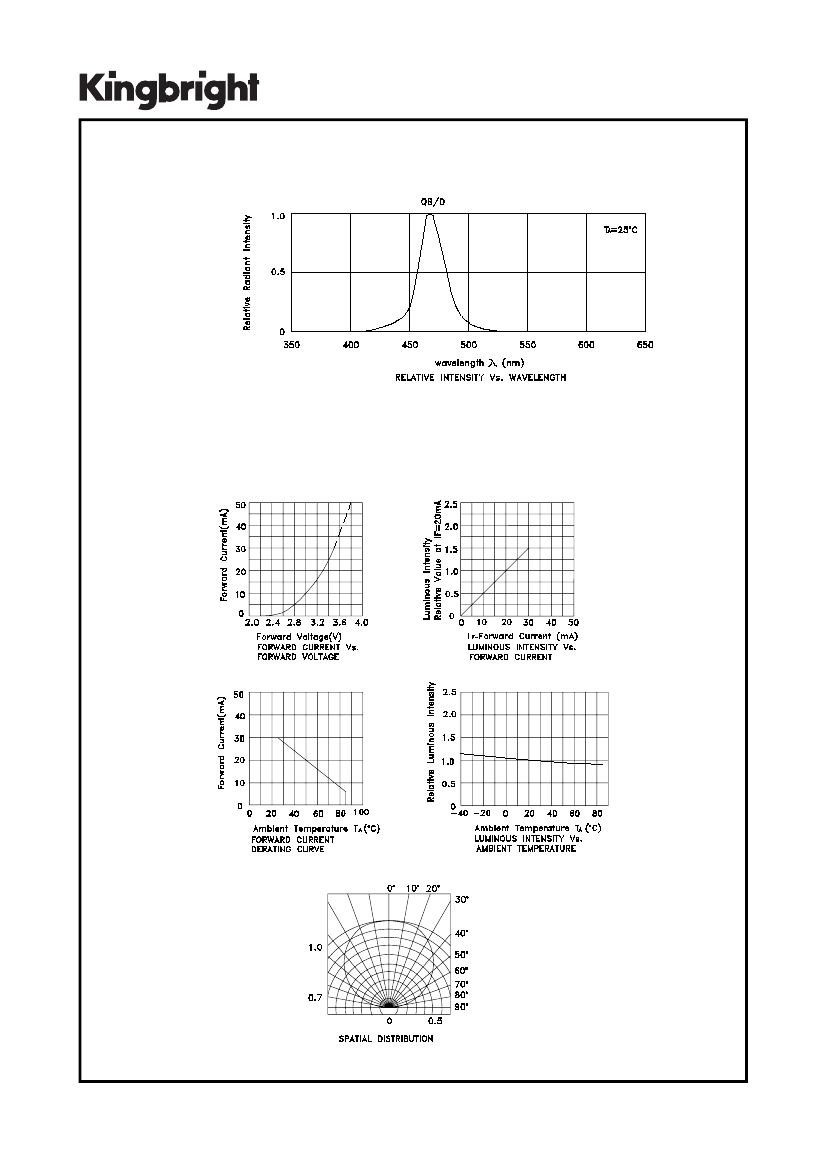

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Blue
Blue
Blue
Blue
Blue
Blue
Typ.
468
470
25
100
3.3
4
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
120
30
150
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAH3723
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/26/2007
DRAWN: Y.L.LI
PAGE: 2 OF 5
ERP: 1203000232
