3403.0275.23 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3403.0275.23

3403.0275.23: Descriptionsurface mount fuses umt-H fuse 1.25a T; CategoryCircuit protection Circuit protection; File Size359KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3403.0275.23 Overview

surface mount fuses umt-H fuse 1.25a T

3403.0275.23 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 3 days
Fusing characteristics	TIME LAG
body width	5.35 mm
body height	5.35 mm
Body length or diameter	15.4 mm
Circuit protection type	ELECTRIC FUSE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	15.4mm x 5.35mm x 5.35mm
Rated breaking capacity	1500 A
Rated current	1.25 A
Rated voltage	277 V
Guideline	UL; VDE
Base Number Matches	1

Preview

Download Datasheet

View All

Non resettable fuses

www.schurter.com/PG01_2

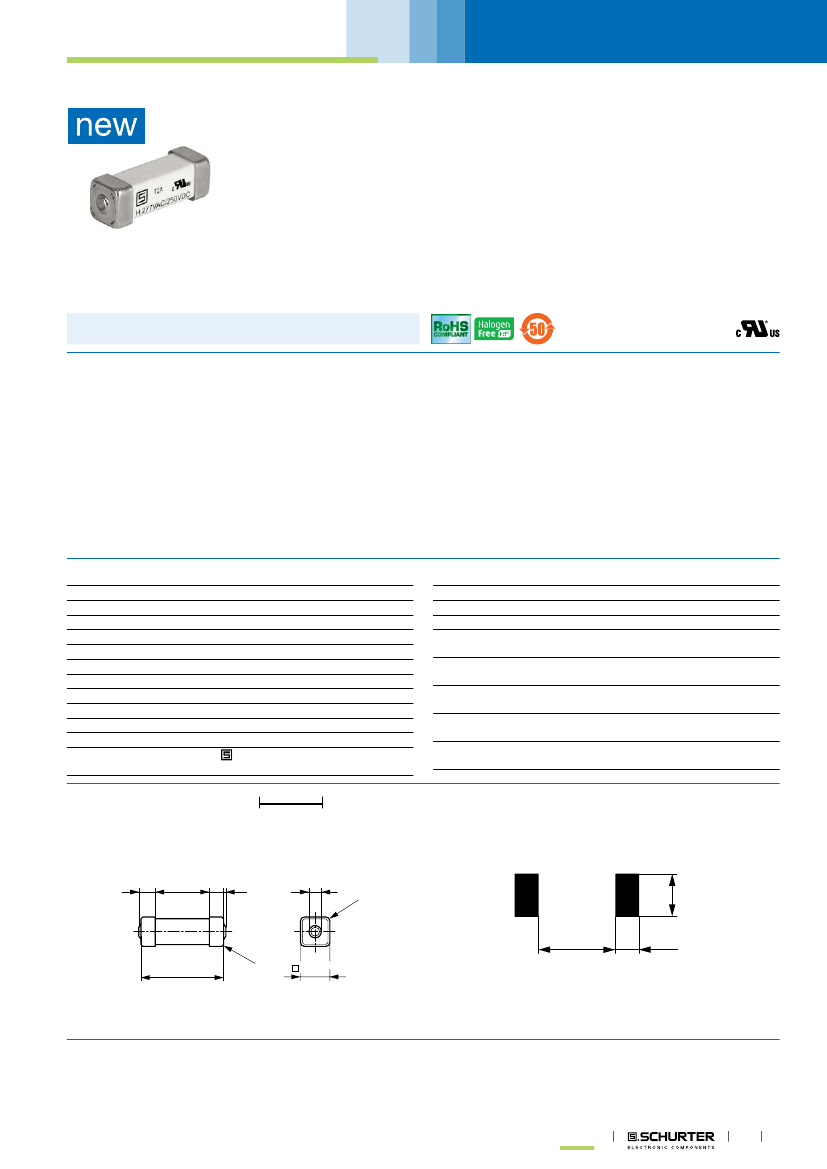

Surface Mount Fuse, 5.3 x 16 mm, Time-Lag T, 277 VAC / 250 VDC, Breaking Capacity 1500 A

UMT-H

UL 248-14 · 277 VAC · 250 VDC · Time-Lag T

Description

- High breaking capacity of 1500 A

- UL approval up to 277 VAC and 250 VDC

- Compact design

Applications

Standards

- IEC 60127-4/2

- UL 248-14

- CSA C22.2 no. 248.14

Primary protection on SMD PCBs

Industrial electronic

Sensors

Power supplies

Explosion protection

Lighting

References

Weblinks

Approvals

Packaging Details

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,

SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for

product

- VDE Certificate Number: approval pending

- UL File Number: E41599

Technical Data

Rated Voltage

Rated current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

250 - 277 VAC, 125 - 250 VDC

0.16 - 10 A

1500 A

Time-Lag T

PCB,SMT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Ceramic

Ni/Sn-Plated Copper Alloy

1.42 g

0 °C to 40 °C, max. 70% r.h.

, Current, Voltage, Characteristic,

Breaking Capacity, Approvals

16 mm

Soldering Methods

Solderability

Resistance to Soldering Heat

Life Test

Moisture Resistance Test

Terminal Strength

Mechanical Shock

Resistance to Solvents

Reflow

245 °C / 3 sec acc. to IEC 60068-2-58

260 °C / 10 sec acc. to IEC 60068-2-58

1000h @ 0.60 x In @ 70°C

(acc. to EIA/IS-722, Test 4.4.1)

MIL-STD-202, Method 106E

(acc. to EIA/IS-722, Test 4.4.3)

(Deflection of board 1 mm for 1 minute)

(acc. to EIA/IS-722, Test 4.5.5)

MIL-STD-202, Method 213B

(Shock 50g, half sine wave, 11 ms)

MIL-STD-202, Method 215A

(EIA-722, 4.11)

Dimension

.35

5.35

±0.05

3.75

15.4

±0.20

Soldering pads

Fuses

5.6

3.2

2.8

0.4

2.25

3403.0275.23 Related Products

	3403.0275.23	3403.0270.23
Description	surface mount fuses umt-H fuse 1.25a T	surface mount fuses umt-H fuse 400ma T
Is it Rohs certified?	conform to	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	20 weeks 3 days	20 weeks 3 days
Fusing characteristics	TIME LAG	TIME LAG
body width	5.35 mm	5.35 mm
body height	5.35 mm	5.35 mm
Body length or diameter	15.4 mm	15.4 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
method of packing	TAPE AND REEL	TAPE AND REEL
physical size	15.4mm x 5.35mm x 5.35mm	15.4mm x 5.35mm x 5.35mm
Rated breaking capacity	1500 A	1500 A
Rated current	1.25 A	0.4 A
Rated voltage	277 V	277 V
Guideline	UL; VDE	UL; VDE
Base Number Matches	1	1
