timing, oscillator circuits, power factor correction and
coupling capacitor in sMPs applications.
PRoDUCT CoDe:
A70
D max
5
>5 ≤ 7
Ød ±0.05
0.5
0.6
All dimensions are in mm.
>7<16
0.8
≥16
1
PRODUCT CODe SySTeM
geneRAl TeCHnICAl DATA
Dielectric:
polypropylene film.
The part number, comprising 14 digits, is formed as follows:
Plates:
aluminium layer deposited by evaporation under
1 2 3
4
5
6 7 8 9 10 11 12 13 14
vacuum.
Winding:
non-inductive type.
-
A 7 0
leads:
tinned wire.
Protection:
polyester tape wrapping and thermosetting resin
Digit 1 to 3
series code.
end fill.
Digit 4
d.c. rated voltage:
Marking:
Manufacturer’s logo, series (1.70), dielectric
G =160V
I = 250V M = 400V P = 630V
code (MKP), capacitance, tolerance, D.C. rated
Digit 5
Length (mm):
voltage.
F=11; H=14; K=20.5; Q=28; T=33
Climatic category:
55/105/56 IeC 60068-1
Digit 6 to 9
Digits 7 - 8 - 9 indicate the first three digits of
Operating temperature range:
-55 to +105°C
Capacitance value and the 6th digit indicates
Related documents:
IeC 60384-16
the number of zeros that must be added to
obtain the Rated Capacitance in pF.
Digit 10 to 11 Mechanical version and/or packaging (table1)
Digit 12
Identifies the dimensions and electrical
characteristics.
Winding scheme
Internal use
Digit 13
Digit 14
Capacitance tolerance:
J=5%; K=10%; M=20%.
single sided metallized
polypropylene film
Table 1 (for more detailed information, please refer to page 14).
Standard
packaging style
Reel Ø 355 mm
Loose
Ordering code
(Digit 10 to 11)
26
AA
09/2008
64
MeTAllIZeD POlyPROPylene CAPACITOR
MUlTIPURPOSe APPlICATIOnS
PRoDUCT CoDe:
A70
MKP series
A70
Rated
Cap.
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
µF
µF
µF
µF
µF
µF
µF
µF
µF
µF
µF
160Vdc/90Vac
D max
5.0
5.0
5.0
5.5
5.5
6.5
7.5
7.0
8.0
8.0
9.5
11.0
12.0
14.5
17.0
L max
11.0
11.0
11.0
14.0
14.0
14.0
14.0
20.5
20.5
28.0
28.0
28.0
33.0
33.0
33.0
Max
dv/dt
(V/µs)
5
5
5
5
5
5
5
3
3
2
2
2
1
1
1
Max
dv/dt
(V/µs)
11.0
11.0
10.0
10.0
10.0
10.0
10.0
7.0
7.0
4.0
4.0
4.0
2.5
2.5
2.5
2.5
Max K
0
(V
2
/µs)
1.60 e3
1.60 e3
1.60 e3
1.60 e3
1.60 e3
1.60 e3
1.60 e3
0.96 e3
0.96 e3
0.64 e3
0.64 e3
0.64 e3
0.32 e3
0.32 e3
0.32 e3
Max K
0
(V
2
/µs)
5.5 e3
5.5 e3
5.0 e3
5.0 e3
5.0 e3
5.0 e3
5.0 e3
3.5 e3
3.5 e3
2.0 e3
2.0 e3
2.0 e3
1.3 e3
1.3 e3
1.3 e3
1.3 e3
Part number
Rated
Cap.
6800 pF
0.010
µF
0.015
µF
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
µF
µF
µF
µF
µF
µF
µF
µF
400Vdc/220Vac*
D max
L max
11.0
14.0
14.0
14.0
14.0
14.0
20.5
20.5
28.0
28.0
28.0
28.0
33.0
33.0
33.0
Max
dv/dt
(V/µs)
25.0
13.5
13.5
13.5
13.5
13.5
10.0
10.0
6.5
6.5
6.5
6.5
4.0
4.0
4.0
Max
dv/dt
(V/µs)
30
30
30
30
30
20
20
20
20
15
15
10
10
10
6
6
6
6
Max K
0
(V
2
/µs)
20.0 e3
11.0 e3
11.0 e3
11.0 e3
11.0 e3
11.0 e3
8.0 e3
8.0 e3
5.2 e3
5.2 e3
5.2 e3
5.2 e3
3.2 e3
3.2 e3
3.2 e3
Max K
0
(V
2
/µs)
38.0 e3
38.0 e3
38.0 e3
38.0 e3
38.0 e3
25.0 e3
25.0 e3
25.0 e3
25.0 e3
19.0 e3
19.0 e3
13.0 e3
13.0 e3
13.0 e3
7.6 e3
7.6 e3
7.6 e3
7.6 e3
Part number
A70GF 2220
--
0
--
A70GF 2330
--
0
--
A70GF 2470
--
0
--
A70GH 2680
--
0
--
A70GH 3100
--
0
--
A70GH 3150
--
0
--
A70GH 3220
--
0
--
A70GK 3330
--
0
--
A70GK 3470
--
0
--
A70GQ3680
--
0
--
A70GQ4100
--
0
--
A70GQ4150
--
0
--
A70GT 4220
--
0
--
A70GT 4330
--
0
--
A70GT 4470
--
0
--
Part number
5.0
5.5
6.0
6.0
6.5
8.0
7.0
8.0
8.0
9.5
11.0
13.0
13.5
16.5
20.0
A70ΜF 1680
--
0
--
A70MH2100
--
0
--
A70MH2150
--
0
--
A70MH2220
--
0
--
A70MH2330
--
0
--
A70MH2470
--
0
--
A70MK 2680
--
0
--
A70MQ3150
--
0
--
A70MQ3220
--
0
--
A70MQ3330
--
0
--
A70MQ3470
--
0
--
A70MT 3680
--
0
--
A70MT 4100
--
0
--
A70MT 4150
--
0
--
Part number
A70MK 3100
--
0
--
Rated
Cap.
0.010
µF
0.015
µF
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
µF
µF
µF
µF
µF
µF
µF
µF
µF
µF
250Vdc/200Vac
D max
5.0
5.0
5.5
5.5
6.0
7.0
8.5
7.5
9.0
8.5
10.0
11.5
12.5
15.0
18.0
21.5
L max
11.0
11.0
14.0
14.0
14.0
14.0
14.0
20.5
20.5
28.0
28.0
28.0
33.0
33.0
33.0
33.0
Rated
Cap.
1000 pF
1500 pF
2200 pF
3300 pF
4700 pF
6800 pF
0.010
µF
0.015
µF
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
0.15
0.22
0.33
0.47
0.68
µF
µF
µF
µF
µF
µF
630Vdc/250Vac*
D max
L max
11.0
11.0
11.0
11.0
11.0
14.0
14.0
14.0
14.0
20.5
20.5
28.0
28.0
28.0
33.0
33.0
33.0
33.0
A70IF 2100
--
0
--
A70IH 2220
--
0
--
A70IH 2330
--
0
--
A70IH 2470
--
0
--
A70IH 2680
--
0
--
A70IH 3100
--
0
--
A70IK 3150
--
0
--
A70IK 3220
--
0
--
A70IQ 3330
--
0
--
A70IQ 3470
--
0
--
A70IQ 3680
--
0
--
A70IT 4100
--
0
--
A70IT 4150
--
0
--
A70IT 4220
--
0
--
A70IT 4330
--
0
--
A70IF 2150
--
0
--
5.0
5.0
5.0
5.0
5.0
5.5
6.0
7.0
8.5
7.5
8.5
8.5
10.0
11.5
12.5
15.0
17.5
21.0
A70PF 1100
--
0
--
A70PF 1150
--
0
--
A70PF 1220
--
0
--
A70PF 1330
--
0
--
A70PF 1470
--
0
--
A70PH 1680
--
0
--
A70PH 2100
--
0
--
A70PH 2150
--
0
--
A70PH 2220
--
0
--
A70PK 2330
--
0
--
A70PK 2470
--
0
--
A70PQ 2680
--
0
--
A70PQ 3100
--
0
--
A70PQ 3150
--
0
--
A70PT 3220
--
0
--
A70PT 3330
--
0
--
A70PT 3470
--
0
--
A70PT 3680
--
0
--
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
All dimensions are in mm.
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
Note 1: If the working voltage (V) is lower than the rated voltage (V
R
), the capacitor may work at higher dv/dt. In this case
the maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio V
R
/V. The pulse
characteristic K
0
depends on the voltage wave-form and in any case it cannot overcome the value given in the above
table. The dv/dt test is carried out at 2 times the above values.
Note 2: special version for line applications (rated voltage 250 Vac) available upon request.
* Not suitable for across-the-line applications. Please refer to Interference suppression Capacitors (page 145).
65
09/2008
MeTAllIZeD POlyPROPylene CAPACITOR
MUlTIPURPOSe APPlICATIOnS
PRoDUCT CoDe:
A70
MKP series
A70
eleCTRICAl CHARACTeRISTICS
TeST MeTHOD AnD PeRFORMAnCe
Damp heat, steady state:
160 Vdc - 250Vdc
Rated voltage (V
R
):
400 Vdc - 630 Vdc
Test conditions
Rated temperature (T
R
):
+85°C
Temperature:
Temperature derated voltage:
Relative humidity (RH):
for temperatures between +85°C and +105°C a decreasing
Test duration:
factor of 1.25% per degree °C on the rated voltage V
R
Performance
Capacitance change |
∆
C/C|:
(d.c. and a.c.) has to be applied.
DF change (
∆
tgδ):
Capacitance range:
1000pF to 4.7µF
Insulation resistance:
Capacitance values:
e6 series (IeC 60063 Norm).
Capacitance tolerances
(measured at 1 kHz):
±5% (J); ±10% (K); ±20% (M).
Total self-inductance
(L):
max 1 nH per 1 mm lead and capacitor length.
Dissipation factor (DF):
tgδx10
-4
at +25°C ±5°C
kHz
1
10
100
C<0.1
µ
F
≤06
≤10
≤30
0.1
µF
to 1
µ
F
≤06
≤20
>1
µ
F
≤06
+40°C
±
2°C
93%
±
2%
56 days
≤
2%
≤
10x10
-4
at 1kHz
≥
50% of initial limit.
endurance:
Test conditions
Temperature:
Test duration:
Voltage applied:
Performance
+85°C
±
2°C
2000 h
1.25xV
R
Capacitance change |
∆
C/C|:
≤
3%
≤
10x10
-4
at 10kHz for C
≤
1
µ
F
DF change (
∆
tg
δ
):
≤
10x10
-4
att01kHz for C
>
1
µ
F
Insulation resistance:
≥
50% of initial limit.
Resistance to soldering heat:
solder bath temperature:
+260°C
±
5°C
Dipping time (with heat screen):10 s
±
1 s
Capacitance change |
∆
C/C|:
≤
1%
≤
10x10
-4
at 10kHz for C
≤
1
µ
F
DF change (
∆
tg
δ
):
≤
10x10
-4
att01kHz for C
>
1
µ
F
Insulation resistance:
≥
initial limit.
long term stability
(after two years):
Storage:
standard environmental conditions (see page 12).
Performance
Performance
Test conditions
Insulation resistance:
Test conditions
Temperature:
Voltage charge time:
Voltage charge:
Performance
≥
1x10
5
M
Ω
≥
30000 s
+25°C
±
5°C
1 min
100Vdc
(5x10
5
M
Ω
)*
(150000 s)*
for C
≤
0.33
µ
F
for C > 0.33
µ
F
*Typical value
Test voltage between terminations:
1.6xV
R
applied for 2 s at +25°C
±
5°C.
Capacitance change |
∆
C/C|:
≤
0.5%
09/2008
66
MeTAllIZeD POlyPROPylene CAPACITOR
MUlTIPURPOSe APPlICATIOnS
PRoDUCT CoDe:
A70
MKP series
A70

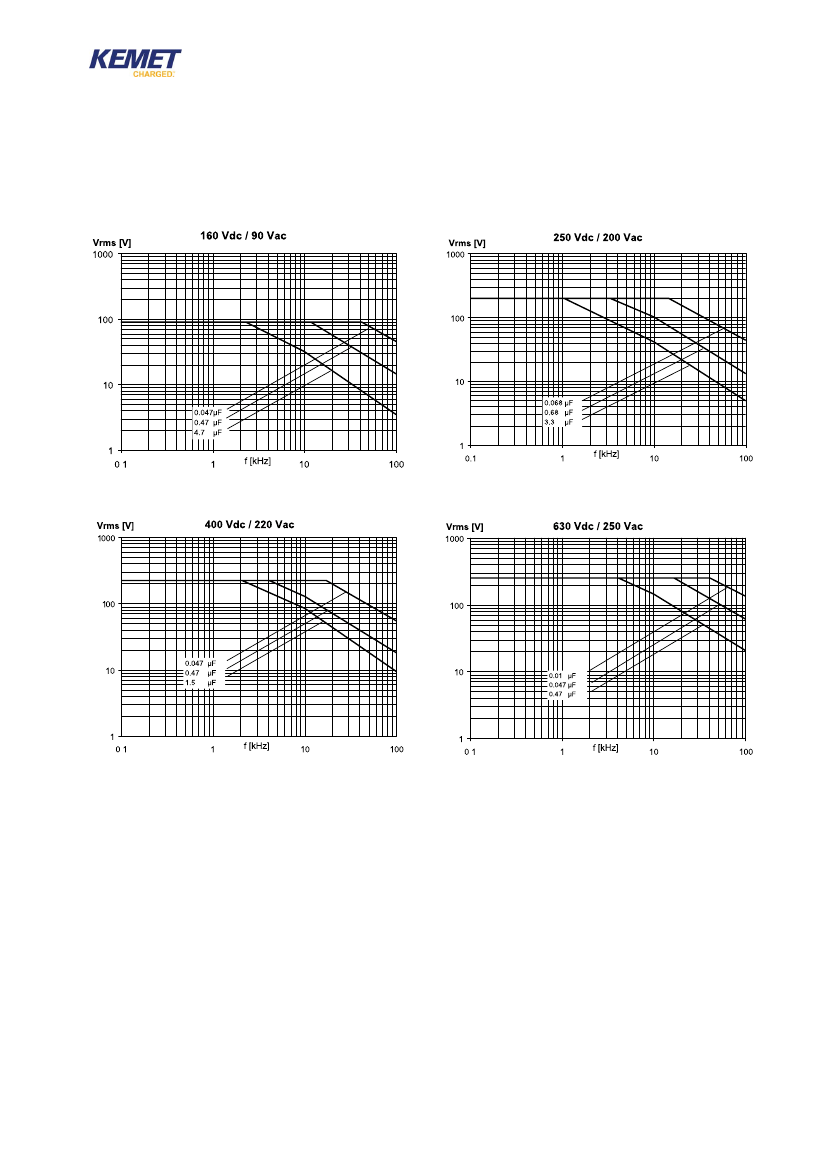

MAX. VoLTAGe (Vr.m.s.) VeRsUs FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
67
09/2008
MeTAllIZeD POlyPROPylene CAPACITOR
MUlTIPURPOSe APPlICATIOnS
PRoDUCT CoDe:
A70
MKP series
A70

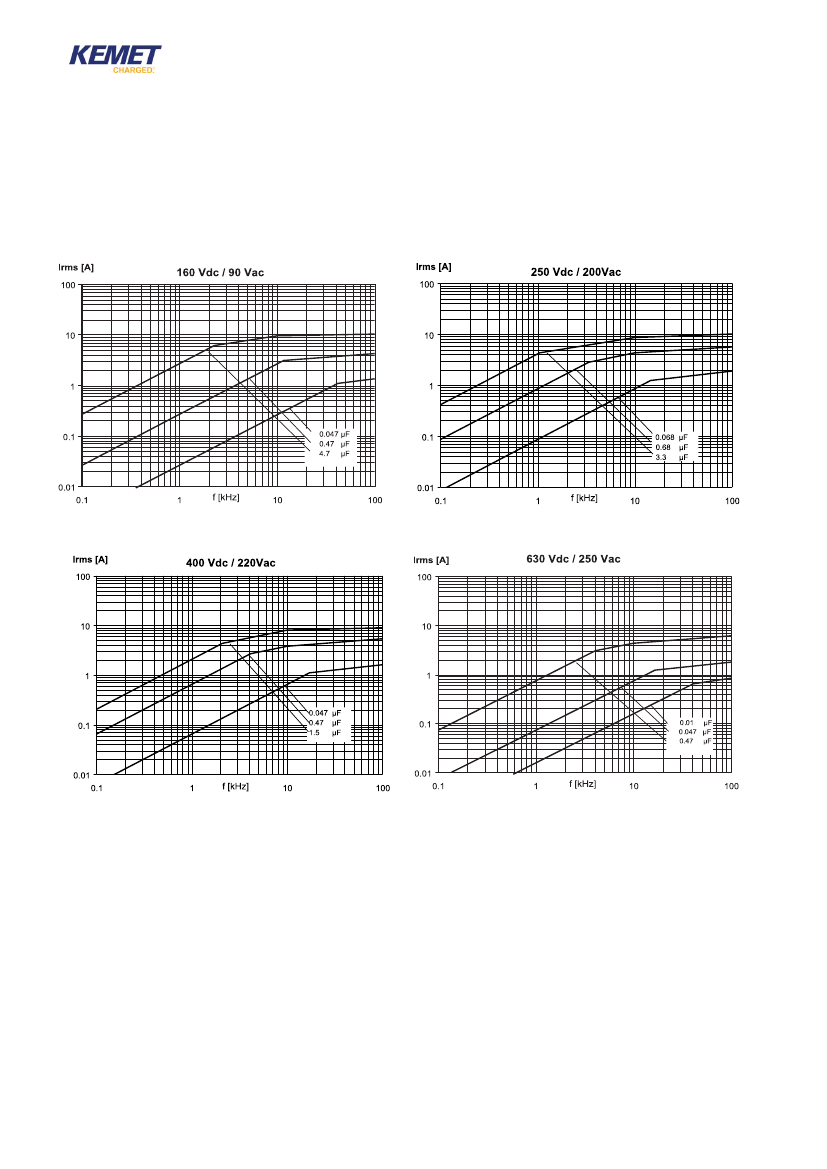

MAX. CURReNT (Ir.m.s.) VeRsUs FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute –
and we specifically disclaim – any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise
provided by us with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
Using TLC on the FPGA Experimenter Box549AThe A/D conversion chip performs A/D conversion on the voltage input by the potentiometer and displays it on the digital tube. It is required to be written in...
[i=s]This post was last edited by ohahaha on 2016-1-29 09:42[/i] How to configure a local component database in Capture CIS Author: lam007 Every engineer needs to generate a BOM after making a schemat...
DMA initialization program: #include "dma.h" u16 DMA1_MEM_LEN;//Save the length of each DMA data transfer //DMA1 channel configuration//The transmission form here is fixed, which needs to be modified ...
[color=#ff0000][font=微软雅黑][size=4]>>[/size][/font][/color][font=微软雅黑][size=4][url=https://www.eeworld.com.cn/huodong/2014BB_Black_competition/][color=#ff0000]BeagleBone Black Development Board DIY Cre...
1. While extensive efforts are driving GaN devices toward kilovolt applications, there are also huge opportunities on the ultra-low voltage (ULV) side, which is sometimes largely overlooked in the GaN...
A multi-point temperature control heating control system was designed using the SST89E564RC single-chip microcomputer and a new temperature measuring device. The heating system can be controlled in...[Details]
my country is a big country in agriculture, grain production and consumption. Grains are a necessary condition for our nation to survive and develop. The flour processing industry will exist forever w...[Details]
In recent years, with the rapid development of the information industry, dot matrix LED display screens have been widely used in various advertising and information display systems such as the fina...[Details]
As a simple and practical input device, buttons have been used in various microcontroller application systems and are ubiquitous. However, the buttons used in different practical occasions are also...[Details]
This paper designs a 16x16LED Chinese character display bar based on single-chip dynamic scanning control, briefly analyzes the principle of Chinese character display, and studies how the LED displ...[Details]
Today, the value of electronic components in cars accounts for 15-20% of the total vehicle. In the future, this proportion may be as high as 30-40% as more safety electronics, fuel consumption and ...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
With the continuous advancement of various technologies in the field of measurement and control, the baseband subsystem of general measurement and control equipment has entered the fourth generation o...[Details]
Abstract: Based on the ZigBee parking lot SMS car search system, the location of the vehicle in the parking lot is sent to the owner through SMS, which is convenient for the owner to quickly find ...[Details]
introduction
At present, the research on micron and nanotechnology is very active, which has led to the rapid development of microtechnology and micro-mechanical electronic system (MEMS) t...[Details]
Currently, the commonly used solar cell technologies include monocrystalline silicon solar cells and polycrystalline silicon thin-film solar cells. Production process: Monocrystalline silicon solar...[Details]
1 Introduction
Intelligent cars are the embodiment of the cross-integration of multiple disciplines such as automotive electronics, artificial intelligence, pattern recognition, automatic con...[Details]
AD7708 is a multi-channel 16-bit Σ-Δ analog-to-digital converter ADC. It supports 4 or 5 channels of true differential input and 8 or 10 channels of pseudo differential input. This chip allows two ...[Details]
Any power transmission and distribution equipment and power-consuming devices cannot be pure resistive loads, so they must occupy a certain amount of reactive power. The existence of reactive curre...[Details]
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
