ECN #
REV
001
2
REVISIONS
DESCRIPTION
REVISED PER ECR 111009AZ01
1
DATE
2/22/11
NOTES:
1.
2.
ROHS COMPLIANT
MATERIAL:
PANEL CONNECTOR - POLYPROPYLENE, UL RATING 94-HB
HEADER CONNECTOR - POLYESTER, UL RATING 94-V0
LENS - POLYCARBONATE - UL RATING 94-V2
MOISTURE SEAL - EPDM
RING - THERMOPLASTIC
TERMINALS - PHOSPHER BRONZE, TIN PLATE
WIRE - 24 AWG 1007/1569
MOUNTING: HOLE SIZE.281" (7.2mm) OPENING ON 3/8" CENTERS (9.52mm)
PANEL THICKNESS: .030" (0.76mm) MIN TO .125" (3.18mm) MAX
FOR PANEL THICKNESS .030" (0.76mm) TO .045" (1.14mm) USE TWO (2) SPC 060 SPACERS
FOR PANEL THICKNESS .050" (1.27mm) TO .100" (2.54mm) USE ONE (1) SPC 060 SPACER
FOR PANEL THICKNESS .105" (2.67mm) TO .125" (3.18mm) NO SPACER REQUIRED
LED LEAD LENGTH:
FOR CMC 285 - .350" .010 (8.89mm 0.25)
FOR CMC 313, CMC 321, CMC 323, AND CMS 322 - .220" .010 (5.59mm 0.25)
FOR STANDARD DRY APPLICATIONS USE CMC 285, CMC 313, CMC 321 OR CMC 323; FOR WET OR DRY
APPLICATIONS USE CMS 322 (MEETS NEMA4/ IP56)
ALSO CAN BE ORDERED CNX 310 XXX FOR CONNECTOR AND RESISTOR ONLY
U.S AND FOREIGN PATENT ISSUED
INITIALS
KH
D
D
3.
4.
5.
6.
7.
8.
7
CABLE ORDERING CODE EXAMPLE:
LENS
(ORDER SEPERATELY)
CNX 310 056 E 4 1 08
C
LED & SPACER
(ORDER SEPERATELY)
000 =
012 =
018 =
033 =
056 =
120 =
220 =
5MM LED
RESISTOR *
NO RESISTOR
120 OHMS
180 OHMS
330 OHMS
560 OHMS
1200 OHMS
2200 OHMS
X=
E=
G=
TERMINATION *
STRIPPED END
SINGLE ROW LOCKING HEADER
SINGLE ROW PLAIN HEADER
WIRE SIZE *
4=
24 AWG
WIRE COLOR *
1 = WHITE - BLACK
2=
RED - BLACK
04 =
06 =
08 =
12 =
18 =
24 =
* CALL FACTORY FOR
ADDITIONAL OPTIONS
CMC 285
WIRE LENGTH *
4 INCHES (101.6mm)
6 INCHES (152.4mm)
8 INCHES (203.2mm)
12 INCHES (304.8mm)
18 INCHES (457.2mm)
24 INCHES (609.6mm)
C
CMC 313
CMC 321
CMC 323
B
PIN B = ANODE (+) WHITE LEAD
W1
W2
PIN A = CATHODE (-) BLACK LEAD
.480
12.19mm
XX.XX
DIMENSION STYLE: INCHES / MM
GENERAL TOLERANCES UNLESS
OTHERWISE SPECIFIED:
B
1
2
CMS 322
SPC 060
MATERIAL
OPTOELECTRONICS
SEE NOTES
190 BOSSTICK BLVD. SUITE 101 SAN MARCOS, CA 92069 U.S.A
PHONE: (760) 560-1300, FAX: (760) 560-1301 EMAIL: vccsales@vcclite.com
A
INCHES
MM
.500
12.7
FINISH
A
TITLE:
SEE NOTES
THIRD ANGLE PROJECTION

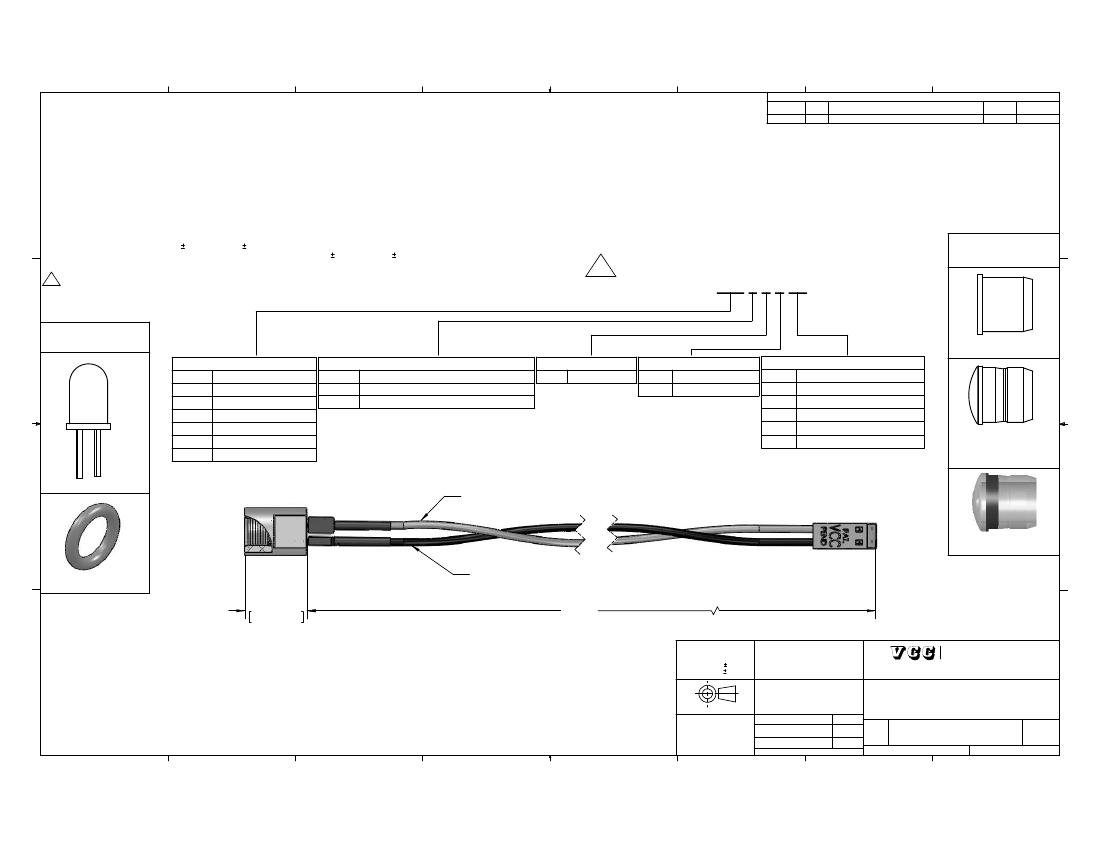

CNX 310 XXX
CABLE ASSEMBLY
DATE
2/22/11
2/22/11
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED
IN THIS DRAWING IS THE SOLE
PROPERTY OF VISUAL
COMMUNICATIONS COMPANY, INC.
ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF VISUAL
COMMUNICATIONS
COMPANY, INC IS PROHIBITED.
APPROVAL
SIZE DWG. NO.
REV
DRAWN
CHECKED
K.Howard
AZ
B
2
CNX 310 XXX ASSY
1
001
DO NOT SCALE DRAWING
SCALE: 2:1
SHEET 1 OF 1
8
7
6
5
4
3
