Bridgelux ES Star Array Series

Product Data Sheet DS23

BXRA-xxx0540, BXRA-xxx0740, BXRA-40E0600

BXRA-40E0810, BXRA-xxC0700, BXRA-xxC1000

Introduction

The Bridgelux family of LED Array products delivers high performance, compact and cost-effective solid-

state lighting solutions to serve the general lighting market. These products combine the higher efficacy,

lifetime, and reliability benefits of LEDs with the light output levels of many conventional lighting sources.

The Bridgelux ES Array Series has been specified to enable lamp and luminaire designs surpassing

efficacy and quality of light requirements driven by regulatory standards with reasonable system design

margins, enabling lighting product compliance to Energy Star, Title 24, Part L and other global standards.

The Bridgelux ES Star Array products provide a high performance alternative to conventional solid state

solutions, delivering between 450 and 1000 lumens under application conditions in warm, neutral and

cool white color temperatures. These compact high flux density light sources deliver uniform high quality

illumination without pixilation or the multiple shadow effect caused by LED component based solutions.

To simplify system design for appropriate light output, Bridgelux LED Arrays are specified to deliver

performance under typical use conditions.

These integrated plug and play solutions reduce system complexity and enable miniaturized cost-

effective lamp and luminaire designs. Lighting system designs incorporating these LED Arrays deliver

comparable performance to that of 40-60 Watt incandescent and halogen and 7-13 Watt compact

fluorescent based luminaires and feature increased system level efficacy and service life. Typical

applications include replacement lamps, task, accent, spot, track, down light, wide area, security, and wall

pack.

Features



Compact high flux density light source

Uniform high quality illumination

Minimum 70, 80 and 90 CRI options

Streamlined thermal path

Energy Star / ANSI compliant color binning structure

with 3SDCM options

More energy efficient than incandescent, halogen

and fluorescent lamps

Low voltage DC operation

Instant light with unlimited dimming

5-Year warranty

RoHS compliant and Pb free

Benefits



Enhanced optical control

Clean white light without pixilation

High quality true color reproduction

Significantly reduced thermal resistance and increased

operating temperatures

Uniform consistent white light

Lower operating costs

UL Recognized

Easy to use with daylight and motion detectors to

enable increased energy savings

Reduced maintenance costs

Environmentally friendly, no disposal issue



101 P ort ol a A v enue, Li v erm ore , C A 94551 • T el : (925 ) 583 -84 0 0 • Fa x: (92 5) 58 3 -8 401 • ww w. b ri dgel u x. c om

Lumen Maintenance Characteristics

Bridgelux projects that its family of LED Array products will deliver, on average, greater than 70% lumen

maintenance after 50,000 hours of operation at the rated forward test current. This performance

assumes constant current operation at the nominal drive current with case temperature maintained at or

below 85°C. For use beyond these typical operating conditions please consult your Bridgelux sales

representative for further assistance.

These projections are based on a combination of package test data, semiconductor chip reliability data, a

fundamental understanding of package related degradation mechanisms, and performance observed

from products installed in the field using Bridgelux die technology. Bridgelux conducts lumen

maintenance tests per LM80. Observation of design limits is required in order to achieve this projected

lumen maintenance.

Environmental Compliance

Bridgelux is committed to providing environmentally friendly products to the solid state lighting market.

Bridgelux LED Arrays comply with the European Union directives on the restriction of hazardous

substances in electronic equipment, namely the RoHS directive. Bridgelux does not intentionally add the

following restricted materials to LED Array products: lead, mercury, cadmium, hexavalent chromium,

polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).

UL Recognition

Bridgelux secures UL recognition for all the LED Array products. Please refer to the UL file E350613 for

the latest list of UL recognized Arrays. Bridgelux uses UL recognized materials with suitable flammability

ratings in the LED Array to streamline the process for customers to secure UL listing of the final luminaire

product.

CE Recognition

In accordance with the relevant European Union directives, the family of LED Array products conform to

the applicable requirements of the IEC/EN 62031:2008 (LED Modules for General Lighting Safety

Specifications) and IEC 62471:2006 (Photobiological Safety of Lamps and Lamp Systems). Bridgelux

maintains a CE Declaration of Conformity statement on its website and displays the CE mark on product

packing labels.

Minor Product Change Policy

The rigorous qualification testing on products offered by Bridgelux provides performance assurance.

Slight cosmetic changes that do not affect form, fit, or function may occur as Bridgelux continues product

optimization.

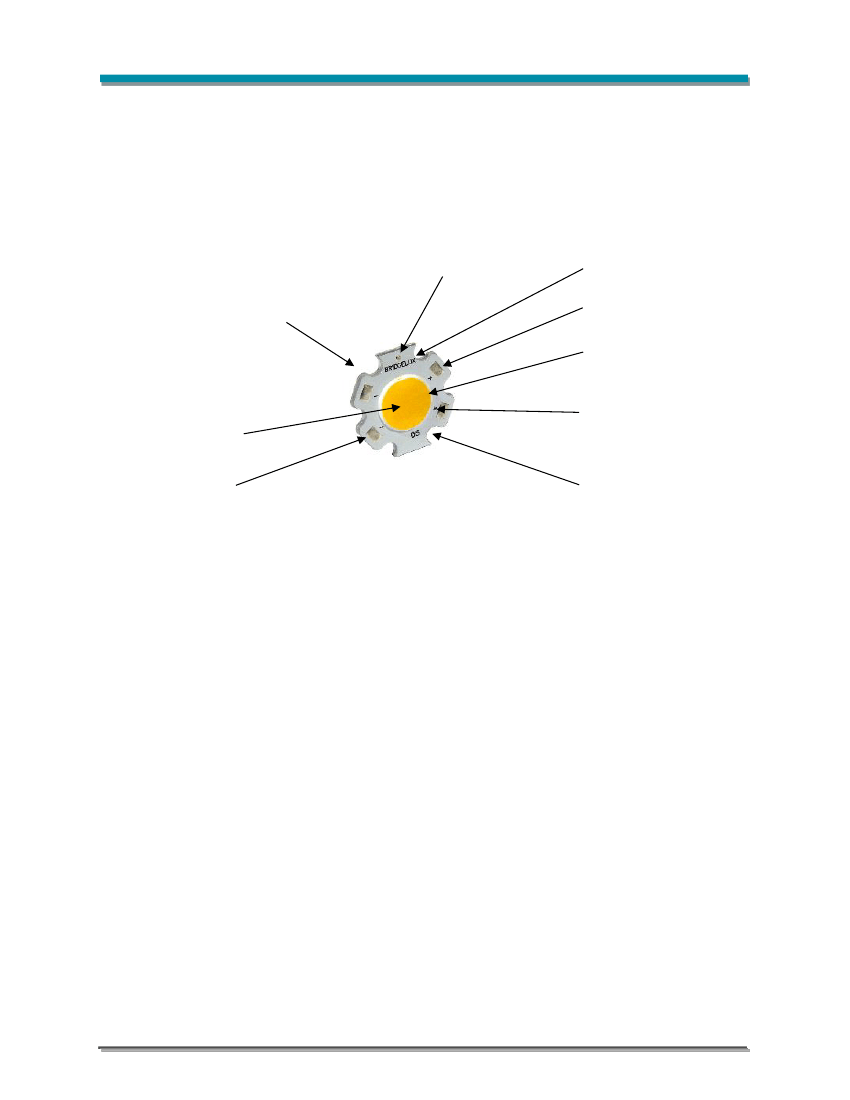

Case Temperature Measurement Point

A case temperature (T

) measurement point location is included on the top surface of the Bridgelux LED

Arrays. The location of this measurement point is indicated in the mechanical dimensions section of this

data sheet.

The purpose of this measurement point is to allow the user access to a measurement point closely linked

to the true case temperature on the back surface of the LED Array. Once the LED Array is installed, it is

challenging to measure the back surface of the array, or true case temperature.

Bridgelux has provided the case temperature measurement location in a manner which closely ties it to

the true case temperature of the LED Array under steady state operation. Deviations between thermal

measurements taken at the point indicated and the back of the LED Array differ by less than 1°C,

providing a robust method to testing thermal operation once the product is installed.

Bridgelux ES Star Array Series Product Data Sheet DS23 (8/30/2013 rev2)

Page 4 of 24
