800140FA060S300ZR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 800140FA060S300ZR

Preview

800140FA060S300ZR: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Pin, Black Insulator, Plug; CategoryThe connector The connector; File Size199KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

800140FA060S300ZR Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Guide Pin, Black Insulator, Plug

800140FA060S300ZR Parametric

Parameter Name	Attribute value
Objectid	1166472805
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.236 inch
subject depth	0.331 inch
body length	1.283 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulator color	BLACK
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.572 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

Preview

Download Datasheet

View All

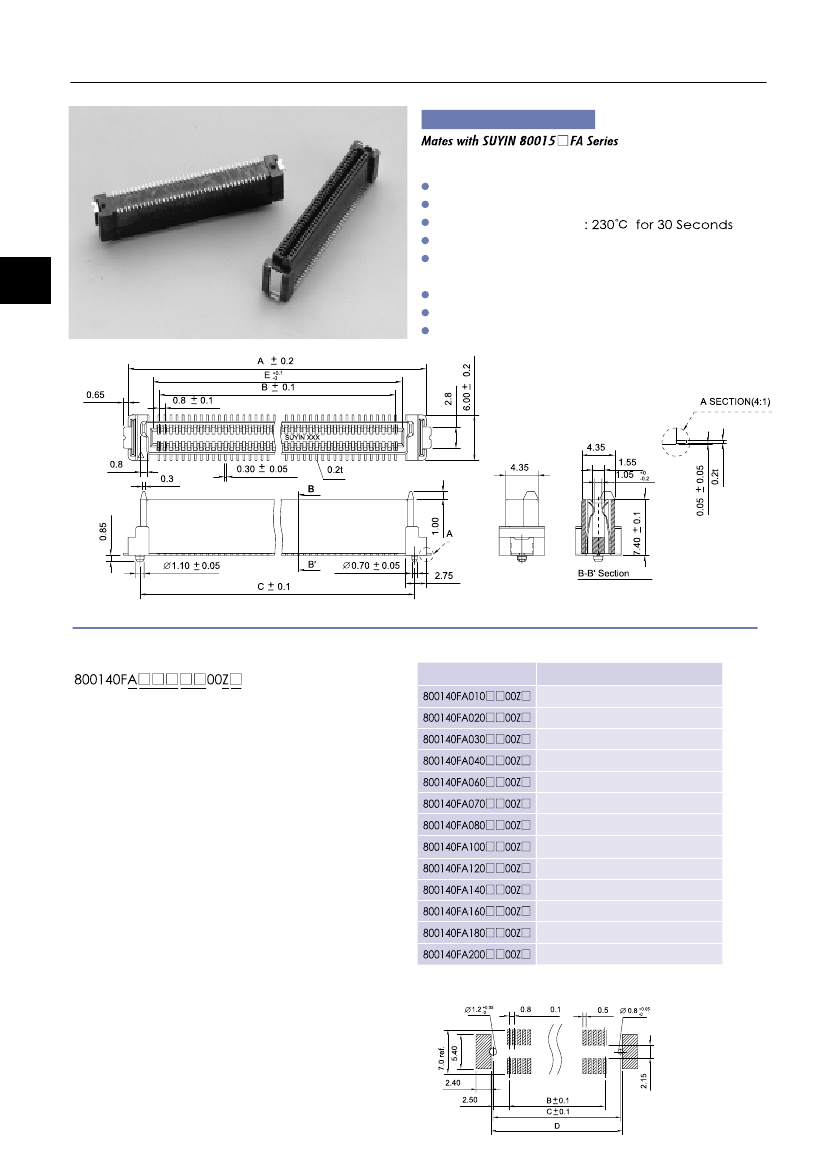

0.8 mm PITCH SURFACE MOUNT RECEPTACLE TYPE

(PLASTIC HEIGHT:7.4mm)

800140FA Series

Specifications:

10~200 Circuits

Insulator Material

Max Processing Temp

Terminal Material

Plating

0.8

mm

: Black High Temp. Plastic

: Phosphor Bronze

: Selective Plated (Gold/Tin)

Latch - Tin Plated

: 0.5 A

: 100V AC

: 500V (Min. 60 seconds)

Max. Current Rating

Voltage Rating

Dielectric Strength

Order Information

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

11.3

15.3

19.3

23.3

31.3

35.3

39.3

47.3

55.3

63.3

71.3

79.3

87.3

DIM.B

3.2

7.2

11.2

15.2

23.2

27.2

31.2

39.2

47.2

55.2

63.2

71.2

79.2

DIM.C

8.2

12.2

16.2

20.2

28.2

32.2

36.2

44.2

52.2

60.2

68.2

76.2

84.2

DIM.D

8.8

12.8

16.8

20.8

28.8

32.8

36.8

44.8

52.8

60.8

68.8

76.8

84.8

DIM.E

4.8

8.8

12.8

16.8

24.8

28.8

32.8

40.8

48.8

56.8

64.8

72.8

80.8

1. 'A' : Straight SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

'R' : Reel Package With CAP

'T' : Tube Package With CAP

Reference Page 11

Recommended P.C.B. Layout
