57-20243-D11 datasheet, PDF - EEWORLD Datasheet

57-20243-D11: DescriptionD Type Connector, 24 Contact(s), Female, 0.085 inch Pitch, Wire Terminal, Plug; CategoryThe connector The connector; File Size248KB，4 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

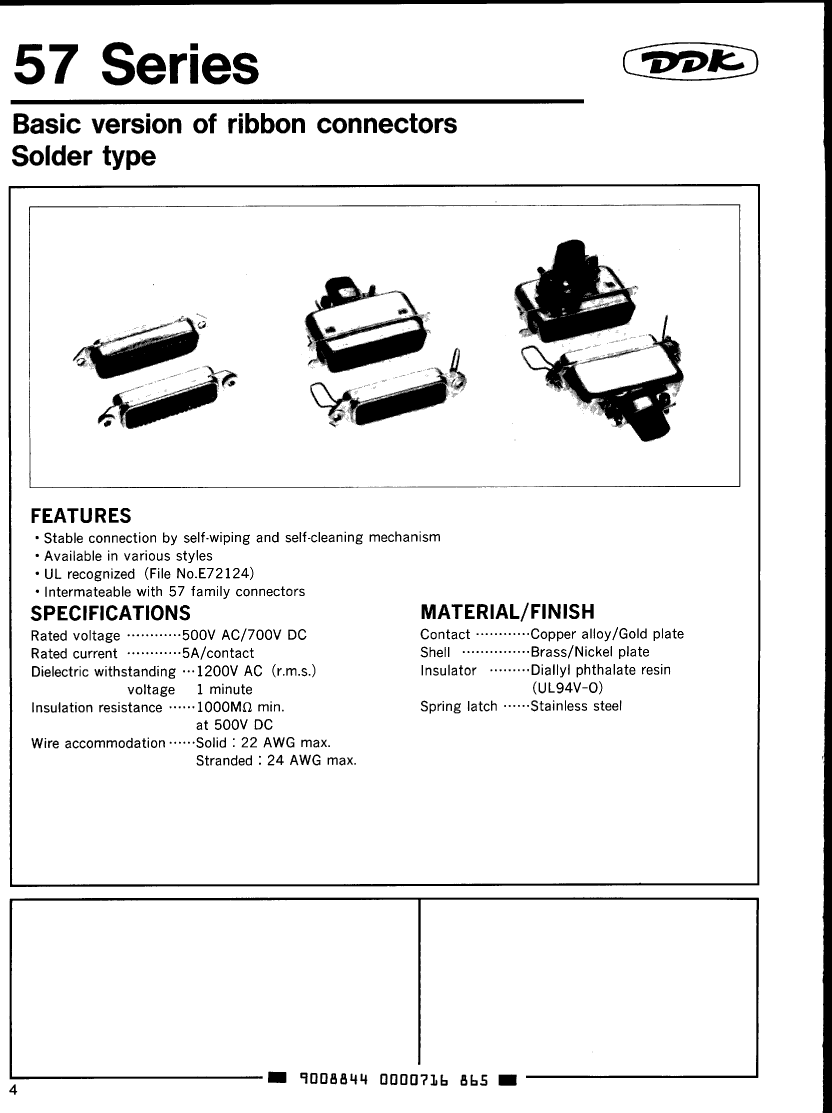

57-20243-D11 Overview

D Type Connector, 24 Contact(s), Female, 0.085 inch Pitch, Wire Terminal, Plug

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	KEY POLARIZATION

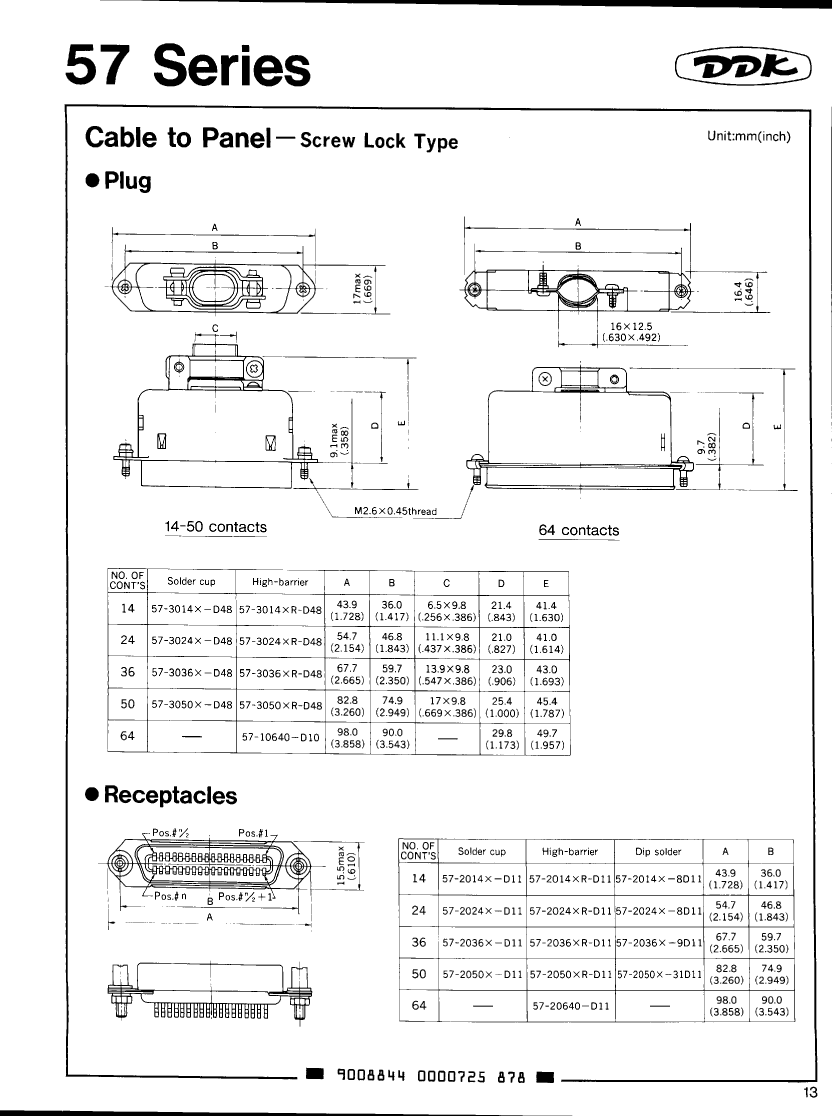

body width	0.61 inch
body length	2.154 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE

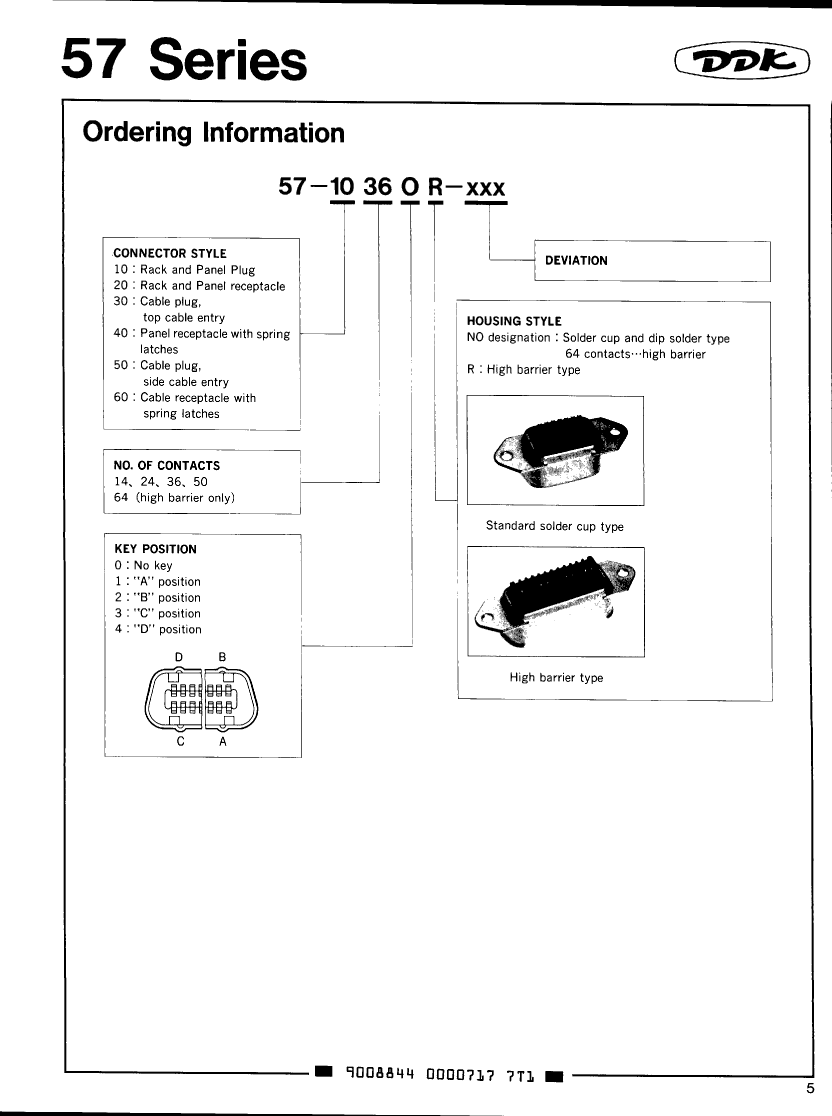

Manufacturer's serial number	57

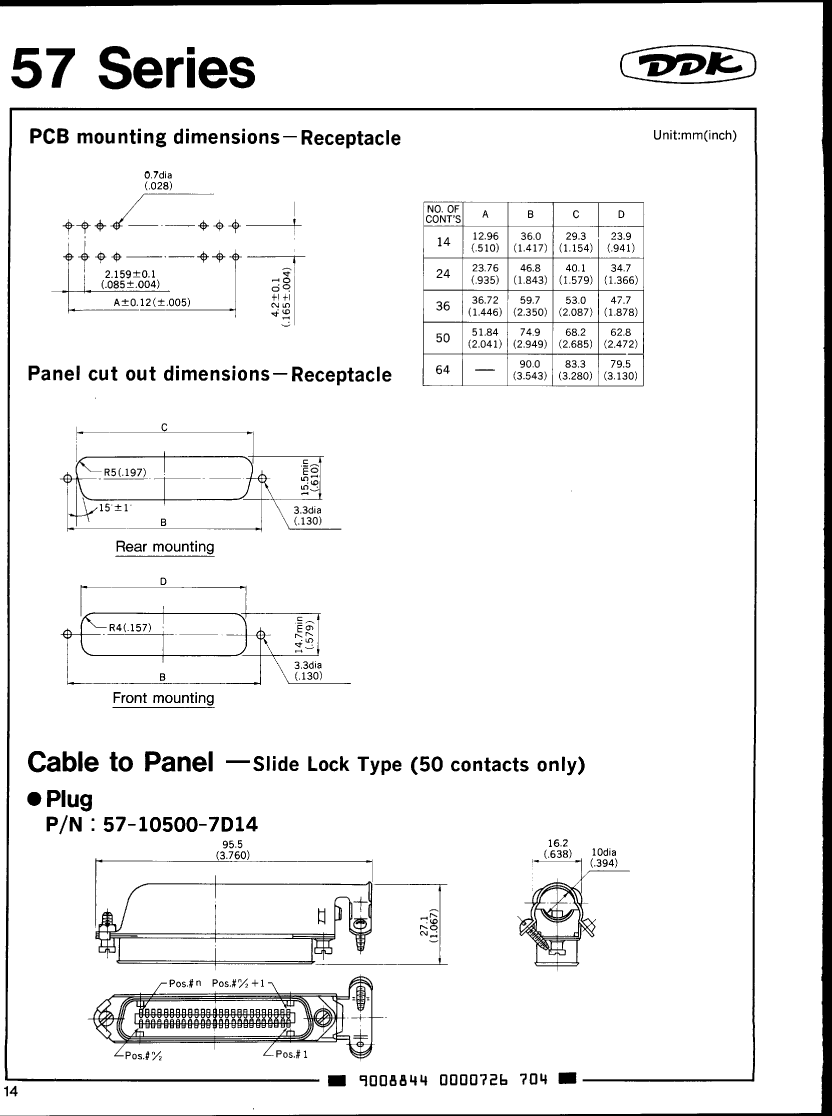

Plug contact pitch	0.085 inch
Installation option 2	SCREW
Installation type	CABLE
Number of rows loaded	2
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	WIRE
Total number of contacts	24
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1
