ACPL-P456/W456
Intelligent Power Module and Gate Drive Interface Optocouplers
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The ACPL-P456 and ACPL-W456 contain a GaAsP LED
optically coupled to an integrated high gain photo
detector. Minimized propagation delay difference
between devices make these optocouplers excellent
solutions for improving inverter efficiency through
reduced switching dead time. Specifications and perfor-
mance plots are given for typical IPM applications.
Features
•
Performance Specified for Common IPM Applications
Over Industrial Temperature Range.
•
Short Maximum Propagation Delays
•
Minimized Pulse Width Distortion (PWD)
•
Very High Common Mode Rejection (CMR)
•
High CTR.
•
Available in Stretched SO-6 package with 8 mm
creepage and clearance.
•
Safety Approval:
UL Recognized with 3750 V
rms
for 1 minute (5000
Vrms for 1 minute for Option 020 devices) per
UL1577.
CSA Approved.
IEC/EN/DIN EN 60747-5-2 Approved with V
IORM
=
1140 Vpeak (ACPL-W456) and V
IORM
= 891 Vpeak
(ACPL-P456) for Option 060.
Functional Diagram
ANODE 1
N.C. 2
CATHODE 3
SHIELD
6 V
CC
5 V
O
4 Ground
Note: A 0.1 µF bypass capacitor must be connected between pins 4 and 6.
Truth Table
LED
ON
OFF
Specifications
V
O
LOW
HIGH
•
Wide operating temperature range: –40°C to 100°C.
•
Maximum propagation delay t
PHL
= 400 ns, t
PLH
= 490 ns
•
Maximum Pulse Width Distortion (PWD) = 450 ns.
•
15 kV/µs minimum common mode rejection (CMR) at
V
CM
= 1500 V.
•
CTR > 44% at I
F
= 10 mA
Applications
•
•
•
•
IPM Isolation
Isolated IGBT/MOSFET Gate Drive
AC and Brushless DC Motor Drives
Industrial Inverters
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Ordering Information
ACPL-P456 and ACPL-W456 are UL Recognized with 3750 Vrms for 1 minute per UL1577 and are approved under CSA
Component Acceptance Notice #5, File CA 88324.
Option
Part number
RoHS Compliant
-000E
-500E
ACPL-P456
ACPL-W456
-020E
-520E
-060E
-560E
Stretched
SO-6
Package
Surface
Mount
X
X
X
X
X
X
Tape
& Reel
X
UL 1577
5000 VRMS / 1
Minute Rating
IEC/EN/DIN EN
60747-5-2
Quantity
100 per tube
1000 per reel
X
X
X
X
X
X
100 per reel
1000 per reel
100 per tube
1000 per reel
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
ACPL-P456-560E to order product of Stretched SO-6 package in Tape and Reel packaging with IEC/EN/DIN EN
60747-5-2 Safety Approval in RoHS compliant.
Example 2:
ACPL-P456-000E to order product of Stretched SO-6 package in tube packaging and RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Package Outline Drawings
ACPL-P456 Stretched SO-6 Package, 7 mm clearance
0.38±0.127
[.015±.005]
1.27[.050] BSG
4.580
+0.254
0
+.010
.180 - .000
Land Pattern
Recommendation
10.7[.421]
2.16[.085]
7.62 .300
6.81 .268
0.45 .018
7.00 °
45.00 °
A
7.00 °
1±.0.250
[.040±.010]
0.20±0.10
[.008±.004]
9.7±0.250[.382±.010]
1.590±0.127
[.063±.005]
7.00 °
7.00 °
0.20[.008]
3.180±0.127
[.125±.005]
Dimensions in Millimeters [Inches]
Coplanarity = 0.1mm [0.004 inches]

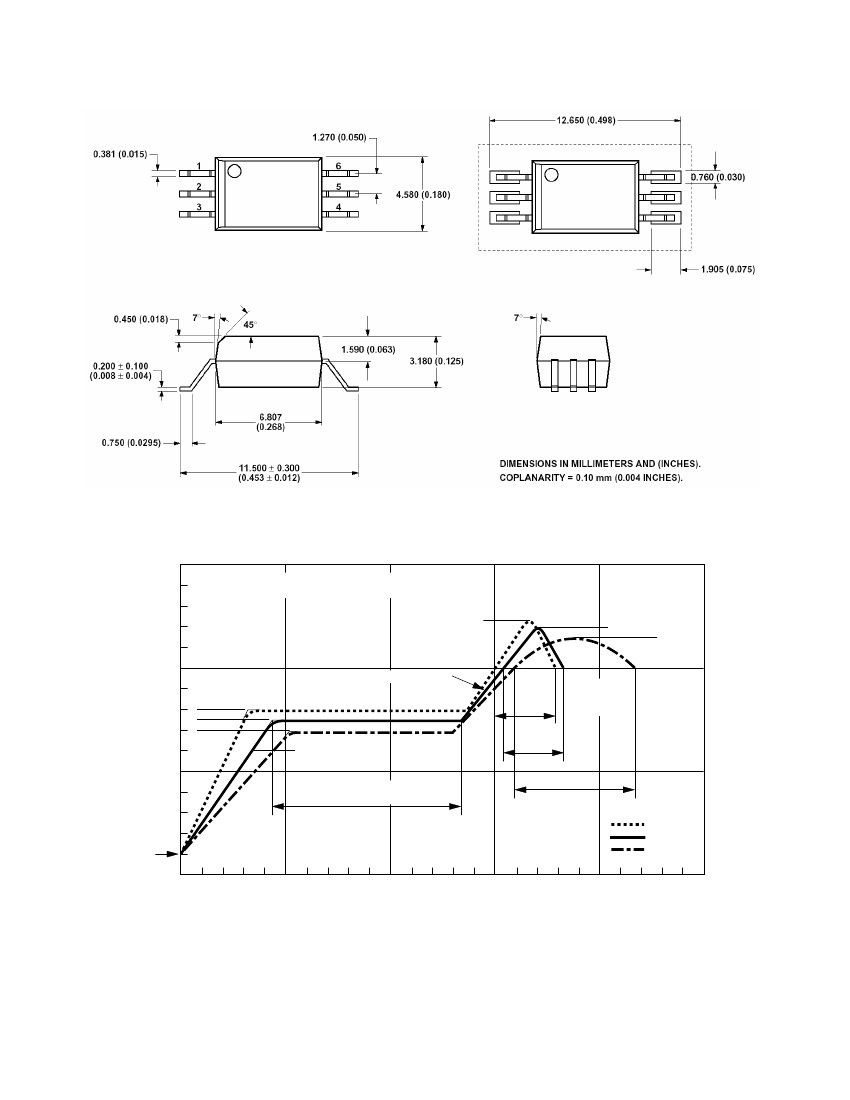

ACPL-W456 Stretched SO-6 Package, 8 mm clearance
Recommended Solder Reflow Temperature Profile
300
PREHEATING RATE 3°C + 1°C/-0.5°C/SEC.
REFLOW HEATING RATE 2.5°C ± 0.5°C/SEC.
PEAK
TEMP.
245°C
PEAK
TEMP.
240°C
200
TEMPERATURE (
°
C)
160°C
150°C
140°C
PEAK
TEMP.
230°C
2.5°C ± 0.5°C/SEC.
30
SEC.
3°C + 1°C/-0.5°C
30
SEC.
SOLDERING
TIME
200°C
100
PREHEATING TIME
150°C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
ROOM
TEMPERATURE
0
0
50
100
TIME (SECONDS)
150
200
250
Note: Non-halide flux should be used.
Recommended Pb-Free IR Profile
tp
T
p
TEMPERATURE (˚C)
T
L
T
smax
T
smin
t
s
PREHEAT
60 to 180 SEC.
25
t 25
°
C to PEAK ½
TIME (SECONDS)
NOTES:
THE TIME FROM 25
°
C to PEAK TEMPERATURE = 8 MINUTES MAX.
T
smax
= 200
°
C, T
smin
= 150
°
C
Note: Non-halide flux should be used.
t
L
60 to 150 SEC.
260 +0/-5
°
C
217
°
C
RAMP-UP
3
°
C/SEC. MAX. ½
150 - 200
°
C
RAMP-DOWN
6
°
C/SEC. MAX.
TIME WITHIN 5
°
C of ACTUAL
PEAK TEMPERATURE
20-40 SEC.
Regulatory Information
The ACPL-P456 and ACPL-W456 are approved by the following organizations:
IEC/EN/DIN EN 60747-5-2 (Option 060 only)
Approval under:
IEC 60747-5-2 :1997 + A1:2002
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884 Teil 2):2003-01
UL
Approval under UL 1577, component recognition
program up to V
ISO
= 3750 V
RMS
. File E55361.
CSA
Approval under CSA Component Acceptance Notice #5,
File CA 88324.
Table 1. IEC/EN/DIN EN 60747-5-2 Insulation Characteristics* (ACPL-P456/W456 Option 060)
Description
Installation classification per DIN VDE 0110/1.89, Table 1
for rated mains voltage ≤ 150 Vrms
for rated mains voltage ≤ 300 Vrms
for rated mains voltage ≤ 450 Vrms
for rated mains voltage ≤ 600 Vrms
for rated mains voltage ≤ 1000 Vrms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Output Test Voltage, Method b*
V
IORM
x 1.875=V
PR
, 100% Production Test with t
m
=1 sec,
Partial discharge < 5 pC
Input to Output Test Voltage, Method a*
V
IORM
x 1.5=V
PR
, Type and Sample Test, t
m
=60 sec,
Partial discharge < 5 pC
Highest Allowable Overvoltage
(Transient Overvoltage t
ini
= 10 sec)
Safety-limiting values – maximum values
allowed in the event of a failure.
Case Temperature
Input Current
Output Power
Insulation Resistance at T
S
, V
IO
= 500 V
V
IORM
V
PR
Symbol
ACPL-W456
I – IV
I – IV
I – III
I – III
I – II
55/100/21
2
1140
2137
ACPL-P456
I – IV
I – IV
I – III
I – III
55/100/21
2
891
1670
Unit
V
peak
V
peak
V
PR
V
IOTM
1710
6000
1336
6000
V
peak
V
peak
T
S
I
S, INPUT
P
S, OUTPUT
R
S
175
230
600
>10
9
175
230
600
>10
9
°C
mA
mW
W
* Refer to the optocoupler section of the Isolation and Control Components Designer’s Catalog, under Product Safety Regulations section, (IEC/EN/
DIN EN 60747-5-2) for a detailed description of Method a and Method b partial discharge test profiles.
Table 2. Insulation and Safety Related Specifications
Parameter
Minimum External Air Gap
(External Clearance)
Minimum External Tracking
(External Creepage)
Minimum Internal Plastic Gap
(Internal Clearance)
Minimum Internal Tracking
(Internal Creepage)
Tracking Resistance
(Comparative Tracking Index)
Isolation Group
CTI
Symbol
L(101)
L(102)
ACPL-P456
7.0
8.0
0.08
ACPL-W456
8.0
8.0
0.08
Units
mm
mm
mm
Conditions
Measured from input terminals to output
terminals, shortest distance through air.
Measured from input terminals to output
terminals, shortest distance path along body.
Through insulation distance conductor to
conductor, usually the straight line distance
thickness between the emitter and detector.
Measured from input terminals to output
terminals, along internal cavity.
DIN IEC 112/VDE 0303 Part 1
Material Group (DIN VDE 0110, 1/89, Table 1)
NA
>175
IIIa
NA
>175
IIIa
mm
V
