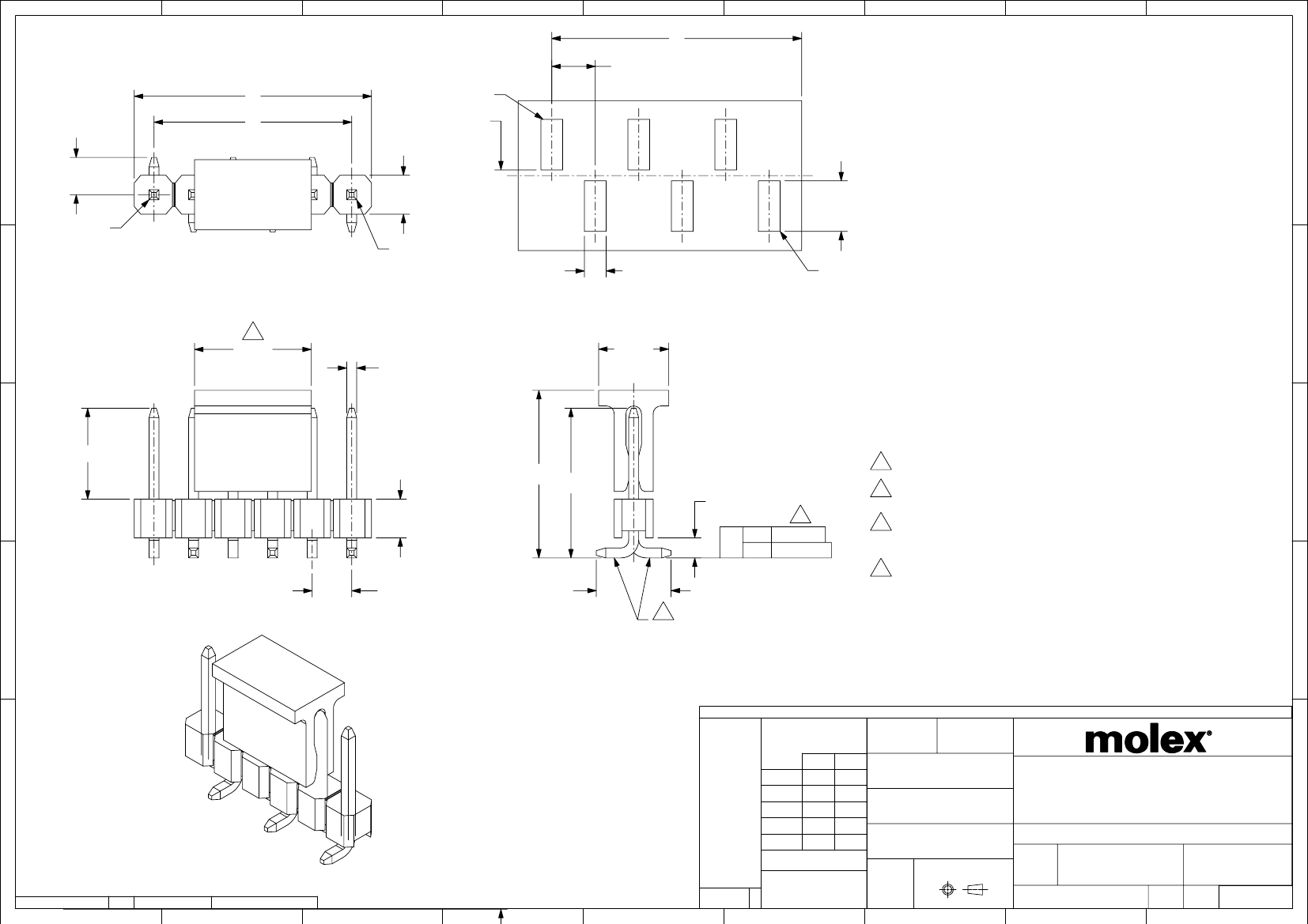

RECOMMENDED PCB LAYOUT: COMPONENT SIDE
½
4.50
½
0.64
±
0.05
SQ TYP
C
5.84
½
G
½
½
2.49
½
½
F
½
1.32 TYP
8
⌓
0.15
CKT 2-20
0.20
CKT 21-40
2.54
TYP
½
4.80
½
7
B
NOTES:
1. MATERIAL:
HSG: NYLON, GLASS-FILLED, UL94V-0, COLOR: BLACK
CAP: NYLON, GLASS-FILLED, UL94V-0, COLOR: BLACK
PIN: 0.64MM SQ, COPPER ALLOY
2. PLATING TYPE:
(1) GOLD FLASH OVER
1.25µm MIN. NICKEL OVERALL.
(2) GOLD FLASH ON CONTACT AND
2.50µm MIN. TIN ON SOLDERTAIL OVER
1.25µm MIN. NICKEL OVERALL.
(4) 0.38µm MIN. GOLD PLATE ON CONTACT AND
2.00µm MIN. TIN ON SOLDERTAIL OVER
1.25µm MIN. NICKEL OVERALL.
(5) 0.75µm MIN. GOLD PLATE ON CONTACT AND
2.00µm MIN. TIN ON SOLDERTAIL OVER
1.25µm MIN. NICKEL OVERALL.
(6) 2.50µm MIN. TIN OVERALL
1.25µm MIN. NICKEL OVERALL
3. PRODUCT SPECIFICATION: PS-87920-019
4. PACKAGING TYPE: SEE TABLE
5. PACKAGING SPEC:
TUBE WITH CAP VERSION: PK-89990-558
TUBE W/O CAP VERSION: PK-89990-545
TRAY W/O CAP: PK-89990-489
EMBOSS TAPE WITH CAP: PK-89990-486 AND PK-87898-400
6. WAFER TO BE FLAT WITHIN 0.003 mm/mm
7
BEND DEPRESSION IS ACCEPTED SO LONG AS IT DOES NOT
AFFECT THE OVERALL COPLANARITY OF TAIL
8
COPLANARITY IS TO BE MEASURED BY RESTING THE SOLDER
TAIL ON A FLAT SURFACE
9
IRREGULAR CIRCUIT CUTOFF WITHIN BREAKAWAY SECTION IS
PERMISSIBLE.CUTTING OR CHIPPING OF THE MAIN BODY IS
NOT ACCEPTABLE
10
CAP LOCATION IS CENTERED ALONG THE MATING ENDS AS
SHOWN. TOP SURFACE OF CAP TO BE FLAT FOR THE
PURPOSE OF PICK & PLACE BY VACUUM SUCTION NOZZLE
11. RECOMMENDED PCB THICKNESS IS 1.60mm
±
0.10
12. THE ABOVE CKT 6 IS FOR ILLUSTRATION PURPOSE ONLY
13. TUBE LENGTH AS PER STANDARD 560mm
E
D
C
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
2016/11/29
2016/12/05
DIMENSION UNITS
SCALE
GENERAL TOLERANCES
(UNLESS SPECIFIED)
MM
DRWN BY
DATE
NTS
MM
INCH
±
±
±
±
±
SEE SHEET 2 & 3
4 PLACES
±
±
±
0.2
±
±
YLQIAO
CHK'D BY
DATE
