87160-3950 datasheet, PDF - EEWORLD Datasheet

87160-3950: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY; CategoryThe connector The connector; File Size148KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

87160-3950 Overview

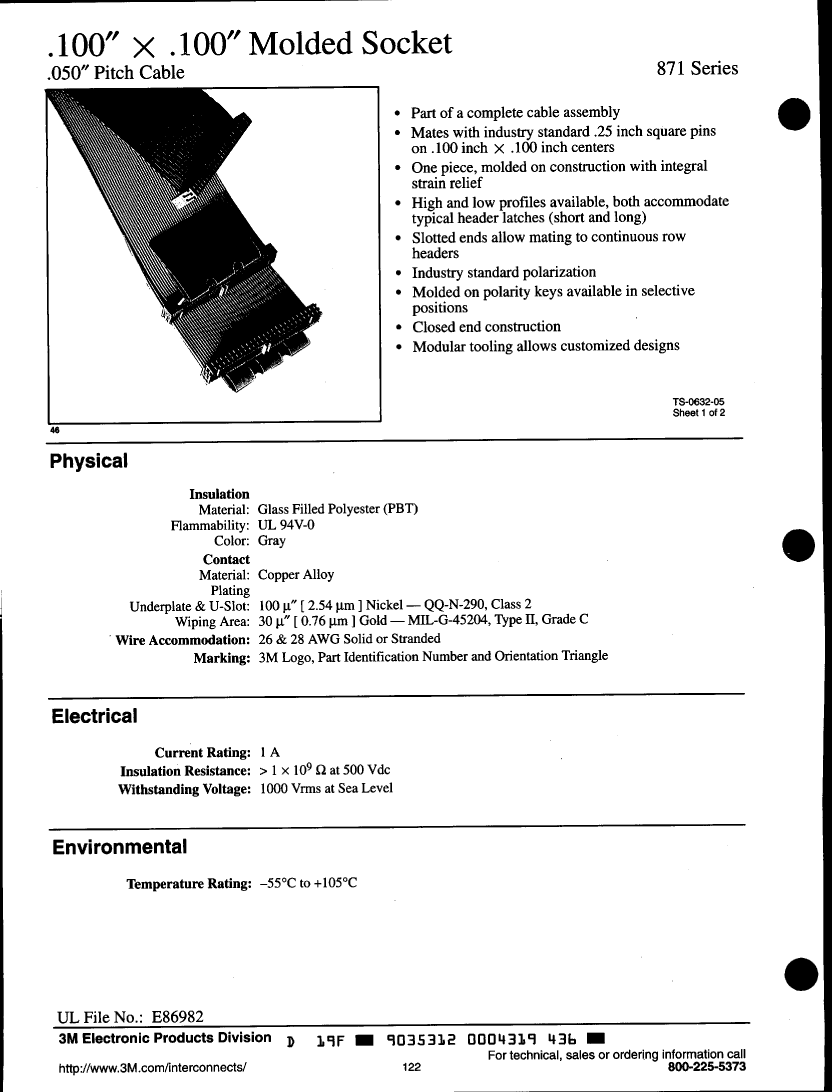

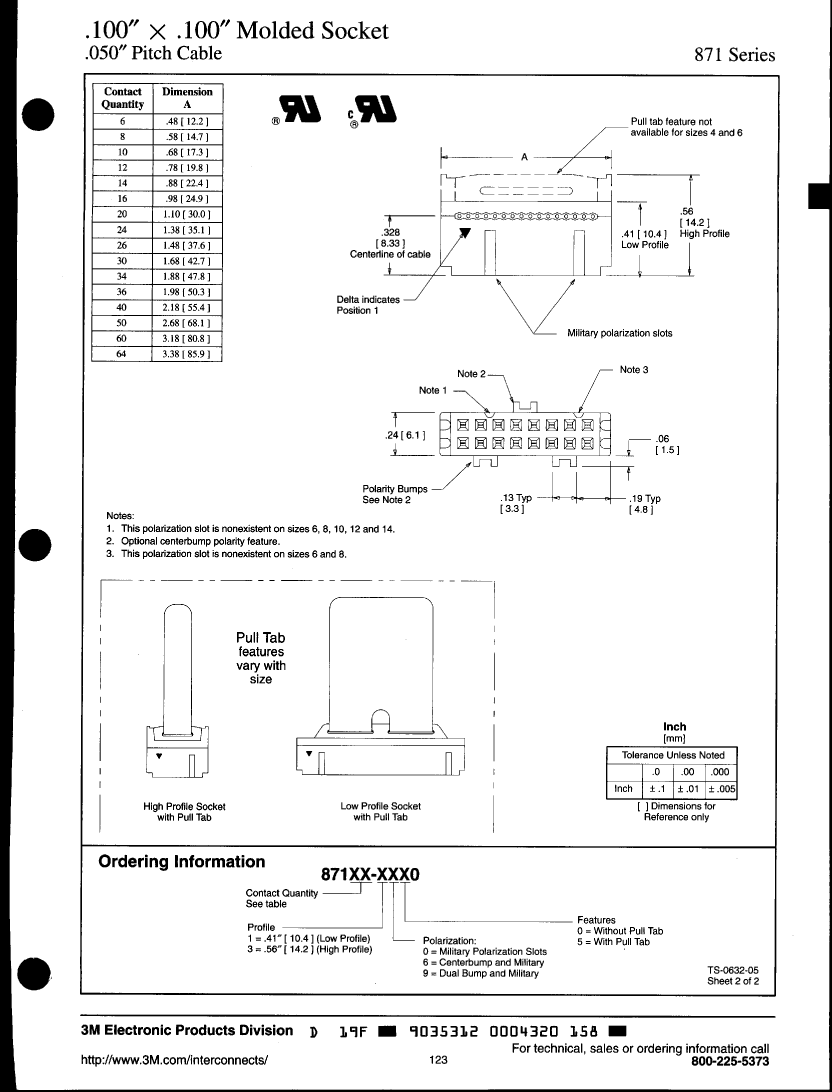

HEADER CONNECTOR,CABLE MNT,PLUG,60 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,GRAY

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Other features	WITH PULL TAB
body width	0.299 inch
subject depth	0.559 inch
body length	3.181 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	871
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	60
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
