33716-N-50-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 33716-N-50-3

33716-N-50-3: DescriptionRF Connector Adapter, 7/16-N, Male-Female; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

33716-N-50-3 Overview

RF Connector Adapter, 7/16-N, Male-Female

33716-N-50-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Adapter type	7/16-N
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	33716
Maximum operating frequency	2.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

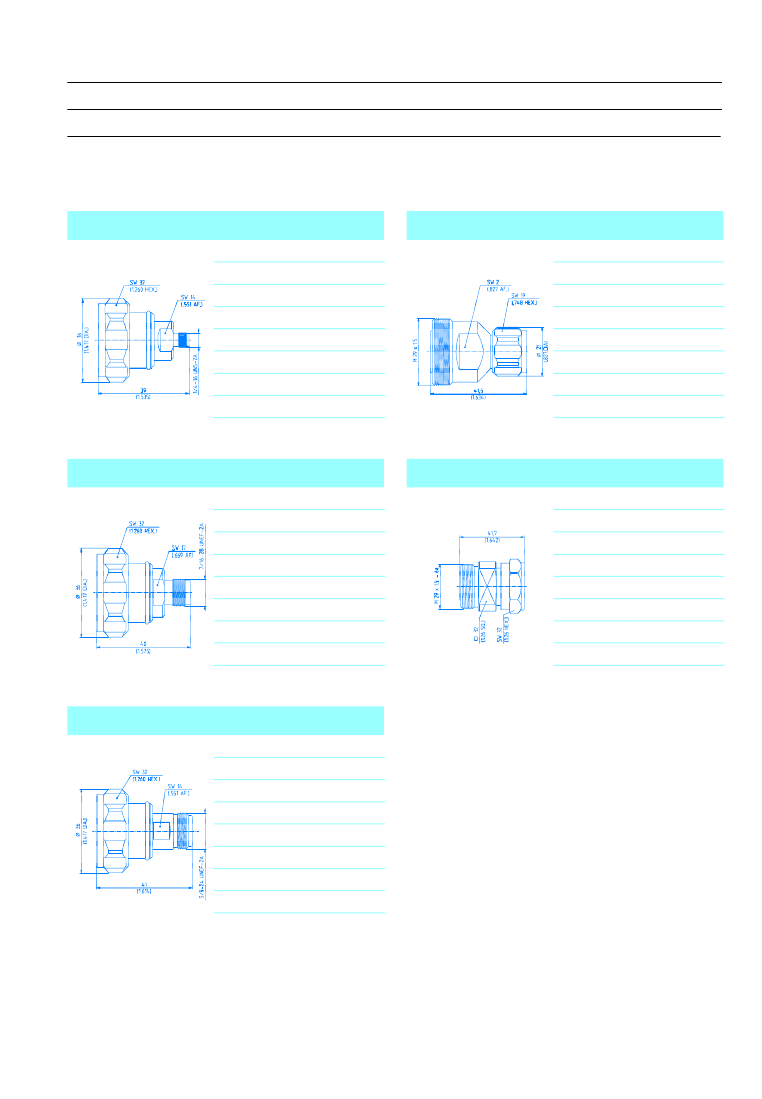

Preview

Download Datasheet

View All

SUHNER

TEST+MEASUREMENT

LOW PIM ADAPTORS

Male – female

284

Type

Item

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

33 716-PC3.5-50-1

22658821

DIN 7/16(m)

PC3.5mm(f)

-165 dBc

2.5 GHz

500

Brass / CuBe

92.8 g

287

Type

Item

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

33 N-716-50-3

22658217

N(m)

DIN 7/16(f)

-165 dBc

2.5 GHz

500

Brass / CuBe

101 g

285

Type

Item

33 716-TNC-50-1

22658824

DIN 7/16(m)

TNC(f)

-165 dBc

2.5 GHz

500

Brass / CuBe

92.9 g

288

Item

Type

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

33 716-50-0-2

22658193

DIN 7/16(m)

DIN 7/16(f)

-165 dBc

2.5 GHz

500

Brass / CuBe

159.5 g

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

286

Type

Item

Interface 1

Interface 2

PIM prod.

Impedance

Max. freq.

Matings

Material

Weight

33 716-N-50-3

22658823

DIN 7/16(m)

N(f)

-165 dBc

2.5 GHz

500

Brass / CuBe

98.9 g

Wooden box

For storing and protecting these sensitive adap-

tors, a box is available under the type

73 Z-0-0-346 (item 22658953). For further infor-

mation, see page 134.

SUHNER

Test+Measurement

33716-N-50-3 Related Products

	33716-N-50-3	33N-716-50-3	22658823	33716-50-0-2	22658193	22658217	22658821	22658824	33716-TNC-50-1	33716-PC3.5-50-1
Description	RF Connector Adapter, 7/16-N, Male-Female	RF Connector Adapter, N-7/16, Male-Female	RF Connector Adapter, 7/16-N, Male-Female	RF Connector Adapter, 7/16-7/16, Male-Female	RF Connector Adapter, 7/16-7/16, Male-Female	RF Connector Adapter, N-7/16, Male-Female	RF Connector Adapter, PC3.5-7/16, Female-Male	RF Connector Adapter, TNC-7/16, Female-Male	RF Connector Adapter, TNC-7/16, Female-Male	RF Connector Adapter, PC3.5-7/16, Female-Male
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Adapter type	7/16-N	N-7/16	7/16-N	7/16-7/16	7/16-7/16	N-7/16	PC3.5-7/16	TNC-7/16	TNC-7/16	PC3.5-7/16
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	FEMALE-MALE	FEMALE-MALE	FEMALE-MALE	FEMALE-MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	33716	33N	33716	33716	33716	33N	33716	33716	33716	33716
Maximum operating frequency	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz	2.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	1	1	1
