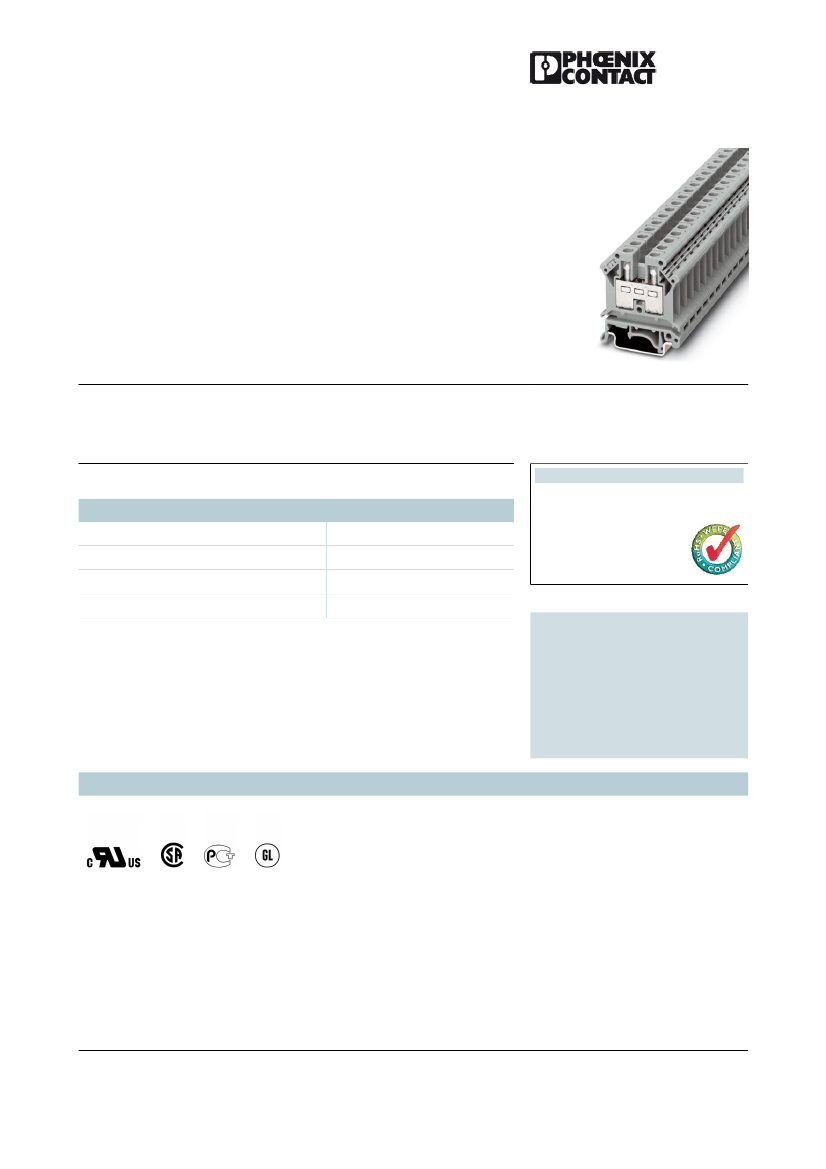

Extract from the online
catalog
UK 10
Order No.: 3005015
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005015
Feed-through modular terminal block, Type of connection: Screw
connection, Cross section: 0.5 mm² - 10 mm², AWG 20 - 8, Width: 8.2
mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
4017918090982
50 pcs.
85369010
0.015677 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Certificates / Approvals
WEEE/RoHS-compliant since:
01/01/2003
Certification
BV, CSA, CUL, DNV, GL, GOST, KR, LR, NK, RS, UL
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Mar 24, 2010
UK 10
Order No.: 3005015
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005015
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3003224
3022218
ATP-UK
CLIPFIX 35
Partition plate, Length: 56 mm, Width: 1.5 mm, Height: 59 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 35.9 mm,
Color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 47 mm,
Color: blue
End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail
Single covers, color: transparent
Single covers, for covering one terminal block, with black symbol
(lightning flash) snap fit, color: transparent/yellow
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
Designation
Description
600 V
50 A
26-8
600 V
50 A
26-8
600 V
55 A
26-8
3003020
3003101
1201442
1024014
1024085
1201028
1201280
1201358
1201002
D-UK 4/10
D-UK 4/10 BU
E/UK
EA 5
EA 5-WS
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Mar 24, 2010
UK 10
Order No.: 3005015
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005015
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
0204518
0204084
1302215
Bridges
0202154
0202141
0202138
0200020
0200059
0200046
0203263
1303337
0301534
0202235
0303286
Marking
1004128
1004212
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
STL 16/10
STL 35/10
TS-K
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Cross connector/bridge, Color: white aluminum
Cross connector/bridge, Color: white aluminum
Separating plate, Length: 22.7 mm, Height: 30.5 mm, Color: gray
EB 2- 8
EB 3- 8
EB 10- 8
FBI 2- 8
FBI 3- 8
FBI 4- 8
FBI 10- 8
IS-K 10
ISSBI 10- 8
SB 2- 8/13
SBJ 2- 8/13
Cross connector/bridge, Number of positions: 2, Color: gray
Cross connector/bridge, Number of positions: 3, Color: gray
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 2, Color: aluminum
Cross connector/bridge, Number of positions: 3, Color: aluminum
Cross connector/bridge, Number of positions: 4, Color: aluminum
Cross connector/bridge, Number of positions: 10, Color: silver
Bridge bar isolator, Color: gray
Switching jumper, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 2, Color: aluminum
Cross connector/bridge
WS 3- 8
WS 4- 8
Warning plate, with 2 plastic screws, across 3 terminal blocks,
pitch 8 mm
Warning plate, with 2 plastic screws, across 4 terminal blocks,
pitch 8 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Mar 24, 2010
UK 10
Order No.: 3005015
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005015
1004416
1050512
WS 5- 8
ZB 8:SO/CMS
Warning plate, with 2 plastic screws, across 5 terminal blocks,
pitch 8 mm
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
0311540
0303299
0303406
0303354
0303419
0303370
0303396
0303325
0303383
0303312
0303367
KSS 8
PSB 4/7/6
PSBJ 4/15/6 BK
PSBJ 4/15/6 BU
PSBJ 4/15/6 FARBLOS
PSBJ 4/15/6 GN
PSBJ 4/15/6 GY
PSBJ 4/15/6 RD
PSBJ 4/15/6 VT
PSBJ 4/15/6 WH
PSBJ 4/15/6 YE
Short circuit connector, Number of positions: 2, Color: black
Female test connector, Color: silver
Female test connector, Color: black
Female test connector, Color: blue
Female test connector, Color: transparent
Female test connector, Color: green
Female test connector, Color: gray
Female test connector, Color: red
Female test connector, Color: violet
Female test connector, Color: white
Female test connector, Color: yellow
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Mar 24, 2010
UK 10
Order No.: 3005015
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005015
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2010 Phoenix Contact
Technical modifications reserved;
